7 inch lcd screen 1024*600 With capacitive touch display HMI
$80.00 – $92.00- Model: HTM-H070A2-RGB-B06C-A01 V0
- Display pixels: 1024x600 Px
- External dimensions (mm): 186.90x108x10.0
- Backlight/brightness: 500cd/M2
- Interface method: RGB
- Working temperature: -30~80 ℃
- Power supply voltage: 5.5V
18.5" Industrial Panel Monitor with Capacitive Touch
$524.00- Model: TFT-H185E01FHIYZ8C30
- Display pixels: 1920x1080 Pixels
- Dimensions (mm): 450.0x272.0x5.0
- Brightness: 850cd/m2
- Interface: LVDS
- Operating temperature: -20~70℃
- Driver chip: ILI2510<CTP>
2.7" TFT LCD Smart Module with Capacitive Touch panel
$28.00- Model: HTM-H027A02-UART-A02C
- Display pixels: 172x428 Pixels
- Dimensions (mm): 25.0x113.0x7.24
- Brightness: 400cd/m²
- Interface: UART/RS485
- Operating temperature: -20~70℃
1.5 Inch TFT LCD Display RS485 module
$14.00- Model: HTM-H015A06-485-A01
- Display pixels: 172x320 px
- Dimensions (mm): 19.65x48.0x9.2
- Backlight/brightness: 300cd/m2
- Interface: RS485
- Operating temperature: -20~70℃
4 inch SPI LCD Module for Embedded Display
$21.60 – $29.60- Model: TFT-H040A27FWIST5N40
- Display pixels: 320x480 Px
- External dimensions (mm): 60.88x94.57x2.3
- Effective size (mm): 55.68x83.52
- Brightness: 500cd/m2
- Interface: MCU
- Working temperature: -30~80 ℃
- Driver chip: ST7365
16x2 Character LCD Display STN LCD Display Chip on Glass
$6.20 – $7.00- Model: HTG1602F
- Type: COG LCD MODULES
- Overall dimensions (mm): 49.7x25.3x2.0
- VA size (mm): 45.7x18.3
- Working temperature: -20~70℃
- Supply voltage: 3.0V
- Driver chip: ST7032I
4.3 Inch Sunlight Readable Screen RS232 TFT Display Module
$66.00 – $75.00- Model: COF-H043A26-UART-A01
- Display content: 800x480 Pixels
- Dimensions: 105.5(W)x67.15(H)x3.05(D)
- Backlight/brightness: 1000cd/m2
- Interface mode: UART
- Operating temperature: -30~80℃
2.4 inch Arduino RS485 Smart Display Module
$22.50 – $28.50- Model: HTM-H024B25-UART-A01
- Resolution: 240x320
- Dimensions (mm): 43.70x88.00x3.80
- Backlight/brightness: 350cd/m2
- Interface mode: UART
- Operating temperature: -20~70℃
- Supply voltage: 5.0V
3.12 inch 256x64 SSD1322 OLED Display with Arduino
$28.50 – $29.50- Model: HTM-OLED3.12-SPI
- Display type: 3.12 inch Graphic OLED module
- Display format: 256x64 pixels
- Appearance (mm): 102.0X35.0X7.0
- AA (mm): 76.7X19.2
- Supply voltage: 2.8V
- Interface: SPI
- Backlight brightness: 90cd/m2
- Compatibility: Arduino
- Controller model: SSD1322
- Operating temperature: -40°C~70°C
2.8 inch UART LCD Display Capacitive Touch
$28.00- Model: COF-H028B22-UART-01C
- Display pixels: 240x320 Pixels
- Dimensions (mm): 50x69.2x2.33
- Backlight/brightness: 500cd/m2
- Interface: UART
- Operating temperature: -20~70℃
160x160 Monochrome LCD FSTN COG Graphic Display Module
$30.00- Model: HTG160160F-31W
- Type:Monochrome graphics COG
- Overall dimensions (mm): 64.0x70.0x2.0
- VA size (mm): 60.0x60.0
- Interface mode: MCU
- Working temperature: -20~70℃
- Supply voltage: 3.3v
- Driver chip: UC1698
3.3" 128x128 COG LCD Display Module FSTN Positive 3.3V
$27.50- Model: HTG128128E-31W
- Type: 128*128 COG graphic dot matrix
- Dimensions (Mm): 66x71.5x4.85
- VA size (mm): 60.0x59.6
- Working temperature:- 20~70℃
- Supply voltage: 3.3V
- Driver chip: SSD1848
16x1 LCD Character Display 5.0V Arduino
$29.00 – $32.00- Model: HTM1601B-11Y
- Type: 16x1 Character LCD Display
- Overall dimensions (mm): 151.0x40.0x9.6
- Display size (mm): 114.0x14.54
- Working temperature: -20~70℃
- Power supply voltage: 5.0v
- Driver chip: ST7066U
STM32 TFT LCD 5.2 inch 416*1280 RGB Interface Full Color Display Module
$43.50- Model: TFT-H052A01ZAIST5N40_V1-0
- Display content: 416x1280 Pixels
- Dimensions (mm): 43.55x131.28x2.1
- Brightness: 500cd/m²
- Interface method:RGB
- Operating temperature: -30~80℃
- Driver chip: ST7701S
Monochrome OLED Display 0.96 inch 64x128
$4.60- Model: HTM-OLED096-SPI-W
- Display type: Graphic OLED module
- Display format: 64x128 pixels
- Appearance (mm): 24.0x30.0x2.42
- AA (mm): 10.86X21.74
- Supply voltage: 3.3V
- Interface: SPI
- Backlight brightness: 90cd/m2
- Compatibility: Arduino
- Controller model: SSD1312
- Operating temperature: -40°C~85°C
0.96 inch OLED Arduino Ultra Wide Temp
$10.00- Model: HTM-OLED0.96-SPI-03A
- Size: 0.96 inches diagonal
- Display format: 128x64 pixels
- Appearance (mm): 26.0x26.0x2.8
- AA (mm): 21.74x11.18
- Power supply voltage: 3.3V
- Interface: SPI
- Backlight brightness: 90cd/m2
- Compatibility: Arduino
- Controller model: SSD1315
- Operating temperature: -40°C~85°C
128×64 COG Display 2.2inch SPI
$10.50- Model: HTG12864T02A-31W
- Display pixels: 128x64 Pixels
- Overall dimensions (Mm): 53.2x37.8x2.8
- VA size (mm): 49.2x27.0
- Working temperature: -20~70℃
- Supply voltage: 3.3V
- Driver chip: ST7567
high brightness lcd panel 6.2 inch Wide Temperature TFT
$58.00 – $68.00- Model: TFT-H062A02WSIJD9N40
- Resolution: 1024x 600 Pixels
- Outline Dimensions（mm）: 155.3x88.3x4.7
- Backlight/Brightness: 900cd/m²
- Interface Type: RGB
- Operating Temperature: -30°C to 80°C
- Driver IC: JD9168
Industrial Display Board SPI/MCU-to-TTL
$50.00- Model: MOD-MCU2RGB-V0
- Dimensions（mm）：47.0x55.0x3.0
- Power Supply Voltage: 3.0V ± 0.3V
- Operating Temperature Range: -40°C to +85°C
- Supported Interfaces: SPI serial interface and 8/16-bit MCU parallel interface
- Supported TFT Displays: 16/24-bit RGB interface displays with a resolution of up to 1024 × 768
High Contrast 6.2 inch Monochrome LCD Monitor
- Model: HTM062A02-Mono
- Display pixels: 640X320 Px
- Overall dimensions (Mm): 165.4X92.4X5.8
- Backlight/Brightness: 500cd/M²
- Interface mode: MCU
- Working temperature: -20~70℃
3.5 Inch LCD Display Monochrome 240×320
$40.50- Model: TFT-H035B23QVIST3N30-WLED-V1
- Display pixels: 240x320 Pixels
- Overall dimensions (Mm): 65.58x82.74x7.8
- Backlight/Brightness: 350cd/M²
- Interface mode: MCU
- Working temperature: -30~85℃
- Driver chip: ST7512
5.5 Inch Capacitive Touch LCD MIPI 720*1280
$56.00- Model: TFT-H055A05HDISTGN40
- Display Pixels: 720x1280 Pixels
- Dimensions: 72.0x129.75x3.77mm
- Backlight/Brightness: 450cd/m²
- Interface: MIPI
- Operating Temperature: -20°C to 60°C
- Driver IC: ST7121P <InCell TFT>
lcd display board that converts LVDS to RGB
$50.00- Model: LVDS converter board 1-V0
- Power Supply Voltage: 5V ± 0.1V / 1A
- Input Clock Frequency: 20 MHz – 85 MHz
- Input Clock Period: 11.76 ns – 50 ns
- Input Signals: 4 LVDS data streams and 1 LVDS clock signal (compliant with EIA/TIA-644 standard)
- Output Signals: 28-bit LVTTL/LVCMOS data and 1 LVTTL/LVCMOS clock signal
- Total Data Rate: 2380 Mbps
- ESD Capability: 2 kV
- Operating Temperature Range: -30°C – 80°C
8 inch Raspberry PI LCD 1024x768 Monitor
$120.00 – $140.00- Model: HTM-H080D13-HI-A01G
- Display pixels: 1024x768 Pixels
- Overall dimensions (mm): 197.0x155.0x23.4
- Backlight/Brightness: 300cd/M2
- Interface: HI
- Working temperature: -20~70℃
3.5 Inch IPS Display ST7796S For Arduino
$15.00 – $27.00- Model: TFT-H035A3HVIST5N50
- Display pixels: 320x480 Pixels
- Dimensions (mm): 54.76x83.58x2.5
- Brightness: 450cd/m2
- nterface: compatible with multiple interfaces
- Working temperature: -20~70℃
- Driver chip: ST7796S
4 inch LCD Touch Screen Raspberry PI square screen
$108.00- Model: HTM-H040A24-HI-T V0.0
- Display pixels:720x720 Pixels
- Overall dimensions (mm): 84x84x0.7
- Brightness: 350cd/m²
- Interface: HI
- Working temperature: -20~70℃

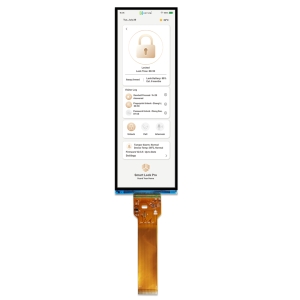

7.8-inch Optical Bonding Display MIPI DSI Interface
$57.00 – $87.00- Model: TFT-H078B06ZAISTTC40
- Display pixels: 400x1280
- Dimensions (mm): 67.8x205.78x6.4
- Brightness: 1500cd/m2
- Interface: MIPI
- Working temperature: -30~70℃
- Driver chip: ST7703
7 inch IPS display with 280x1424 RGB
$56.00- Model: TFT-H070A18ZBINV7N40
- Display pixels: 280x1424 Px
- Overall dimensions (mm): 38.20x182.47x3.45
- Brightness: 750cd/M2
- Interface: RGB
- Working temperature: -30~80℃
- Driver chip: NV3052C
