128X64 Graphic LCD Module With White Backlight for Arduino
- Model: HTM12864A-25W-N5P
- Type: 128x64 Graphic LCD Module
- Dimensions (mm): 113.0x65.0x12.7
- VA Dimensions (mm): 72.0x39.5
- Operating Temperature: -20~70℃
- Power Supply Voltage: 5.0V
- Driver Chip: KS0108 + KS0107
160x160 Monochrome LCD FSTN COG Graphic Display Module
$30.00- Model: HTG160160F-31W
- Type:Monochrome graphics COG
- Overall dimensions (mm): 64.0x70.0x2.0
- VA size (mm): 60.0x60.0
- Interface mode: MCU
- Working temperature: -20~70℃
- Supply voltage: 3.3v
- Driver chip: UC1698
122x32 Graphic LCD display Module FSTN(+) With Yellow-Green Backlight
- Model: HTM12232Z-31W
- Type: 122x32 Graphic LCD
- Display content: 122x32
- Overall dimensions (mm): 84.0x44.0x13.9
- VA size (mm): 60.0x18.0y
- Working temperature: -20~70℃
- Supply voltage: 5.0V
- Driver chip: ST7920
132x32 Graphic LCD Display Module
$20.00- Model: HTM13232A-31w-N3P-V01
- Type:132x32 Graphic LCD module
- Display pixels: 132x32
- Overall dimensions (mm): 80.0x34.99x8.0
- VA size (mm): 64.60x18.98
- Working temperature: -20~70℃
- Supply voltage: 3.3V
- Driver chip: ST7565R
2.7" TFT LCD Smart Module with Capacitive Touch panel
$28.00- Model: HTM-H027A02-UART-A02C
- Display pixels: 172x428 Pixels
- Dimensions (mm): 25.0x113.0x7.24
- Brightness: 400cd/m²
- Interface: UART/RS485
- Operating temperature: -20~70℃
1.54 inch TFT LCD Display Module with UART
$20.00- Model: HTM-H015A2-UART-A02
- Display Pixels: 240x240
- Dimensions (mm): 45.0x58.0x1.95
- Brightness: 350cd/m²
- Interface: UART
- Operating Temperature: -20~70℃
4.3 Inch Sunlight Readable Screen RS232 TFT Display Module
$66.00 – $75.00- Model: COF-H043A26-UART-A01
- Display content: 800x480 Pixels
- Dimensions: 105.5(W)x67.15(H)x3.05(D)
- Backlight/brightness: 1000cd/m2
- Interface mode: UART
- Operating temperature: -30~80℃
2.4 inch Arduino RS485 Smart Display Module
$22.50 – $28.50- Model: HTM-H024B25-UART-A01
- Resolution: 240x320
- Dimensions (mm): 43.70x88.00x3.80
- Backlight/brightness: 350cd/m2
- Interface mode: UART
- Operating temperature: -20~70℃
- Supply voltage: 5.0V
3.3" 128x128 COG LCD Display Module FSTN Positive 3.3V
$27.50- Model: HTG128128E-31W
- Type: 128*128 COG graphic dot matrix
- Dimensions (Mm): 66x71.5x4.85
- VA size (mm): 60.0x59.6
- Working temperature:- 20~70℃
- Supply voltage: 3.3V
- Driver chip: SSD1848
High Contrast 6.2 inch Monochrome LCD Monitor
- Model: HTM062A02-Mono
- Display pixels: 640X320 Px
- Overall dimensions (Mm): 165.4X92.4X5.8
- Backlight/Brightness: 500cd/M²
- Interface mode: MCU
- Working temperature: -20~70℃
3.5 Inch LCD Display Monochrome 240×320
$40.50- Model: TFT-H035B23QVIST3N30-WLED-V1
- Display pixels: 240x320 Pixels
- Overall dimensions (Mm): 65.58x82.74x7.8
- Backlight/Brightness: 350cd/M²
- Interface mode: MCU
- Working temperature: -30~85℃
- Driver chip: ST7512
5.5 Inch Capacitive Touch LCD MIPI 720*1280
$56.00- Model: TFT-H055A05HDISTGN40
- Display Pixels: 720x1280 Pixels
- Dimensions: 72.0x129.75x3.77mm
- Backlight/Brightness: 450cd/m²
- Interface: MIPI
- Operating Temperature: -20°C to 60°C
- Driver IC: ST7121P <InCell TFT>
4 inch LCD Touch Screen Raspberry PI square screen
$108.00- Model: HTM-H040A24-HI-T V0.0
- Display pixels:720x720 Pixels
- Overall dimensions (mm): 84x84x0.7
- Brightness: 350cd/m²
- Interface: HI
- Working temperature: -20~70℃
2.23 Inch OLED module arduino SSD1305
$11.50- Model: HTM-OLED2.23-SPI-G
- Display type: 2.23 Inch OLED module
- Display format: 128x32 pixels
- Appearance (mm): 72.0x39.7x6.0
- AA (mm): 55.02x13.1
- Supply voltage: 3.3V
- Interface: SPI
- Backlight brightness: 90cd/m2
- Compatibility: Arduino
- Controller model: SSD1305
- Operating temperature: -40°C~85°C
128x64 OLED 2.42 inch SSD1309 module
$14.50- Model: HTM-OLED2.42-SPI-G
- Display type: 128x64 green graphics OLED module
- Display format: 128x64 pixels
- Appearance (mm): 72x43x7.02
- AA (mm):55.01x27.49
- Supply voltage: 3.3V
- Interface: SPI
- Backlight brightness: 90cd/m2
- Compatibility: Arduino
- Controller model: SSD1309
- Operating temperature: -40°C ~ 80°C
4.8 Inch Bar Type LCD Display 480x1120
- Model: TFT-H048A02ZAIJD3N40
- Display pixels: 480x1120 Pixels
- Dimensions (mm): 51.46x119.67x2.08
- Brightness: 350cd/m2
- Interface: RGB 24bit
- Working temperature: -30~80℃
- Driver chip: T.B.D
2.7 Inch Square LCD Display With ST7796
- Model: TFT-H027A01HQINV4N40
- Display pixels: 320x320 Pixels
- Dimensions (mm): 53.40x59.9x2.27
- Brightness: 750cd/m2
- Interface: MCU/SPI
- Working temperature: -30~80℃
- Driver chip: ST7796
16x2 Character LCD Module Blue Display
$6.00- Model:HTM1602A-25W
- Type:16x2 Character LCD Modules
- Overall dimensions (mm): 80.0x36.0x13.1
- VA size (mm): 64.5x15.8
- Working temperature: -20~70℃
- Power supply voltage: 5.0v
- Driver chip: ST7066U
lcd 128x64 FSTN+Positive With White Backlight
- Model: HTM12864K-31W
- Type: 128x64 Graphic LCD Display
- Overall dimensions (mm): 75X52.7X8.5
- VA size (mm): 60X32.6
- Working temperature: -20~70℃
- Supply voltage: 5.0V
- Driver chip: SBN0064G

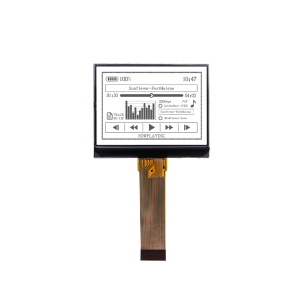

240x160 COG LCD display FSTN-Positive With White Backlight
- Model: HTG240160L-31W
- Type: 240x160 COG Graphic Dot Matrix
- Dimensions (mm): 60.0x49.5x5.6
- VA Size (mm): 56.0x38.7
- Operating Temperature: -20~70℃
- Supply Voltage: 3.3V
- Driver Chip: UC1698U
lcd 128x128 Display STN-Negative With White Backlight
- Model: HTG128128A-25W
- Type: COG graphic lattice
- Overall dimensions (mm): 55.0x49.0x4.6
- VA size (mm): 46.0x44.5
- Working temperature: -20~70℃
- Supply voltage: 3.0V
- Driver chip: UC1617S
2.4 inch lcd display with ST7701S full viewing angle
$30.00 – $38.00- Model: TFT-H024A13VGIST5N40
- Display pixels: 480x640 Pixels
- Overall dimensions (mm): 42.72x60.26x2.24
- Brightness: 500cd/M²
- Interface: RGB
- Working temperature: -30~80℃
- Driver chip: ST7701S
16x2 Character LCD Display STN positive With Yellow-Green Backlight
- Model: HTM1602-10-11Y-T5P
- Type: 16x2 character LCD module
- Overall dimensions (mm): 85.0x29.5x13.1
- Backlight type: yellow-green light
- Working temperature: -20~70℃
- Power supply voltage: 5.0V
- Driver chip: ST7066U
16x1 Character LCD Display Module With White backlight
- Model: HTM1601A-24W-A5P
- Type: 16x1 character LCD Modules
- Overall dimensions (mm): 80.0x36.0x13.1
- Backlight: white light
- Working temperature: -20~70℃
- Supply voltage: 5.0v
- Driver chip:ST7066U
3.5 Inch Smart UART TFT LCD Display Module
$34.00 – $42.00- Model: ATFLet035 V40
- Display pixels: 320x480
- Dimensions (mm): 98x56x4.2
- Backlight/brightness: white LED
- Interface: UART
- Operating temperature: -20~70℃
3.12 inch 256x64 SSD1322 OLED Display with Arduino
$28.50 – $29.50- Model: HTM-OLED3.12-SPI
- Display type: 3.12 inch Graphic OLED module
- Display format: 256x64 pixels
- Appearance (mm): 102.0X35.0X7.0
- AA (mm): 76.7X19.2
- Supply voltage: 2.8V
- Interface: SPI
- Backlight brightness: 90cd/m2
- Compatibility: Arduino
- Controller model: SSD1322
- Operating temperature: -40°C~70°C
Monochrome OLED Display 0.96 inch 64x128
$4.60- Model: HTM-OLED096-SPI-W
- Display type: Graphic OLED module
- Display format: 64x128 pixels
- Appearance (mm): 24.0x30.0x2.42
- AA (mm): 10.86X21.74
- Supply voltage: 3.3V
- Interface: SPI
- Backlight brightness: 90cd/m2
- Compatibility: Arduino
- Controller model: SSD1312
- Operating temperature: -40°C~85°C
0.96 inch OLED Arduino Ultra Wide Temp
$10.00- Model: HTM-OLED0.96-SPI-03A
- Size: 0.96 inches diagonal
- Display format: 128x64 pixels
- Appearance (mm): 26.0x26.0x2.8
- AA (mm): 21.74x11.18
- Power supply voltage: 3.3V
- Interface: SPI
- Backlight brightness: 90cd/m2
- Compatibility: Arduino
- Controller model: SSD1315
- Operating temperature: -40°C~85°C
