0.96" TFT LCD Display Module with ST7735S Driver | Arduino/Raspberry Pi
0.97-inch mini black and white electronic paper | Resolution 184x88
$4.00- Model: HTE-097-18488-0
- Type: black and white electronic paper
- Resolution: 184x88
- Driver IC: SSD1680
- Dimensions (mm): 30.0x14.15x1.0
- VA size (mm): 22.26x10.65
- Pixel pitch (mm): 0.121x0.121
- Operating temperature: 0℃~50℃
- Storage temperature: -25℃~70℃
- Connector: 18Pin FPC
- Maximum grayscale: 4 (refresh time 2s)
- Color: black and white
- Operating voltage: 3.3V
- Power consumption (mW): 6
- Standby power consumption (mV): 0.03
1.1 Inch 135x240 TFT LCD Display Module With MIPI DSI Interface
- Model: TFT-H011A1QCIFT5N15
- Display Pixels: 135x240 dot matrix
- Dimensions (mm): 17.60x31.0x1.65
- Brightness: 500 cd/m²
- Interface: MIPI
- Operating Temperature: -20~70℃
- Driver Chip: JD9852
1.1 inch TFT LCD | 135x240 SPI interface | ST7789H2 Controller
- Model: TFT-H011A1QCIST3N10
- Display pixels: 135x240
- Dimensions (mm): 17.60x31.0x1.65
- Brightness: 350cd/m2
- Interface: SPI-4L
- Working temperature: -20~70℃
- Driver chip: ST7789H2

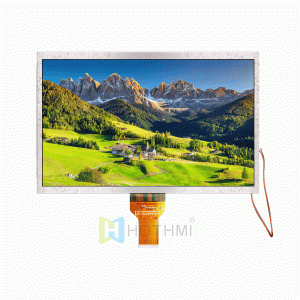

10.1 Inch Sunlight Readable TFT LCD Display With LVDS Interface
$42.80 – $57.80- Model: TFT-H101A9WSIFTKN40
- Display content: 1024X600
- Dimensions (mm): 235.00x143x6.9
- Backlight type or brightness：1000cd/m2
- Interface method: LVDS
- Working temperature: -30~80℃
- Driver chip: EK79001+EK73215(TFT)
11.6 Inch TFT LCD Display Module | 1920x1080 With eDP Interface Sunlight Readable
- Model: TFT-H116D01FHIWZKN30
- Display Content: 1920x1080 pixels
- External Dimensions (mm): 267.72x164.42x6.15
- Brightness: 1000cd/m2
- Interface Method: eDP
- Operating Temperature: -20~70℃
- TFT driver IC:T.B.D
128X64 Graphic LCD Module With White Backlight for Arduino
- Model: HTM12864A-25W-N5P
- Type: 128x64 Graphic LCD Module
- Dimensions (mm): 113.0x65.0x12.7
- VA Dimensions (mm): 72.0x39.5
- Operating Temperature: -20~70℃
- Power Supply Voltage: 5.0V
- Driver Chip: KS0108 + KS0107
132x32 Graphic LCD Display Module
$9.50- Model: HTM13232A-31w-N3P-V01
- Type:132x32 Graphic LCD module
- Display pixels: 132x32
- Overall dimensions (mm): 80.0x34.99x8.0
- VA size (mm): 64.60x18.98
- Working temperature: -20~70℃
- Supply voltage: 3.3V
- Driver chip: ST7565R
16x1 Character LCD Display Module With White backlight
- Model: HTM1601A-24W-A5P
- Type: 16x1 character LCD Modules
- Overall dimensions (mm): 80.0x36.0x13.1
- Backlight: white light
- Working temperature: -20~70℃
- Supply voltage: 5.0v
- Driver chip:ST7066U
16x2 Character LCD Display Module With Backlight
- Model: HTM1602-12-09N-A3P
- Type: 16x2 character LCD module
- Overall dimensions (mm): 72.0x36.0x10.1
- VA size (mm): 64.5x16.0
- Working temperature: -20~70℃
- Power supply voltage: 3.3V
- Driver chip: ST7066U
2.0 inch IPS TFT LCD Display With MCU Interface
- Model: TFT-H020A4QVIST6N40
- Display pixels: 240x320 Px
- Overall dimensions (mm): 35.7x51.2x2.3
- Brightness: 600cd/M2
- Interface: MCU
- Working temperature: -30~85℃
- Driver chip: ST7789V
2.0-inch 128x64 COG LCD | STN-Blue background white text LCD | Transmissive polarizer | Arduino
- Model: HTG12864-132-31W-30c05-V01
- Type:128x64 COG graphic dot matrix
- Dimensions (mm): 50.2x39.2x6
- VA size (mm): 44.0x29.0
- Operating temperature: -20~70℃
- Supply voltage: 3.3V
- Driver chip: ST7567A
20x4 Character LCD Modules | STN (+) With Yellow-green Backlight
- Model: HTM2004C-11Y-A5P
- Product type: 5.0 inch 20x4 LCD Character Modules
- Dimensions (mm): 146X62.5X12.6
- Viewing window size (mm): 123X43
- Backlight: yellow-green light
- Operating temperature: -20~70℃
- Supply voltage: 5.0v
- Driver chip: ST7066U
21.5 Inch TFT Monitor | 1920x1080 Resolution with Capacitive TouchScreen
$360.00- Model: G03-21_5
- Dot matrix: 1920x1080
- Overall dimensions (mm): 526.0x319.2x48.0
- Display viewing angle: IPS
- Brightness:400cd/m2
- Interface: DVI/HDM/DP/VGA
- Working temperature: -20~70℃
3.0 inch TFT Panel | 360x640 EzUI TFT Screen | RS485 TFT Module
- Model: HTM-H030A9-RS485-A01
- Display pixels: 360x640
- Dimensions (mm): 43.69x100.0x10.0
- Backlight/brightness: 350cd/m2
- Interface: RS485
- Operating temperature: -20~70℃
- Supply voltage: 3.3V

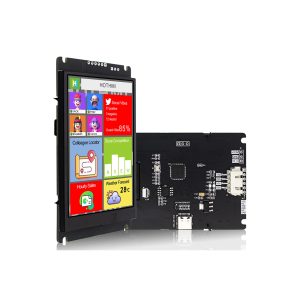

3.5 Inch Smart UART TFT LCD Display Module
$16.80 – $24.00- Model: ATFLet035 V40
- Display pixels: 320x480
- Dimensions (mm): 98x56x4.2
- Backlight/brightness: white LED
- Interface: UART
- Operating temperature: -20~70℃
4.3 inch TFT Display Capacitive Touch Screen with NV3041 Controller
$15.00 – $22.00- Model: TFT-H043B29WQIST8C22
- Display pixels: 480x272
- Dimensions (mm): 105.4x67.34x4.51
- Brightness: 800cd/m2
- Interface: MCU
- Working temperature: -30~80℃
- Driver chip: NV3041
4.3-inch Smart TFT LCD Display Module
$26.60 – $35.25- Model: HTM-H043A10-A5-UART
- Display pixels: 800x480
- Dimensions (mm): 122.5x73.2x5.0
- Backlight/brightness: 500cd/m2
- Interface mode: UART
- Operating temperature: -20~70℃
- Driver chip: ST7262

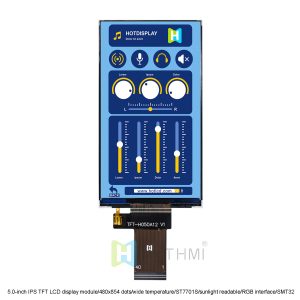

5.0 inch 480x854 TFT LCD Display Module With ST7701S Controller
$16.20 – $23.00- Model: TFT-H050A12FWIST4C40
- Show contents(mm)：480x854
- Outline size(mm) ：72x122.25x4.15
- Backlight type or brightness：400cd/m2
- Interface mode：RGB+SPI
- Working temperature：-20~70℃
- Driver chip model：ST7701S
6.2 Inch High Brightness TFT LCD Display With MIPI Interface
- Model: TFT-H062A02WSIJDGN30
- Display pixels: 1024x600 Px
- External dimensions (mm): 155.3x88.3x4.7
- Brightness: 1700cd/m2
- Interface: MIPI/LVDS
- Working temperature: -30~80 ℃
- Driver chip: NV3051
6.86-inch TFT LCD Display Module with Serial UART Interface
$50.50 – $66.00- Model: HTM-H068A04-UART-A01C
- Display content: 480x1280
- External dimensions (Mm): 73.5x210.0x.9.25
- AA size (Mm): 60.192x160.512
- Backlight type or brightness: 800cd/M2
- Interface method: UART/RS232
- Working temperature: -20~70 ℃

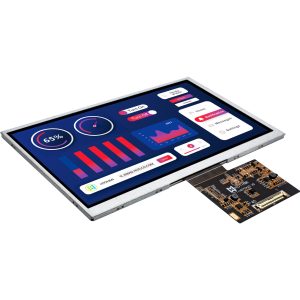

7 inch TFT LCD Display IPS High-brightness LVDS Interface
$20.30 – $30.30- Model: TFT-H070A22WSIJD8N40
- Display pixels: 1024x600 px
- Dimensions (mm): 164.9X100.0X3.5
- Backlight/brightness: 800cd/m2
- Interface: LVDS 1 Port (8 Bit)
- Operating temperature: -20~70℃
7.84 Inch TFT LCD Display Module - 1280x400 Resolution, UART Interface
$58.80 – $75.00- Model: HTM-H078A02-UART-A01C
- Display content: 1280x400
- External dimensions (Mm): 227.5x69.1x11.0
- Backlight type or brightness: 600cd/M2
- Interface method: UART
- Working temperature: -20~70 ℃
8" Capacitive Touch TFT LCD Display | 800x1280 Resolution With MIPI DSI Interface
$27.00 – $38.00- Model: TFT-H080A11HDIFT4C30
- Display pixel: 800x1280 dot matrix
- Dimensions (mm): 124.6x194.1x4.7
- Brightness: 450cd/m2
- Interface: MIPI 4L
- Working temperature: -20~70 ℃
- Driver chip: JD963
