What is Segment display?

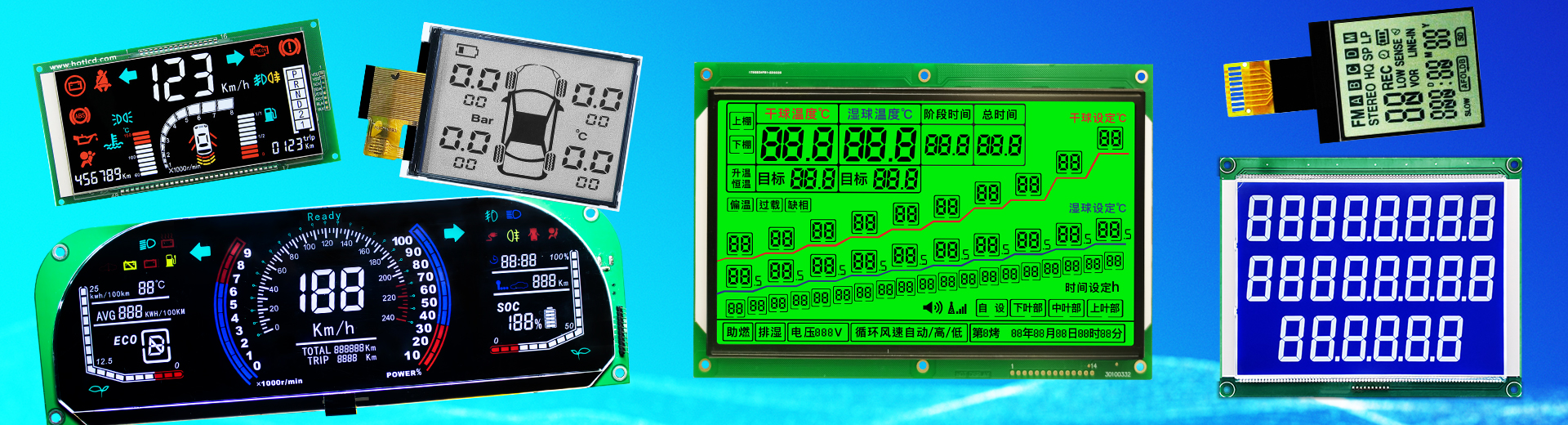

Customized Segment LCDs are a type of display device that presents simple characters, numbers, and basic symbols by controlling the display or hiding of fixed display segments (the number can be designed according to requirements, not limited to 7 segments) at specific positions. The number and arrangement of display segments can be flexibly designed according to application scenarios (such as 7 segments, 14 segments, 16 segments, etc.) to adapt to different character display needs.
It is primarily used as an alternative to LED digital tubes and is commonly found in devices such as calculators, clocks, and landline telephones.It is primarily used as an alternative to LED digital tubes and is commonly found in devices such as calculators, clocks, and landline telephones. It is suitable for applications where the displayed content is simple and primarily consists of numbers. Common modes include TN/STN/FSTN/VA.Customized Segment LCDs are highly customizable. You simply need to provide HOTHMI with the dimensions and display content, and we will tailor it specifically for you.
Showing the single result

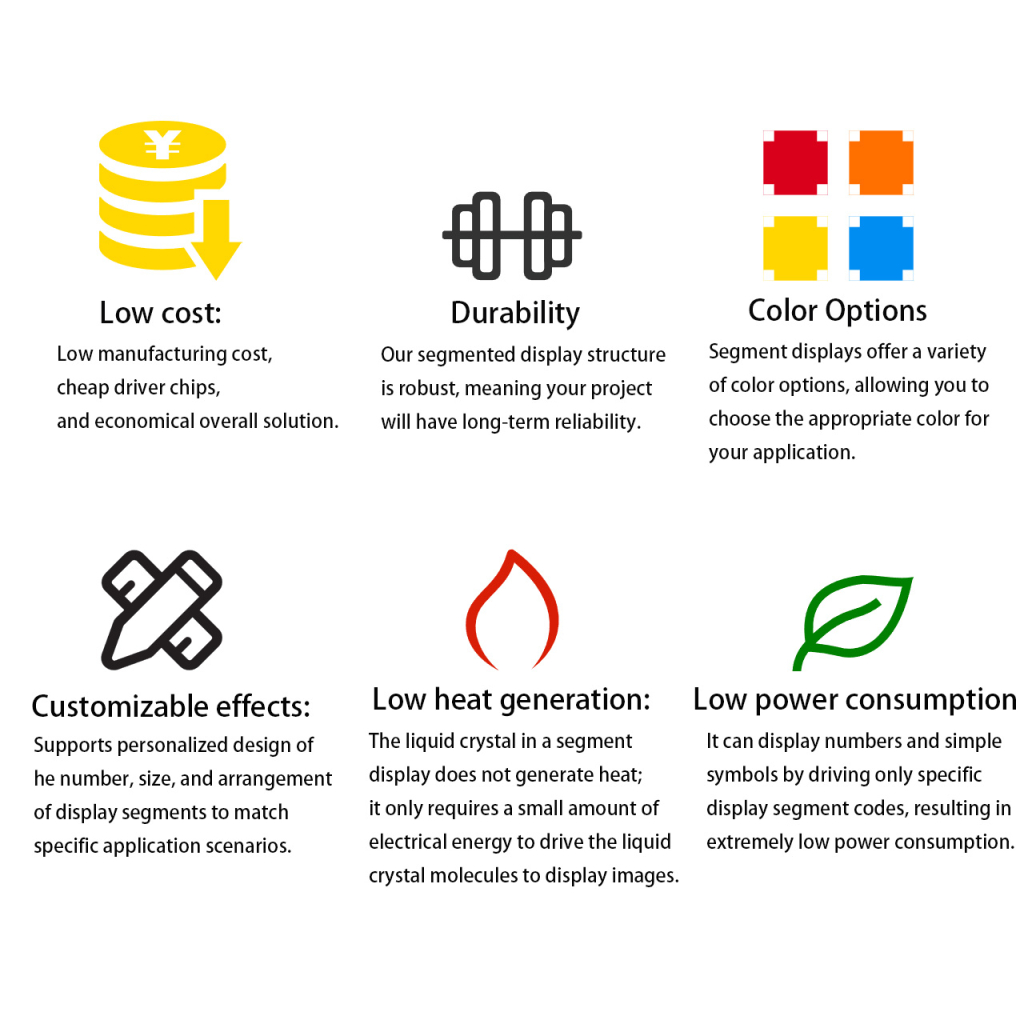

What are thefeature of a customized Segment LCDs?
- Law cost
- Durability
- Color Options
- Customizable effects
- Low heat generation
- Low power consumption
What kind of customization services can HOTHMI offer for your segment LCD?
- Customizable segmented display body: Supports customization of any number of display segments (7 segments, 14 segments, 16 segments, etc.), size specifications, and display arrangement，avoiding the need for customers to change their product dimensions to accommodate the display.
- Customized segment LCD displayFPC cables: Customizable cable shape, length, and material.
- Printed protective cover color and pattern: Various colors of text or patterns can be printed on the segmented LCD display according to customer requirements. Wide color gamut, moderate color temperature, diverse options, and customizable color or monochrome segmented LCD displays are available.
What are the differences between TN/STN/FSTN/VA modes in customized Segment LCDModule?
TN, HTN, STN, FSTN, and DFSTN segment LCDs have different twist
| Type | Twist angle range | Display Mode / Background Characteristics | Core description |
| TN | Typically 90° | Positive，Negative | Basic type, simple structure, low cost |
| HTN | 90-120° | The display mode is similar to TN, with more stable contrast. | TN optimization |
| STN | 180-270° | Multiple display modes including yellow-green mode, blue mode, and gray mode. | With a large distortion angle and a better viewing angle than TN/HTN, it displays rich colors. |
| FSTN | 180-270° | Black or white background significantly improves contrast and readability. | STN derivatives optimize display performance by adding a film compensation layer. |
| DFSTN | 180-270° | Black and white display effect | An advanced derivative of STN, it adopts a dual FSTN structure to further improve the black and white display effect. |
Viewing angle of segment LCD displays: TN < HTN < VA < STN & FSTN (DFSTN-)
Comparison of segment LCD display response speed: TN > HTN > STN > FSTN > VA
segment LCD display LCD contrast ratio: VA > FSTN (DFSTN) > STN > HTN > TN
What are some common problems with customized Segment LCDs? How can they be solved?
| segment LCD display Problems | Reason | Solution |
| Ghosting | Unstable voltage/Impedance uniformity of PIN diodes | Adjust the voltage or internal wiring |
| Missing paintings | Production defects caused by the exposure and etching process, resulting in missed inspections | Strengthen testing and full inspection |
| Leakage | frame printing process and the vacuum encapsulation process | Strengthen production control |
With over 20 years of manufacturing history, HOTHMI provides effective solutions to all of the above problems for segment LCD display, and every product undergoes strict quality control!
Where customized Segment LCDscan be used？
customized Segment LCDs, with their advantages of simple structure, high readability, extremely low power consumption, and controllable cost, are widely used in various scenarios requiring concise display of numbers or characters.
- Digital instruments and equipment: multimeters, thermometers, hygrometers, ammeters, etc., providing clear, low-power real-time data readings;
- Consumer electronics products: calculators, digital clocks, electronic watches, radios, remote controls, etc., adapted to battery power requirements and extend battery life;
- Home appliance control panels: air conditioners, refrigerators, washing machines, microwave ovens, etc., displaying key parameters such as operating status, time, and temperature;
- Industrial control equipment: counters, tachometers, flow meters, access control systems, etc., adapted to the stability and readability requirements of industrial scenarios;
- Automotive electronics: Onboard thermometers, fuel level displays, odometers, etc., with anti-interference and high/low temperature resistance feature.（H2）FAQ about customized Segment LCDs
FAQS about Segment LCD
Q:How to choose between a customized Segment LCD screen and a character LCD based on your needs?
A:If you only need to display numbers and a few fixed symbols, and you are looking for low cost and simple driving (only a decoder is required), a segmented display screen is preferred;
if you need to display full ASCII characters and short text, and you can accept slightly higher costs and dot matrix driving, then a character LCD is more suitable.
Q:What kind of customized services do you offer?
