MCU displays, also known as parallel interface screens, reduce the computational load on industrial microcontrollers via built-in display RAM, making them an ideal choice for low-power industrial controllers, smart thermostats, and small instruments. This interface simplifies the hardware architecture, allowing developers to achieve rich color graphical interfaces with minimal system resources. HOTHMI provides industrial customers with a wide variety of MCU interface modules supporting 8-bit or 16-bit parallel buses, significantly lowering the development threshold for industrial equipment.

Choosing HOTHMI means gaining an optimized industrial display integration solution, supported by our long-term supply guarantee and detailed technical manuals to ensure your products remain technically advanced and easy to maintain throughout their lifecycle.

Showing all 13 results

Show
Sort

2 inch display With MCU Wide temperature

Original price was: $12.00.Current price is: $10.00.
  • Model: TFT-H020A4QVIST6N40
  • Display pixels: 240x320 Pixels
  • Overall dimensions (mm): 35.7x51.2x2.3
  • Brightness: 600cd/m²
  • Interface: MCU
  • Working temperature: -30~85℃
  • Driver chip: ST7789V

2.3 inch TN TFT LCD 320x240 MCU ILI9342C

Original price was: $14.00.Current price is: $13.00.
  • Model: TFT-H023A62LQTIL2N30
  • Display Pixels: 320x240
  • Dimensions: 51.0x45.8x2.3
  • Backlight/Brightness: 400cd/m2
  • Interface: MCU
  • Operating Temperature: -20~70℃
  • Driver Chip: ILI9342C

2.4 inch tft display high brightness

$16.50$22.50
  • Model: TFT-H024A1QVIST8N40
  • Display pixels: 240x320 Pixels
  • Dimensions (mm): 42.52x59.86
  • Brightness: 800cd/m2
  • Interface: MCU interface compatible with SPI
  • Operating temperature: -30~80℃
  • Driver chip: ST7789V

2.4 inch tft lcd display ST7789

$7.00$13.00
  • Model: TFT-H024A24QVTST3N37
  • Display pixels: 240x320
  • Dimensions (mm): 42.72x60.26x2.5
  • Backlight/brightness: 350cd/m2
  • Interface mode: MCU
  • Operating temperature: -20~70℃
  • Driver chip: ST7789

2.4inch st7789 display Outdoor MCU

$38.00$56.00
  • Model: TFT-H024A22AVIST1N40
  • Display pixels: 240x320 Pixels
  • Overall dimensions (mm): 42.72x58.65x2.61
  • Brightness: 100cd/m2
  • Interface: MCU
  • Working temperature: -30~80℃
  • Driver chip: ST7789

2.7 Inch Square LCD Display With ST7796

Original price was: $25.00.Current price is: $23.00.
  • Model: TFT-H027A01HQINV4N40
  • Display pixels: 320x320 Pixels
  • Dimensions (mm): 53.40x59.9x2.27
  • Brightness: 750cd/m2
  • Interface: MCU/SPI
  • Working temperature: -30~80℃
  • Driver chip: ST7796

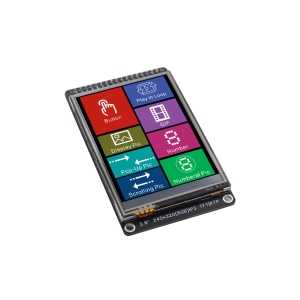

2.8 inch lcd display ST7789V

$16.50$24.00
  • Model: TFT-H028A1QVIST6N40
  • Display content: 240X320 Pixels
  • Dimensions (mm): 50.0*69.2*2.3
  • Backlight type or brightness:600cd/M2
  • Interface method: 8080 MCU 8/16 Bit / SPI 3L/4L
  • Operating temperature: -20~70℃
  • Driver IC: ST7789V

2.8 inch screen TN TFT LCD With MCU

$7.00$13.00
  • Model: TFT-H028A17QVTST2N37
  • Display content: 240*320
  • Dimensions (mm): 50.0*69.2*2.3
  • Backlight: 250cd/m2
  • Interface method: MCU
  • Operating temperature: -20~70℃
  • Supply voltage: 2.8 V
  • Driver chip: ST7789

3.5 inch Capacitive Touch Screen 320*480 TFT

$15.00$29.00
  • Model: TFT-H035A37HVIST5C40
  • Display Pixels: 320x480 Pixels
  • Dimensions: 54.46x82.94x3.79mm
  • Backlight/Brightness: 500cd/m²
  • Interface: MCU
  • Operating Temperature: -20°C to 70°C
  • Driver IC: ST7365P

3.5 Inch LCD Display Monochrome 240×320

$40.50
  • Model: TFT-H035B23QVIST3N30-WLED-V1
  • Display pixels: 240x320 Pixels
  • Overall dimensions (Mm): 65.58x82.74x7.8
  • Backlight/Brightness: 350cd/M²
  • Interface mode: MCU
  • Working temperature: -30~85℃
  • Driver chip: ST7512

4.3 inch TFT Display Capacitive Touch Panel

$30.00$44.00
  • Model: TFT-H043B29WQIST8C22
  • Display pixels: 480x272 Pixels
  • Dimensions (mm): 105.4x67.34x4.51
  • Brightness: 800cd/m2
  • Interface: MCU
  • Working temperature: -30~80℃
  • Driver chip: NV3041

5 inch display 480x854 With Capacitive Touchscreen

$33.00$41.00
  • Model: TFT-H050A26FWILT5C40
  • Display pixels: 480x854 Pixels
  • Dimensions: 68.5x133.0x4.71
  • Backlight: 500cd/m2
  • Interface: MCU
  • Operating temperature: -20~70℃
  • Driver IC: GT911 <CTP>

High Contrast 6.2 inch Monochrome LCD Monitor

  • Model: HTM062A02-Mono
  • Display pixels: 640X320 Px
  • Overall dimensions (Mm): 165.4X92.4X5.8
  • Backlight/Brightness: 500cd/M²
  • Interface mode: MCU
  • Working temperature: -20~70℃
