What is character LCD display？
The character LCD display is a “plug-and-play” character LCD display module solution. It integrates an LED dot matrix, driver circuitry, and most importantly, a built-in character library, allowing developers to implement standard character displays in the simplest way. It’s the perfect choice when your project only needs to display clear English characters, numbers, and symbols, and you want a fast and simple development process.
What character LCD display does HOTHMI offer?
HOTHMI offers character dot matrix modules ranging from 8×2 to 40×4, with glass panel types including STN positive, STN negative, FSTN, DFSTN negative, and VA. A wide variety of backlight colors are available, including common options such as yellow-green, green, white, and orange; multiple viewing angles are offered, including 6:00, 12:00, 3:00, and 9:00 o’clock; and the character LCD display module character sets include English/Japanese, Western European, Eastern European, Cyrillic, and Hebrew/Arabic.
Showing all 4 results
What is the structural composition of a character LCD display?
From the above structural diagram of the Character LCD display, we can see that a complete Character LCD display module is composed of a frame,Zebra Stripe,PCB Board with Control IC,Pin Interface and Protective Film.A reliable structure determines the stability and drop resistance of the character LCD display module.
- Frame：The frame protects and holds all internal components together, providing mechanical support.
- Zebra Stripe：This conductive rubber strip electrically connects the PCB to the glass substrate of the character LCD display, transmitting signals.
- PCB Board with Control IC：This circuit board contains the driver IC, which processes commands and controls the pixels of the character LCD display
- Pin Interface：This set of pins allows the external controller to connect to the character LCD display for power and data communication.
- Protective Film：This temporary sheet covers the surface of the character LCD display to prevent scratches and contamination during shipping and assembly. It must be removed before use.
What are the advantages of character LCD displays?
- Clear display: Dark characters on a light background, or vice versa, are clear and easy to read under any lighting conditions, providing visual comfort.
- Extremely low power consumption:They do not emit light themselves, but only modulate light by changing the arrangement of liquid crystals. Therefore, power consumption is almost negligible during static display.
- Easy integration and programming: Whether it’s the Arduino LiquidCrystal library or the underlying drivers for microcontroller platforms, there is mature and simple code available. Developers can quickly display text without needing to understand the underlying details.
- Rich functionality and high integration: The most common specifications include 1, 2, 4, 8, 16, 20, and 40 lines, allowing for the display of more information at once and the creation of more structured interfaces.
- Built-in font library: English/Japanese, Western European, Eastern European, Cyrillic, Hebrew/Arabic
- Extremely cost-effective:Due to large-scale production and extremely mature technology, the unit price is very low, making it one of the most cost-effective display solutions in embedded systems.
Provides a variety of backlight colors (yellow-green, blue-white, red, white, etc.) and viewing angles (transmissive, transflective, negative display, etc.) to suit different application environments and aesthetic requirements.
- Robust structure and good stability: With a metal frame and locked to the PCB board with metal fittings, it can withstand mechanical damage during transportation.
- Strong anti-interference ability:Every character LCD display from HOTHMI undergoes rigorous anti-interference testing, achieving an anti-static ESD rating of 8KV.
- Never discontinued:HOTHMI has been manufacturing Character LCD Displays for over 20 years and has a stable supply chain system. Many products have been continuously supplied for over 10 years. Whether it’s older versions or future new products, we are confident that “as long as the customer needs it, we will never stop production.”
What special customized character LCD display solutions can HOTHMI provide?
Wide Temperature and High Reliability Series
- Industrial Wide Temperature Character LCDdisplays:Operating temperature range up to -30℃ to +85℃, ensuring stable operation in harsh cold or high-temperature industrial environments without ghosting or display failure.
- High Brightness/High Contrast character LCD display modules:Designed specifically for outdoor or bright light environments, guaranteeing visibility even in direct sunlight.
- Long-Life Backlight Design: Utilizes high-quality LEDs and optimized circuitry to ensure backlight lifespan matches the LCD core, meeting the demands of long-term continuous operation.
Customization Services
- Size and Appearance Customization: Non-standard sizes, special cutouts, irregular corners, and specific panel colors can be customized according to your structural design.
- Interface and Pin Definition Customization:Adapted to your motherboard layout, optimizing connection methods.
- Special Character/Icon Customization: Customer-specific logos, special symbols, or custom characters can be embedded in the module, enhancing product brand recognition and user experience.
A variety of backlight colors and polarizer modes are available for character LCD displays

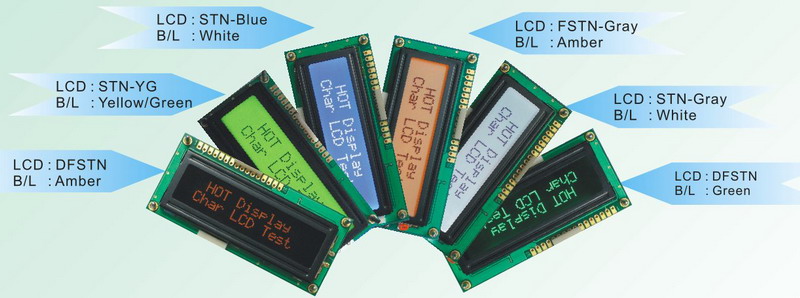

HOTHMI can manufacture displays using various combinations of backlights and polarizers, including STN-YG positive, STN-Blue negative, FSTN-Gray positive, DFSTN negative, and VA mode. A wide variety of backlight colors are available, including yellow-green, green, white, and orange. These can be combined to produce over 48 different display effects.These character LCD displays can be made to multiple viewing angles such as 6:00, 12:00, 3:00, and 9:00 o’clock;
What types of applications are character LCD displays suitable for, and what are their features?
Character LCD displays are widely used due to their advantages such as simple integration, high reliability, and a wide range of character font options. They are commonly found in industrial control systems, instrumentation, medical equipment, smart home devices, and in-car display screens.
| Application Scenario | Recommended Screen Type/Size | Key Feature Requirements |
| Industrial PLC/Controller Status Display | 16×2 or 20×4 Character LCD display | Wide-temperature model, Green or White backlight |
| Laboratory Test & Measurement Instruments | 20×4 or 40×2 Character LCD display | High-contrast Blue backlight |
| Medical Equipment Parameter Monitor | Character LCD display | High reliability, Long-life backlight |
| Smart Home Control Panel | COG Character LCD display(Ultra-thin design) | White backlight |
| In-Vehicle Devices & Transportation Systems | Industrial Wide-Temperature Series Character LCD display | Wide-temperature, Vibration-resistant design |
Why choose HOTHMI’s character LCD displays?
- Reliable Quality:Strict manufacturing processes and aging tests ensure the quality of every module before the character lcd displayleaves the factory.
- Professional Technology: With extensive experience in the display field, we provide comprehensive technical support, from standard products to highly customized character lcd display solutions.
- Stable Supply: Our robust supply chain management ensures timely delivery of large-volume orders.
- Cost Optimization:While maintaining high quality, we offer highly competitive pricing solutions.
FAQ about character LCD displays
Q1:Can character LCD displays offer a full 360-degree viewing angle?
Answer: No, standard character LCDs (the common type with a fixed character set) cannot offer a full 360-degree viewing angle. Their viewing angle is fundamentally limited by their display technology.
Typical Viewing Angle Specification: Most datasheets specify a “6 o’clock” or “12 o’clock” viewing direction with a cone of readability (e.g., Viewing Angle: 6 o’clock, ±45°). This means the best view is from below (6 o’clock) or above (12 o’clock), and it’s readable within about 45 degrees from that center line.
Q2:Can a character LCD display be used without a backlight?
Answer: Yes, absolutely. Under suitable ambient lighting conditions, character LCD displays can function normally without a backlight. Therefore, in outdoor or brightly lit indoor environments, using them without a backlight makes character LCD displays ultra-low power displays. The backlight is an optional accessory and not a necessary component for the basic operation of the display.
Is a character LCD display harmful to the eyes?
Answer: No, standard character LCD displays are not considered harmful to the eyes. They are among the most eye-friendly display technologies available, especially when compared to self-emissive displays like older CRTs or some modern screens with aggressive blue light emission.
