0.96" TFT LCD Display Module with ST7735S Driver | Arduino/Raspberry Pi
1.1 Inch 135x240 TFT LCD Display Module With MIPI DSI Interface
1.1 inch TFT LCD | 135x240 SPI interface | ST7789H2 Controller
- Model: TFT-H011A1QCIST3N10
- Display pixels: 135x240
- Dimensions (mm): 17.60x31.0x1.65
- Brightness: 350cd/m2
- Interface: SPI-4L
- Working temperature: -20~70℃
- Driver chip: ST7789H2

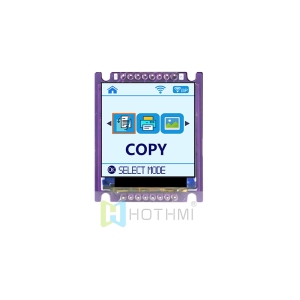

1.3 Inch TFT LCD with 240x240 Square Display Module

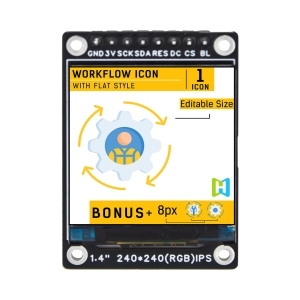

1.4 Inch Square IPS TFT LCD Display Module with ST7789 for Smartwatch
- Model: TFT-H014A3DQIST4N10
- Display pixels: 240x240 dot matrix
- Dimensions (mm): 27.56x30.7x1.82
- Brightness: 400cd/m2
- Interface: SPI-4L
- Working temperature: -20~70℃
- Driver chip: ST7789
10.1 Inch 1024x600 IPS LCD Display Module LVDS and EK79001
$65.00 – $92.00- Model: TFT-H101A4WSIFT3N40
- Display pixels: 1024x600
- Appearance size: 235x143x3.0
- Backlight/brightness: 300cd/m2
- Interface mode: LVDS
- Operating temperature: -20~70℃
- Driver chip: EK79001+EK73215
2.0 inch IPS TFT LCD Display With MCU Interface
- Model: TFT-H020A4QVIST6N40
- Display pixels: 240x320 Px
- Overall dimensions (mm): 35.7x51.2x2.3
- Brightness: 600cd/M2
- Interface: MCU
- Working temperature: -30~85℃
- Driver chip: ST7789V
2.3 Inch TFT LCD Display 320x240 Resolution ILI9342C with MCU
- Model: TFT-H023A62LQTIL2N30
- Display Pixels: 320x240
- Dimensions: 51.0x45.8x2.3
- Backlight/Brightness: 400cd/m2
- Interface: MCU
- Operating Temperature: -20~70℃
- Driver Chip: ILI9342C
2.4 Inch RGB TFT LCD Display with ST7701S full viewing angle
$30.00 – $38.00- Model: TFT-H024A13VGIST5N40
- Display pixels: 480x640 Px
- Overall dimensions (mm): 42.72x60.26x2.24
- Brightness: 500cd/M²
- Interface: RGB
- Working temperature: -30~80℃
- Driver chip: ST7701S
2.4inch 240x320 TFT LCD Display Outdoor MCU
- Model: TFT-H024A22AVIST1N40
- Display pixels: 240x320
- Overall dimensions (mm): 42.72x58.65x2.61
- Brightness: 100cd/m2
- Pin: FPC-40PIN
- Interface: MCU
- Working temperature: -30~80℃
2.8 inch in-cell LCD Capacitive Touch Reliable Performance
$30.00 – $62.50- Model: TFT-H028A28ZUIAX4G40
- Display Pixels: 540x540 Px
- Dimensions (mm): 110x110x4.67
- Brightness: 400cd/m²
- Interface: RGB
- Operating Temperature: -20~70℃
- Driver Chip: AXS15260D <TFT+CTP>

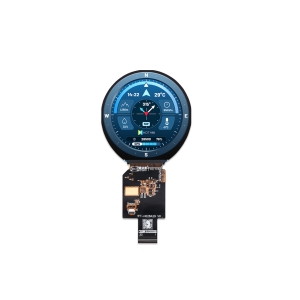

2.8 inch round TFT 540x540 IPS LCD display Reliable
$30.00 – $62.50- Model: TFT-H028A28ZUIAX4N40
- Display Pixels: 540x540 Px
- Dimensions (mm): 72.54x76.47x2.47
- Brightness: 450cd/m²
- Interface: RGB
- Operating Temperature: -20~70℃
- Driver Chip: AXS15260
3.0 inch TFT Panel | 360x640 EzUI TFT Screen | RS485 TFT Module
$48.00 – $56.00- Model: HTM-H030A9-RS485-A01
- Display pixels: 360x640
- Dimensions (mm): 43.69x100.0x10.0
- Backlight/brightness: 350cd/m2
- Interface: RS485
- Operating temperature: -20~70℃
- Supply voltage: 3.3V
3.5 Inch 640x480 TFT LCD With MIPI Interface For Industrial
$28.00 – $38.00- Model: TFT-H035B16VGIST4N30
- Display pixels: 640x480
- Overall dimensions (mm): 76.90x63.90x3.10
- Backlight/brightness: 450cd/m2
- Interface mode: MIPI
- Working temperature: -30~80℃
- Driver chip: ST7703
3.5-inch TFT LCD Display With LVDS Interface
$28.00 – $38.00- Model: TFT-H035A26VGIST4N30
- Display pixels: 640x480 px
- Dimensions (mm):76.9X63.9X3.1
- Backlight/brightness: 450cd/m2
- Interface: LVDS-24 Bit
- Operating temperature: -30~80℃
3.5" CTP Capacitive Touch Screen 320*480 TFT LCD Display with MCU ST7365P
$15.00 – $29.00- Model: TFT-H035A37HVIST5C40
- Display Pixels: 320x480
- Dimensions: 54.46x82.94x3.79mm
- Backlight/Brightness: 500cd/m²
- Interface: MCU
- Operating Temperature: -20°C to 70°C
- Driver IC: ST7365P
4 Inch SPI Display Module ST7365 Reliable Resistive Touch Panel
$28.00 – $40.00- Model: HTM-H040A28-SPI-A01R
- Display pixels: 320x480
- Dimensions (mm): 61.0x108.0x2.5mm
- Brightness: 400cd/m²
- Interface:SPI-4L
- Operating temperature: -20°C to 70°C
- Driver chip: ST7365
4.8 Inch RGB IPS TFT LCD Panel 480x1120 Resolution Industrial Display Screen
- Model: TFT-H048A02ZAIJD3N40
- Display pixels: 480x1120 Px
- Dimensions (mm): 51.46x119.67x2.08
- Brightness: 350cd/m2
- Interface: RGB 24bit
- Working temperature: -30~80℃
- Driver chip: T.B.D
5 inch Transflective with 800x480 resolution TFT LCD Sunlight Readable With RGB
- Model: TFT-H050A18SVRJDNN40
- Display pixels: 800x480 Px
- Overall dimensions (mm): 112.20x74.80x3.0
- Viewing angle: Normally White (Trans-Reflective)
- Brightness: 50cd/m2
- Interface: RGB
- Working temperature: -20~70℃
5.0 inch 480x854 TFT LCD Display Module With ST7701S Controller
$33.00 – $41.50- Model: TFT-H050A12FWIST4C40
- Show contents(mm):480x854
- Outline size(mm) :72x122.25x4.15
- Backlight type or brightness:400cd/m2
- Interface mode:RGB+SPI
- Working temperature:-20~70℃
- Driver chip model:ST7701S
