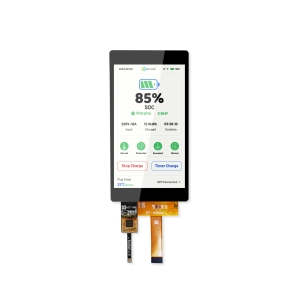

5.0 Inch IPS 480x854 Wide Temperature TFT Display Panel ST7701S Capacitive Touch
$17.00 – $21.50- Model: TFT-H050A12FWIST4C40
- Product type：TFT LCD
- Horizontal to vertical ratio: 6:10
- Show contents：480x854
- Outline size(mm) ：72x122.25x4.15
- Size of View Window(mm)：5.0
- Display size(mm) ：5.0
- Effective size(mm)：61.63x109.65
- Product application：Instrumentation
- Visual angle：Full view
- Backlight type or brightness：400cd/m2
- Connection PIN Number：40pin
- Interface mode：RGB+SPI
- Special instructions：Anti-static ESD 8KV
- Working temperature：-20~70℃
- Power supply voltage：3.3V
- Driver chip model：ST7701S
6.2 Inch High Brightness TFT LCD Display With MIPI Interface
$28.80 – $35.00- Model: TFT-H062A02WSIJDGN30
- Type: TFT landscape screen
- Display pixels: 1024x600 Px
- External dimensions (mm): 155.3x88.3x4.7
- Display inches: 6.2"
- Effective size (mm): 137.47x77.23
- Application: Electric vehicle, outdoor remote control
- Perspective: IPS (U85/D85/L85/R85)
- Brightness: 1700cd/m2
- Pin: FPC-30PIN
- Interface: MIPI/LVDS
- Special reminder: Anti static ESD 8KV
- Working temperature: -30~80 ℃
- Power supply voltage: 3.3V
- Driver chip: NV3051
6.86-inch TFT LCD Display Module with Serial UART Interface
- Model: HTM-H068A04-UART-A01C
- Type: UART intelligent serial port screen module
- Display content: 480x1280
- Display inches: 6.86”
- External dimensions (Mm): 73.5x210.0x.9.25
- AA size (Mm): 60.192x160.512
- Product application: Customized programming display screen
- Perspective: IPS (U80/D80/R80/L80)
- Backlight type or brightness: 800cd/M2
- Connection method PIN count: 10 pins
- Interface method: UART/RS232
- Special instructions: touch screen with capacitance
- Working temperature: -20~70 ℃
- Power supply voltage:+5V
7" TFT LCD Display | 1024x600 IPS High-brightness
$21.00 – $26.00- Model: TFT-H070A22WSIJD8N40
- Type: TFT standard display
- Display pixels: 1024x600 px
- Dimensions (mm): 164.9X100.0X3.5
- Display inches: 7.0"
- AA size (mm): 154.21x85.92
- Application: Industrial control systems, portable electronic devices
- Viewing angle: IPS full viewing angle
- Backlight/brightness: 800cd/m2
- Pin: FPC-40 pin
- Interface: LVDS 1 Port (8 Bit)
- Special instructions: Anti-static ESD 8KV
- Operating temperature: -20~70℃
- Supply voltage: 3.3V
