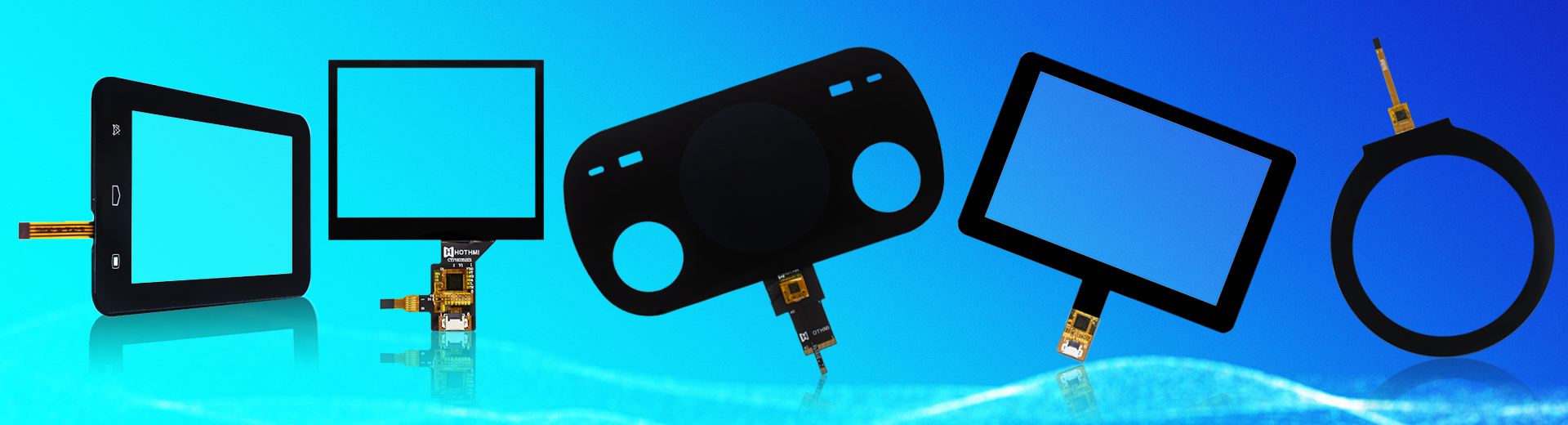

What is a Touch Panel?
A Touch Panel is an integrated device that combines input and display capabilities, enabling direct user interaction with on-screen content using fingers or a stylus. The core of this technology is the Touch Panel itself, which HOTHMI offers in both capacitive and resistive variants. These versatile Touch Panel solutions support single-point or multi-point control modes. To ensure durability, these control modes are combined with customized high-performance protection solutions. This robust Touch Panel is seamlessly integrated with TFT LCDs using optical or air bonding techniques. This integration process is critical for eliminating air gaps and enhancing readability, resulting in a highly reliable product. Ultimately, this manufacturing approach creates high-quality, reliable, and cost-effective products. Therefore, the advanced Touch Panel is a fundamental component for superior industrial HMI display solutions, meeting the rigorous demands of various applications.
Showing all 3 results
What are the common control chips and interfaces used in touch screens?
Sizes range from 1.3 inches to 32 inches, offering both capacitive and resistive touch screens. Commonly used controllers include the FT6336G, GT911, and HY4635-N068. Each customized TFT touch screens can be customized in size, shape, color, thickness, and material (including PET or glass) to meet specific application requirements.The most commonly used touch screen interfaces are I2C or SPI, but HOTHMI can also modify and implement a version with a USB interface for you.
What kind of customized touch panel services can HOTHMI provide for you?
Our customization capabilities
| Cover Material:you can choose tempered glass (up to 7H)/acrylic for the touch panel. |
| Cover Shape:Support special-shaped cutting/opening/edging (2.5D, 3D)/transmittance |
| Cover color:Support different color silk screen (usually black or white) |
| Cover Thickness:thickness of the touch panel is usually 0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0/8.0/10.0(mm) etc. |
| Light Transmittance:High light transmission efficiency, which directly affects the visual effect of the touch panel. |
| Opening the hole: Can open through holes with a diameter of ≤10mm |
| Logo Printing：Support logo silk screen printing and multiple colors |
| Cover surface Treatment:AG anti-glare: A treatment that eliminates mirroring issues on the screen surface; AR anti-reflection: A coating applied to the cover glass to reduce reflected light, improving touchscreen visibility in sunlight; AF anti-fingerprint: A coating applied to the cover glass to increase the gloss of the glass surface; and a slippery coating that significantly reduces sliding resistance, preventing water droplets and fingerprints from remaining on the surface. |
| Customized touch function chip: A touch sensor is a translator that translates the action of “touch” into a “language” that machines can understand. We offer customized sensor materials, thicknesses, FPCs, interfaces, and more. |
| Customized Brand Panels: Gorilla, Panda, available with 7H/8H/9H hardness. |
What are the Features of HOTHMI touch panels?
HOTHMI’s customized TFT touch panels also support a variety of surface treatment options, such as anti-glare, anti-fingerprint, and anti-static (3A treatment), thereby enhancing durability and user experience. We offer structural configurations such as G+G (glass + glass), G+F (glass + film), G+FF (glass + double-layer film), P+G (PET + glass), and P+F (PET + film) to meet different environmental and mechanical requirements.
How to choose the right touch screen solution?
When choosing a suitable touch screen technology, several factors need to be considered, including product positioning, usage environment, cost, and user experience. Resistive and capacitive touch technologies are complementary, and there is no absolute superiority or inferiority; the only consideration is whether it is suitable for the application scenario.
Whether you need a custom TFT touch panel for industrial, medical, automotive, or consumer electronics applications, HOTHMI ensures superior optical performance, reliable touch response, and robust construction. This custom TFT touchscreen is ideal for applications requiring design flexibility and superior functionality.
FAQ about touch panels
How does the touch panel typically connect to the main control board?
- Physical connection: This is the most common method. The touch panel is a separate module connected to the motherboard via a dedicated flexible printed circuit board (FPC cable) and connectors. The I2C interface is the mainstream touch panel interface, offering a simple structure, low cost, and strong anti-interference capabilities. Users can also choose the higher-speed SPI interface or the more convenient plug-and-play USB interface.
- Using the Oncell integration method, the touch sensor layer is directly fabricated on the inside of the top glass cover of the display.
- Alternatively, a more advanced In-cell integration method can be used, where the touch sensor is directly embedded inside the pixel layer of the LCD screen, becoming part of the display itself.
Are touchscreens waterproof?
Waterproof performance refers to the overall device. The touch panel is an accessory and does not undergo waterproof rating certification. The touch panel itself is waterproof. HOTHMI’s touch panel waterproof rating allows it to function normally even when wet. For devices used in high humidity or even underwater, we apply adhesive to protect the connection between the touch panel and the display screen. The overall waterproof rating needs to be designed in conjunction with the entire device.
Can I use the touch panel while wearing gloves?
Yes.We offer customized touch panels that allow users to use the touch functionality normally even while wearing cotton or plastic gloves. This is typically achieved by using a more advanced touch panel controller.
Is the touch panel drop-proof and impact-resistant?
HOTHMI offers touch panels with custom thicknesses up to 3mm, using Gorilla and Panda, available with 7H/8H/9H hardness.
How is the touch panel bonded to the display screen?
There are two methods for bonding touch panels to a display: air bonding and optical bonding. HOTHMI generally adopts optical bonding for better display quality.
