1.3″ Round TFT LCD Display With GC9A01 Controller | Sunlight Readable

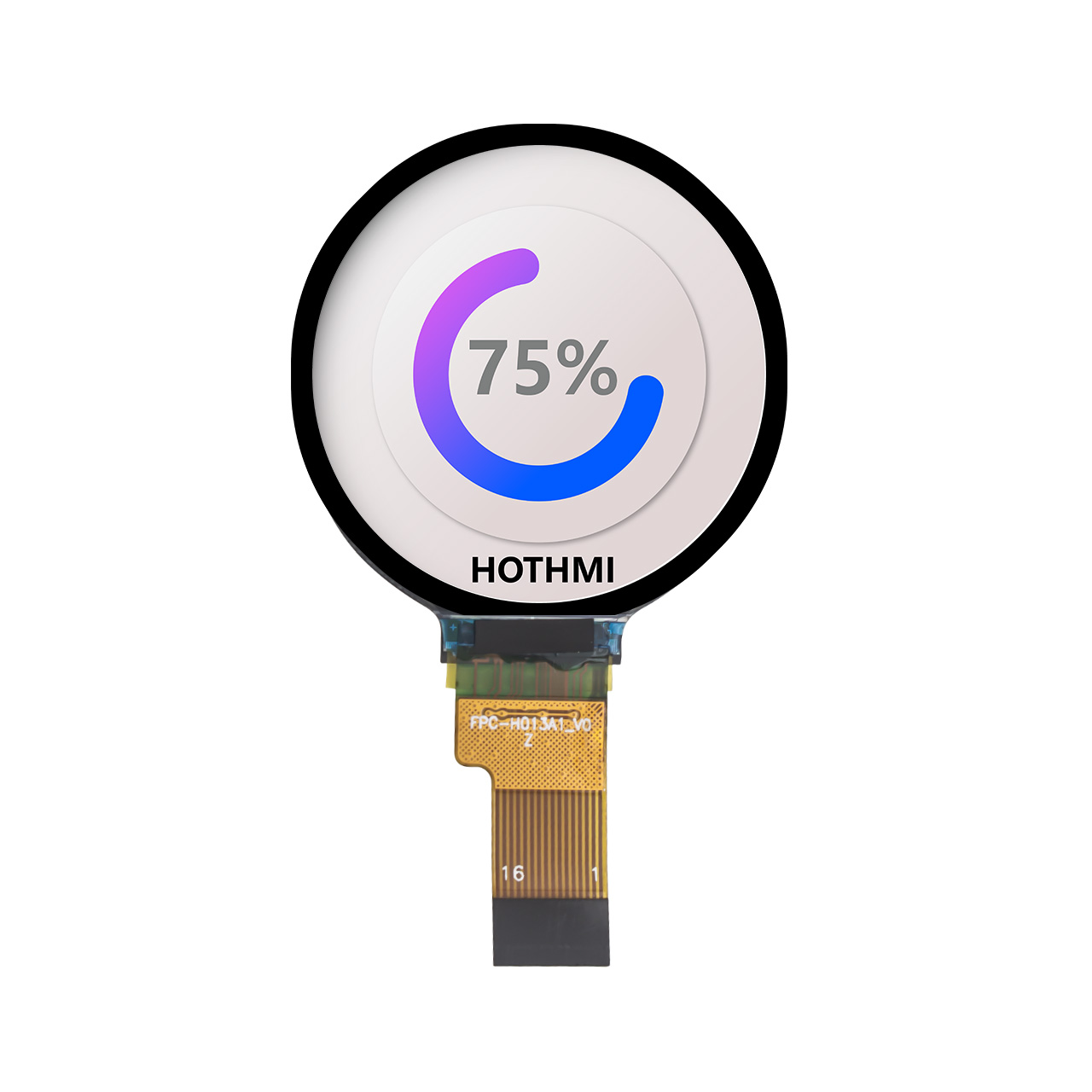

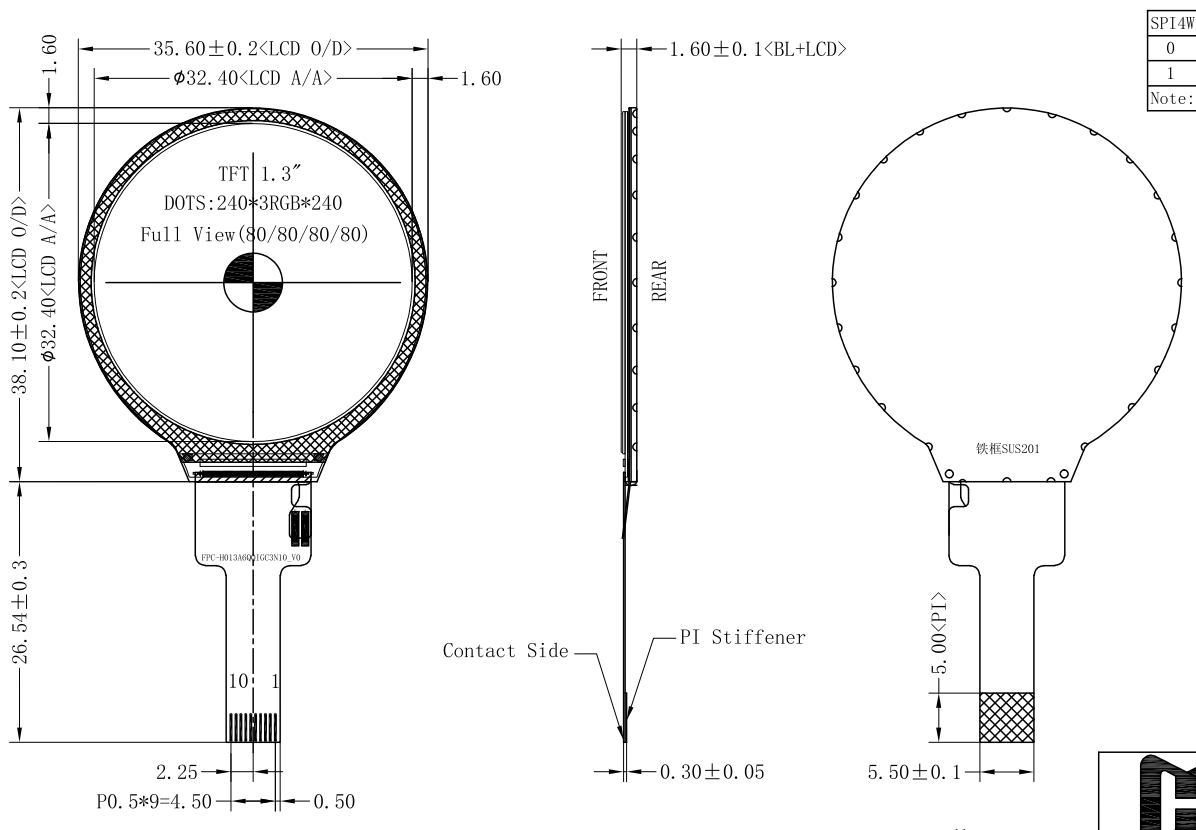

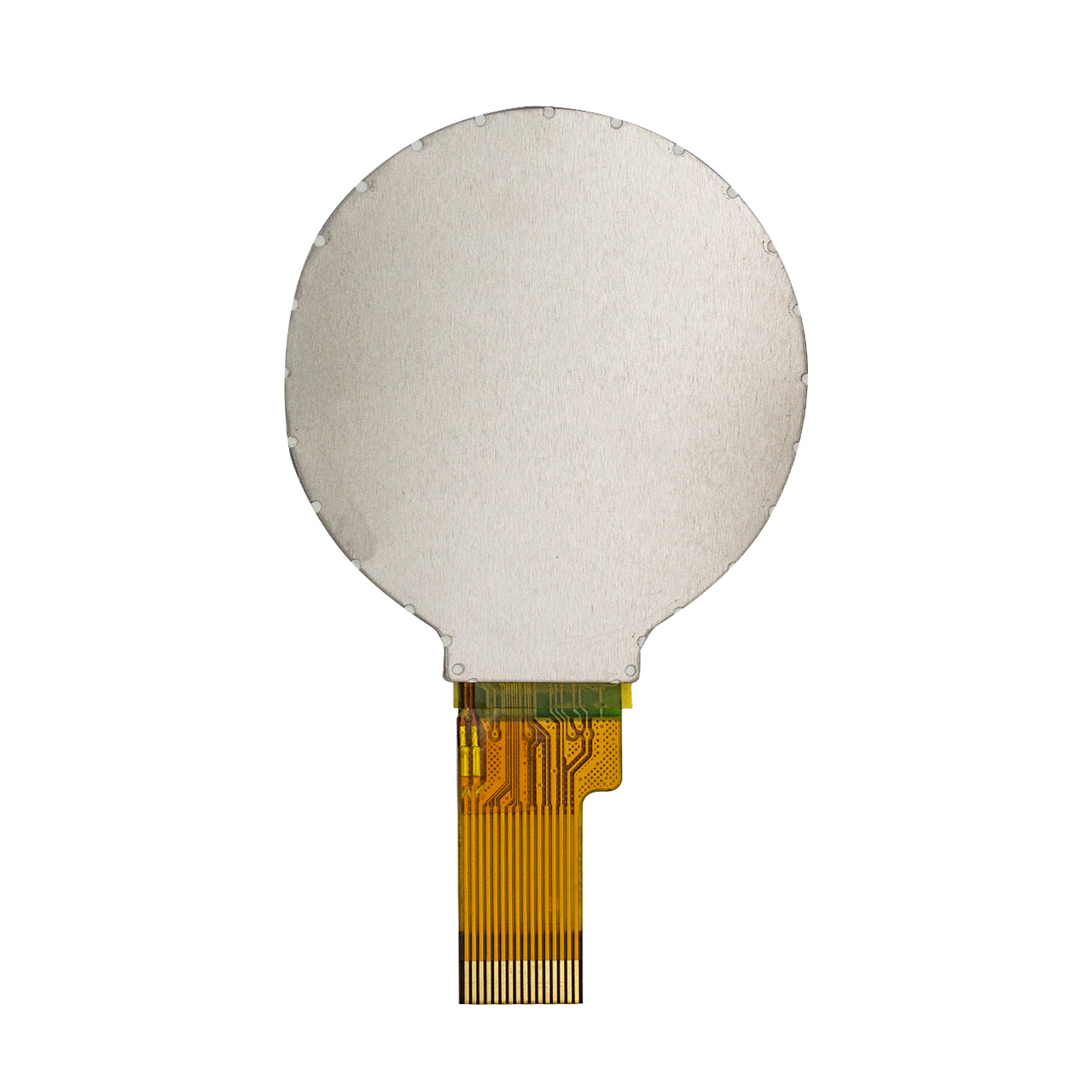

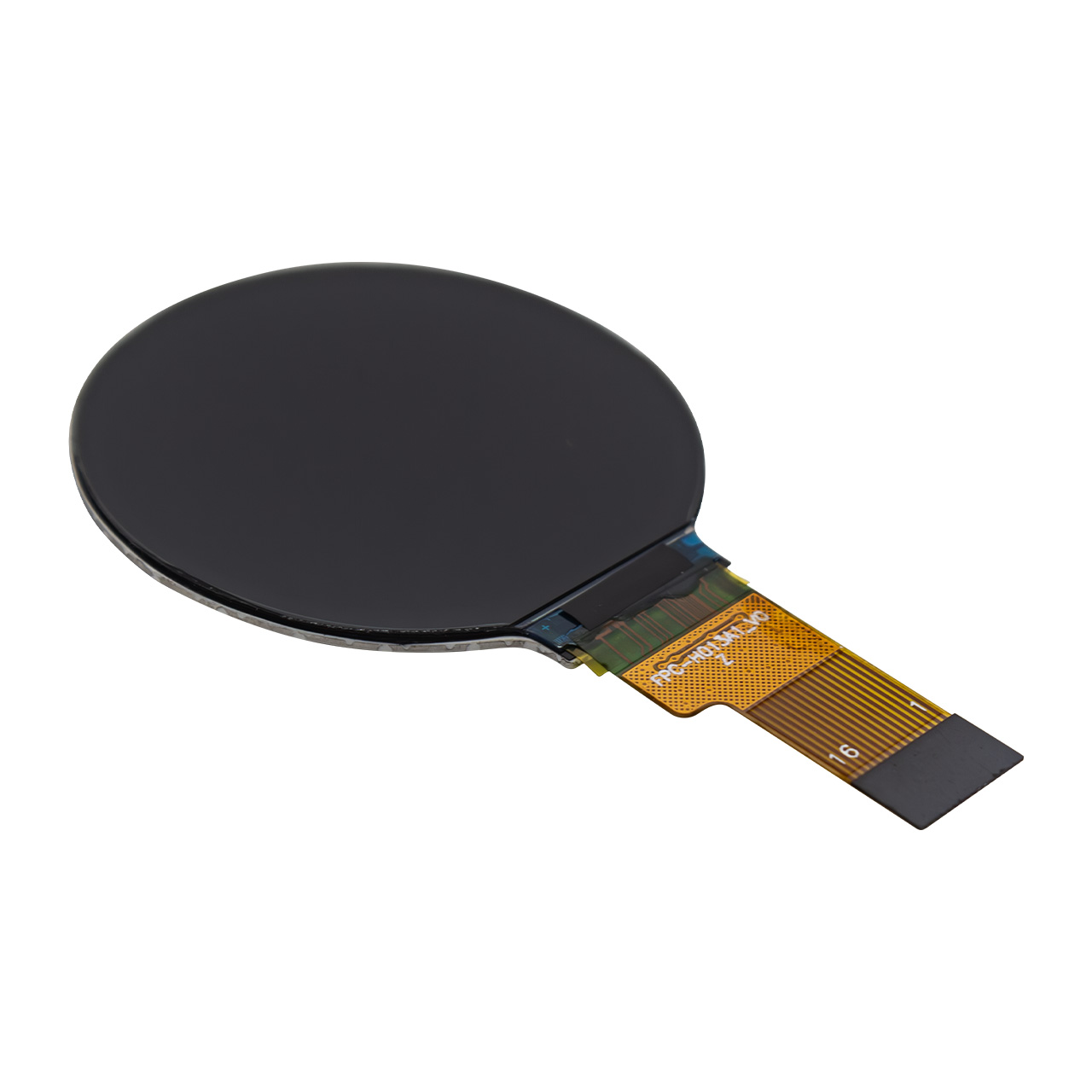

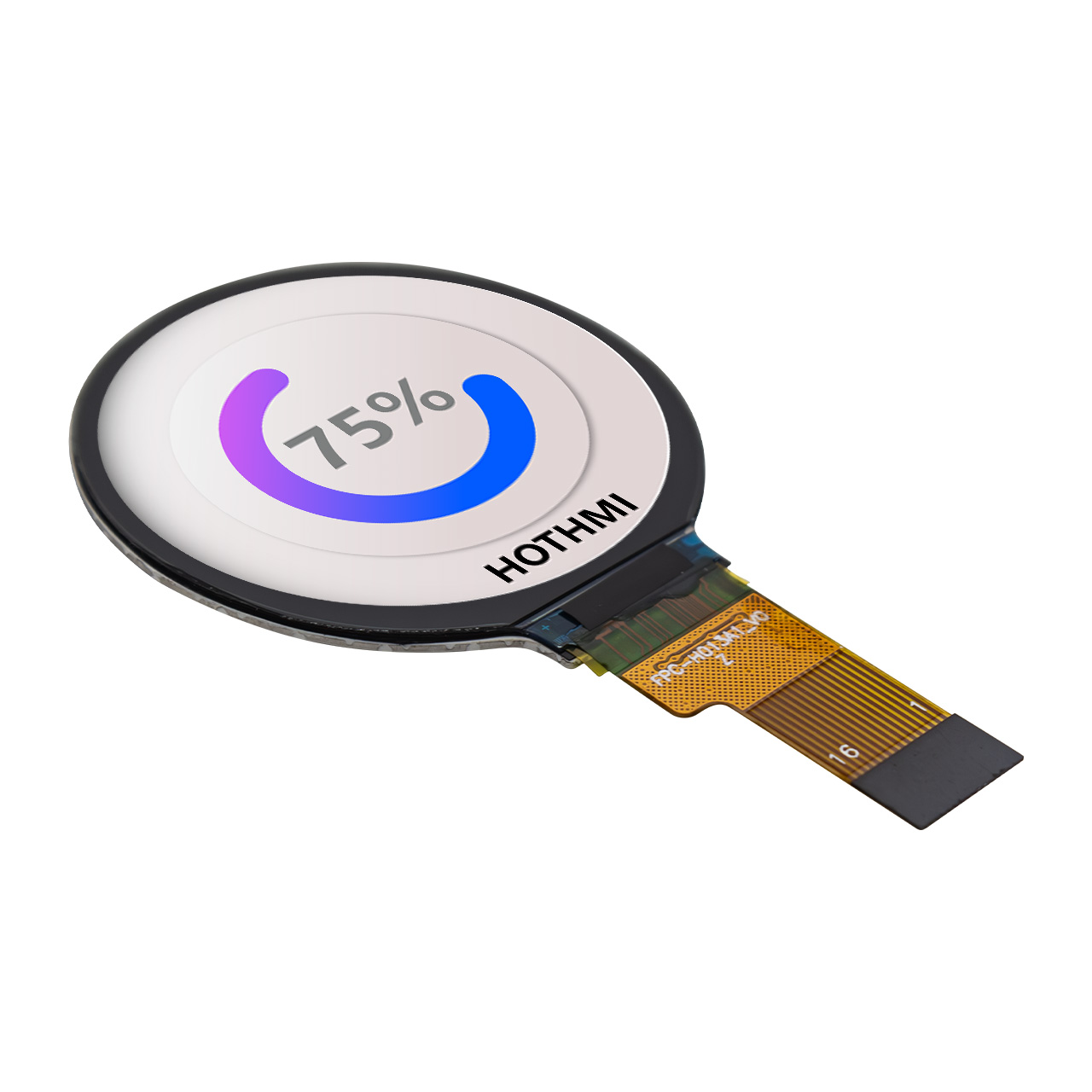

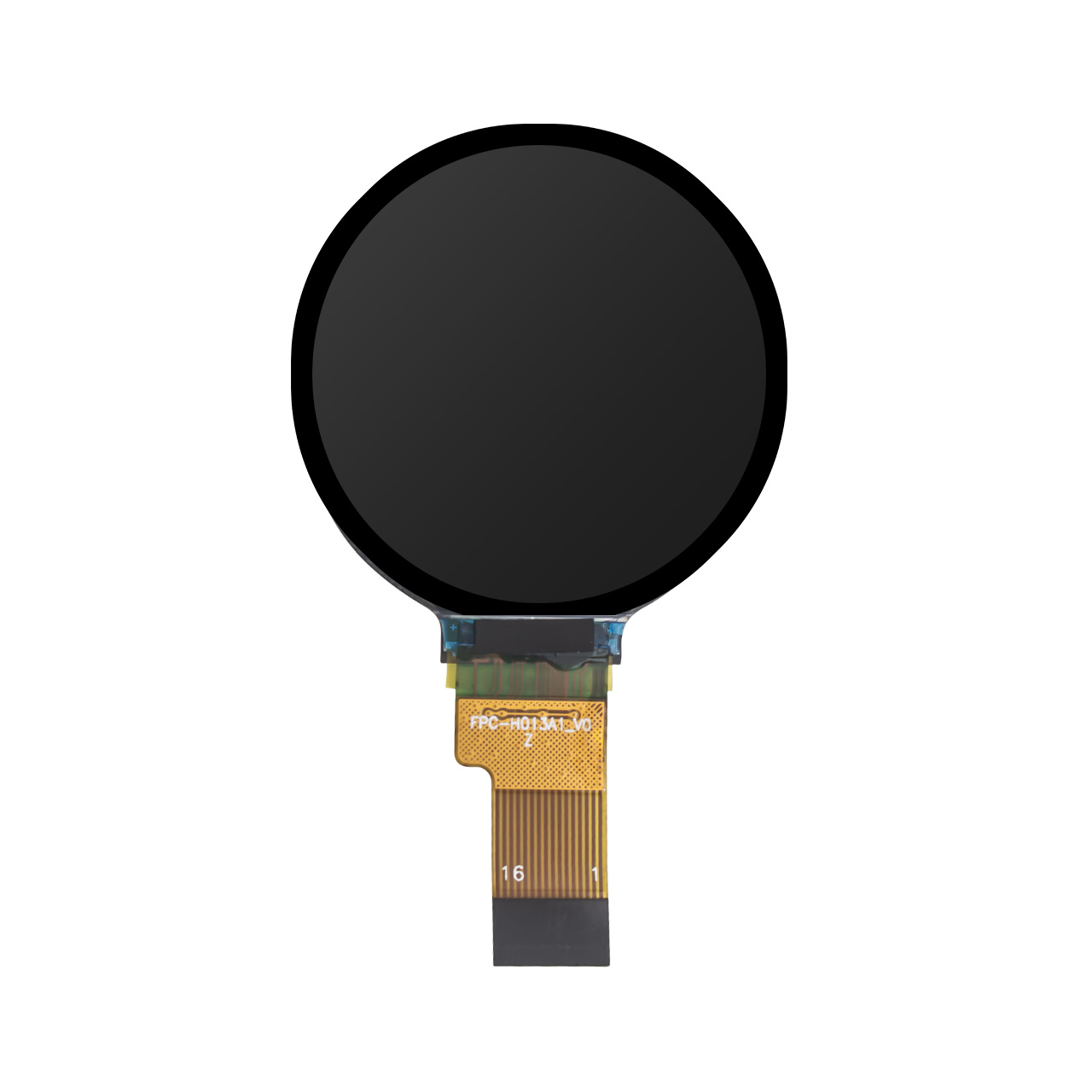

1.3″ Round TFT LCD with Optical Bonding is a 1.3-inch diameter circular IPS TFT-LCD screen with a resolution of 240×240 pixels. Using an IPS panel, the display offers a wider viewing angle, high contrast (1,000:1), 750cd/m2 brightness (typical), and an anti-glare surface.
This 1.3 inch Round TFT LCD Display Module with Optical Bonding is controlled by the GC9A01 driver IC and supports communication via the SPI interface. The supply voltage range is 1.8V to 2.8V, with a typical value of 2.8V. The operating temperature covers -20℃ to +70℃, and the storage temperature range is -30℃ to +80℃.
Suitable for a variety of compact devices such as smart meters, wearable devices, Android/RK motherboards, and home automation products. This is a product without touch function, and we can also provide models with touch. The characteristics of these models are high brightness and the product is full viewing angle. Other 1.3 inch round TFT LCD products in this series include TFT-H013A6QQIGC5N10 and TFT-H013A6QQIGC7N10-V1 with the same brightness but different wiring characteristics. At the same time, we have configured the module HTM-H013A6-UART-A02 with a driver board for these 1.3-inch round displays.For the same size circular display, we also provide 16PIN MIPI interface TFT-H013A1HQIST3N16 circular display, which may provide you with more choices.
This 1.3″ Round TFT LCD features high brightness
This 1.3″ Round TFT LCD adopts high-brightness LCD backlight technology, with a brightness level reaching up to 750 cd/m². It guarantees clear visuals and precise color performance even in strong ambient light, especially under direct outdoor sunlight.
The core strength of this high-brightness TFT display is its much higher peak brightness compared with conventional indoor displays. It effectively suppresses the interference from external light and lowers surface reflection, delivering outstanding visibility in bright environments.
Thanks to its excellent high-brightness performance, this 1.3″ Round TFT LCD is widely used in outdoor equipment and industrial control platforms.
What round TFT LCD displays can Hot Display provide for you?

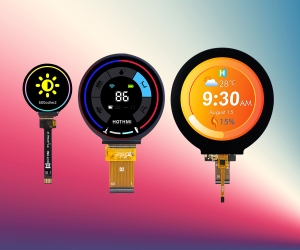

HotDisplay boasts mature production processes and profound technical expertise, offering a full range of Round TFT LCD products covering both standard and highly customized solutions. Available sizes include 1.28″, 1.5″, 1.6″, 1.8″, 2.1″, 2.8″, 3.4″, 4.0″, 5.0″, and 7.0″, with resolutions ranging from 240×240, 320×320, 360×360, 400×400, 480×480 to 800×800, providing customers with extensive options. These displays are widely applied in smart wearables, consumer electronics, healthcare and medical devices, industrial and tooling equipment, sports and outdoor products, toys, and novelty items.
Why Customize Round Screens at HOTHMI?
- High-Precision Circular Cutting Process
We employ advanced laser cutting technology to deliver smooth, burr-free edges for your circular displays, ensuring a flawless finish.
- Custom Pixel & Driver Design
Our engineers will redesign the pixel arrangement, driving logic, and circuit layout for circular display areas to achieve superior display uniformity and extremely fast response speed.
- Full Lamination & Touch Integration
We provide full lamination services for circular LCD panels and cover glass. Additionally, we integrate high-sensitivity circular touch functions and circular rotary knob screens for intuitive user interaction.
- Custom Size Options
We offer a variety of diameter options and can develop new sizes to meet your specific needs.
- Custom Display Performance
Tailor your screen’s performance to your needs with customizable brightness, contrast, color gamut, and wide-temperature operation capabilities.
- Interface & Function Integration
We support multiple interfaces such as RGB, MIPI, and SPI, and can integrate optional touch functionality.
- Special Edge Sealing & Optical Optimization
Edge light leakage and uneven liquid crystal alignment are common issues when converting rectangular LCDs to circular shapes. HOTHMI solves these with proprietary optical adhesive edge sealing and black matrix optimization, guaranteeing smooth, intact panel edges.
- Optimized Circular Display Content
We ensure complete content presentation and visual harmony through professional UI design optimization and advanced image cropping algorithms.
