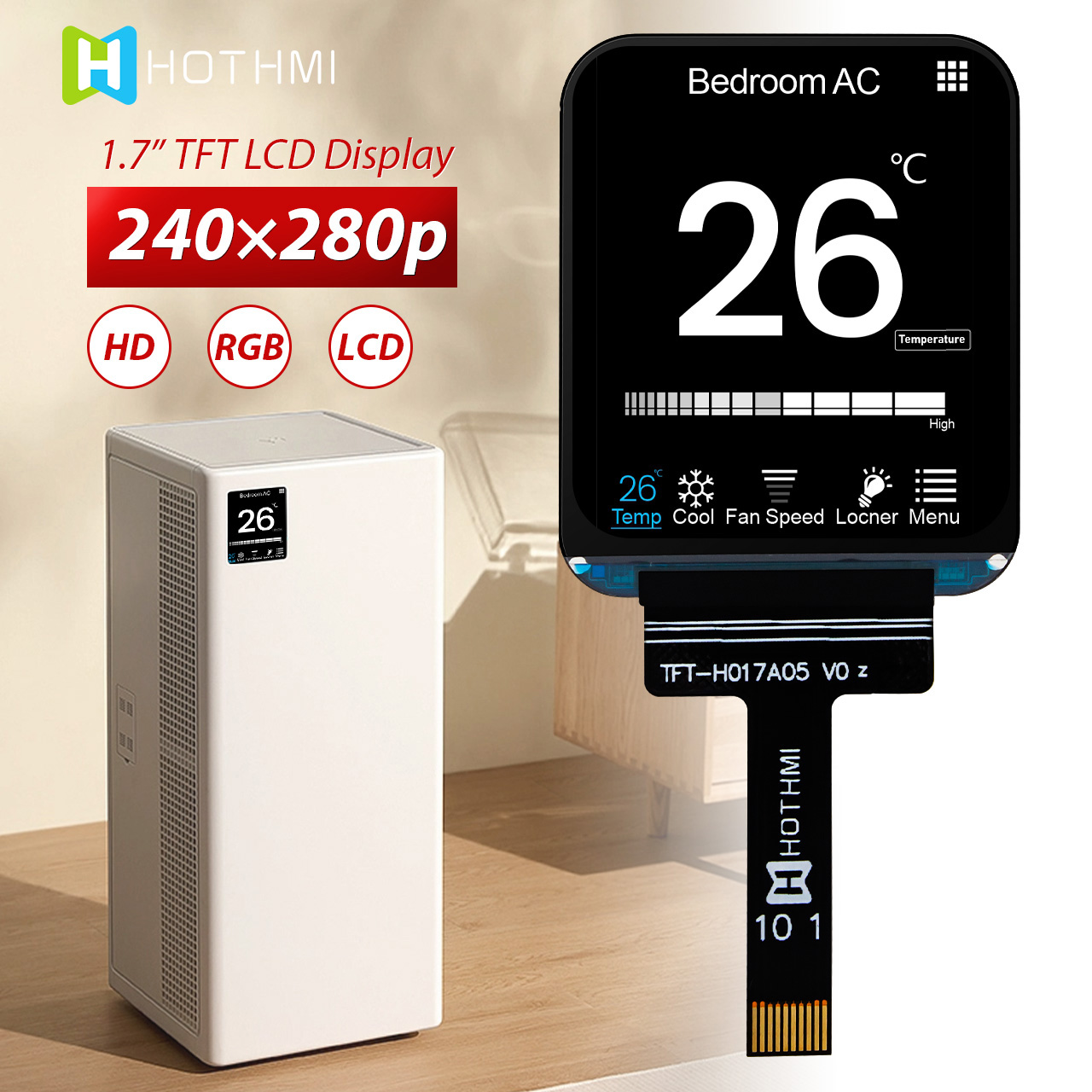

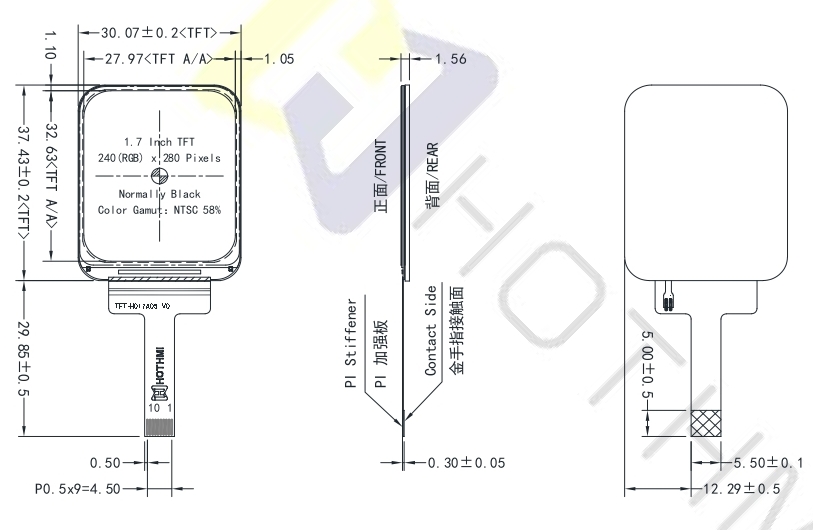

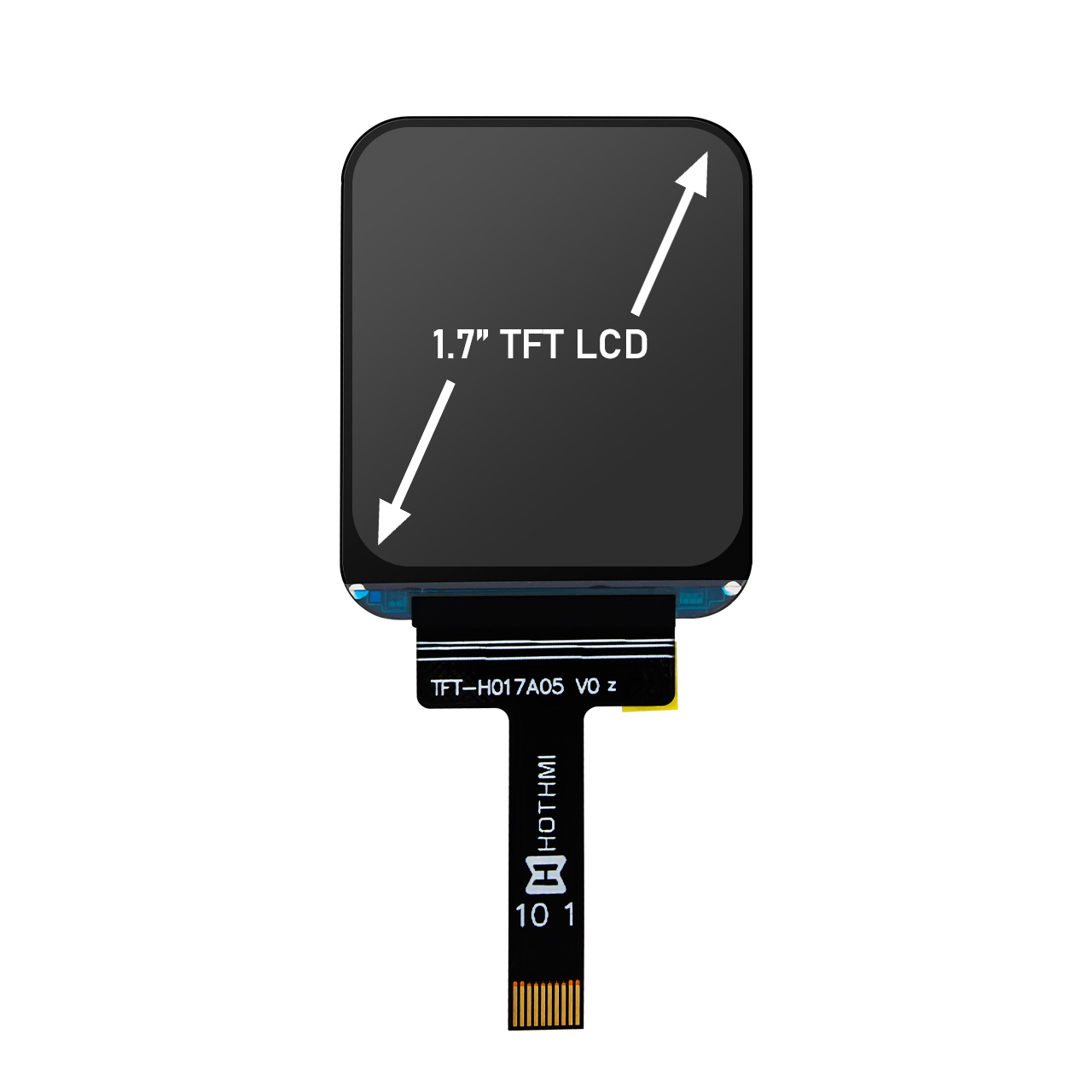

This 1.7-inch TFT LCD, model TFT-H017A05QVIST5N10, features a normally black panel design with a resolution of 240×280 pixels. Its IPS full viewing angle and moderate brightness provide users with high-definition, high-quality images. Equipped with an ST7789 driver chip and supporting an SPI interface, it is compatible with development platforms such as Arduino and C8051.

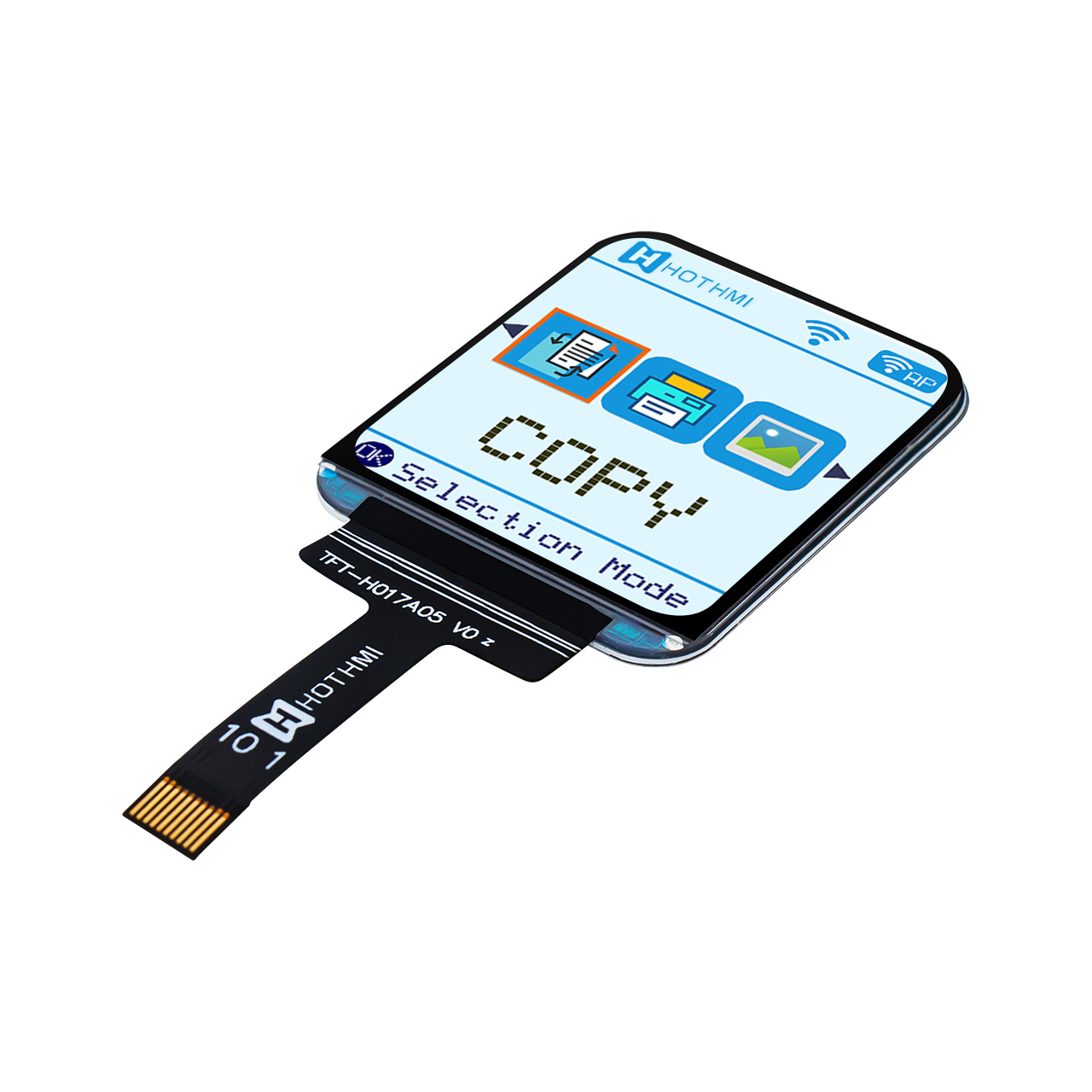

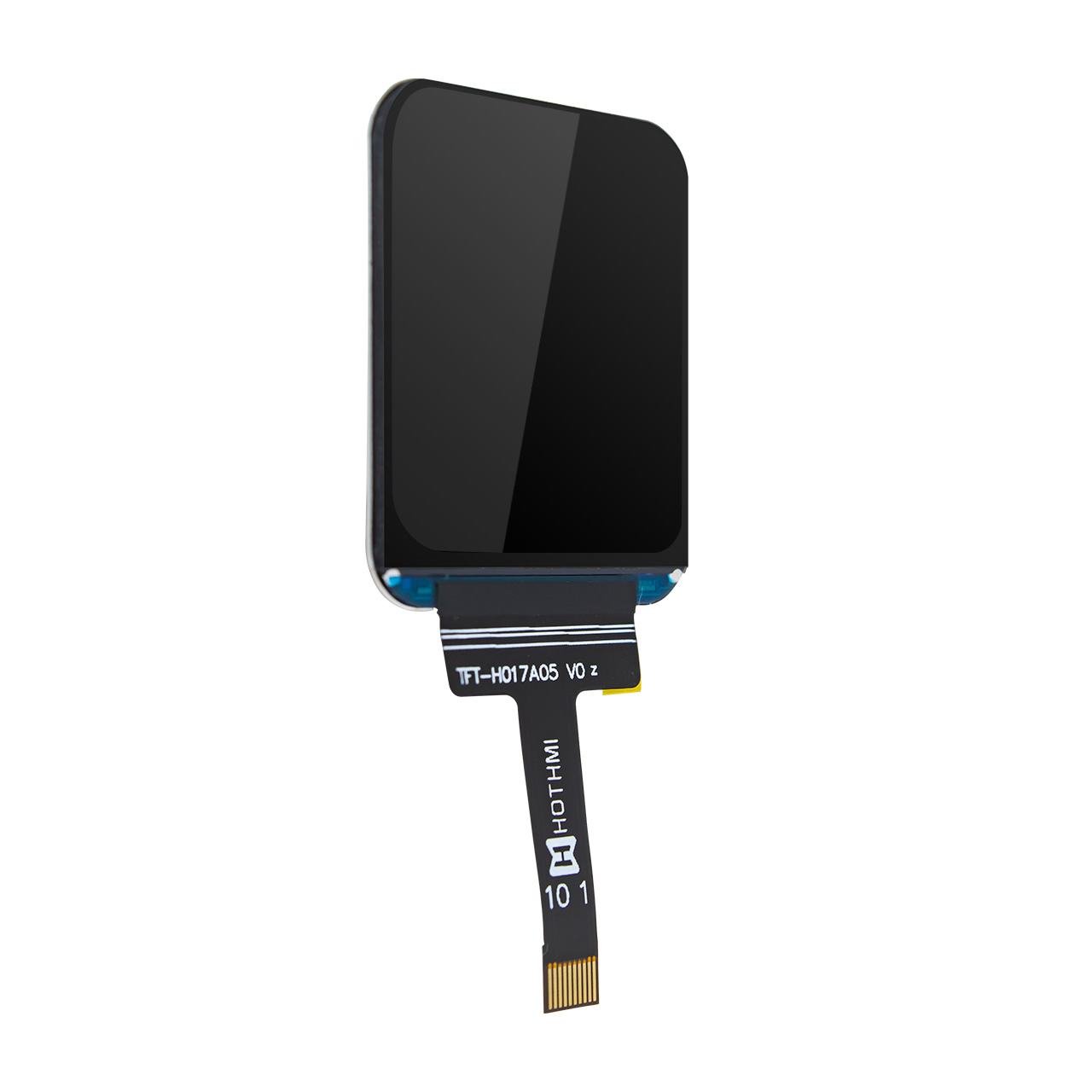

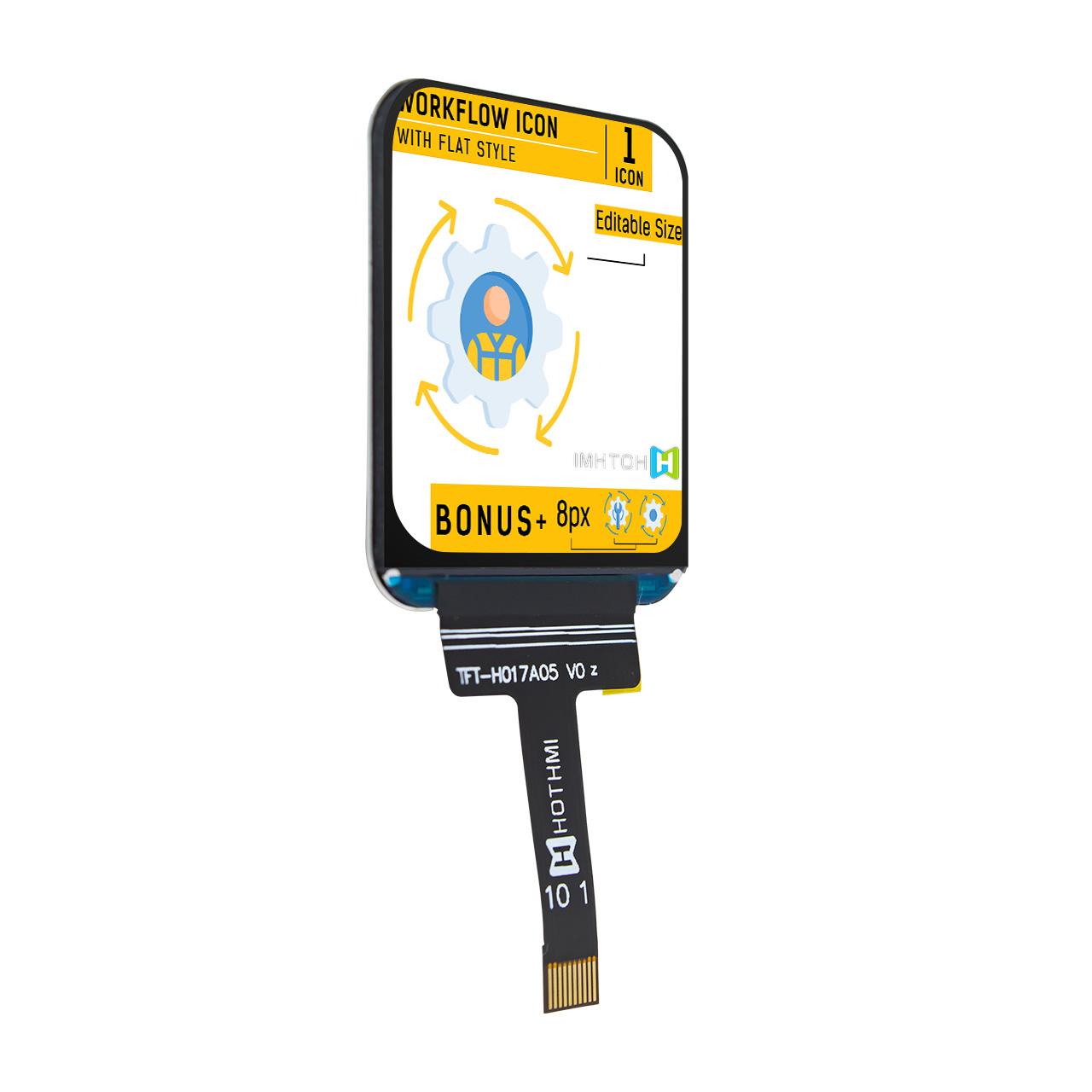

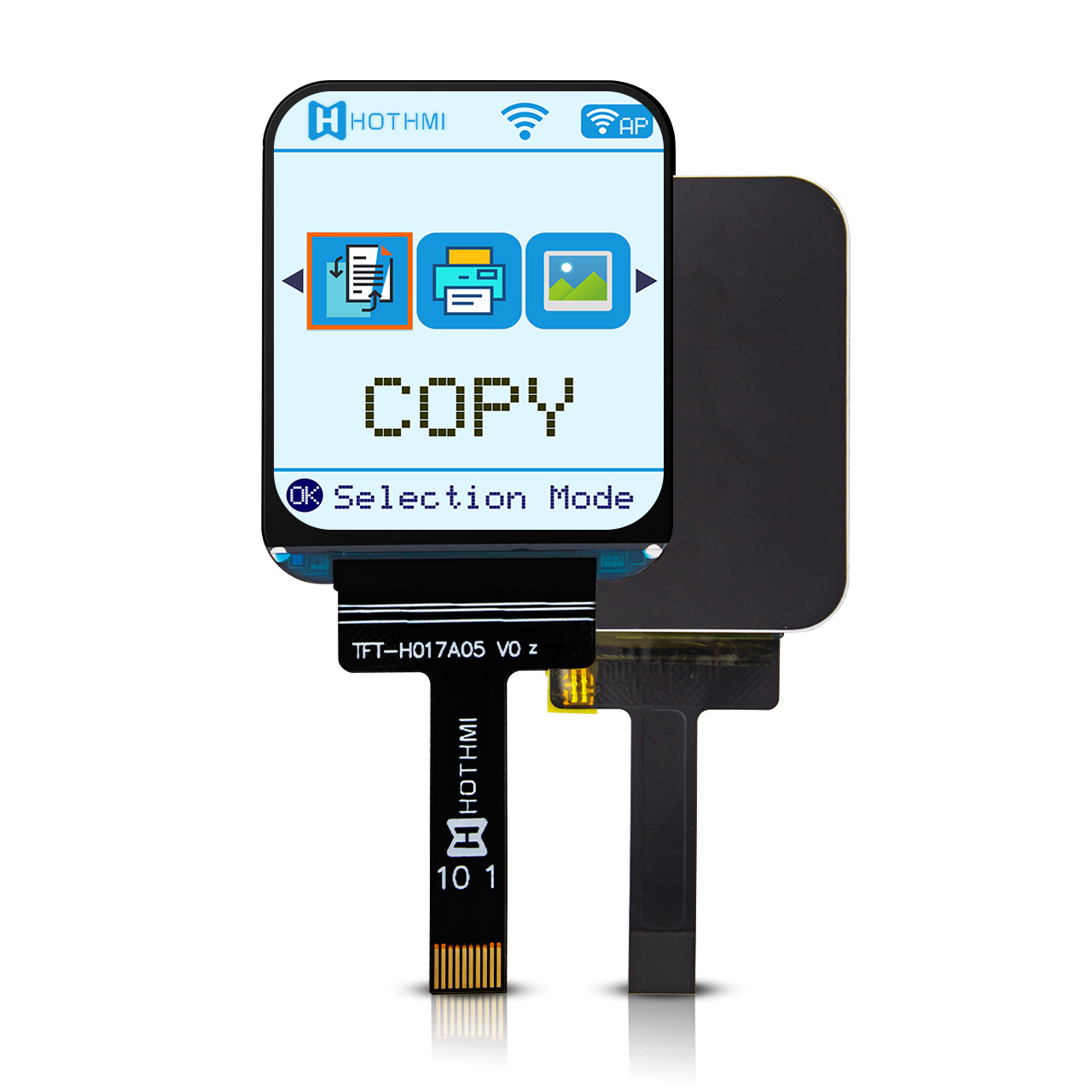

This 1.7-inch TFT LCD comes with an FPC connector for easy assembly and disassembly. Users can connect to the driver board via simple plug-in or soldering. This product features a customizable cover with rounded edges for an aesthetically pleasing appearance. This industrial-grade TFT display has an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, making it suitable for a wide range of applications.

This version does not include a driver board, allowing users to design their own main control board based on their needs. Developers lacking experience shouldn’t worry; we also offer a corresponding module, the HTM-H017A05-SPI-V0. This module has metal pins, allowing users to simply plug it into the main control board for convenient and reliable operation.

We also offer customization services, including the shape, size, silkscreen pattern, and color of the display cover. We can also optionally apply AF/AG/AR processing to the display cover, as well as modify the FPC.

For more information about the tft lcd display manufacturer，click here：https://www.display-lcd.com/

1.7 Inch 240×280 High Brightness IPS LCD Display – Application Scenarios

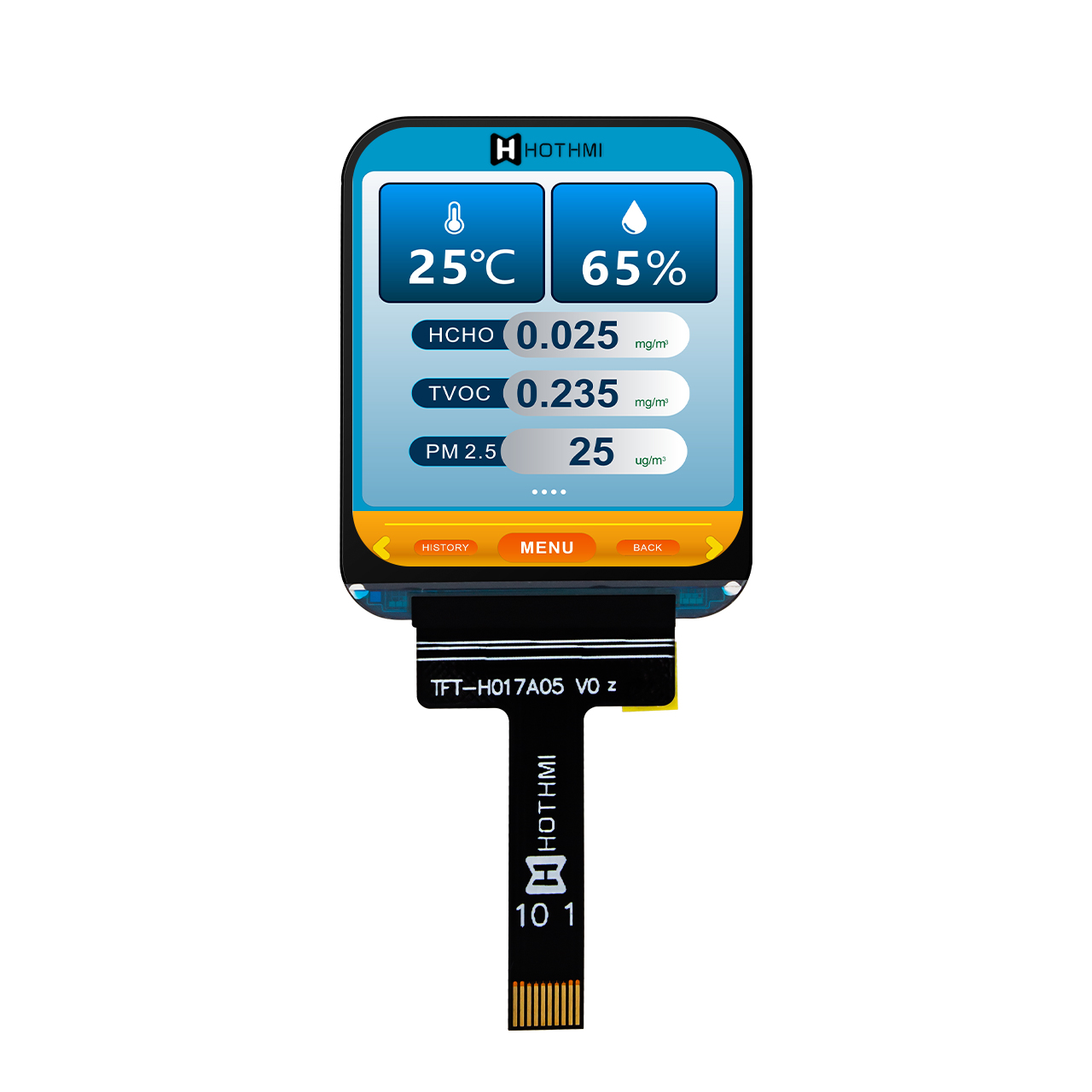

• Mini Handheld Detectors: Small display panels for industrial portable gas detectors, temperature and humidity detectors, mini water quality detectors
• Portable Medical Handheld Devices: Medical display modules for small blood glucose meters, oximeters, mini heart rate monitors
• Outdoor Handheld Tools: Display units for mini laser distance meters, handheld tire pressure gauges, outdoor compasses/altimeters

Core Hardware Design Advantages for Engineering Adaptation

• SPI Interface: Realizes communication with only 3-4 GPIO ports, greatly reducing hardware integration difficulty. Fully compatible with various main controllers including MCU/ESP32/Arduino, and shortens engineering development cycle.
• ST7789 Driver: Industrial-grade mature driver with abundant supporting driver codes. No need for secondary development of underlying drivers, directly adaptable to various engineering development frameworks.
• IPS Wide View Angle: Solves the view angle blind spot problem of small-size screens, suitable for multi-angle viewing scenarios such as handheld, vehicle-mounted and industrial applications.
• High Brightness: Compared with ordinary LCDs, it has stronger visibility under strong light. No additional backlight panel is required, reducing engineering hardware costs and power consumption.
