16×1 Character LCD Display-STN- Blue Background With White Backlight -Arduino

  • Model: HTM1601B-25W-A5P
  • Product type: 16x1Character LCD Modules
  • Overall dimensions (mm): 151.0×40.0x9.6
  • Working temperature: -20~70℃
  • Power supply voltage: 5.0V
  • Driver chip: ST7066U

Original price was: $31.00.Current price is: $29.00.

(Save $2.00)
In stock
Quantity Price
1 - 10 $29.00
11+ $24.00
101 Quote Request
Buy now

Description

Character LCD Modules-16×1 STN- Blue Background White Character Dot Matrix Display-Arduino

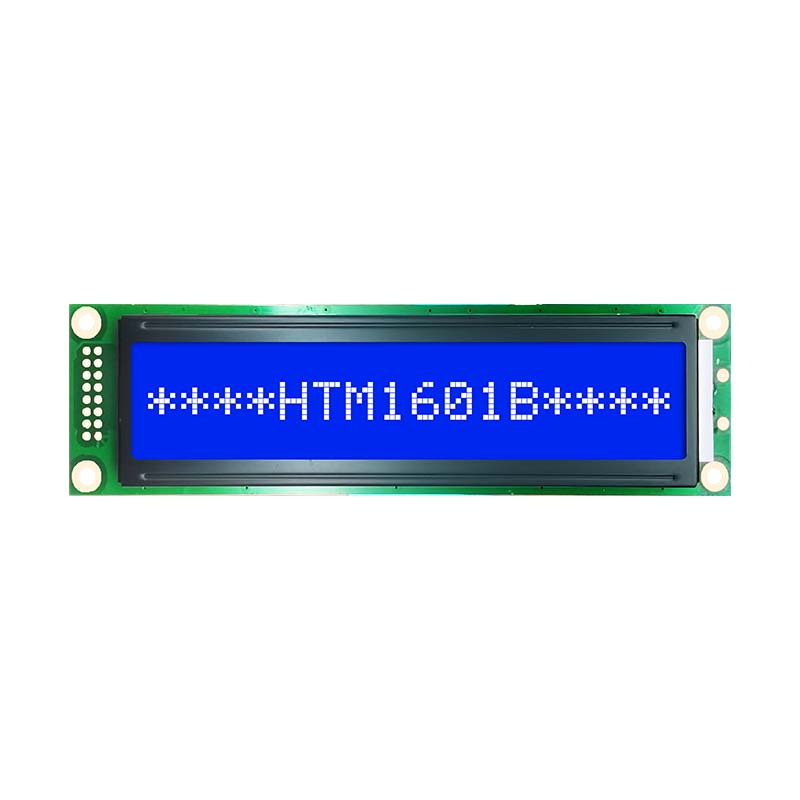

Character LCD Modules,1X16 Character LCD | STN- Blue Background White Character Dot Matrix Display-Arduino HTM1601B-25W-A5P is a 16-character 1-line LCD that displays white characters on a blue background. This single-line transmission screen operates at 5 V. The compactly designed blue LCD provides you with the best display experience, with an optimal display orientation at 6:00. It has a wide operating temperature range, ranging from -20°C to 70°C. It stands out with a unique white side light, which improves visibility and readability in low-light environments. This LCD has a built-in ST7066U controller that ensures high compatibility with a variety of interfaces and development boards, including Arduino.

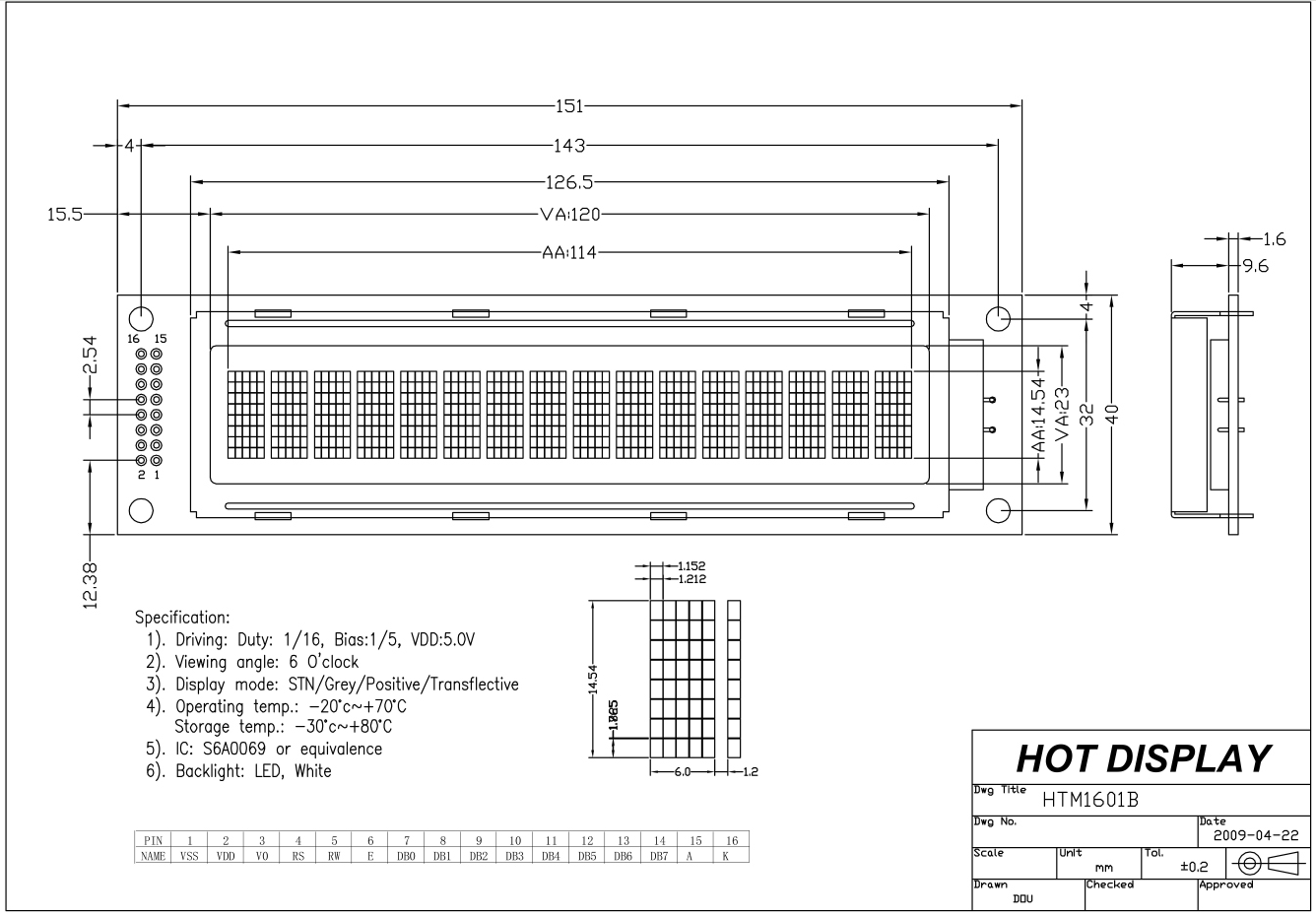

Specifications of  the 16×1 Character LCD Display

Attribute

Project Specification content Unit
model HTM1601B-25W-A5P
Word x line 16 words × 1line dots
Module Size 151.0x40.0x9.6 (MAX) mm
Visible (VA) area 120.0x23.0 mm
Effective (AA) area 114.0x14.54 mm
Point (pixel) spacing 1.212x1.825 mm
IC ST7066U
supply voltage 5V V
Backlight White light
mode STN(-)
Duty driving mode 1/16 duty cycle
type Character LCD module
characteristic Fully transparent reflection polarizer
