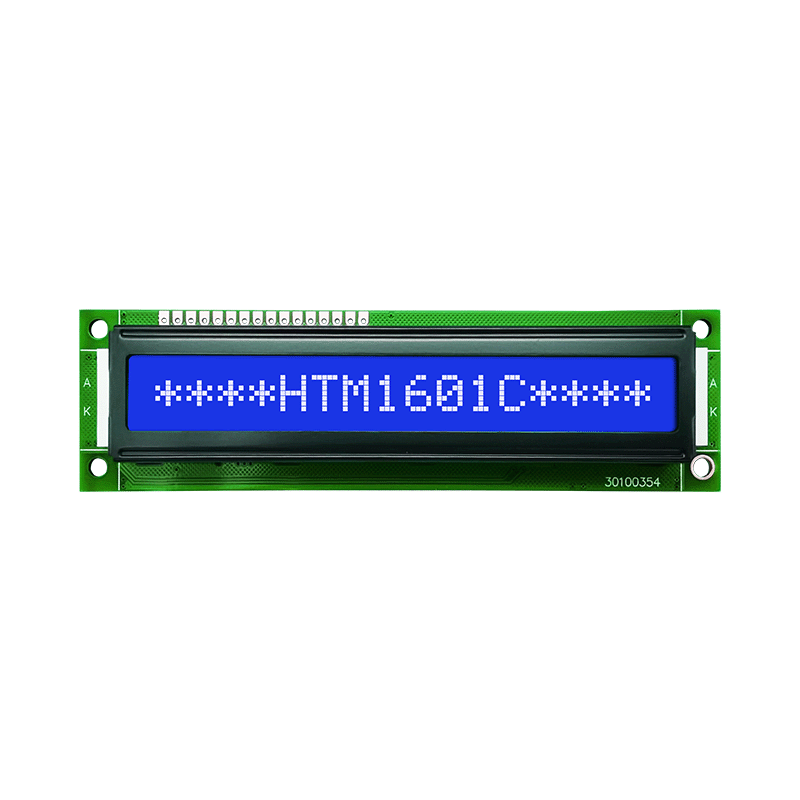

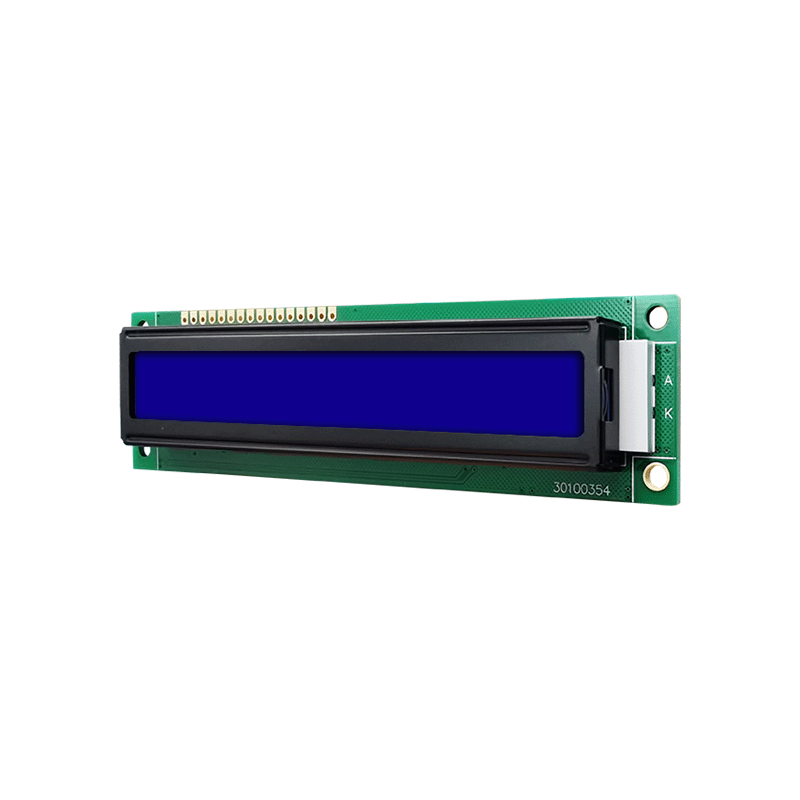

16×1 Character LCD Module STN(-)+Blue Background with white backlight-Arduino

Character LCD Modules Model HTM1601C-25W-A5P is a 1×16 character LCD with a white display and backlight. It is a transmissive LCD, which means it can be seen both in ambient light and in poor lighting conditions when the backlight is turned on for better visibility. The monitor has a wide operating temperature range of -20 to 70 degrees Celsius, making it suitable for different applications.

The characters on the display are dark pixels on a bright blue background. The backlight is a white LED. The display communicates via parallel communication, operates on a 5V supply voltage, and has an internal ST7066U control chip. This high quality RoHS compliant display module is RoHS compliant and can be used in Arduino projects and is compatible with other development boards. The HTM1601C-25W-A5P display module has undergone rigorous quality testing to ensure its durability and performance under various conditions.

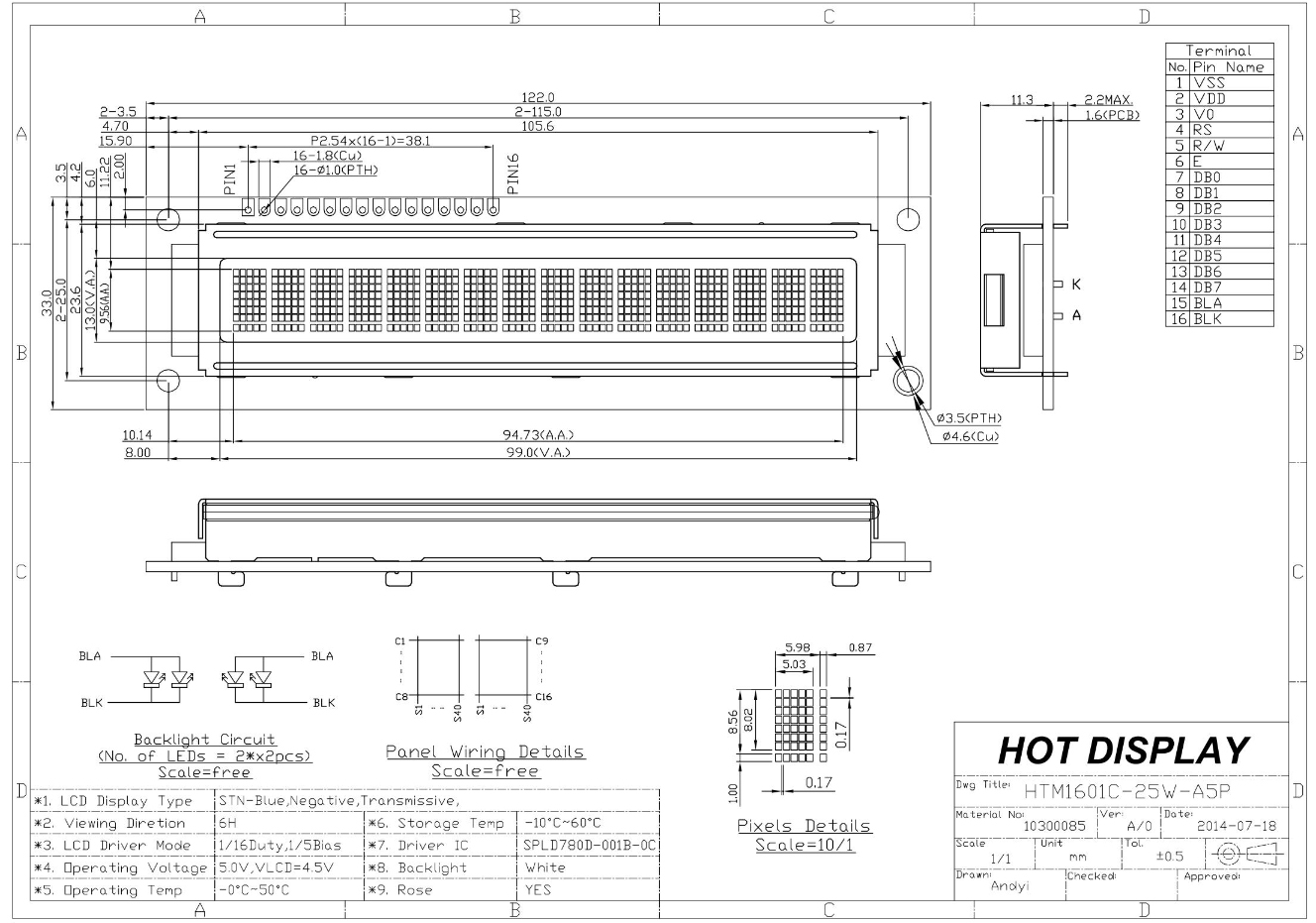

Specifications of the 16×1 Character LCD Module
