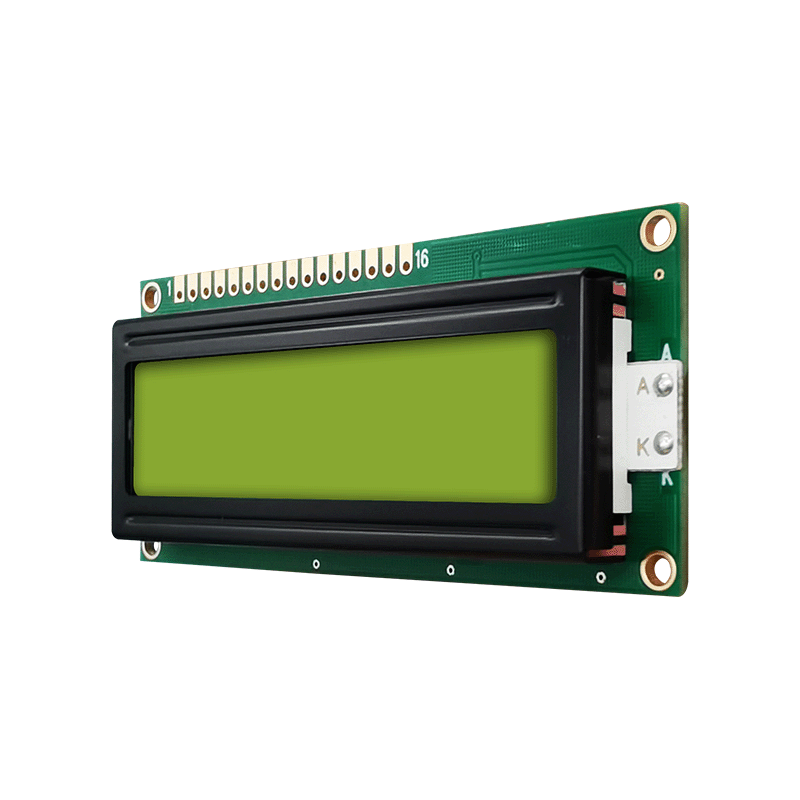

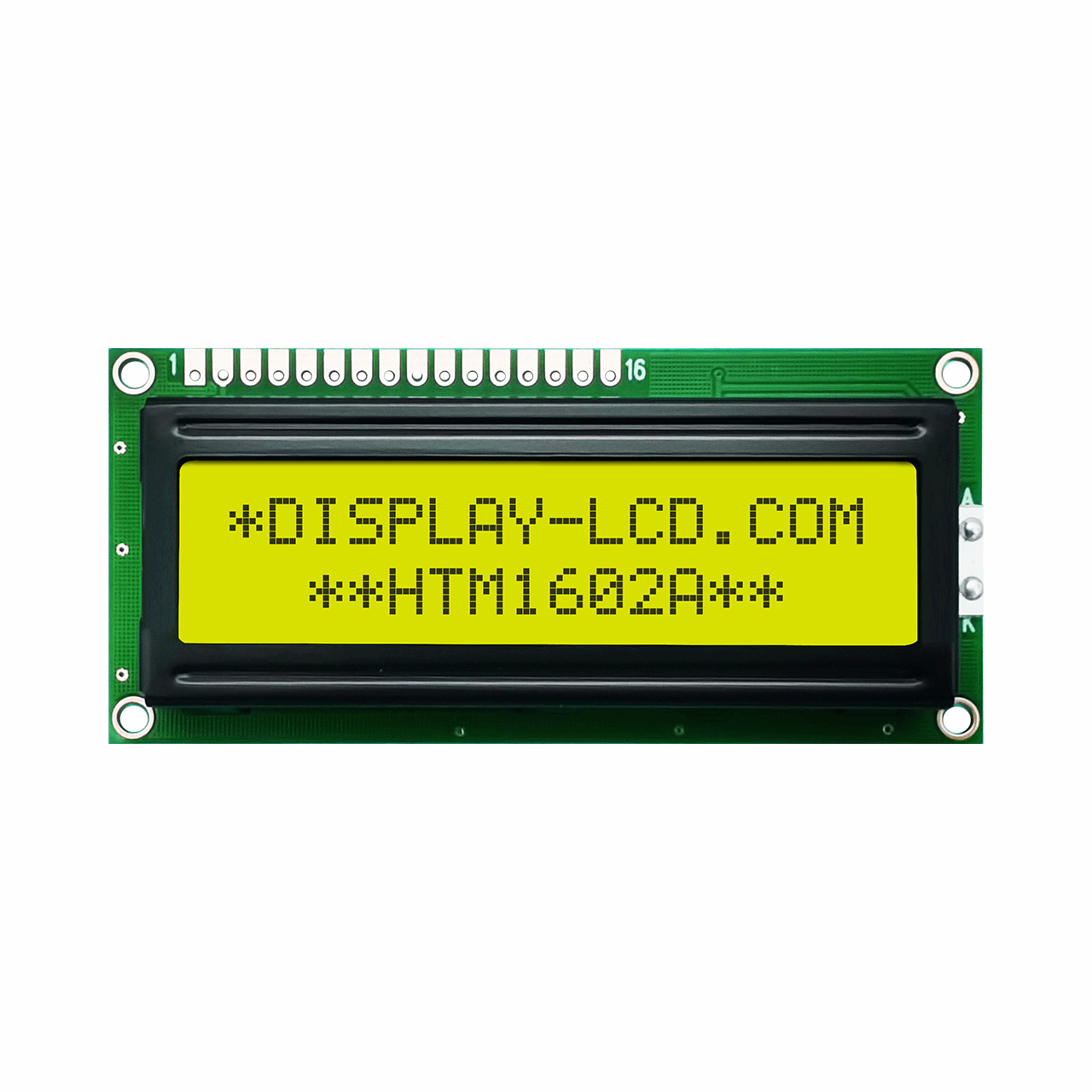

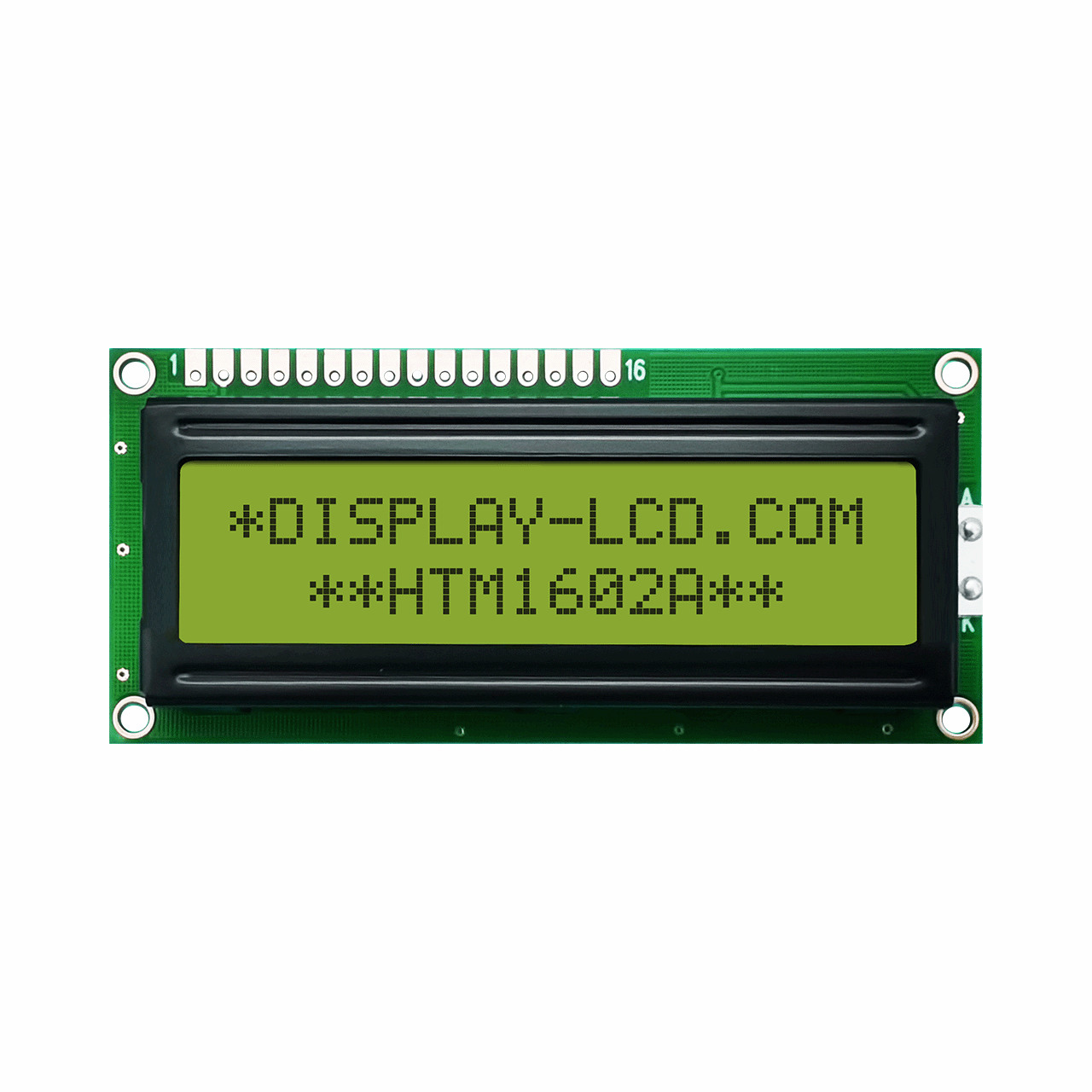

16×2 Character LCD Module STN+ Gray Display with yellow-green Backlight Display for Arduino

  • Model:HTM1602A-01Y-A5P
  • Type: 16×2 Character LCD Module
  • Overall dimensions (mm): 80.0×36.0x13.1
  • Working temperature: -20~70℃
  • Power supply voltage: 5.0v
  • Driver chip: ST7066U

Original price was: $7.00.Current price is: $6.00.

(Save $1.00)
In stock
Quantity Price
1 - 10 $6.00
11+ $4.00
101 Quote Request
Buy now

Description

16×2 Character LCD Module STN+ Gray Display with yellow-green Backlight Display for Arduino

This Character LCD Module 16×2 character LCD displays bright black pixels on a yellow-green background. Transmissive display mode features built-in LED backlighting for optimal visibility in low-light conditions. This HTM-1602A-11Y-A5P-V03 monitor features an optimal viewing angle of 6:00, a wide operating temperature range of -20 to 70 degrees Celsius, and operates on a 5V supply voltage. This Arduino-compatible monitor comes with an ST7066U controller, providing a great viewing experience and performance at an affordable price.

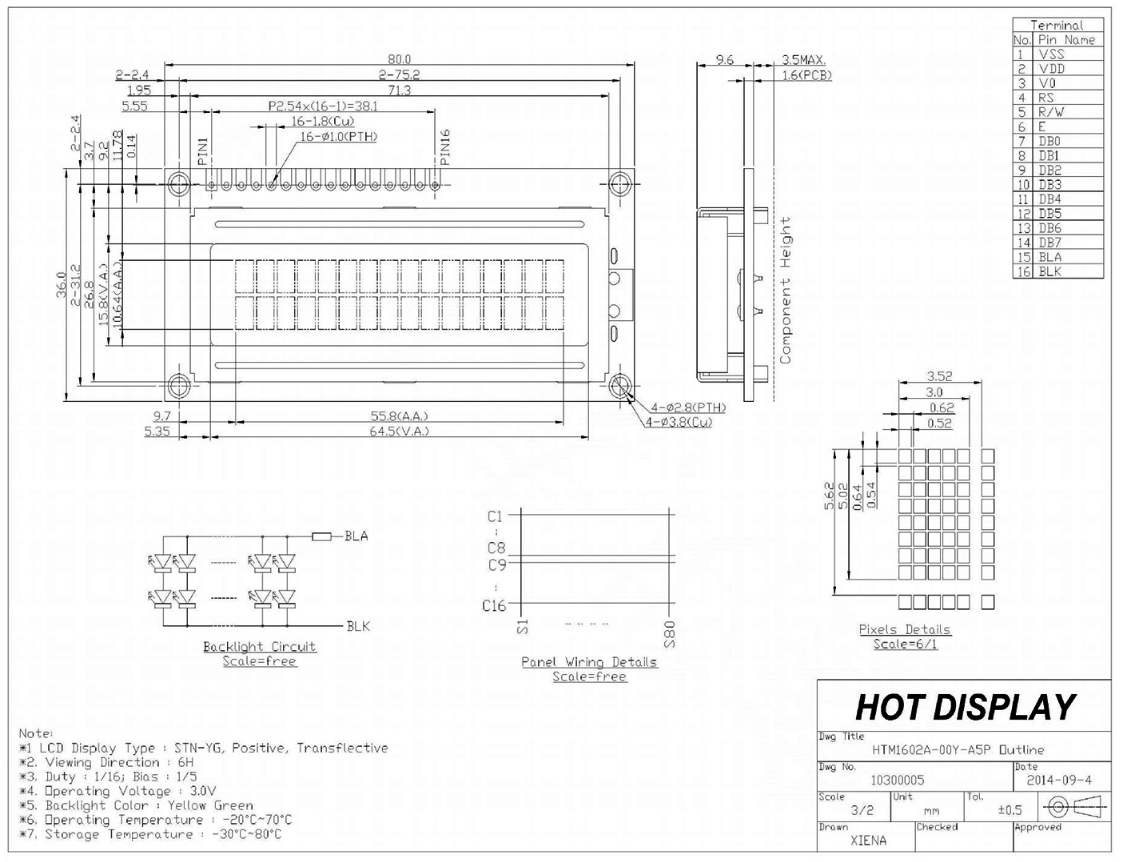

Specification of the 16×2 Character LCD Module

Attributes

Item Specification content Unit
Model HTM1602A-01Y-A5P
words × lines 16words  × 2lines dots
Module size 80.0x36.0x13.1 (MAX) mm
VA size 64.5(W) × 15.8(H) mm
AA size 55.8x10.64 mm
Point (pixel) spacing 0.62(W) × 0.64(H)mm mm
IC ST7066U
Application voltage 5V V
backlight Yellow/green
model STN+
Drive mode 1/16 duty cycle
type Charcter Module
Polarizer type Transflective Polarizer
