Description

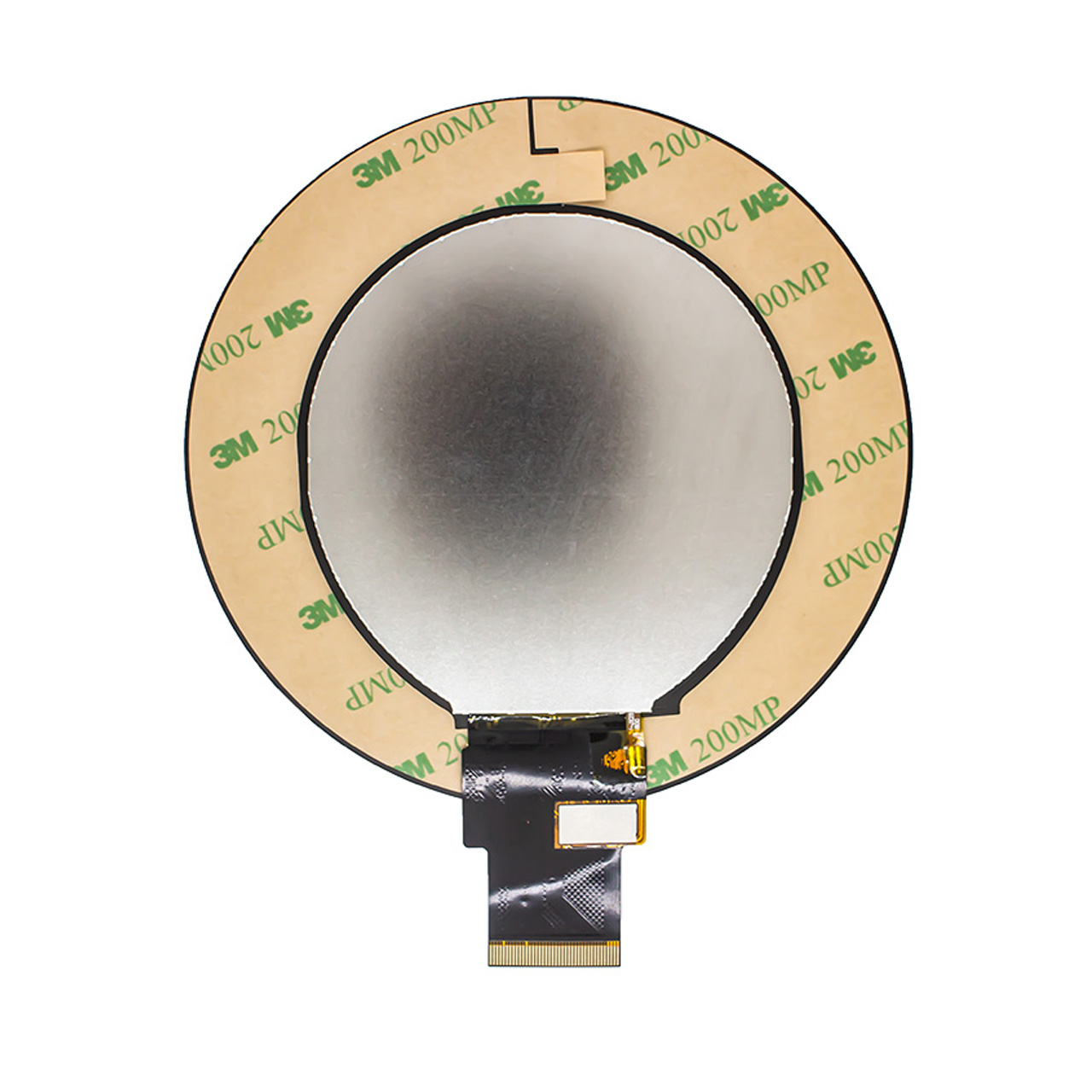

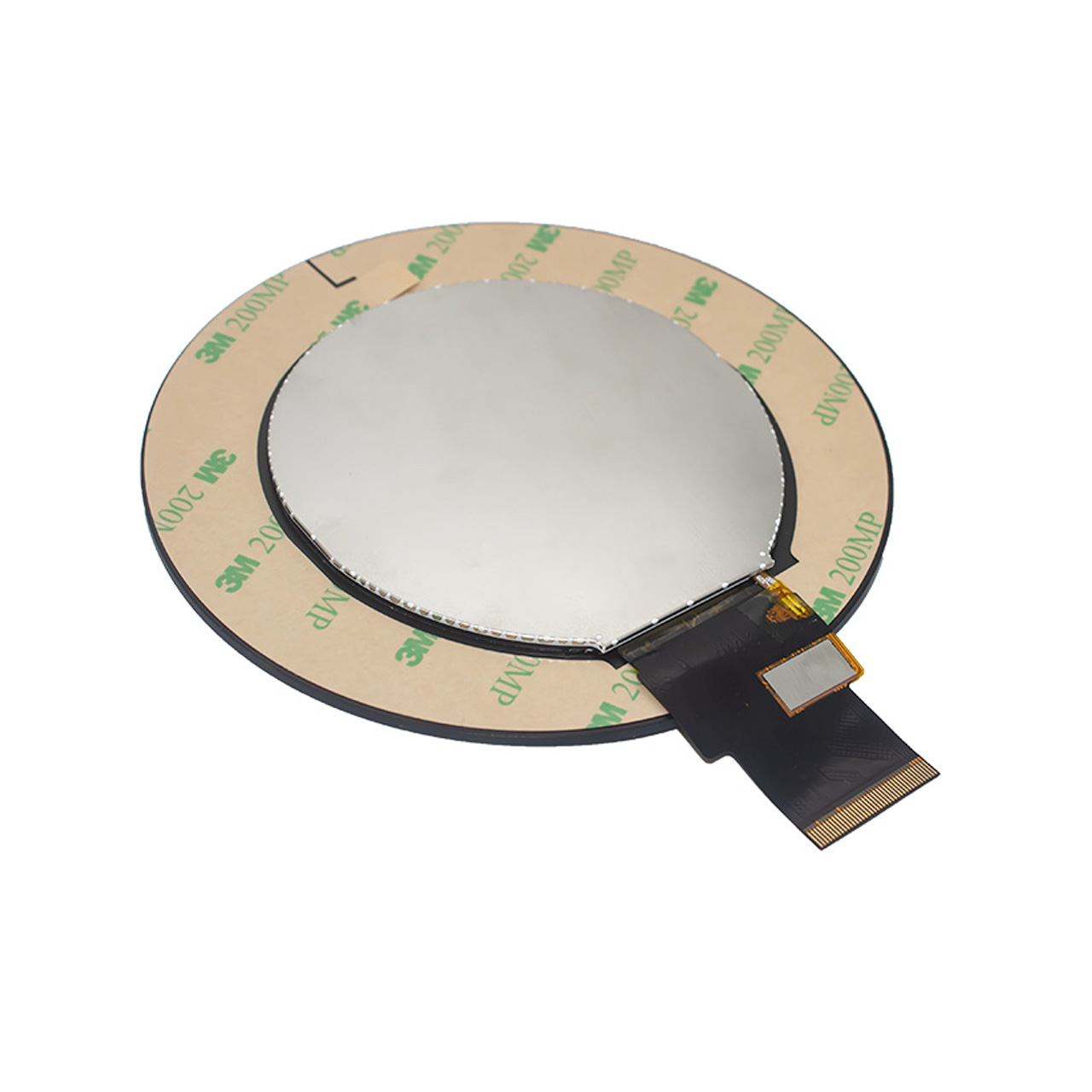

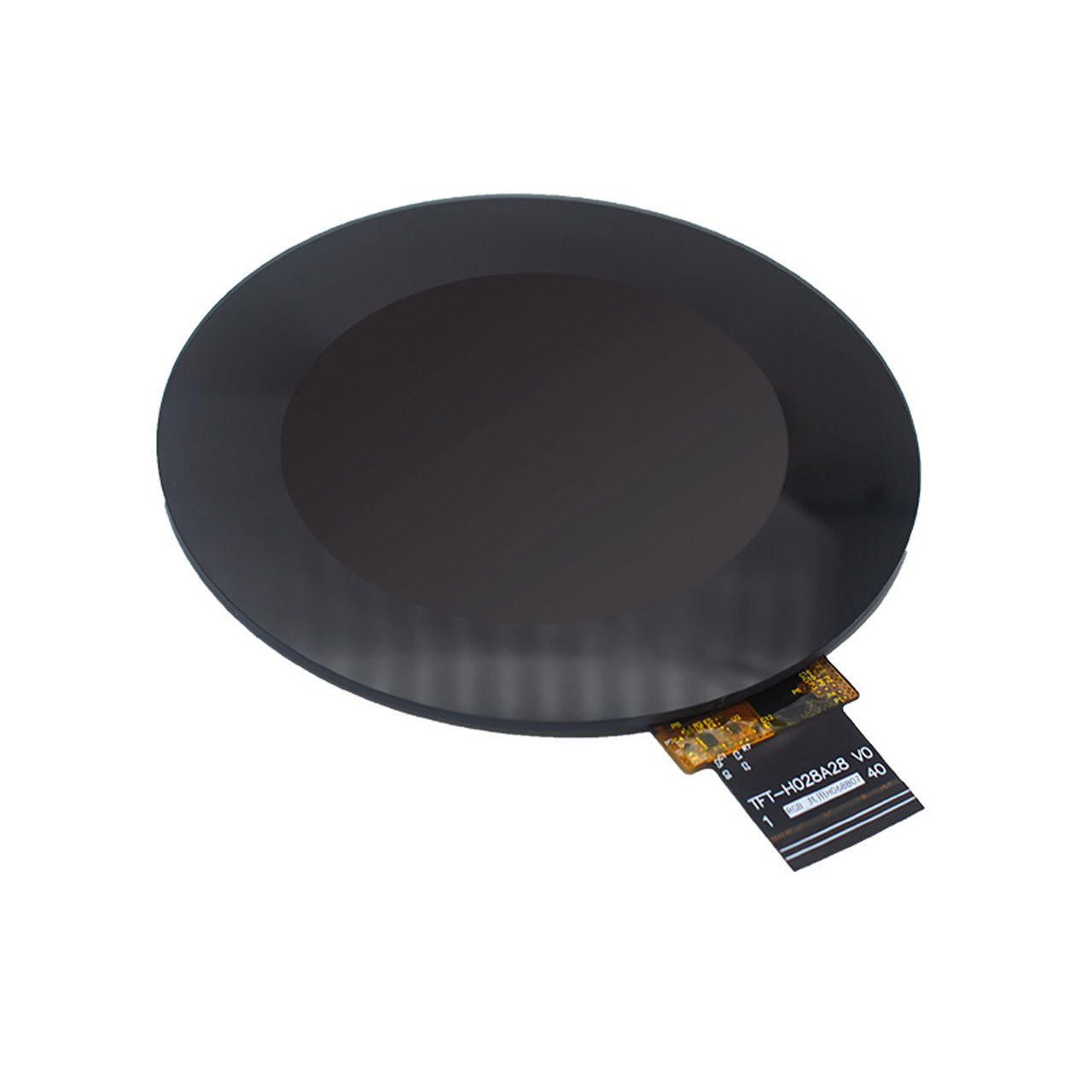

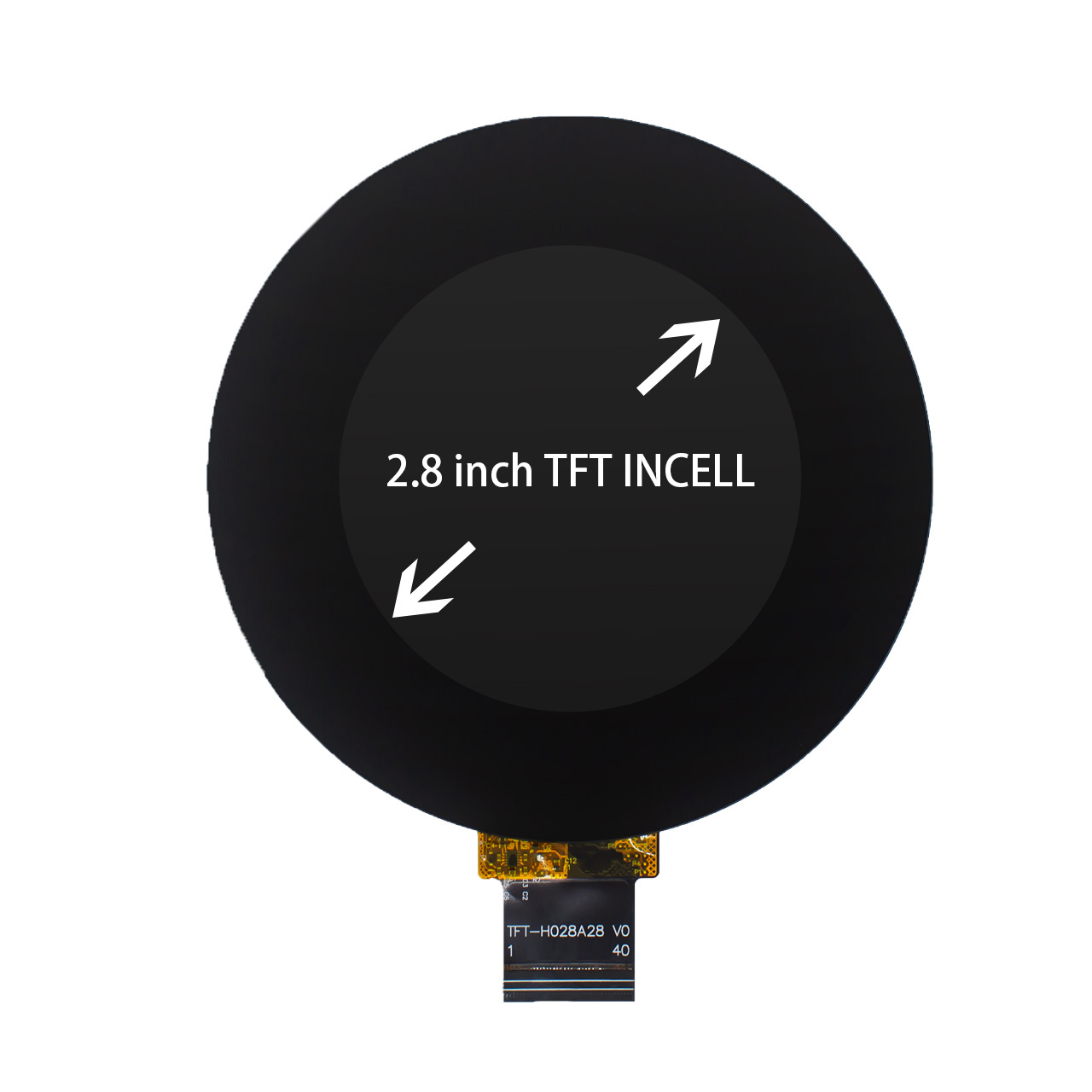

2.8 inch in-cell LCD with AXS15260D
2.8 inch in-cell LCD are engineered to deliver superior visual and operational performance for demanding applications. A key aspect of the Features of the Incell TFT LCD Display is its advanced InCell technology, which integrates the touch sensor directly into the LCD cell. This integration significantly enhances the panel’s structural integrity and optical performance, resulting in a slimmer profile, reduced weight, and improved image clarity with exceptional brightness uniformity.
The 2.8 inch Round LCD employs a high-resolution pixel matrix, ensuring sharp, detailed imagery ideal for both textual and graphical content. Its IPS panel provides a full and consistent viewing angle, making the Features of the2.8 inch in-cell LCD perfectly suited for instrumentation and portable electronic devices where visibility from various orientations is critical. The robust backlight system offers high luminance, guaranteeing excellent readability even in brightly lit environments.
Connectivity and reliability are central to the Features of the 2.8 inch in-cell LCD. It utilizes a modern high-speed serial interface for efficient data transmission, contributing to lower power consumption and reduced electromagnetic interference. The design incorporates stringent protection against electrostatic discharge, enhancing durability.
Furthermore, the module is built to operate reliably across a wide temperature range, ensuring stable performance under varying environmental conditions. With a compact form factor and a standard FPC pin configuration, it facilitates seamless integration into space-constrained portable designs. The integrated driver IC supports the InCell architecture, enabling responsive touch functionality while maintaining display quality.
Ultimately, the comprehensive Features of the Incell TFT LCD Display provide a balanced solution of visual fidelity, ruggedness, and integration efficiency for advanced electronic products.

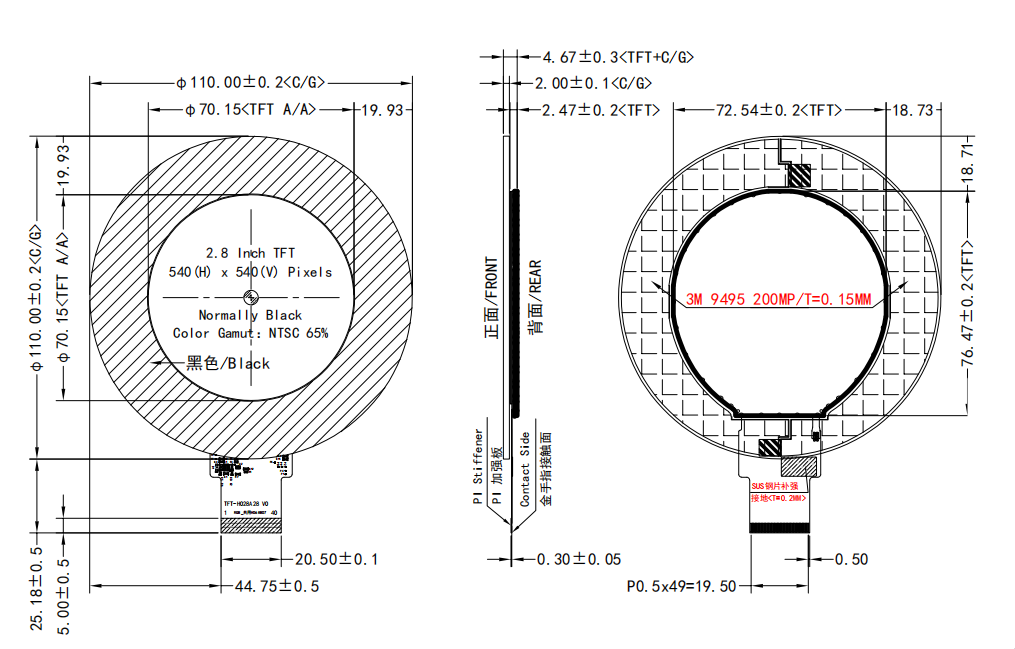

Specifications for the 2.8 inch in-cell LCD
What are the advantages of 2.8 inch in-cell LCD?
The primary advantage of an in-cell TFT LCD lies in its integrated structure. By embedding the touch sensor directly inside the liquid crystal cell, this design eliminates the need for a separate touch layer, bringing several key benefits.
Firstly, 2.8 inch in-cell LCD enables an ultra-thin and lightweight module, supporting slimmer and more compact device designs.
Secondly, it delivers superior optical performance. With reduced light reflection and inter-layer absorption, the display achieves higher brightness, stronger contrast, and more vivid colors.
Thirdly, touch performance is greatly improved. Placing the sensor closer to the interaction surface ensures higher sensitivity, accuracy, and reliable support for advanced multi-touch gestures.
In addition, in-cell TFT LCDs offer excellent durability and reliability. They are less likely to produce visual defects such as Newton’s rings under pressure and perform stably across a wide range of environmental conditions.
Finally, for manufacturers, using a complete 2.8 inch in-cell LCD module simplifies the supply chain and assembly process.
The difference between in-cell TFT LCD displays and ordinary capacitive touch displays
| Feature Aspect | Standard Capacitive Touch Display (Add-On Type) | In-Cell TFT LCD Display (Embedded Type) | Result / Advantage |
| Thickness & Weight | Thicker and heavier due to additional separate sensor layers and adhesives. | The in-cell TFT LCD Display achieves the slimmest and lightest profile. | Clear advantage for the in-cell TFT LCD Display. |
| Optical Performance | Lower transmittance; potential for reflection/color loss, affecting sunlight readability. | The in-cell TFT LCD Display offers superior brightness, contrast, and color vibrancy. | Clear advantage for the in-cell TFT LCD Display. |
| Touch Feel & Response | Possible air gaps can cause minor lag or visual artifacts like Newton’s rings when pressed. | The in-cell TFT LCD Display provides a more direct, solid feel with excellent responsiveness. | Advantage for the in-cell TFT LCD Display. |
| Manufacturing & Cost | Mature technology with lower initial cost but higher overall assembly and material costs. | The in-cell TFT LCD Display has higher initial complexity but benefits from integrated production. | Standard (short-term cost); In-cell TFT LCD Display (integration benefits). |
| Reliability | Risk of delamination, dust ingress, or bubbles from lamination processes. | The monolithic structure of an in-cell TFT LCD Display enhances durability and impact resistance. | Advantage for the in-cell TFT LCD Display. |
Note: The above capacitive displays refer to air-bonded structures. HOTHMI focuses on optical bonding, which can help customers avoid the shortcomings mentioned above.
Summary：The integrated design of the in-cell TFT LCD Display provides superior performance in thinness, optics, touch, and robustness compared to the layered add-on approach.
FAQ about the 2.8 inch in-cell LCD
Q1: How durable is the 2.8 inch in-cell LCD in harsh environments?
A1: This 2.8-inch round in-cell TFT LCD features a wide operating temperature range of -20~70℃ and 8KV ESD protection for stable performance in harsh environments. Its integrated in-cell structure enhances resistance to mechanical stress and external conditions, making it highly reliable for smart home appliances and robot vacuums.
Q2: Does the 2.8 inch in-cell LCD support touch functionality, and what type?
A2: Yes, it supports capacitive touch via an all-in-one in-cell design (TFT+CTP). The integrated structure delivers a smooth touch experience without increasing module thickness.
Q3: How is the power consumption of this 2.8 inch in-cell LCD?
A3: This display adopts an RGB interface and in-cell integrated design, which effectively lowers overall power consumption. With a 3.3V low-voltage power supply and high-efficiency AXS15260D driver IC, it achieves excellent energy efficiency, making it ideal for battery-powered devices such as robot vacuums.
Q4: How are the response speed and accuracy of this in-cell TFT LCD touchscreen?
A4: In-cell technology embeds the touch sensor inside the liquid crystal layer, shortening the signal path and enabling fast response and low latency. Paired with an IPS wide-viewing-angle panel, this 2.8-inch round display ensures high touch accuracy even at oblique viewing angles.
Q5:Can the details be customized?
A5:Yes,we have a professional team of engineers to develop and manufacture customized products for our clients.
| Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure. |
| Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
| Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals. |
| Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection). |
