Description
TFT-H028A1QVIST6N40 | 2.8-inch Color LCD | 240×320 Resolution IPS LCD | C8051,Arduino, and STM32

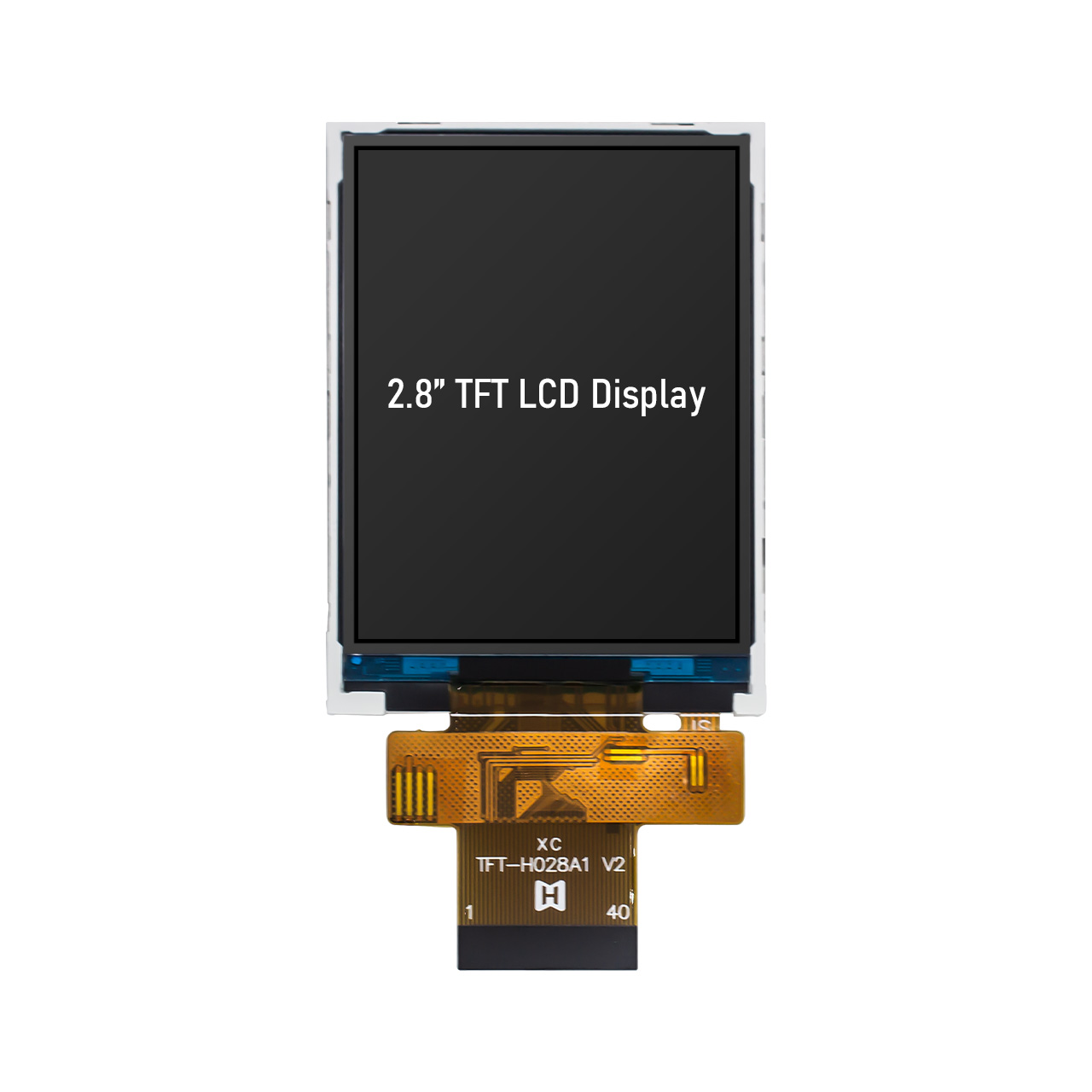

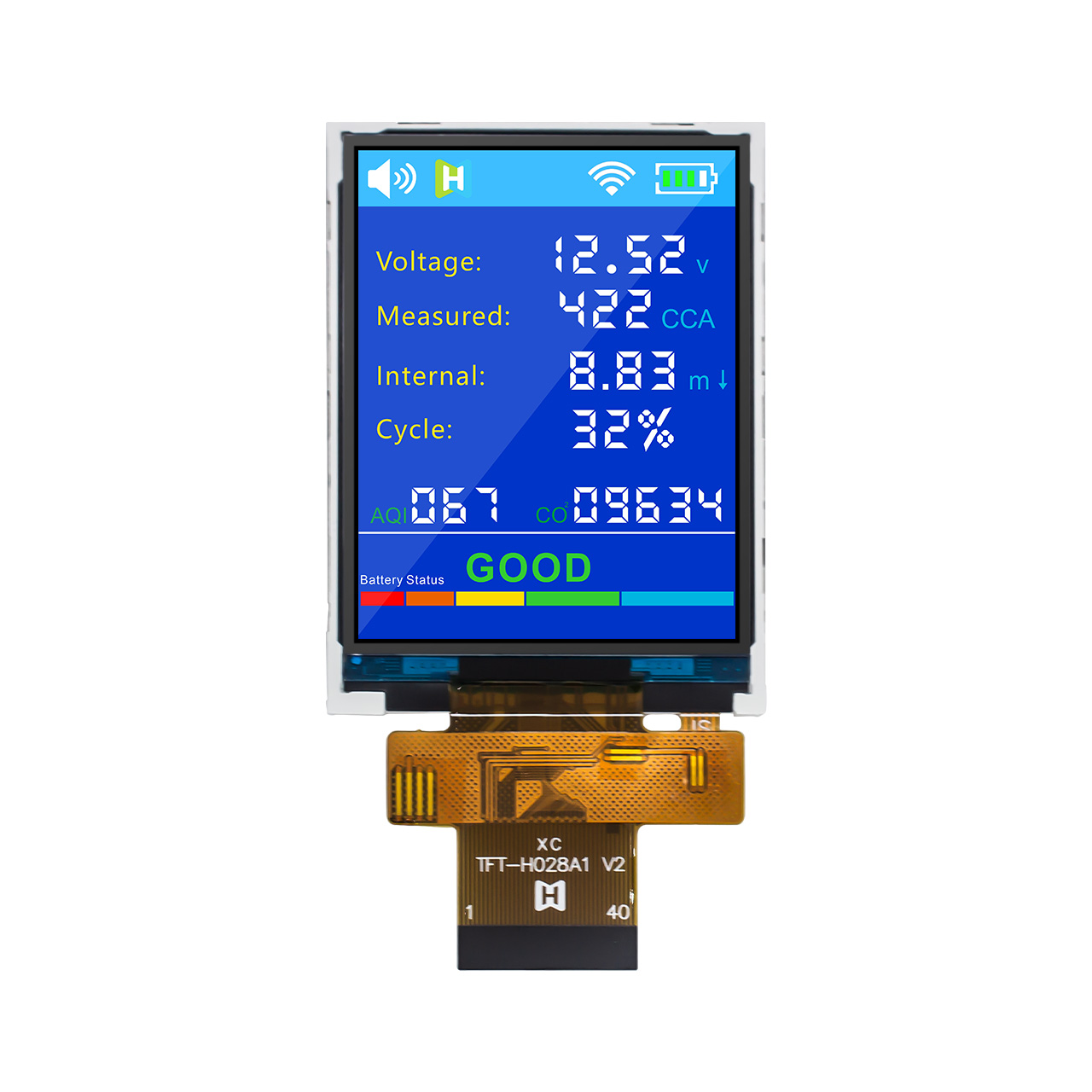

The TFT-H028A1QVIST6N40 is a 2.8-inch TFT LCD with a 240×320 resolution and IPS full-viewing angle, delivering high-definition image quality from any viewing angle. Its brightness is approximately 600 cd/m², and the backlight brightness can be adjusted to suit customer needs. It features a built-in ST7789V controller and is a non-touchscreen model.

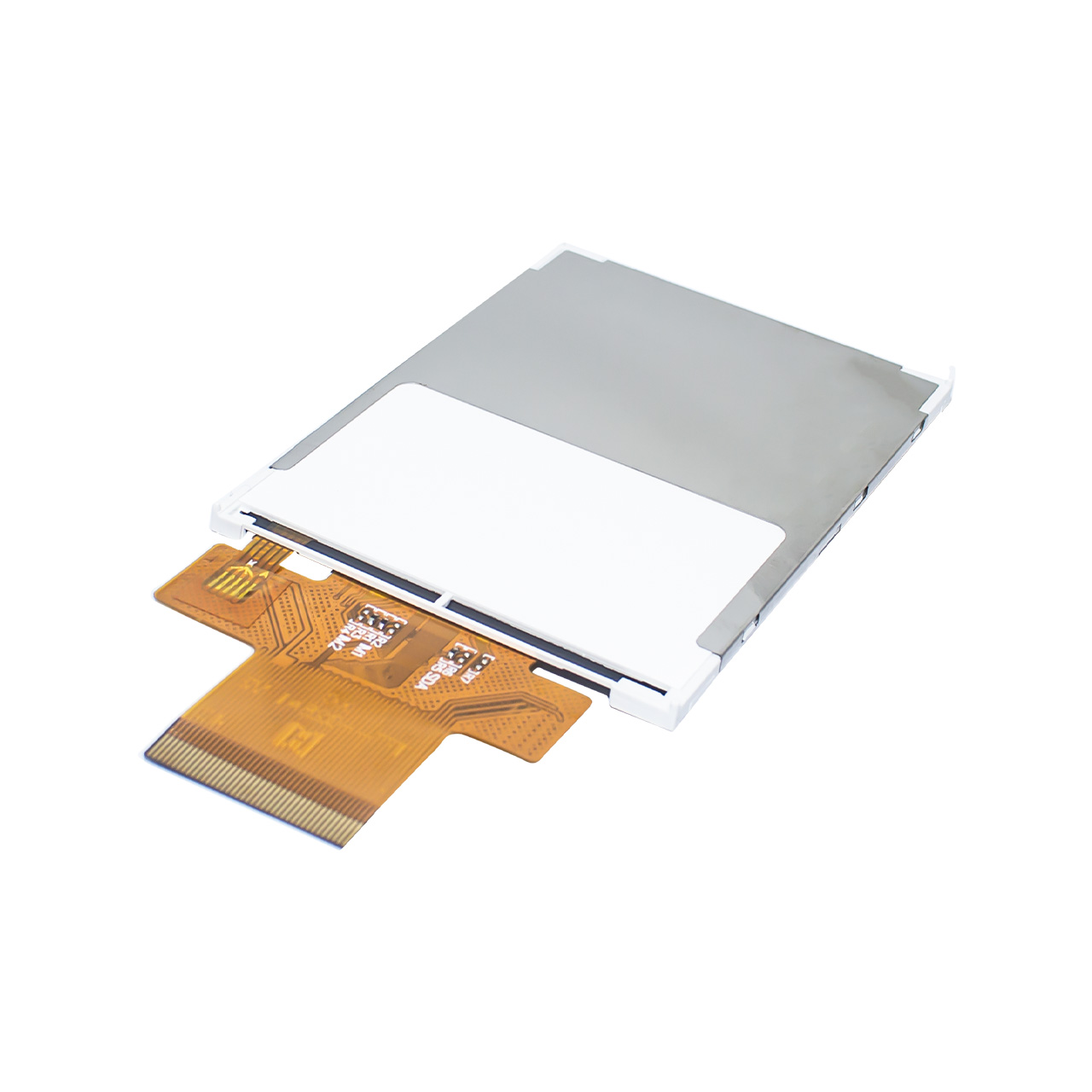

This display includes an FPC cable, allowing developers to easily connect it to a development board via plug-in or soldering. This version is touch-free. In the same size range, we offer capacitive touchscreen versions of the 2.8-inch TFT-H028C2QVTST4C45 and resistive touchscreen versions of the TFT-H028A17QVTST2R37. This model does not include a driver board, allowing engineers to freely choose from common development platforms such as Arduino, C8051, or LVGL. If developers lack development capabilities, we also offer the HTM-H028A16-USART-ST V2.0 smart TFT module with a driver board, or the HTM-TFT028A16-SPI module with SPI communication.
This 2.4-inch display is suitable for a variety of industries and applications, including industrial, commercial, control, PLC, outdoor handheld devices, aviation, consumer electronics, medical equipment, automotive dashboards, kiosks, field engineering, agriculture, and outdoor sports equipment. All our products are ROHS compliant.
To learn more about TFT LCD display manufacturers, please click:https: //www.display-lcd.com/
What viewing experience does IPS TFT technology bring to this 2.8 inch TFT display?
What need to be considered when purchasing a high brightness TFT display?
When selecting a high brightness TFT display, in addition to brightness parameters, the following should also be considered:
| Item | Key Factors | HOTHMI |
|
Contrast Ratio |
The ability to distinguish between bright and dark areas under strong light (low-end products 300-500, high-end products can reach 1000-2000) |
The standard contrast ratio is 1000. |
| Operating Temperature Range: | A key indicator for outdoor/industrial applications | Standard range: -20°C to +70°C; partial range: -30°C to 80°C |
| Viewing Angle: | Ensures readability from different viewing angles | IPS TFT |
| Power Consumption Control: |
Energy saving |
Balancing the best cost-performance ratio |
| Backlight Lifespan: | Determines the sustainability of the high brightness TFT display | Typical lifespan: 30,000 hours |
| Anti-Glare and Anti-Reflective Coating | Further improves outdoor visibility by reducing reflections |
Customizable |
FAQS about 2.8-inch TFT LCD display
Q1: Is the brightness of this 2.8-inch TFT LCD display suitable for outdoor use?
A1: Yes, the high brightness design of 600 cd/m² allows the 2.8-inch TFT LCD display to maintain good visibility under most outdoor lighting conditions. This display is particularly suitable for portable devices and outdoor terminals.
Q2: How is the power consumption of this display?
Q3: Are development resources provided?
Q4: What are the lead time and minimum order quantity for the display?
CUSTOMIZED SERVICES
| Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure. |
| Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
| Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals. |
| Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection). |
