Description

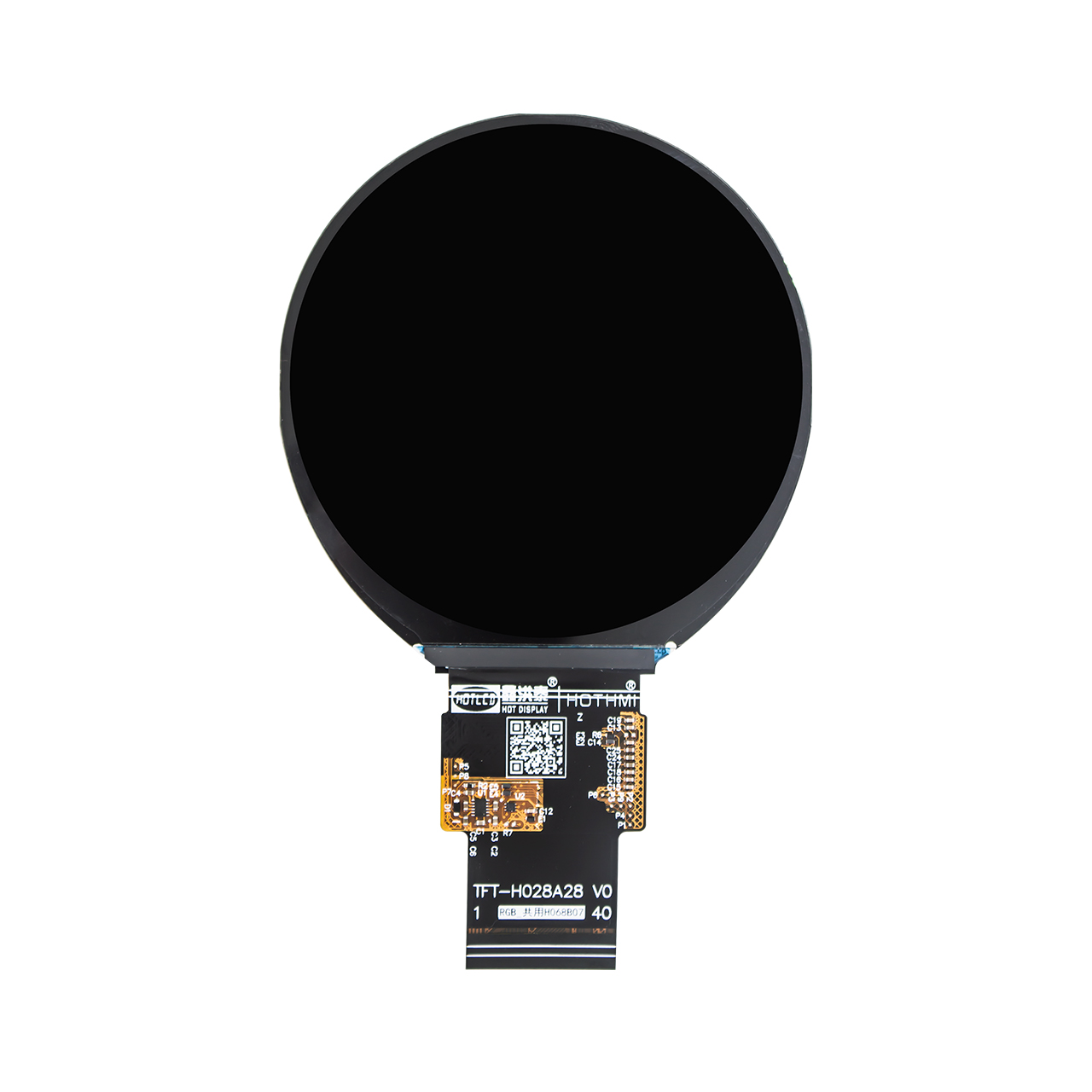

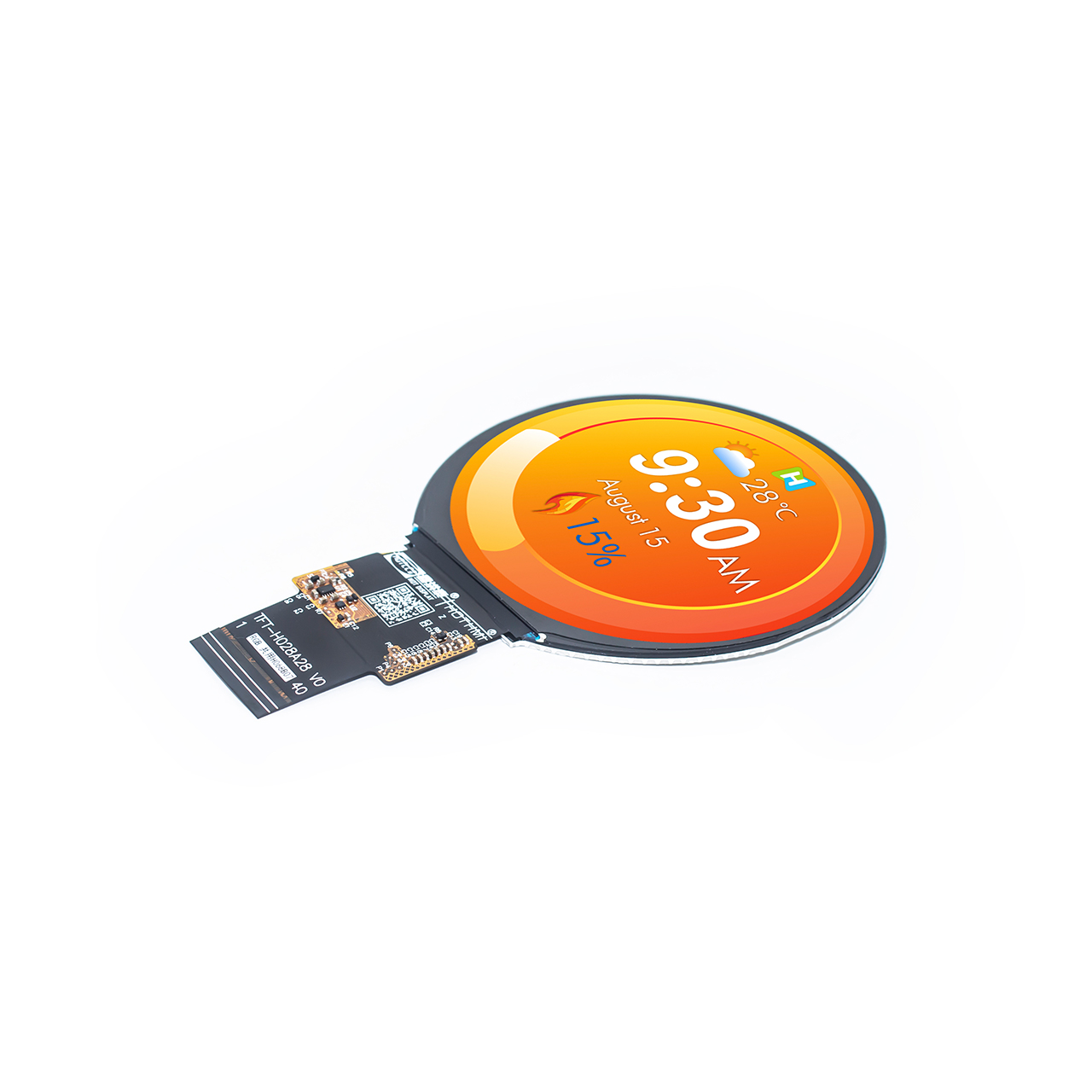

Introducing the 2.8 Inch Round TFT HD display incell 540×540 dots RGB AXS15260D
-
Ultra-Clear Picture
2.8 inch round TFT features a high definition 540×540 resolution paired with IPS full viewing angle technology. No matter which angle you view it from, colors remain vibrant and images stay sharp and clear.
With a brightness of 450cd/㎡,the image can still be clearly seen under daily lighting conditions.
-

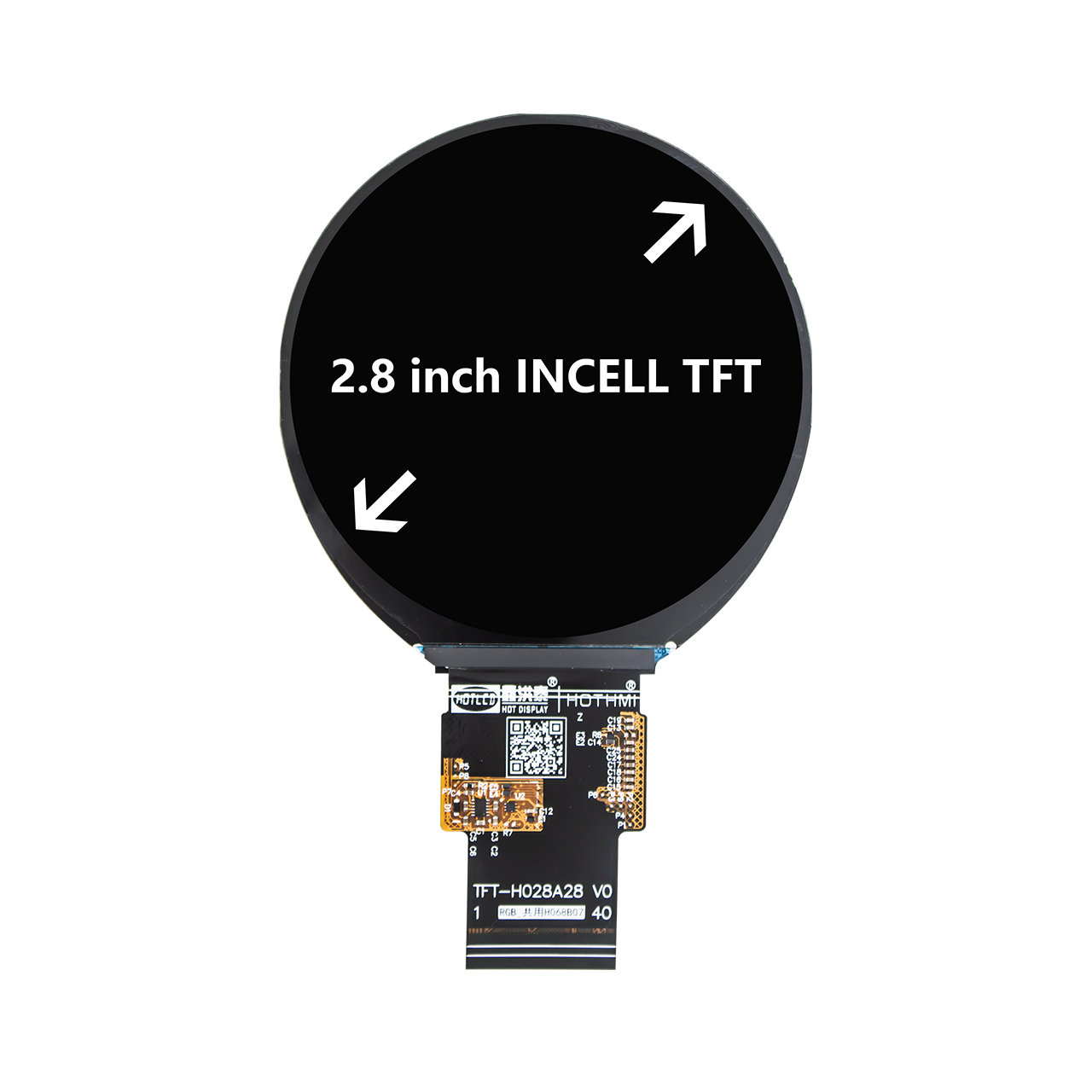

Advanced In-Cell Technology: Thin, Light, and Responsive
Using In-Cell lamination technology, the touch layer is integrated into the display layer. This not only reduces the screen thickness to just 2.47mm but also significantly improves touch sensitivity and light transmittance.
Whether you’re sliding on a smart home control panel or tapping precisely on a robot interface, you’ll enjoy a responsive, fluid interaction.
-
Industrial-Grade Durability for Complex Environments
Wide Temperature Range: Operates reliably from 20℃ to 70℃, with resistance to cold and heat
ESD Protection: 8KV electrostatic discharge protection guards against static damage
Stable Power Supply: 3.3V low-voltage power supply, compatible with the power designs of various embedded devices
These features ensure stable performance in scenarios like smart home appliances, robot vacuums, and smart wearables.
-
Flexible Compatibility, Hassle-Free Development
It uses an RGB interface with a 40PIN FPC cable, paired with the AXS15260D driver chip, enabling quick integration with mainstream control chips.
We also provide technical support to lower the development threshold and help you launch your product faster.
If you’re looking for a Round display that combines aesthetics and performance, it’s definitely worth adding to your shortlist.

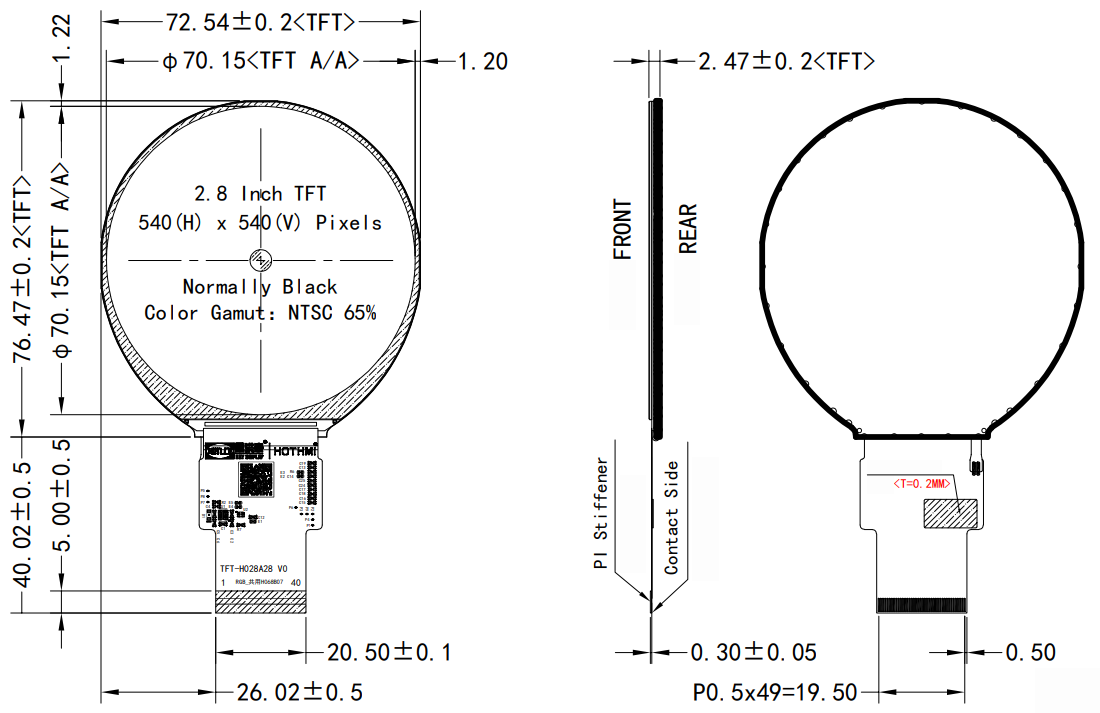

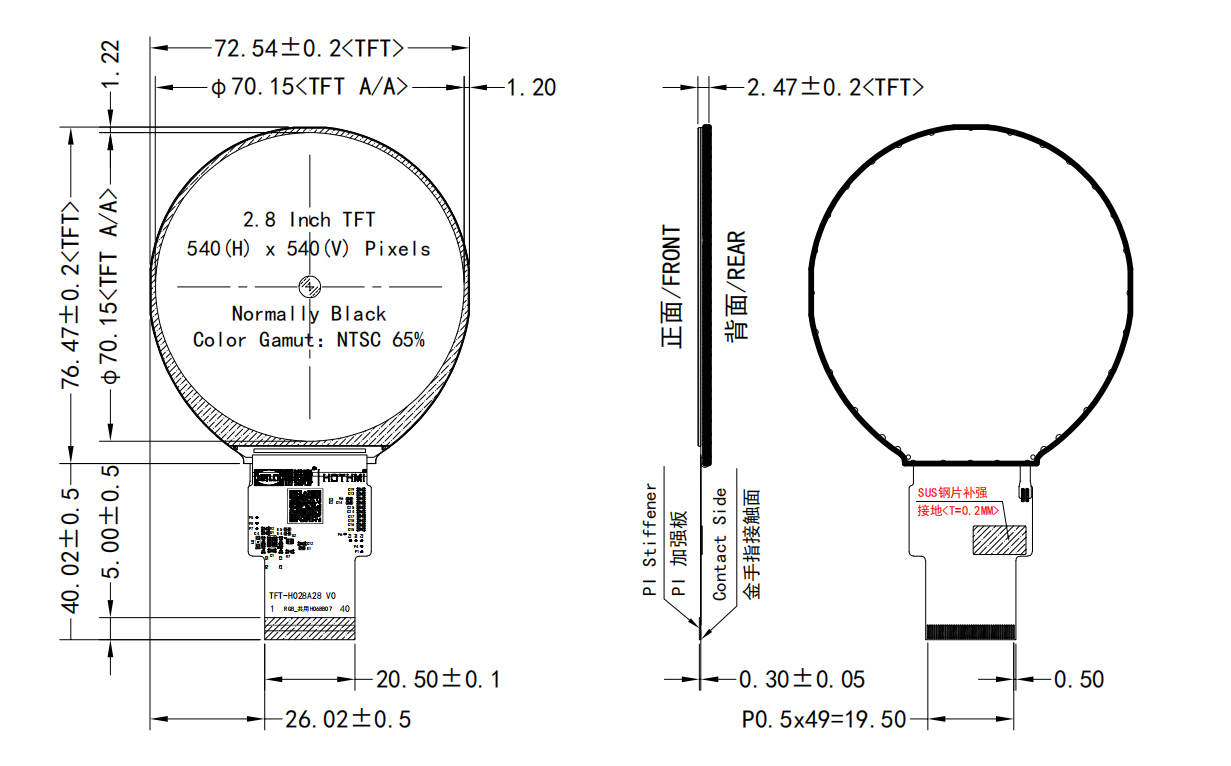

Specifications of the 2.8 Inch Round TFT 450cd/m² IPS Display

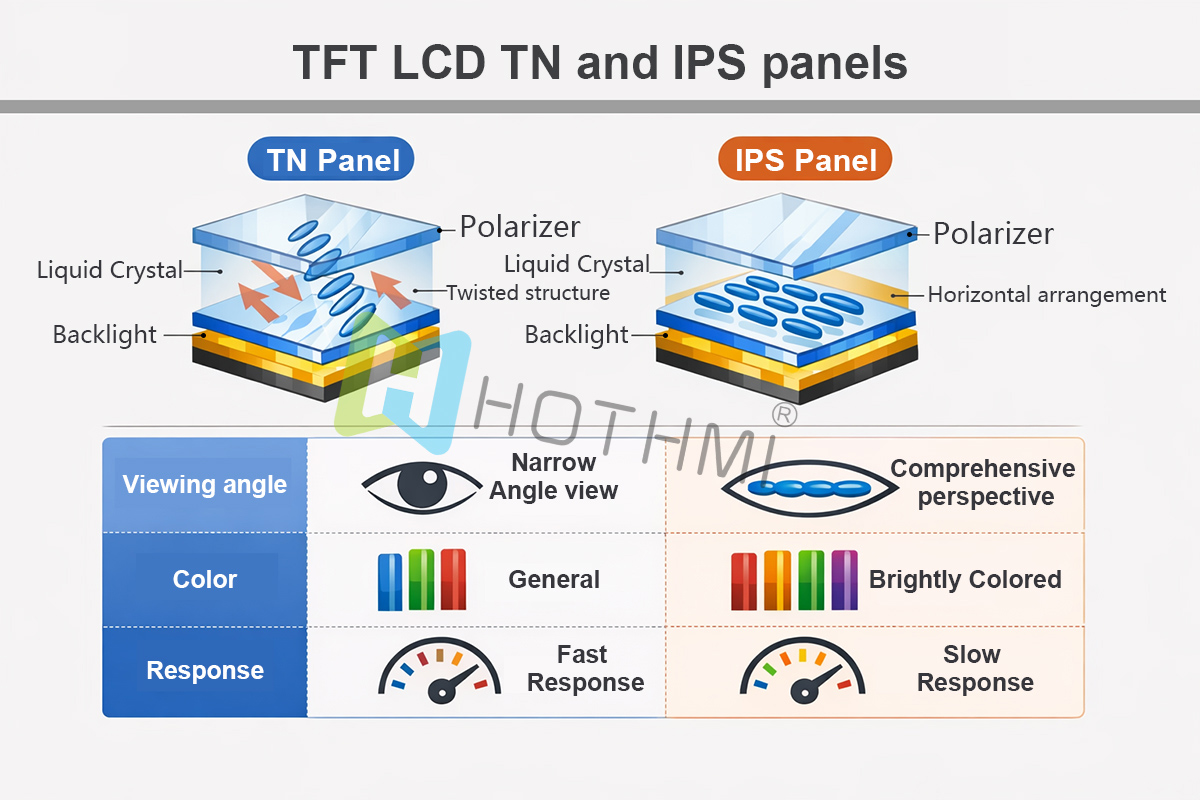

This 2.8 inch round TFT is an IPS TFT display
This 2.8 inch round TFT is an IPS full viewing angle TFT screen
One of the key advantages of this 2.8 inch round TFT is its adoption of IPS technology, which supports an ultra-wide 178° viewing angle. This guarantees stable and vibrant colour and contrast performance from any viewing position, effectively eliminating colour shift and fading. As such, it is especially ideal for applications that require multi-angle viewing or shared observation by multiple users.
What customization services can we provide for this 2.8 inch Round TFT LCD Display?
| Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure. |
| Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
| Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals. |
| Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection). |
