Description

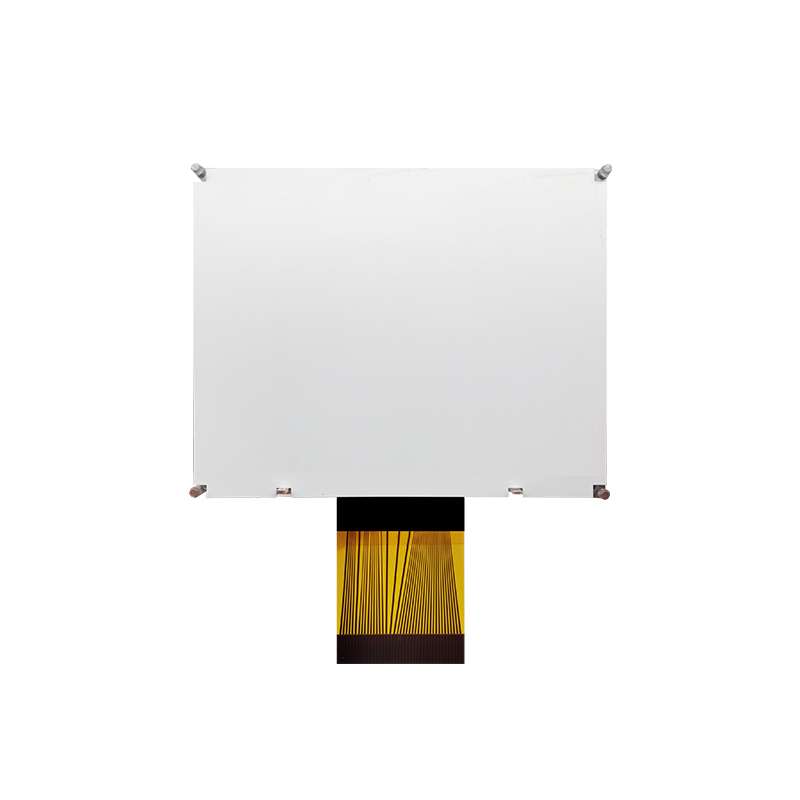

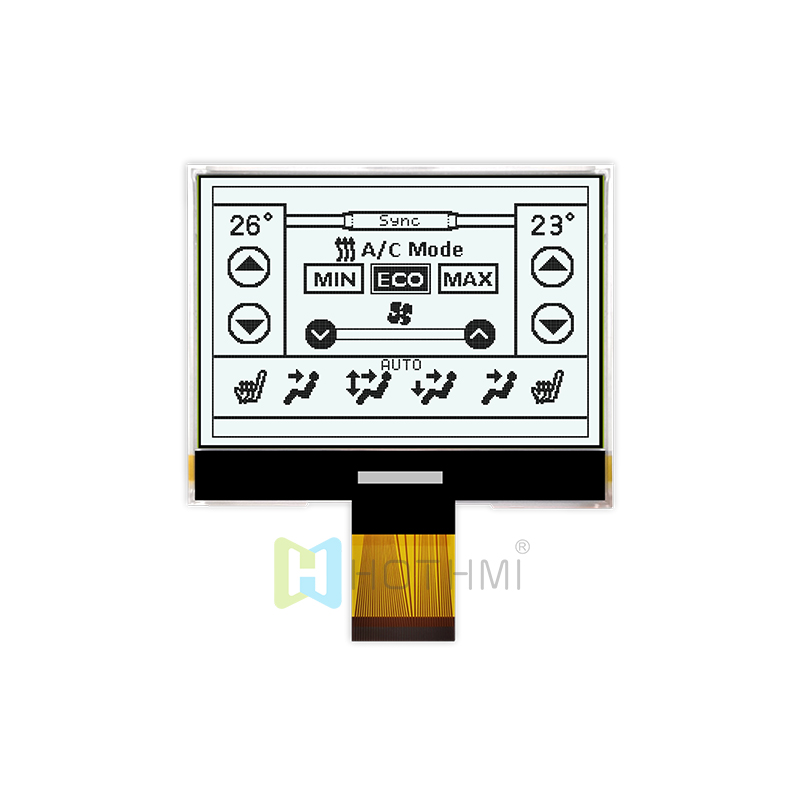

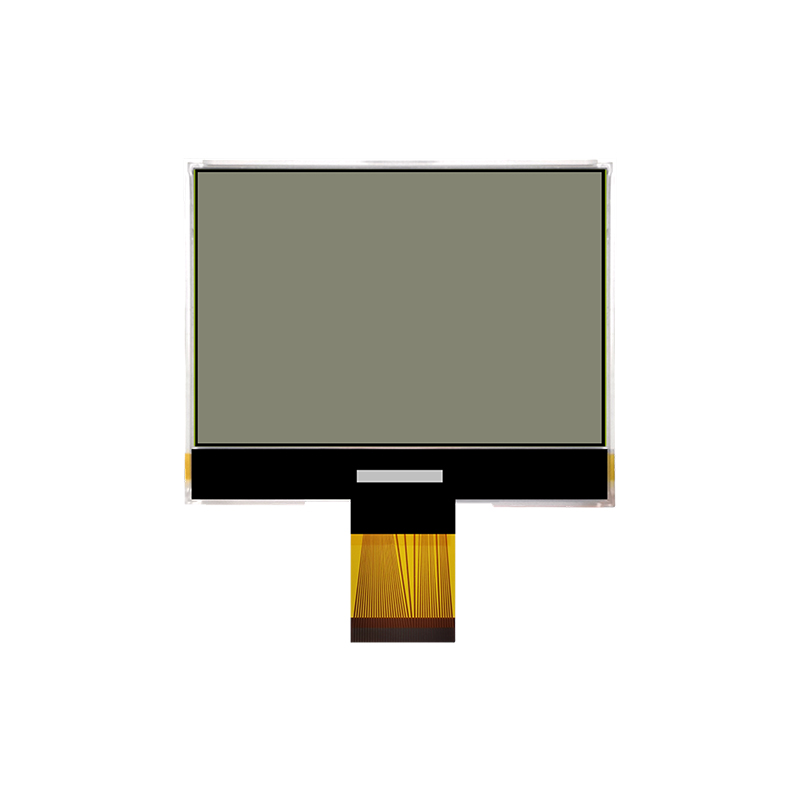

Features of the 240×160 COG LCD display
This 240×160 COG LCD Display (Model: HTG240160C-31W) is a high-performance, ultra-thin display solution engineered for modern industrial control applications. Featuring a compact 3.4-inch viewing area within a slim 4.2mm profile, this 240×160 COG LCD Display exemplifies space-saving and lightweight design, making it ideal for portable and embedded systems where form factor is critical.
With its advanced Chip-On-Glass (COG) construction and 3.3V supply voltage, the 240×160 COG LCD Display achieves remarkably low power consumption, ensuring energy efficiency and extended operational life. Its MCU interface, driven by the ST7529 chip, along with a 40-pin FPC connector, provides a straightforward and highly compatible development path. Engineers can easily integrate this 240×160 COG LCD Display into their projects, accelerating time-to-market.
Built for reliability, the module offers a wide operating temperature range (-20~70°C), 8KV ESD protection, and a 6 o’clock viewing direction. The combination of low power draw, exceptional thinness, and developer-friendly design makes this 240×160 COG LCD Display a superior choice for demanding industrial environments.

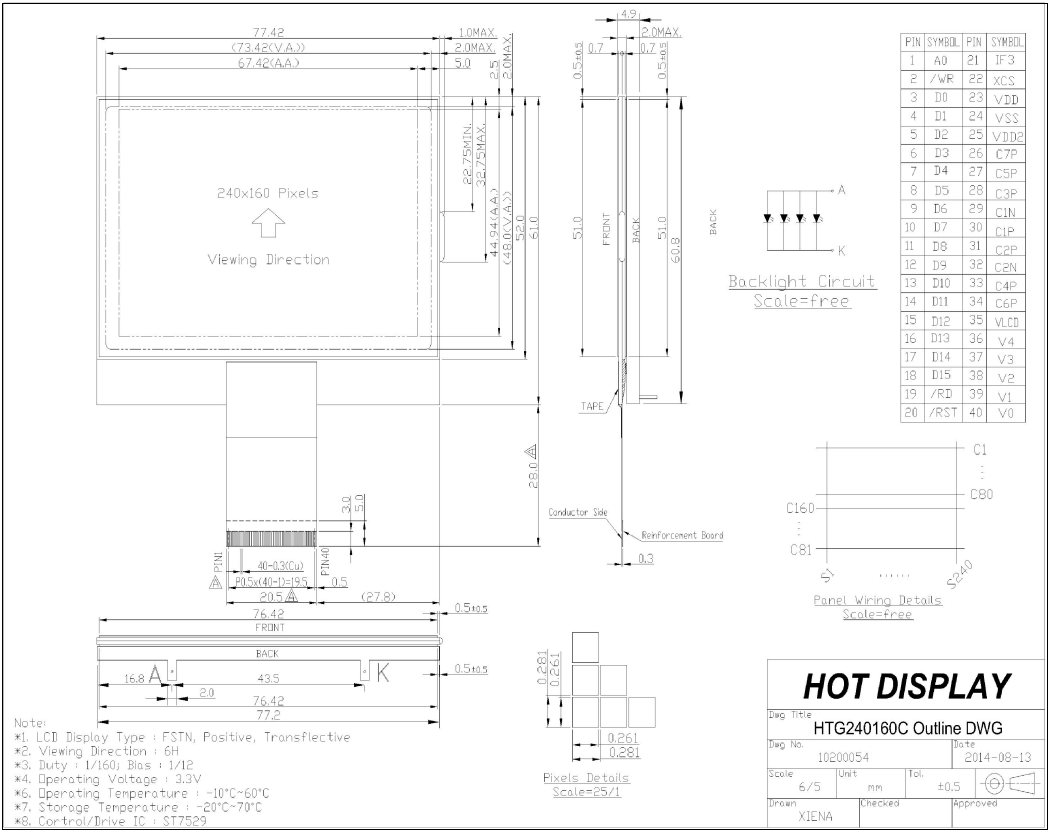

Specification of this 240×160 COG LCD display
This 240×160 COG LCD display specification sheet clearly describes this thin and lightweight COG LCD display. It includes basic product parameters, which is very helpful for engineers during the development process.

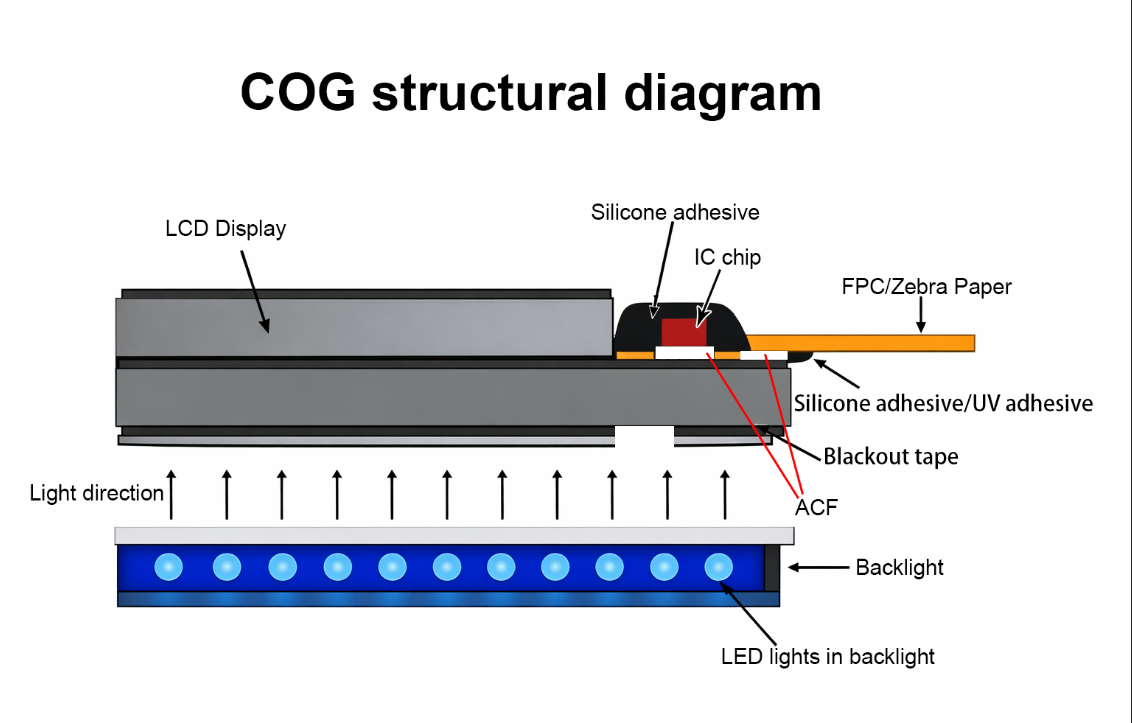

Structural diagram of the 240×160 COG LCD display
This 240×160 COG LCD display module integrates multiple functional layers to achieve a compact and high-performance design for low-resolution applications. The core LCD panel is driven by an IC chip directly bonded onto the glass via ACF (anisotropic conductive film), ensuring precise signal transmission for the 240×160 pixel array. The backlight unit, equipped with LED lights, provides uniform illumination, which is further guided and optimized by optical films. Critical mechanical and sealing functions are handled by silicone or UV adhesives, securing components like the FPC connectors. Blackout tape prevents light leakage to enhance contrast for the small screen, while the overall structural integrity and environmental protection are maintained through layered adhesive materials. This integrated COG approach enables a slim, reliable display assembly ideally suited for basic graphical and alphanumeric interfaces.
What are the advantages of this 240×160 COG LCD display?
- Compact structure and slim profile: Utilizing COG (Chip On Glass) technology, the driver chip is directly bonded to the glass, eliminating the traditional PCB board and significantly reducing module thickness and weight.
- High reliability: The chip and glass are connected via ACF (Anisotropic Conductive Film), providing strong vibration resistance and stable contact, making it suitable for vibrating environments. Silicone/UV glue sealing provides dust and moisture protection, enhancing environmental adaptability.
- Clear display and high contrast: Blackout tape is used to prevent light leakage and improve display contrast. Uniform backlighting is achieved with an LED light source and light guide structure, ensuring consistent brightness across the 240×160 pixel area.
- Low power consumption: The LED backlight is dimmable, resulting in low power consumption, suitable for battery-powered devices (such as handheld instruments and portable equipment).
- Simple interface and easy integration: FPC/zebra connector provides flexible wiring, suitable for space-constrained designs. High driver integration simplifies external circuitry and reduces development complexity.
- Cost advantage: The simplified structure and reduced materials make it suitable for medium-to-low resolution display requirements, offering a high cost-performance ratio.

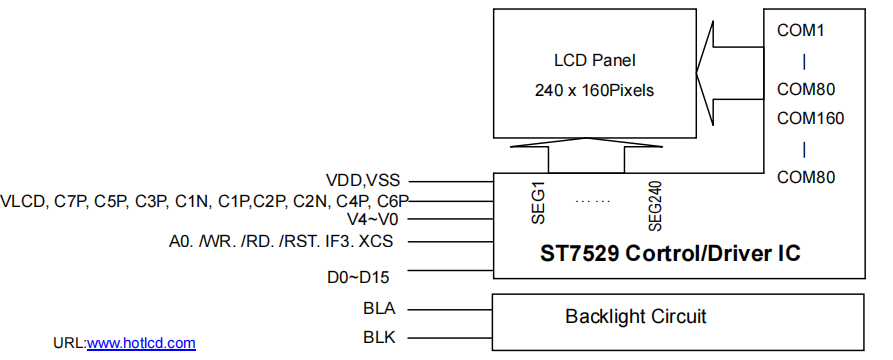

Circuit diagram and terminal functions of the 240×160 COG LCD display
What application scenarios are suitable for this 240×160 COG LCD display?
The 240×160 COG LCD display is ideally suited for a range of compact and power-sensitive embedded applications due to its slim profile, reliable construction, and cost-effective design. In industrial settings, this display module can be integrated into handheld meters, control panels, and PLC interfaces where clear, low-resolution data presentation is required. The 240×160 COG LCD display also serves medical portable devices such as glucose monitors and digital thermometers, offering stable readability with low power consumption. Furthermore, in consumer and IoT domains—including smart home controllers, wearable devices, and sensor terminals—the module provides a durable and space-saving visual solution. With its robust structure, uniform backlight, and simple interface integration, the 240×160 COG LCD display remains a practical choice for applications where reliability, size, and energy efficiency are prioritized.
FAQS about this 240×160 COG LCD display
Q1:Can this 240×160 COG LCD display graphics or only text?
A: It can display both graphics and text. With a resolution of 240×160 pixels, it supports simple icons, basic GUI elements, and multiple lines of text.
Q2: Is the display customizable?
A: Yes, customization options may include:
- FPC length and connector type
- Backlight color (white, blue, green, etc.)
- Special optical treatments (anti-glare, high-brightness)
- Extended temperature range
Q3:What are the key advantages of the 240×160 COG LCD display compared to other LCD types?
A: The 240×160 COG LCD display offers several distinct benefits:
Thinner design – thanks to its Chip-on-Glass construction, which eliminates the need for a separate PCB and reduces overall thickness.
Higher reliability – with fewer connectors and direct bonding of the IC to the glass, it delivers better shock and vibration resistance.
Lower power consumption – optimized for battery-powered and energy-sensitive applications.
Cost-effectiveness – an economical choice for low-to-medium resolution requirements without compromising on performance or durability.
These features make the 240×160 COG LCD display a preferred solution for compact, reliable, and power-efficient embedded displays.
Q4:How is the 240×160 COG LCD display typically driven?
A: The 240×160 COG LCD display is generally driven in two common ways: by microcontrollers (MCUs) with built-in LCD controllers (e.g., STM32, ESP32) or through external driver chips when the MCU lacks integrated display support. Thanks to its straightforward interface—usually SPI or I2C—integration is relatively simple. Manufacturers often provide sample code, initialization sequences, and driver libraries to facilitate quick development. Whether for text, icons, or simple graphics, the 240×160 COG LCD display offers a reliable and low-power solution that aligns well with embedded design requirements.
