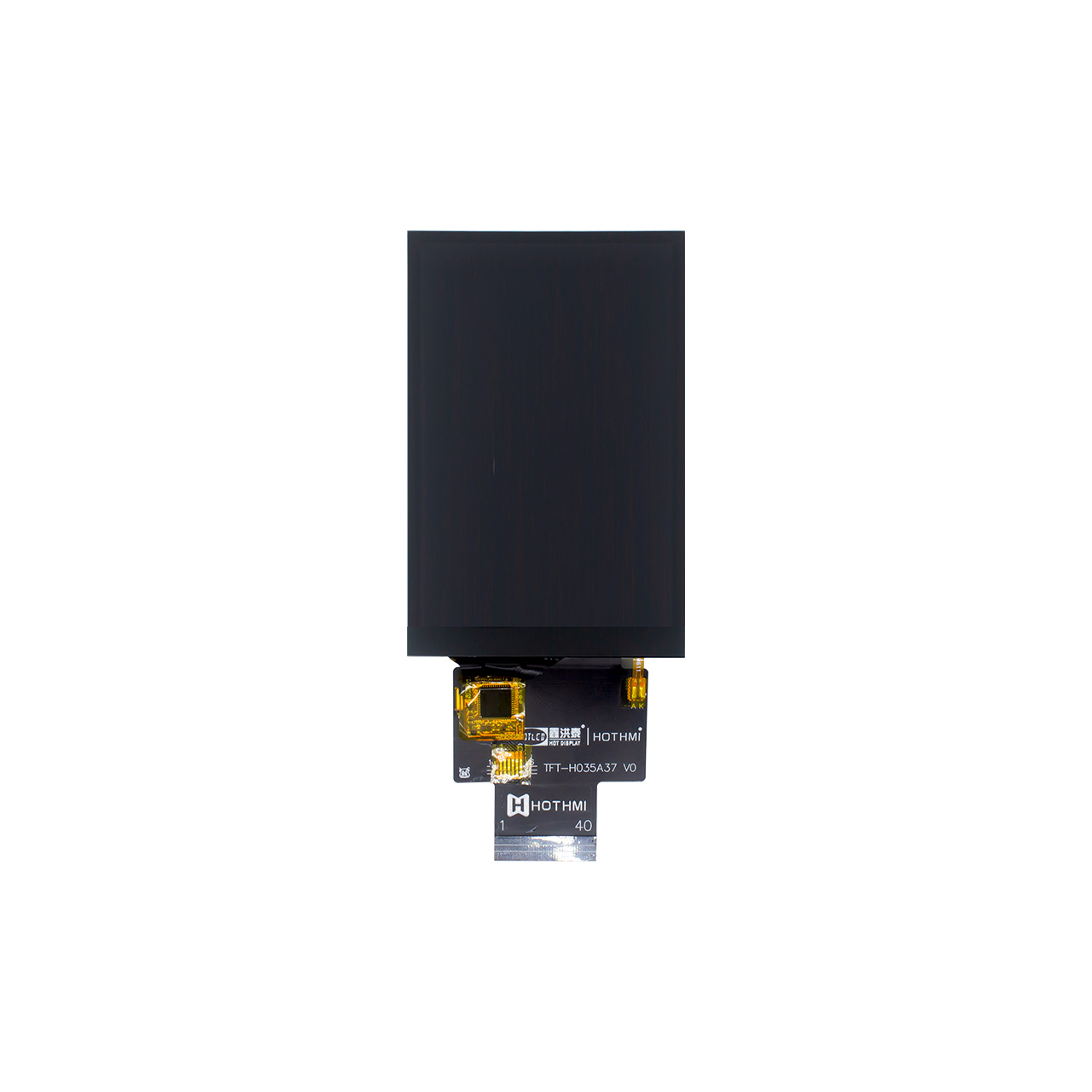

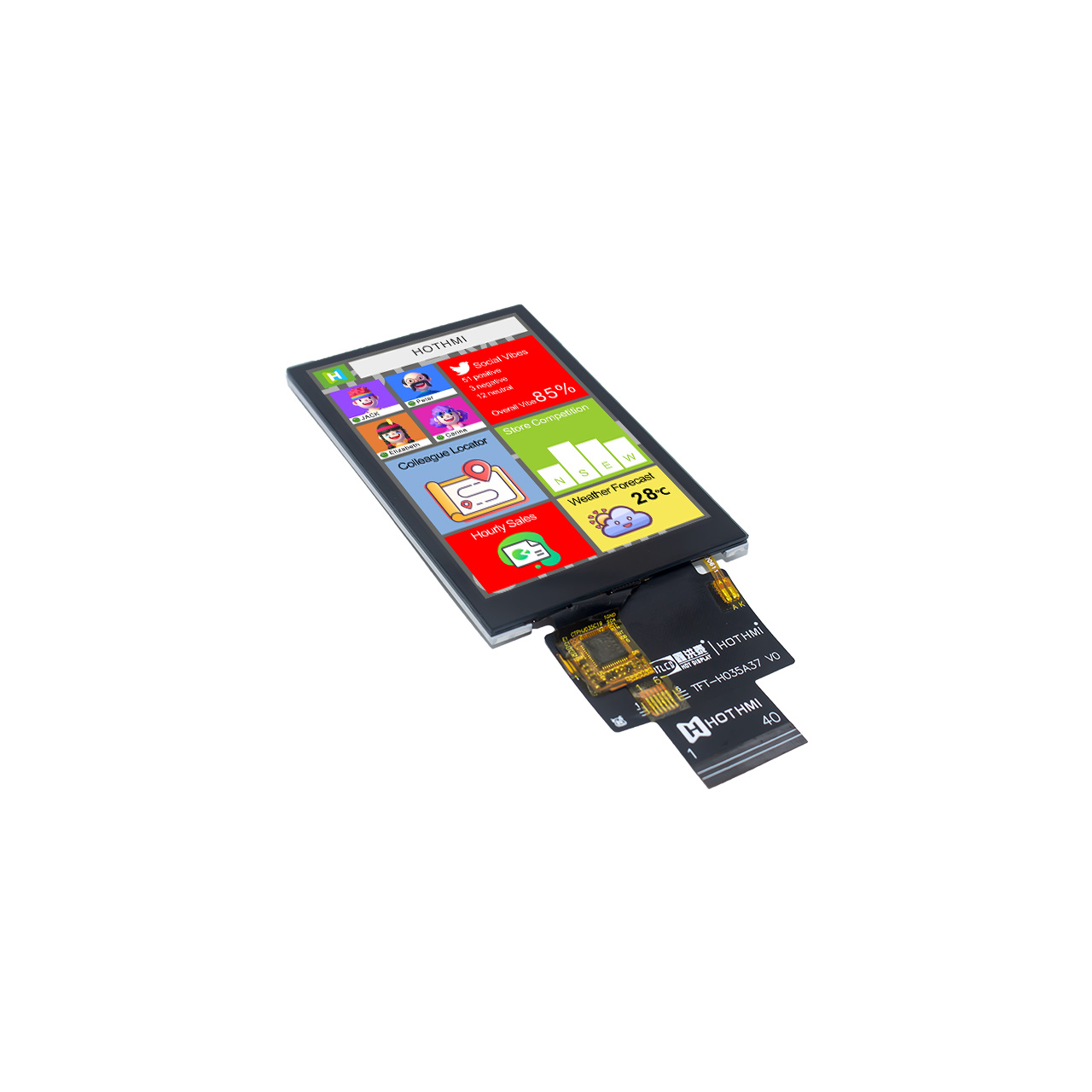

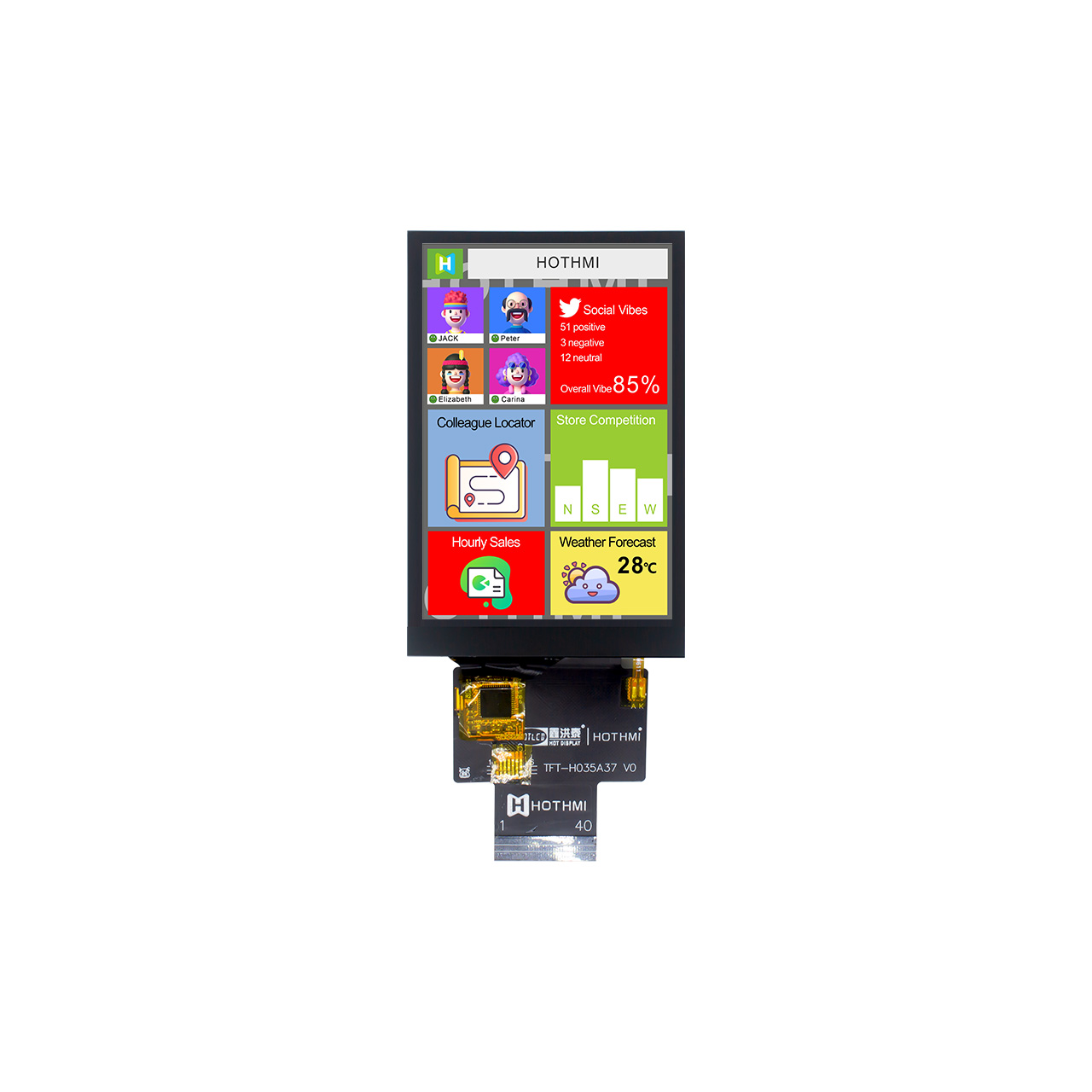

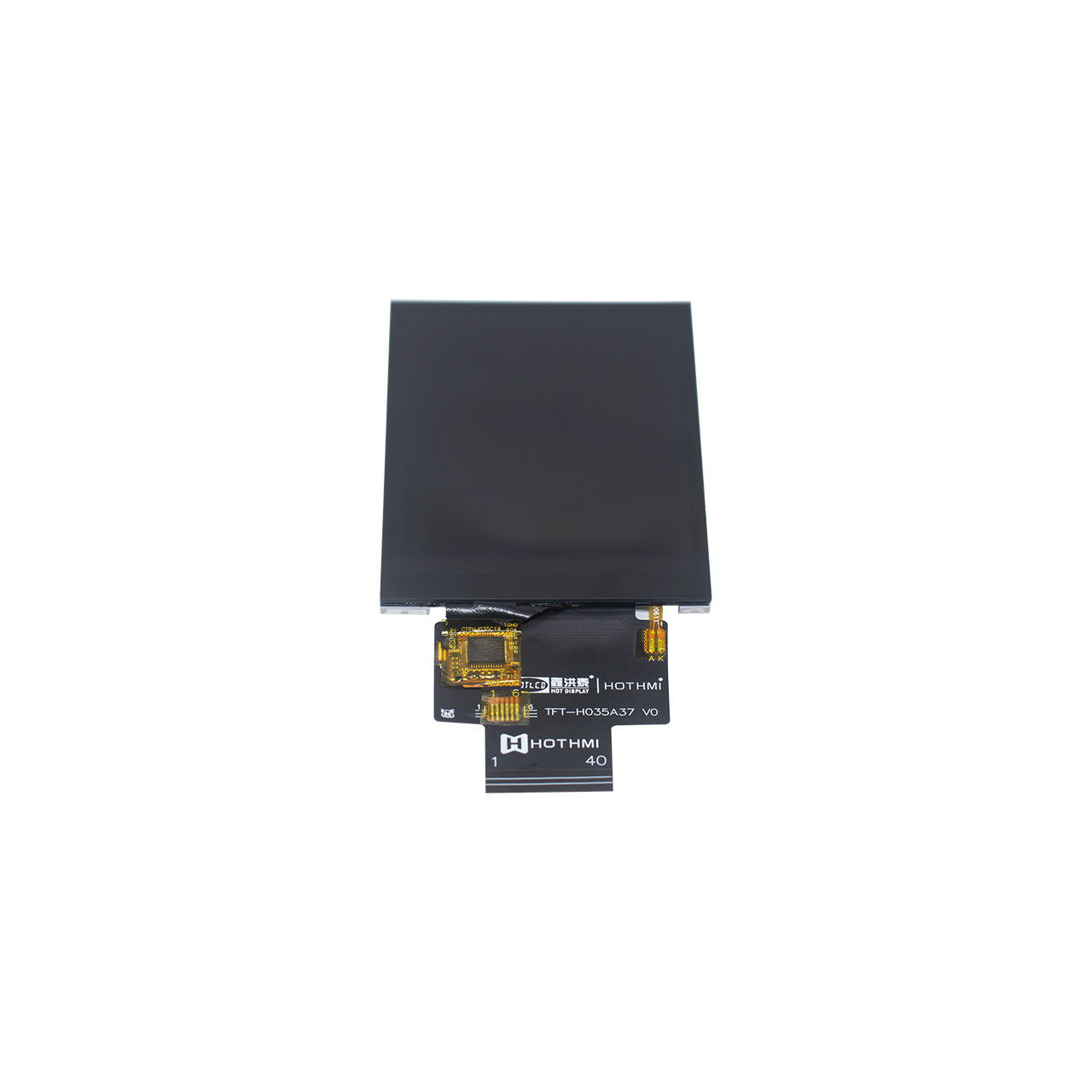

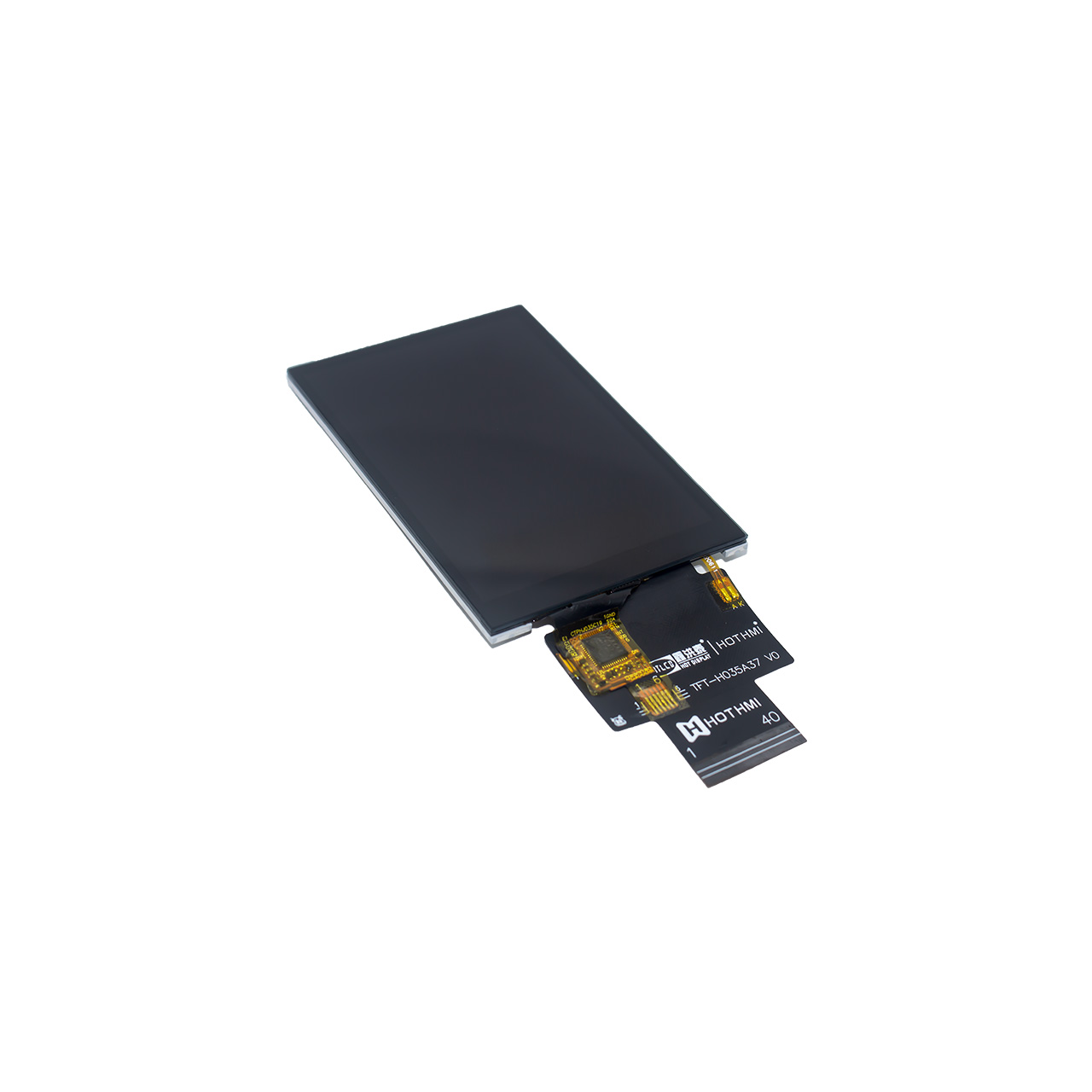

TFT-H035A37HVIST5C40 | 3.5-inch capacitive touchscreen TFT LCD with MCU interface | 320×480 IPS HD TFT display
What is the features of this 3.5 inch TFT Display？
This 3.5-inch TFT Display TFT-H035A37HVIST5C40 is a 3.5-inch capacitive touch display with a resolution of 320×480 pixels and supports NTSC 50% color gamut, delivering clear and vivid color performance. With a brightness of 500 cd/m², it ensures sharp visibility even in moderately bright environments, making it ideal for portable instruments and handheld electronic devices.
This 3.5-inch TFT Display is equipped with the ST7365P driver chip, which pairs the capacitive touch panel with the TFT display using optimized bonding technology. Thanks to its IPS full viewing angle, it offers consistent image quality from any perspective. It also boasts strong environmental adaptability, with an operating temperature range of -20°C to 70°C, suitable for a variety of indoor and semi-outdoor application scenarios.

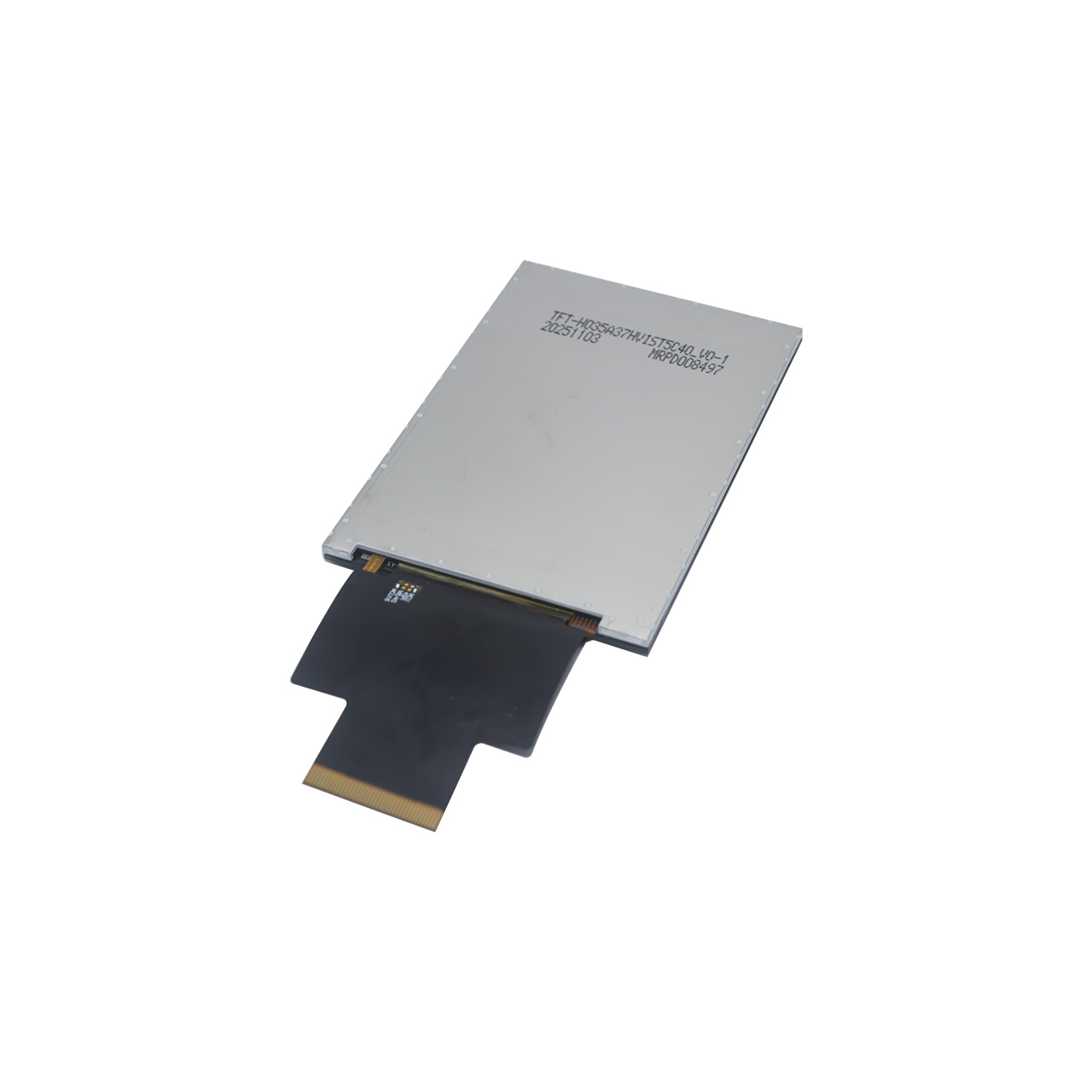

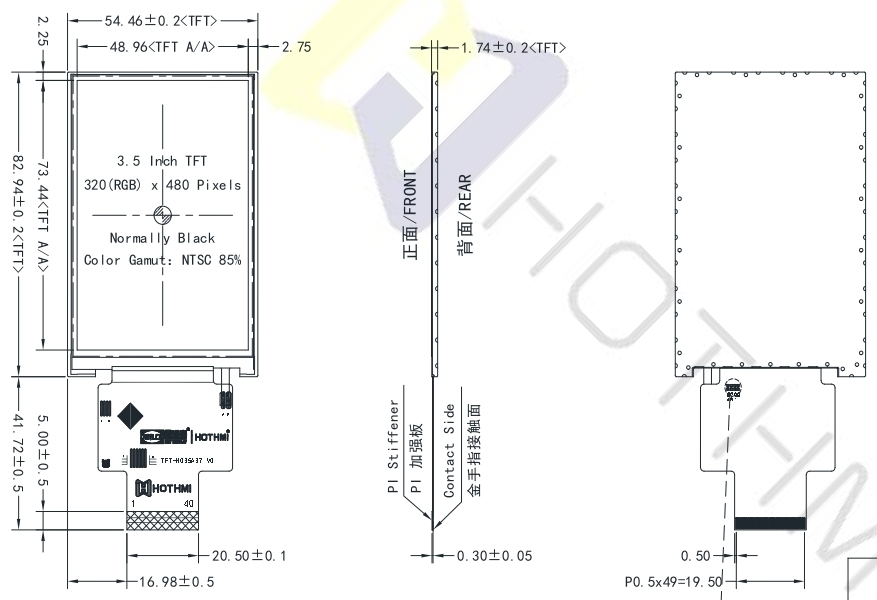

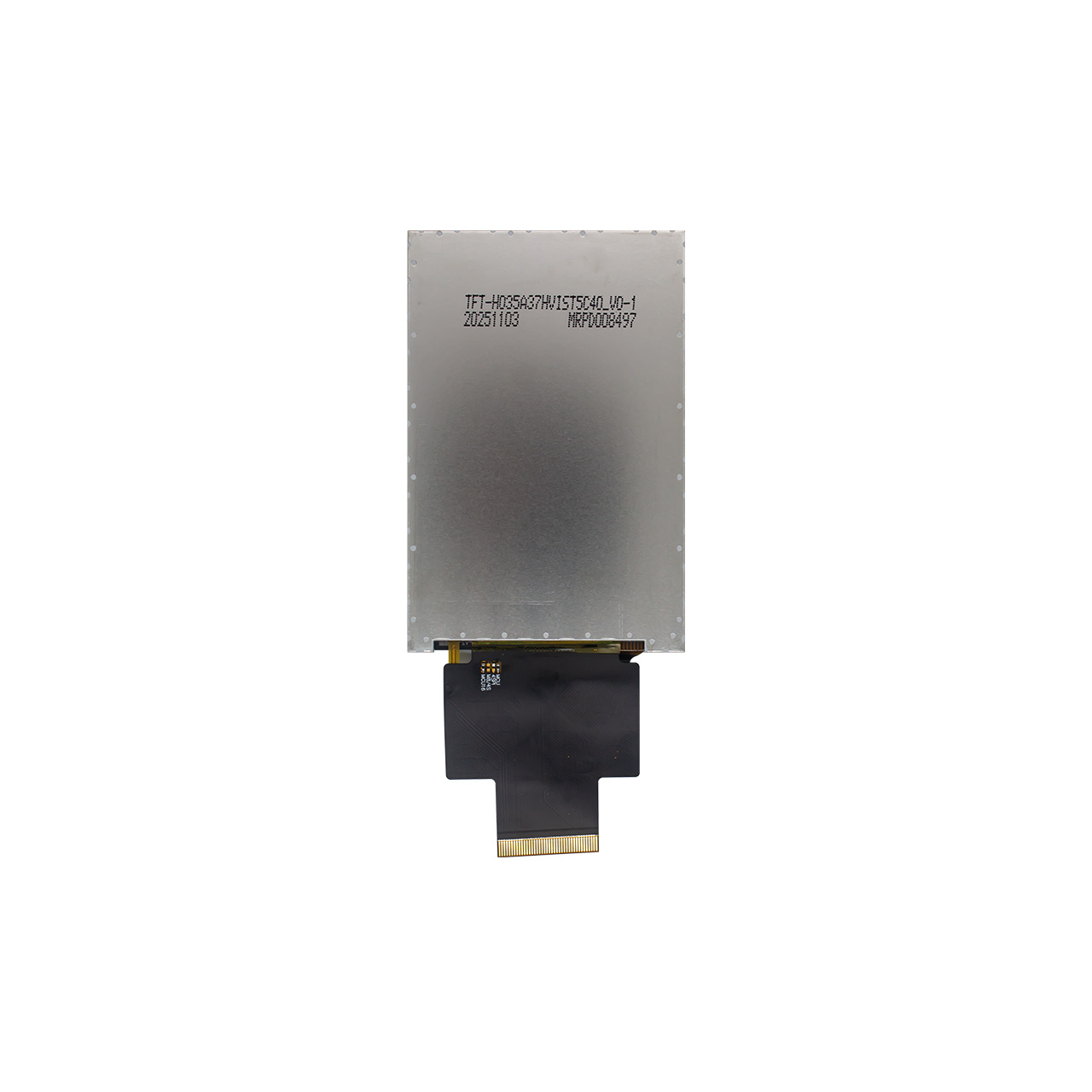

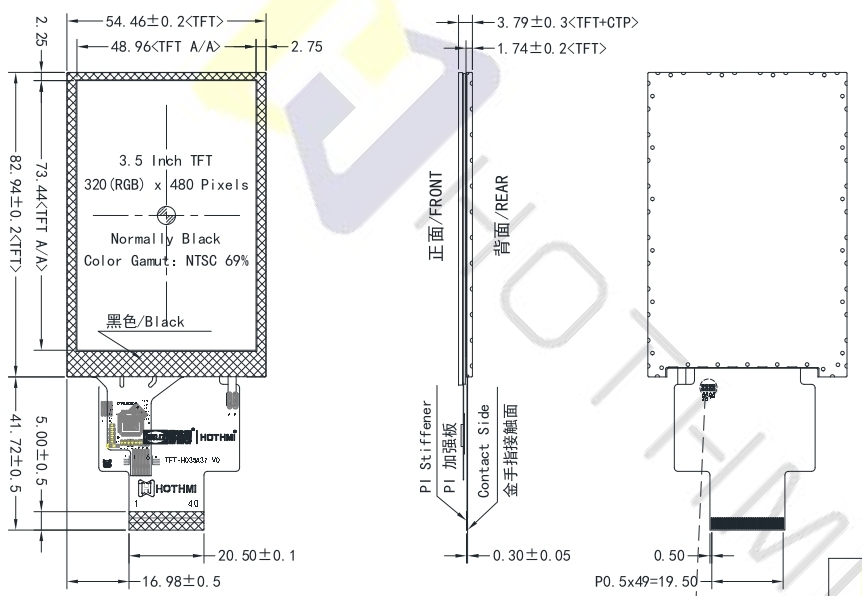

This 3.5-inch TFT Display features a compact and integrated design. Its FPC-40 pin interface with a 0.5mm pitch ensures stable connections, while the reinforced FPC bending design enhances installation reliability and simplifies system integration. The back of the display is clearly marked with interface definitions and component layouts, facilitating quick and accurate assembly for your projects.
Specifications for this 4.3 inch TFT Display
What viewing experience does IPS TFT technology bring to this 3.5 inch TFT display?
A major highlight of This 3.5 inch TFT display is its IPS (In-Plane Switching) technology, which provides a 178-degree viewing angle. This means that regardless of the viewer’s position relative to the screen, colors and contrast remain consistent and vibrant, without noticeable color inversion or washout. Therefore, it is ideal for applications where multiple people are viewing the screen simultaneously or where viewing from different angles is required.
Can this 3.5-inch TFT display touch panel be customized?
Answer:Yes. HOTHMI provides customized services for touch panels.
| Cover Material:you can choose tempered glass (up to 7H)/acrylic for the touch panel. |
| Cover Shape:Support special-shaped cutting/opening/edging (2.5D, 3D)/transmittance |
| Cover color:Support different color silk screen (usually black or white) |
| Cover Thickness:thickness of the touch panel is usually 0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0/8.0/10.0(mm) etc. |
| Light Transmittance:High light transmission efficiency, which directly affects the visual effect of the touch panel. |
| Opening the hole: Can open through holes with a diameter of ≤10mm |
| Logo Printing：Support logo silk screen printing and multiple colors |
| Cover surface Treatment:AG anti-glare: A treatment that eliminates mirroring issues on the screen surface; AR anti-reflection: A coating applied to the cover glass to reduce reflected light, improving touchscreen visibility in sunlight; AF anti-fingerprint: A coating applied to the cover glass to increase the gloss of the glass surface; and a slippery coating that significantly reduces sliding resistance, preventing water droplets and fingerprints from remaining on the surface. |
| Customized touch function chip: A touch sensor is a translator that translates the action of “touch” into a “language” that machines can understand. We offer customized sensor materials, thicknesses, FPCs, interfaces, and more. |
| Customized Brand Panels: Gorilla, Panda, available with 7H/8H/9H hardness. |
