Description

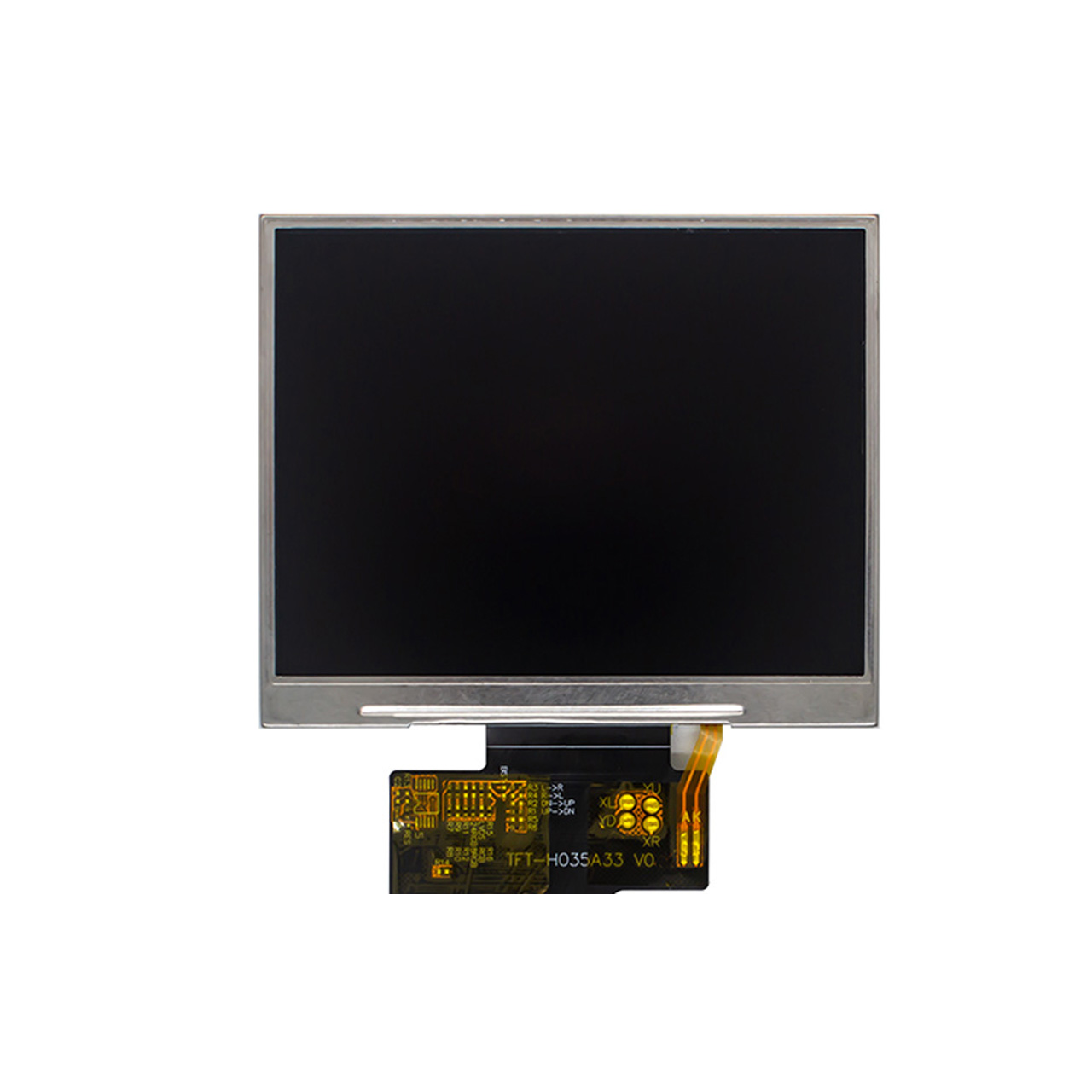

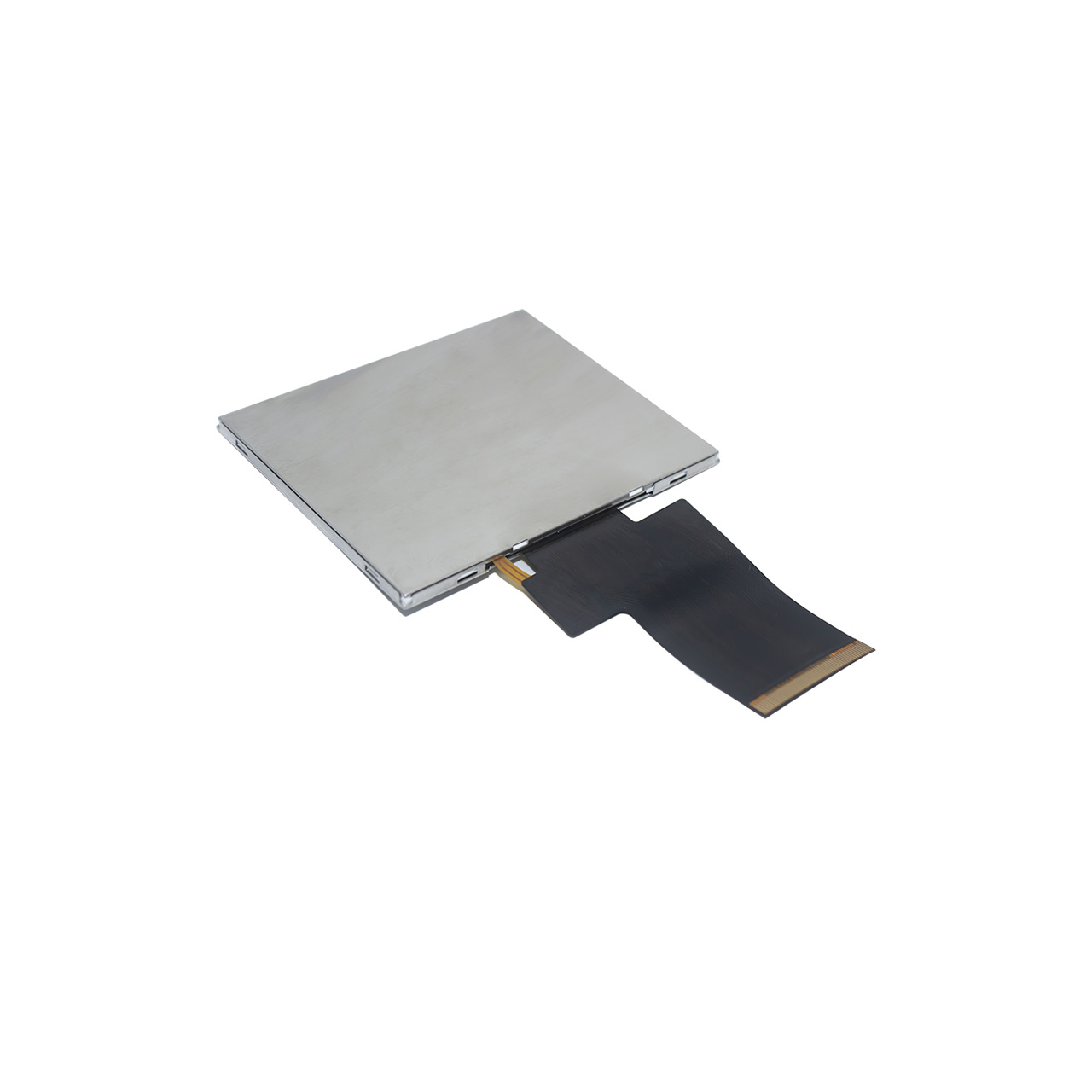

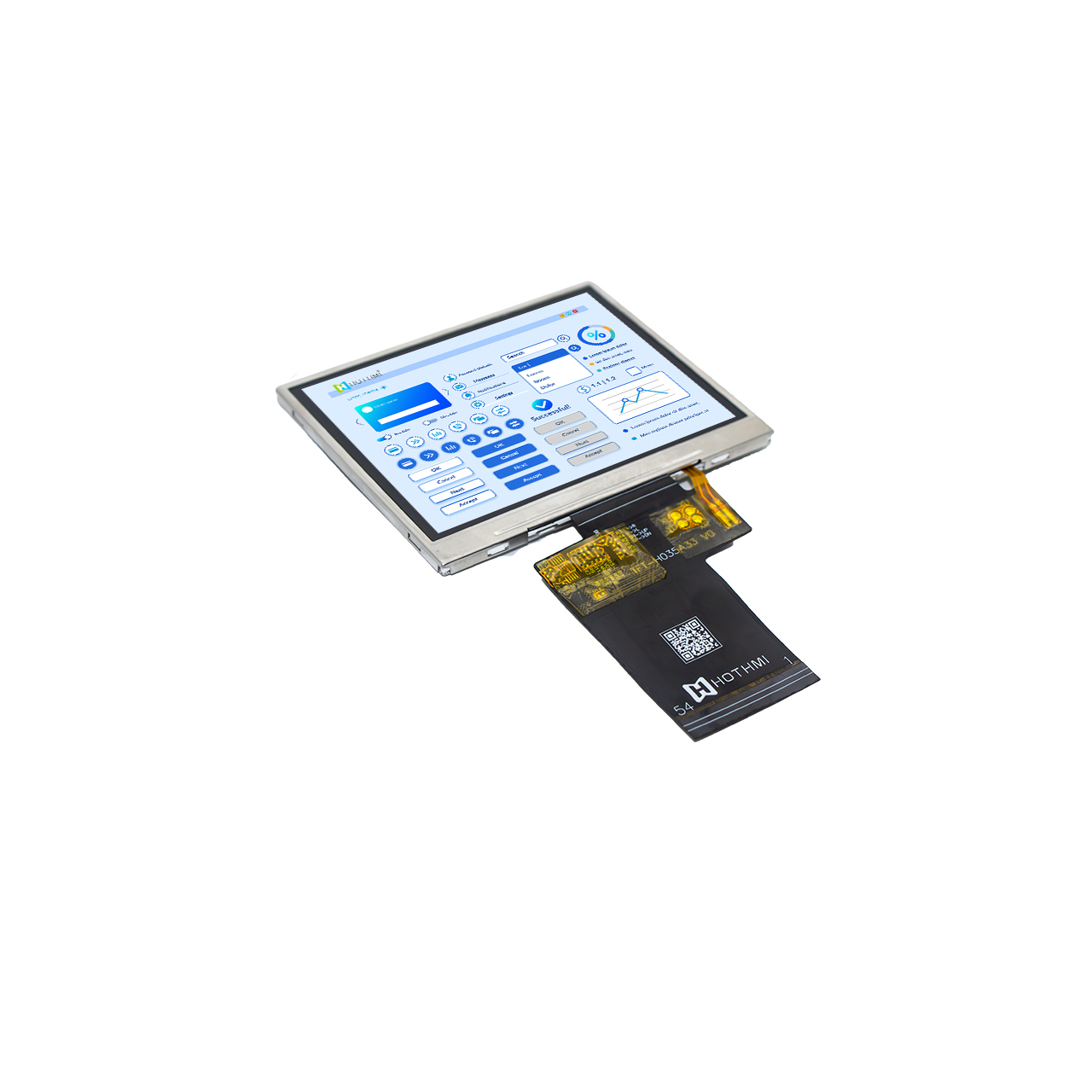

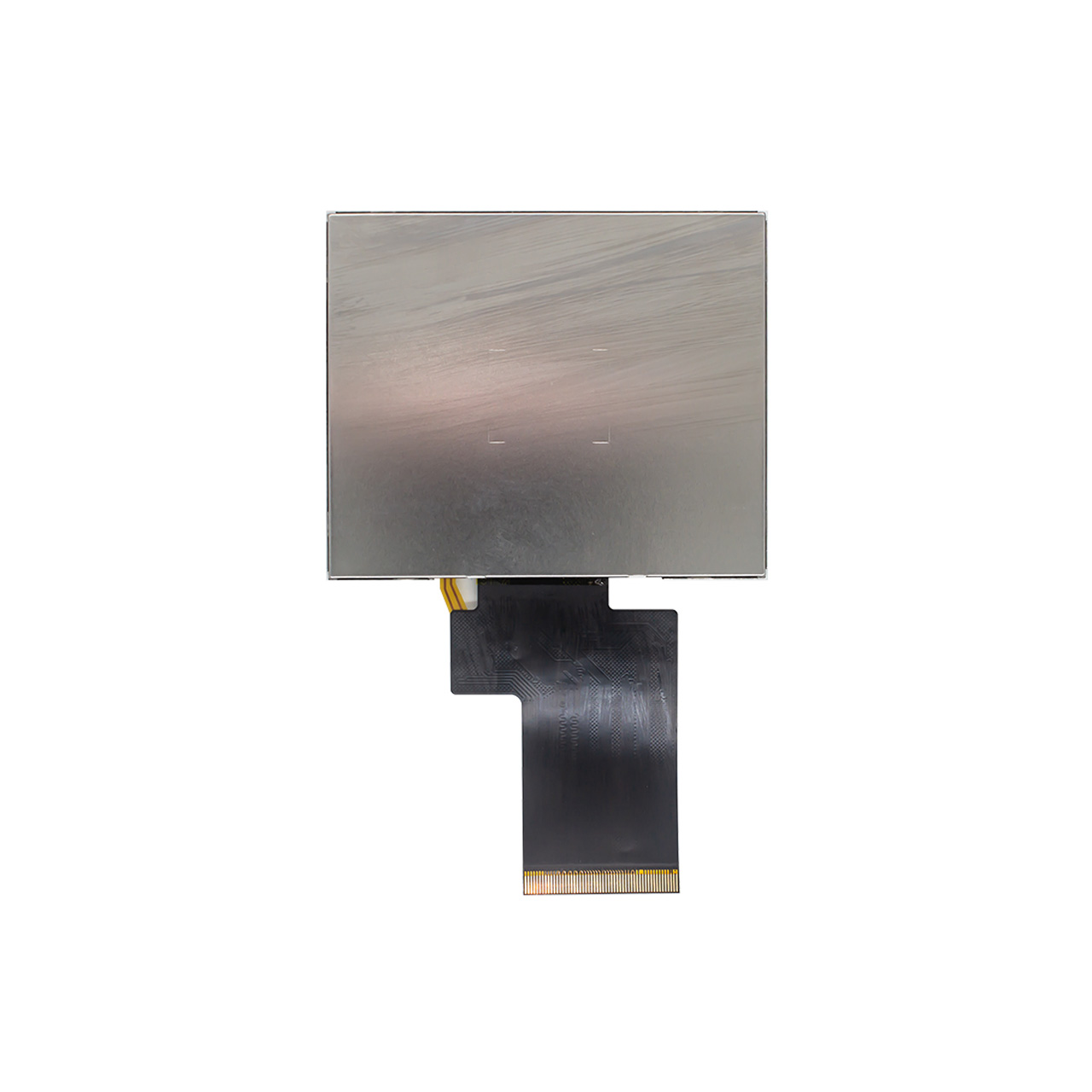

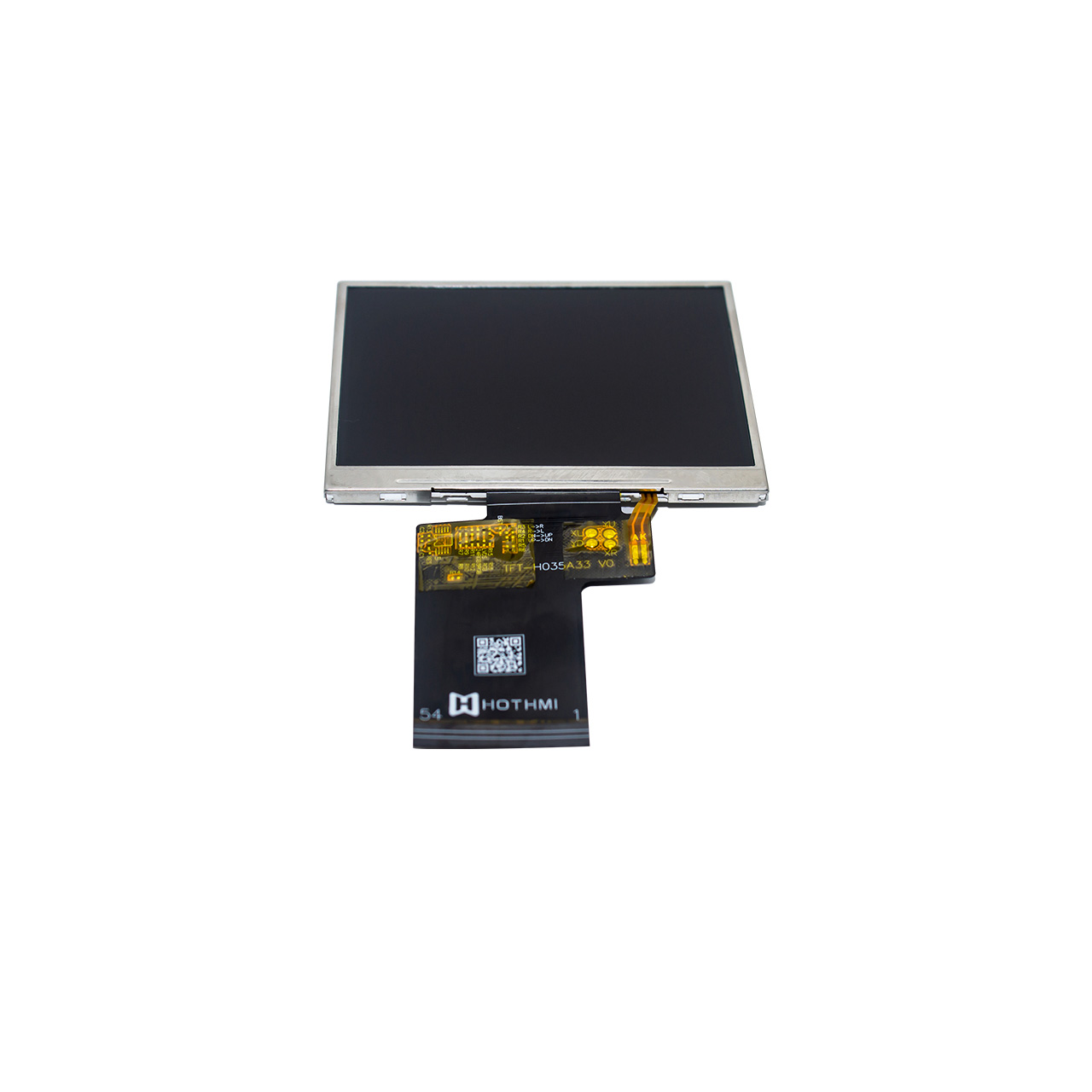

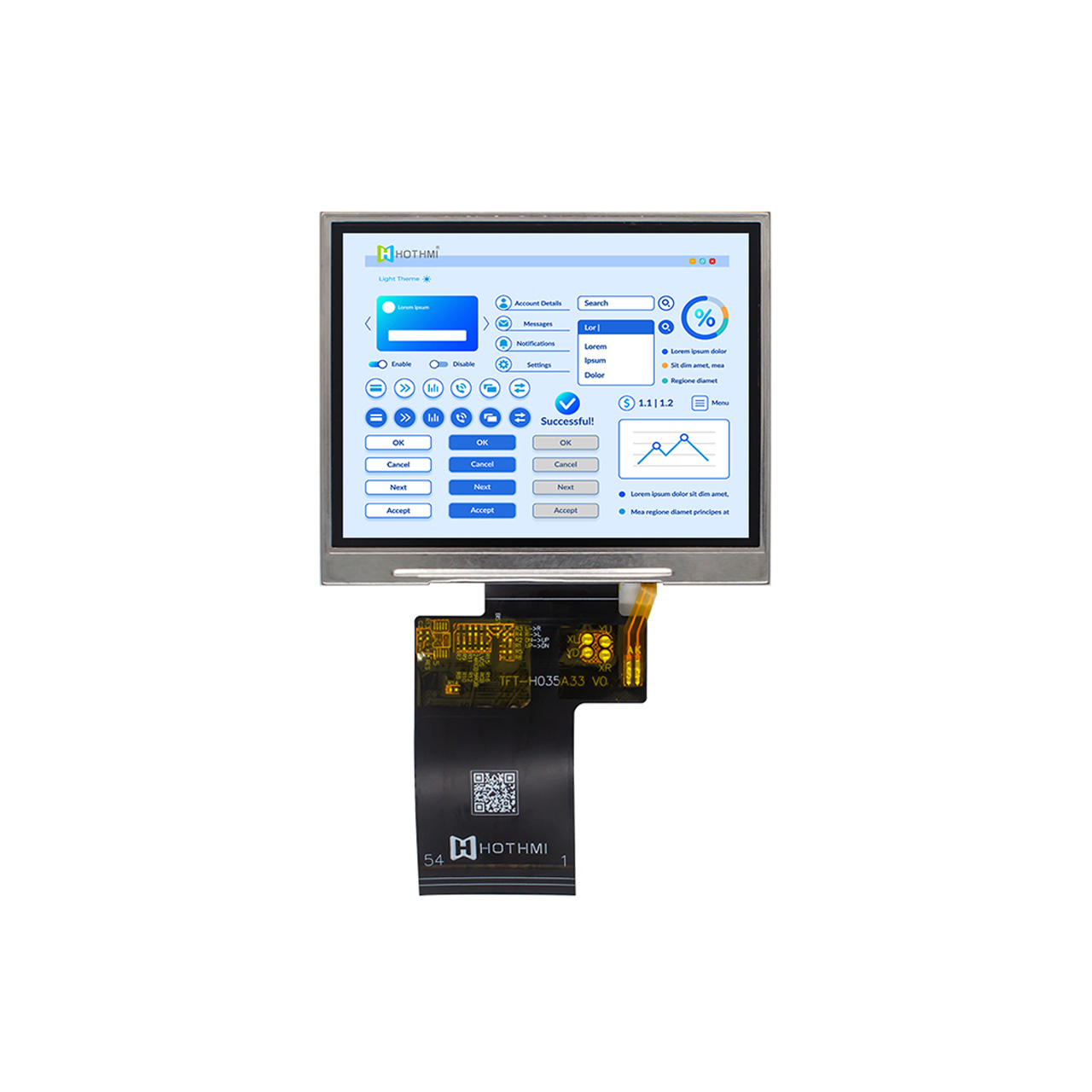

TFT-H035A33QVIST8N54 | 3.5-inch 320×240 resolution TFT LCD screen with RGB | IPS full-viewing-angle and High-brightness visible in sunlight
For more information about the tft lcd display manufacturer，click here：https://www.display-lcd.com/
This 3.5 inch TFT LCD display features an ultra-wide temperature range
Wide-temperature TFT LCDs are a type of liquid crystal display that can operate reliably under extreme temperature conditions (-30°C to +80°C, and in some cases, extended to -30°C to +85°C). They utilize special liquid crystal materials, backlight systems, and circuit protection technologies to overcome the temperature limitations of traditional displays.
This 3.5-inch TFT LCD display boasts wide-temperature performance that meets rigorous industrial standards. Its unique wide-temperature operating capability allows it to function perfectly in extreme ambient temperatures ranging from -30℃ to +85℃. This performance is achieved through the use of a low-temperature responsive liquid crystal formula, ensuring fast response speeds even in harsh cold environments; its circuit design incorporates a temperature compensation mechanism that automatically adjusts operating parameters to cope with temperature fluctuations; and an optimized backlight module structure guarantees stable light output across the entire temperature range. These engineering optimizations enable this 3.5-inch TFT LCD display to withstand the extreme cold of winter in outdoor equipment and the high temperatures in engine compartment monitoring systems. Whether in frigid polar research stations or scorching desert mining areas, this 3.5-inch TFT LCD display reliably displays critical information, providing an all-weather visual solution for various industrial applications in harsh environments, fully demonstrating the significant breakthrough in environmental adaptability of modern display technology.
IPS characteristics of the 3.5-inch TFT LCD display
IPS technology brings a revolutionary visual experience to this 3.5-inch TFT LCD display. Its core advantage lies in achieving a full 178-degree viewing angle, meaning that color, contrast, and brightness remain highly consistent regardless of the viewing angle. This effectively solves the problems of color distortion and reduced brightness at off-angles common in traditional screens. This feature makes it particularly outstanding in human-machine interface devices, such as when multiple operators view an industrial control panel from different positions, or when users use portable devices at an oblique angle; the screen content remains clear and accurate. The inherent excellent color reproduction capabilities of the IPS panel, combined with the product’s high brightness of 800 cd/m², ensure that this 3.5-inch TFT LCD display provides stable, vibrant, and realistic images even in complex lighting environments, greatly expanding its application scenarios and user experience.
