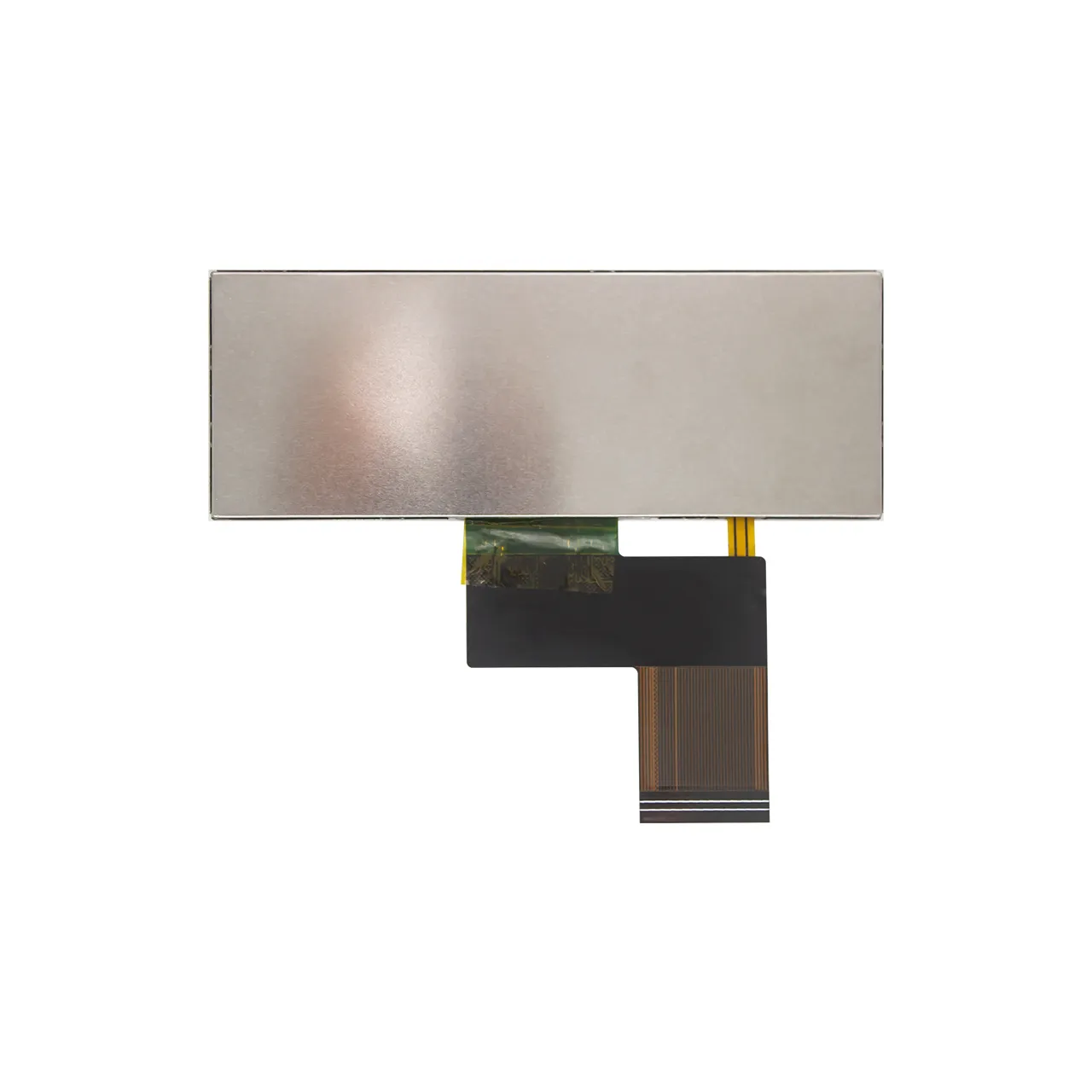

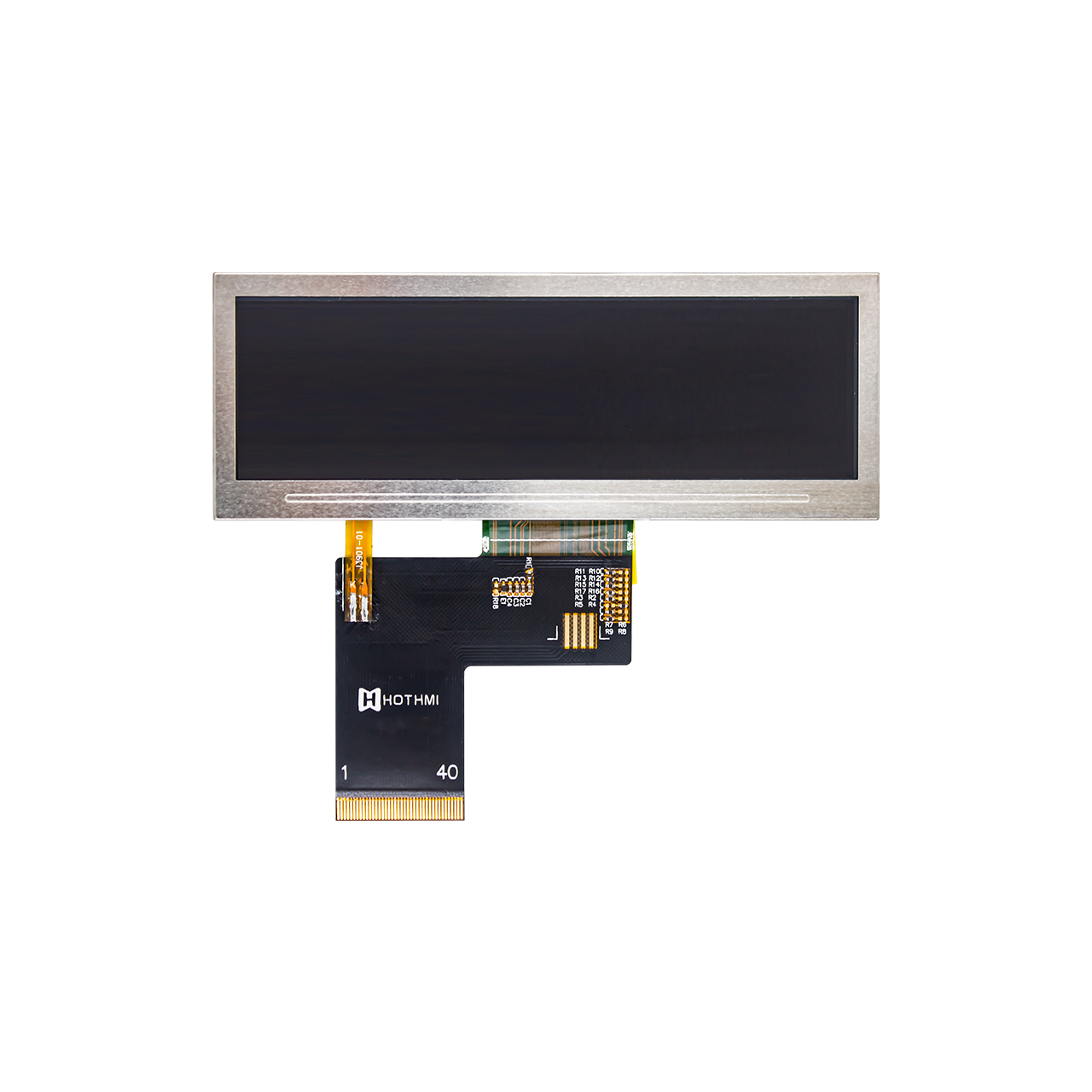

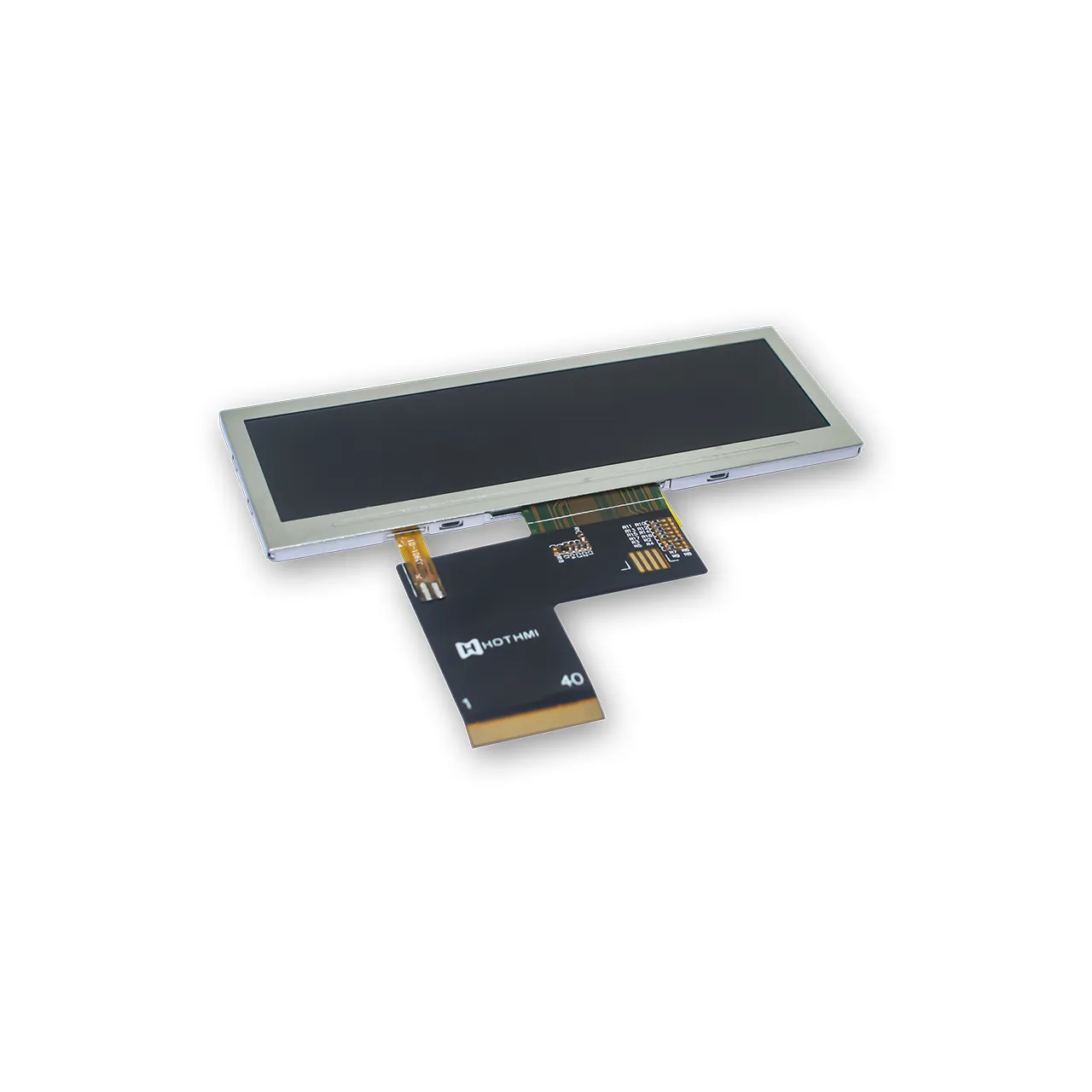

Features of the 4 inch bar type TFT display
Discover the unique advantages of our 4 inch bar type TFT display with 480×128 Resolution, a display solution that breaks away from conventional square screens with its specialized bar-type format. This distinctive aspect ratio provides an ideal platform for displaying status information, diagnostic data, and control parameters in applications where horizontal space utilization is critical. The exceptional 4.0-inch bar type TFT display With 480×128 Resolution delivers outstanding visual performance while maintaining a compact form factor that fits perfectly in space-constrained environments.
Engineered for challenging conditions, this remarkable 4 inch bar type TFT With 480×128 Resolution combines its unique format with exceptional brightness capabilities. With an ultra-high 1100 cd/m² backlight, it ensures perfect readability even in direct sunlight, making it particularly suitable for outdoor equipment and central control systems. The IPS full viewing angle technology guarantees consistent color and clarity from any viewing position, while the robust construction withstands operating temperatures from -30°C to 80°C and provides 8KV ESD protection.
This versatile 4 inch bar type TFT display With 480×128 Resolution represents the perfect fusion of unique design and rugged reliability. Featuring an RGB interface and ST7282A driver chip, it offers seamless integration for your most demanding applications. When your project demands both unique formatting and uncompromising performance, the 4.0-inch bar type TFT display With 480×128 Resolution stands ready to deliver exceptional results in even the toughest environments.

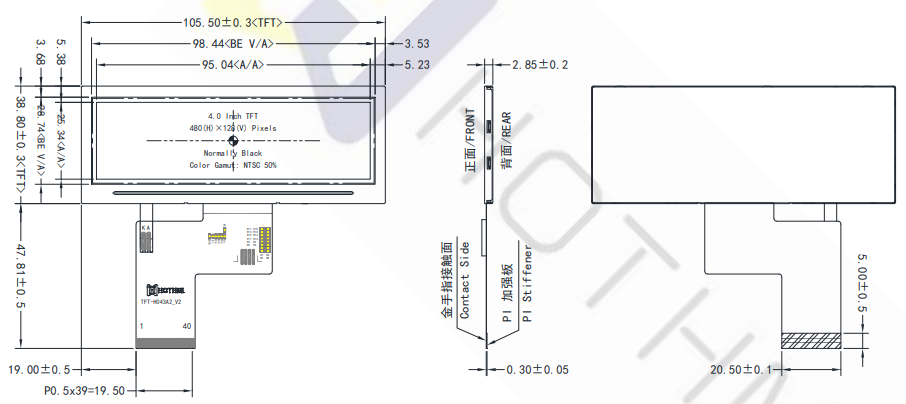

The 4 inch bar type TFT display Specifications
This 4 inch bar type TFT display features high brightness
This 4 inch bar type TFT display utilizes high-brightness LCD backlight technology, achieving a brightness of up to 1100 cd/m². Even in bright environments, especially under direct sunlight outdoors, this 4.0-inch bar type TFT display ensures clear display and accurate color reproduction. The core advantage of this high-brightness TFT display lies in its peak brightness, which is significantly higher than traditional indoor displays, effectively resisting ambient light interference while reducing screen surface reflectivity. This high-brightness feature makes this 4.0-inch bar type TFT display widely applicable in outdoor equipment and control platforms.
This 4 inch bar type TFT is an IPS TFT display
IPS technology enables this 4.0-inch bar type TFT display to provide users with a 178-degree viewing angle. Regardless of the viewing angle, the screen content remains clearly readable. Unlike TN TFT LCDs, this 4.0 inch bar-type TFT has a more complex internal structure, as shown in the image below:

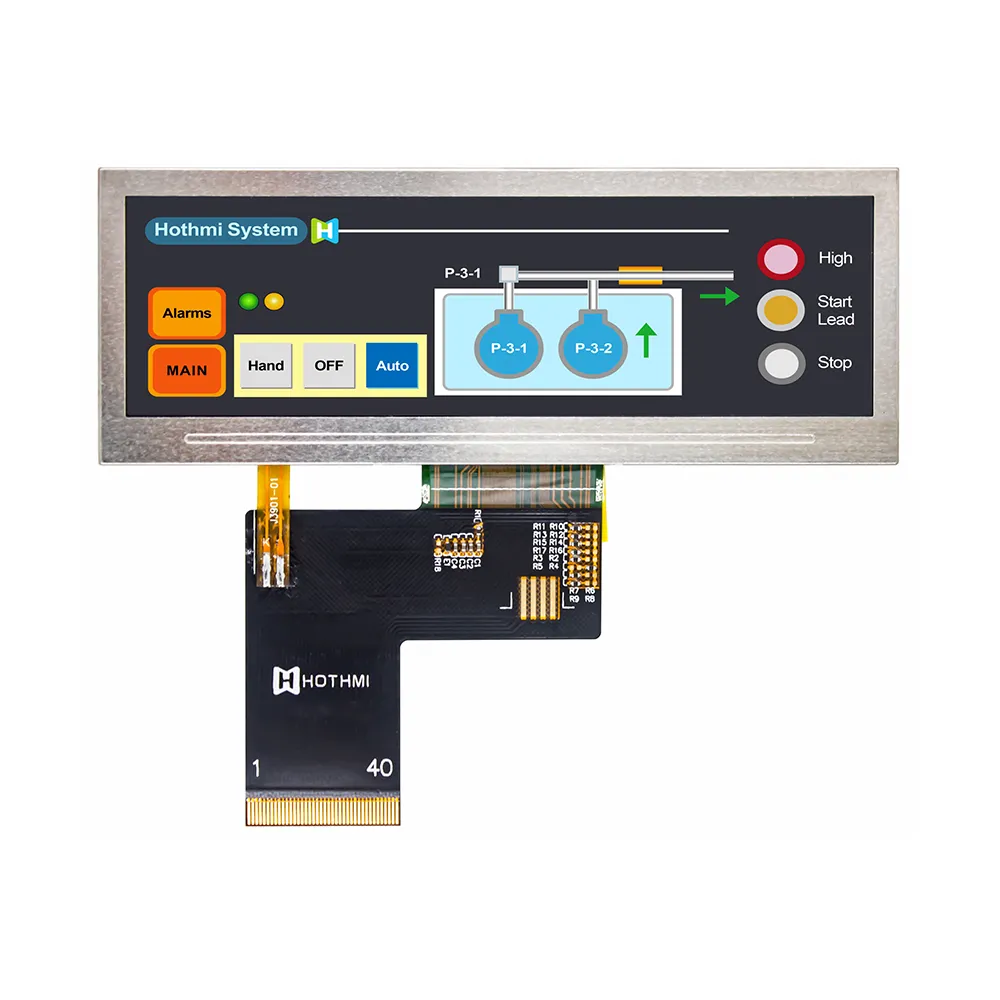

What are some suitable applications for this 4 inch bar type TFT display?
- Industrial and Automotive Displays in High-Brightness Environments
The high brightness characteristics make this 4.0-inch bar type TFT ideal for outdoor equipment and industrial environments. In factory workshops or outdoor charging stations exposed to direct sunlight, the high brightness ensures that screen content remains clearly visible and unaffected by ambient light. In the automotive sector, it can serve as an auxiliary information screen on the central console, a rear-seat entertainment control panel, or an extended display for truck dashboards, maintaining excellent readability even in bright daylight.
- Dedicated Information Displays and Interactive Terminals
The elongated shape of this 4.0-inch bar type TFT is naturally suited for displaying continuous, scrolling information streams or as a compact control interface. Typical applications include electronic price tags, restaurant kitchen display systems (KDS), and queuing/calling screens in medical or commercial settings such as banks and hospitals.
Public information displays: Displaying floor numbers and advertisements in elevator cabs, or as arrival information screens on public transportation.
Professional equipment: Integrated into medical equipment, laboratory instruments, or industrial controllers to display status parameters and setting menus; the elongated design maximizes the use of limited device panel space.
- High-End Commercial and Smart Home Control
In the smart home sector, this 4.0-inch bar type TFT can be used as a high-end smart panel or a display strip for smart speakers, controlling lighting, air conditioning, and security systems. High brightness ensures easy readability under various indoor lighting conditions. In commercial office settings, it can serve as a meeting room reservation status screen, clearly displaying availability or occupancy status.
What driver modules are compatible with the 4 inch bar type TFT display?

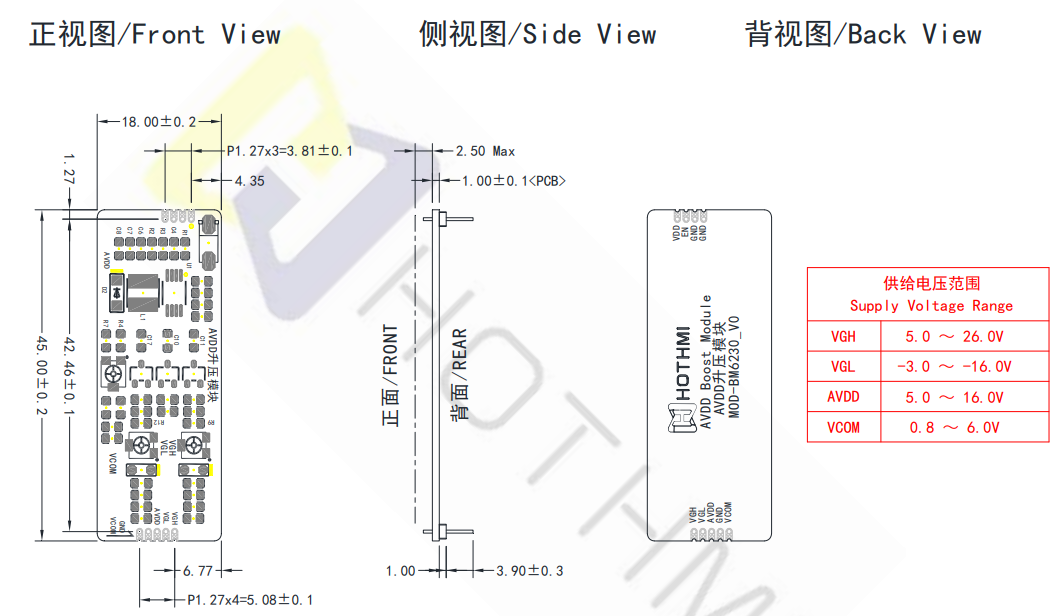

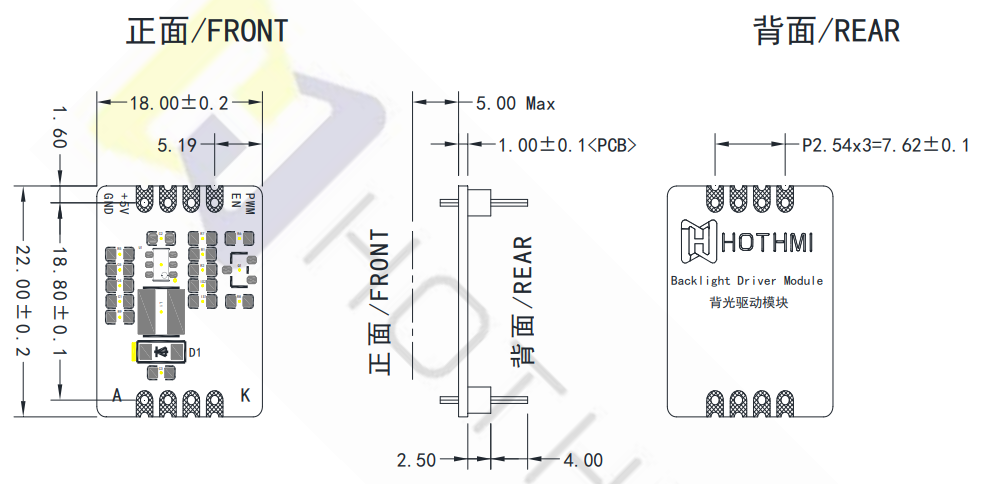

At HOTHMI, we offer backlight modules (as shown in Figure 1) and boost converter modules (as shown in Figure 2).
The backlight module, as the core light source component of this 4.0-inch bar type TFT display, is designed to efficiently convert point or line light sources into a uniform and bright surface light source. Taking the mainstream side-entry LED backlight as an example, its structure begins with LED strips arranged along the edges of the module, serving as the initial light source.
Adjacent to this is the light guide plate, a crucial component that, through a precise dot pattern design, refracts and directs the light from the sides across the entire screen surface, forming the basis for uniform brightness distribution. This mature optical engine structure allows backlight modules to be widely used in almost all display fields that rely on LCD technology.
Simply put, the display boost module (commonly referred to as an LED driver IC or Boost Converter) plays a crucial role in providing a stable, sufficient, and adjustable high-voltage and constant-current power supply to the backlight LEDs of this 4 inch bar type TFT display. Modern boost driver ICs are highly efficient (often exceeding 90%), maximizing the conversion of electrical energy into light energy, reducing heat loss, and directly extending the device’s battery life. This ensures uniform and flicker-free screen backlighting, which is fundamental to a good visual experience.
The module typically integrates multiple protection circuits, such as overvoltage protection, overcurrent protection, short-circuit protection, and overtemperature protection, preventing damage to the LEDs or the driver circuit itself in case of abnormal conditions, thus improving the reliability of this 4 inch bar type TFT display system.
What issues should I be aware of when using this 4.0-inch bar type TFT display?
- Since the 4 inch bar type TFT display is made of glass, do not apply strong mechanical impactorstaticload onto it.Handling with care since shock, vibration, and careless handlingmayseriously affect the product.If it falls from a high place or receives a strongshock,the glass maybe broken.
- It is indispensable to drive the 0-inch bar type TFT displaywithin the specified voltage limitsincethehigher voltage than the limit causes 4.0-inch bar type TFT display’s life shorter. An electro-chemicalreactiondue to DC causes undesirable deterioration of the 4 inch bar type TFT display so that the use of DCdriveshouldavoid.
- Do not connect or disconnect the 0-inch bar type TFT displayto or from the system when powerison.
- Never use the 0-inch bar type TFT displayunder abnormal conditions of high temperature
- When expose to drastic fluctuation of temperature(hot to cold or coldtohot),the 0-inch bar type TFT displaymay be affected; specifically, drastic temperature fluctuation fromcoldtohot, produces dew on the 4 inch bar type TFT display’s surface which may affect the operation of thepolarizeron the 4.0-inch bar type TFT display.
- Response time will be extremely delay at lower temperature than theoperatingtemperature range and on the other hand 0-inch bar type TFT displaymay turn black at temperatureaboveitsoperational range. However those phenomenon do not mean malfunction or outoforderwith the 4.0-inch bar type TFT display. The 4 inch bar type TFT display will revert to normal operation once the temperaturereturnsto the recommended temperature range for normal operation
- In order to prevent the LCD from producing image retention, do not displayafixedpattern for a long time when using a normally black panel. If the LCD needstodisplaya fixed pattern, it is recommended to refresh the display one or more timesinless www.hotlcd.com
FAQS about 4-inch bar type TFT display
Q1:What is a “bar-shaped TFT”? How does it differ from a regular square TFT?
A:Bar-type TFT refers to TFT displays with an unusual aspect ratio (typically very narrow and long), such as resolutions of 480×128 or 720×90. The main difference between it and standard square screens (such as 480×272 or 800×480) lies in its unique physical shape and resolution, specifically designed for devices that require a long, narrow display area to better match the product’s appearance or display specific types of information (such as curves, long lists, or multiple parameters).
Q2:What are the common resolutions for 4.0-inch bar type TFT displays?
- 480 x 128: A very common specification, with an aspect ratio of approximately 15:4.
- 720 x 144: Higher horizontal resolution, displaying more content.
- 800 x 128: Or similar variations.
Q3:Can I drive this 4.0-inch bar type TFT display with an Arduino or a Raspberry Pi?
A:Yes. For bar type displays with SPI interface, there are many libraries that support the Arduino platform. For MCU parallel interfaces, a faster Arduino (such as the Due) or bit manipulation optimization might be required. This 4.0-inch bar type TFT display can also be adapted for use with a Raspberry Pi via an adapter.
Q4:Is developing this 4.0-inch bar type TFT display difficult? What resources are available?
A:We will provide a datasheet, initialization code, schematic diagram, and example projects for common platforms (such as STM32) for this 4.0-inch bar type TFT display.
