Description
Premium 7 Inch Full HD TFT Display: Here’s What You Can Achieve with it

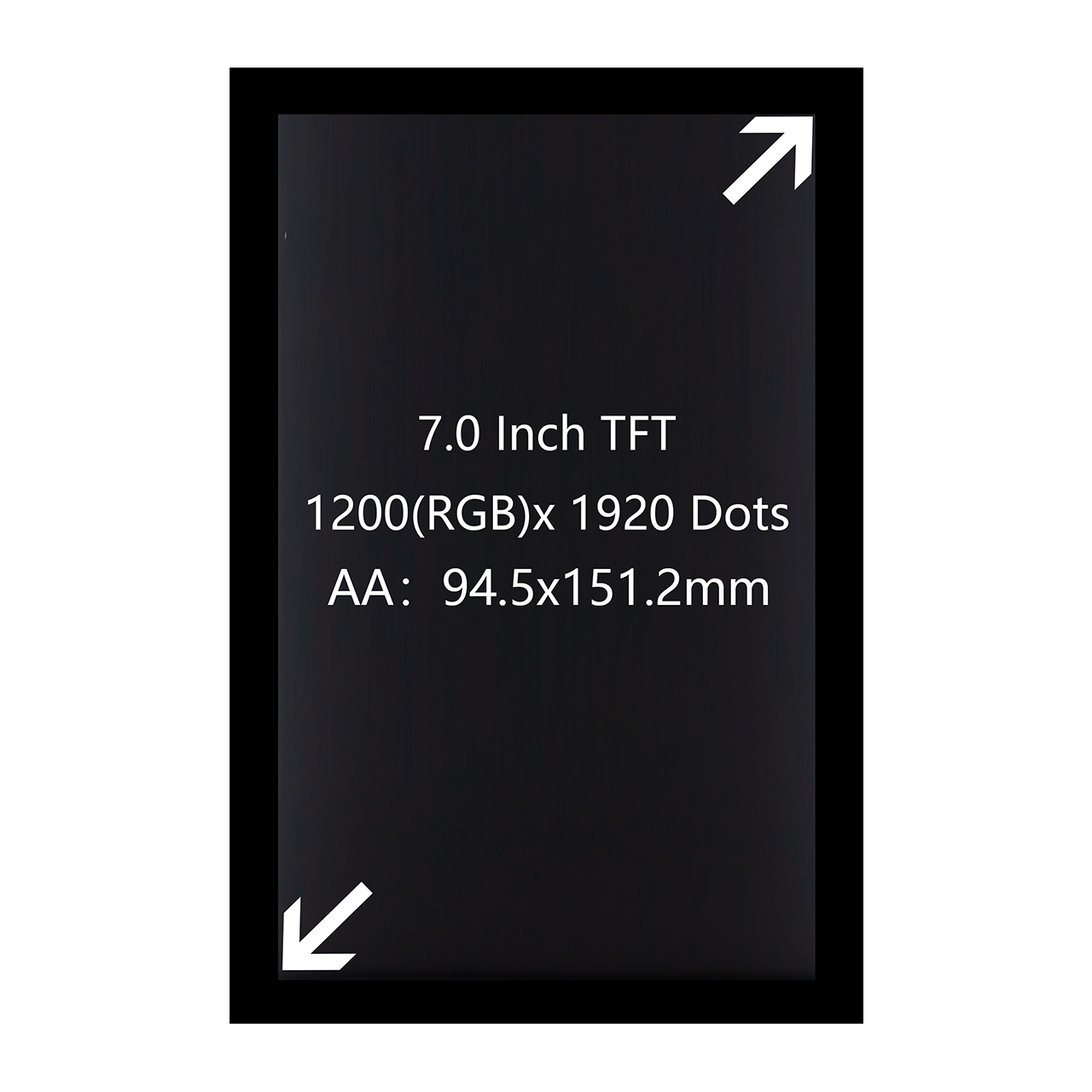

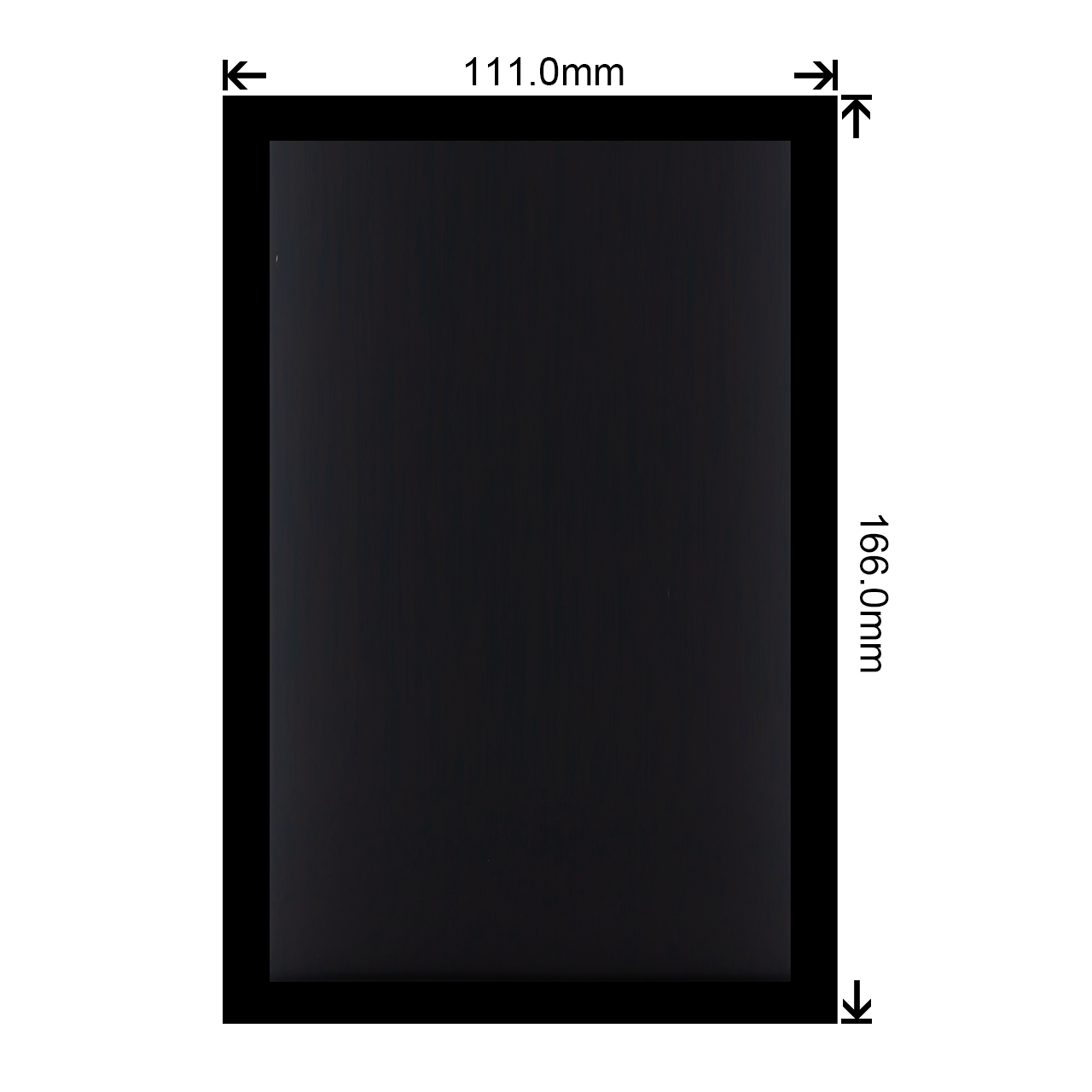

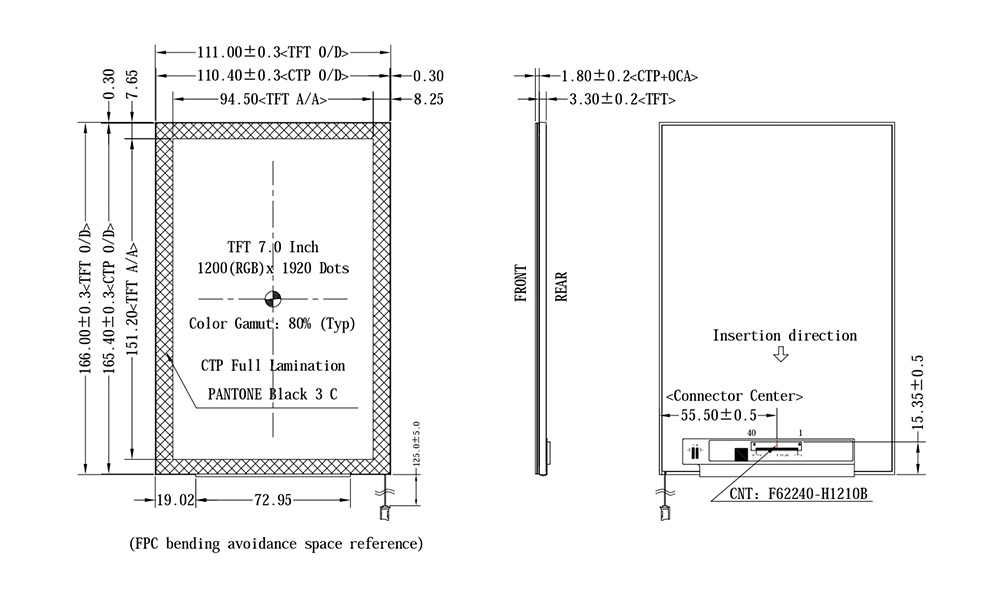

7 Inch Full HD TFT features a high 1200×1920 resolution, delivering vivid visuals for industrial and embedded applications. With CTP full lamination in Pantone Black 3 C, it offers enhanced touch responsiveness and structural durability. The display has an outline dimension of 166.00±0.3mm (H) × 111.00±0.3mm (W), a thickness of 3.30±0.2mm (TFT) / 1.80±0.2mm (CTP+OCA), and uses the F62240-H1210B connector for seamless integration. It supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. Boasting a brightness of 2000 cd/m² , this display ensures clear visibility even in bright outdoor conditions.
To prevent image retention, it is recommended to refresh fixed display patterns within 2 minutes and use a black or moving image as a screen saver, with red wire for positive and black wire for negative power connection. Ideal for industrial control, medical devices, and outdoor equipment, this 7 Inch Full HD TFT combines high performance, reliability, and ease of integration.
The 7 inch TFT display Specifications
7 Inch Full HD TFT Application Scenarios

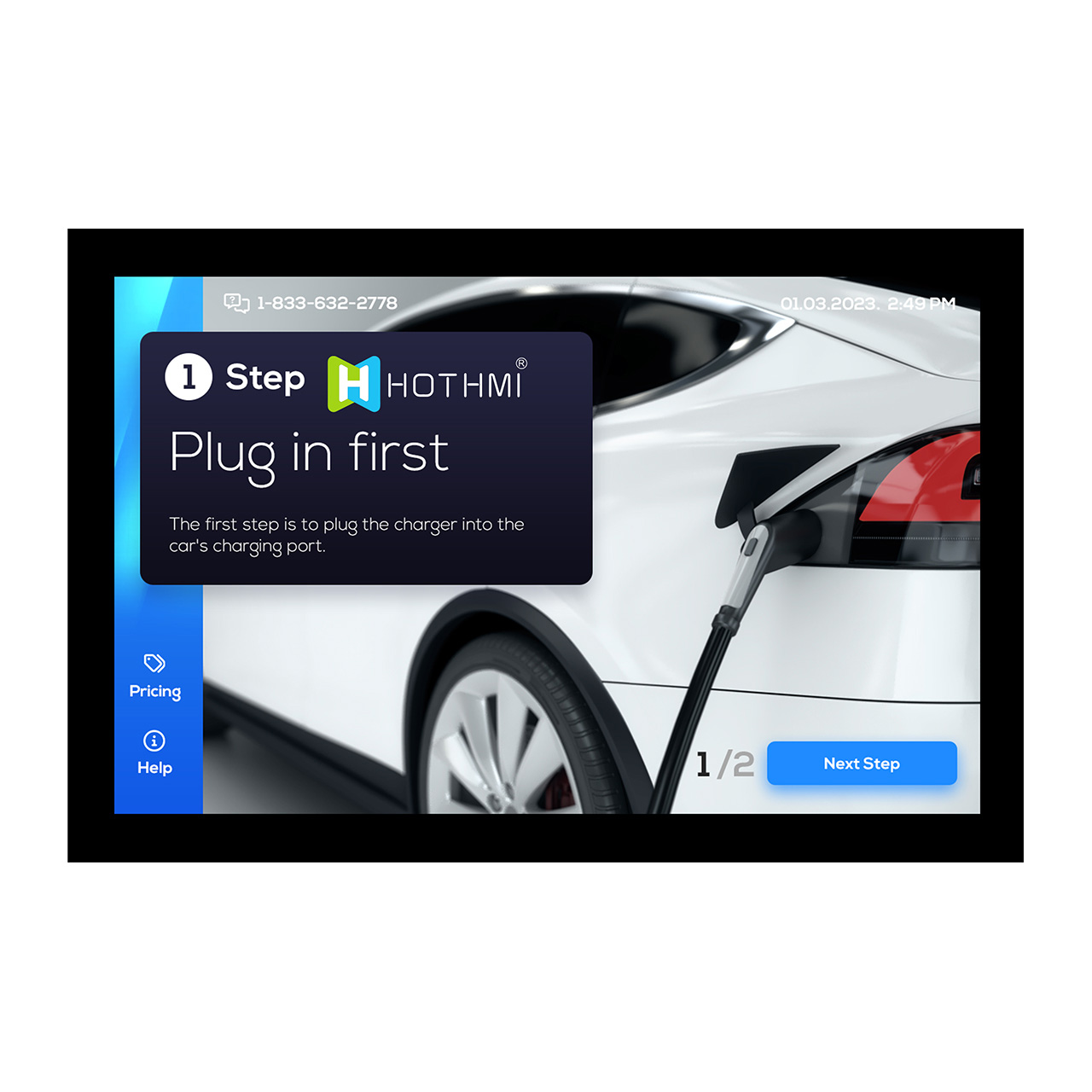

Ideal for industrial control panels, portable test equipment, medical monitors, automotive auxiliary displays, smart home controllers, and other devices requiring high-definition, reliable display performance. Its compact size, wide temperature range, and full-view design make it a versatile choice for both indoor and outdoor applications.
Why Choose Our TFT LCD Module?
- Professional Quality: Manufactured by Shenzhen Hot Display Technology Co., Ltd., adhering to strict quality control standards—”Excellent Quality Based on Profession”.
- Seamless Integration: Standard MIPI interface and compact dimensions simplify integration with existing systems; optional CTP (Capacitive Touch Panel) version is available for customized needs.
- Long-Term Durability: High-quality LED backlight, robust glass substrate, and anti-static design (workshop humidity ≥50%RH recommended) ensure long service life and stable performance in demanding environments.
| Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure. |
| Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
| Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals. |
| Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection). |
Can this 7 Inch Full HD TFT touch panel be customized?
Answer:Yes. HOTHMI provides customized services for touch panels.
| Cover Material:Optional tempered glass (up to 7H hardness) or acrylic for touch panels. |
| Cover Shape:Supports special-shaped cutting, hole opening, edging (2.5D, 3D), and customizable transmittance. |
| Cover color:Custom silk screen printing in various colors, commonly black or white. |
| Cover Thickness:Available in multiple specifications (mm): 0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0/8.0/10.0.etc |
| Light Transmittance:High light transmission efficiency, directly enhancing the touch panel’s visual performance. |
| Opening the hole: Can open through holes with a diameter of ≤10mm |
| Logo Printing:Supports silk screen logo printing in multiple colors. |
| Cover surface Treatment:AG (anti-glare) to eliminate screen mirroring; AR (anti-reflection) to reduce light reflection and improve outdoor visibility; AF (anti-fingerprint) to enhance glass gloss, reduce sliding resistance, and prevent water droplets/fingerprints. |
| Customized touch function chip:Offers customization of sensor materials, thickness, FPCs, interfaces, etc., translating touch actions into machine-recognizable signals. |
| Customized Brand Panels: Available brand options (Gorilla, Panda) with 7H/8H/9H hardness. |
