Description

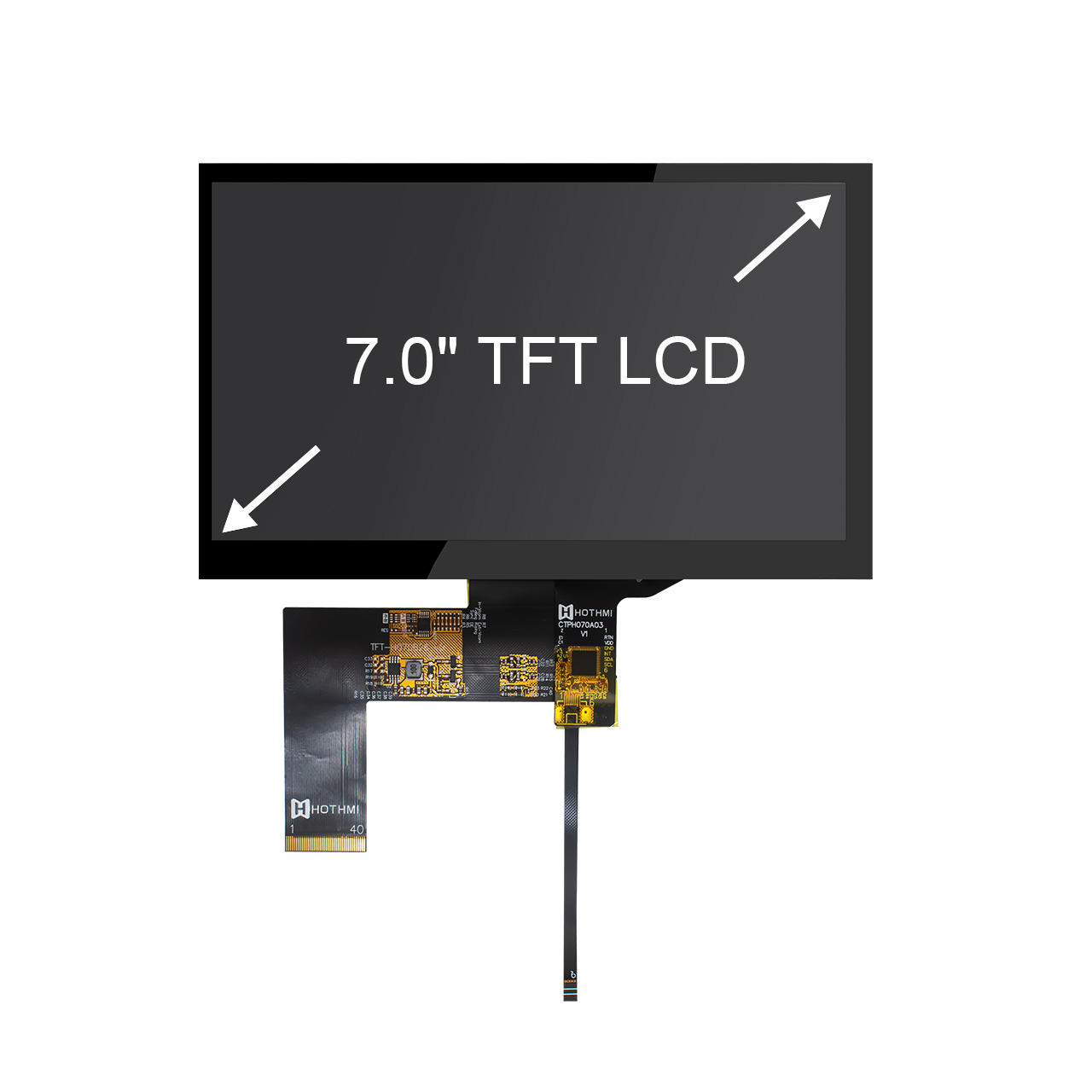

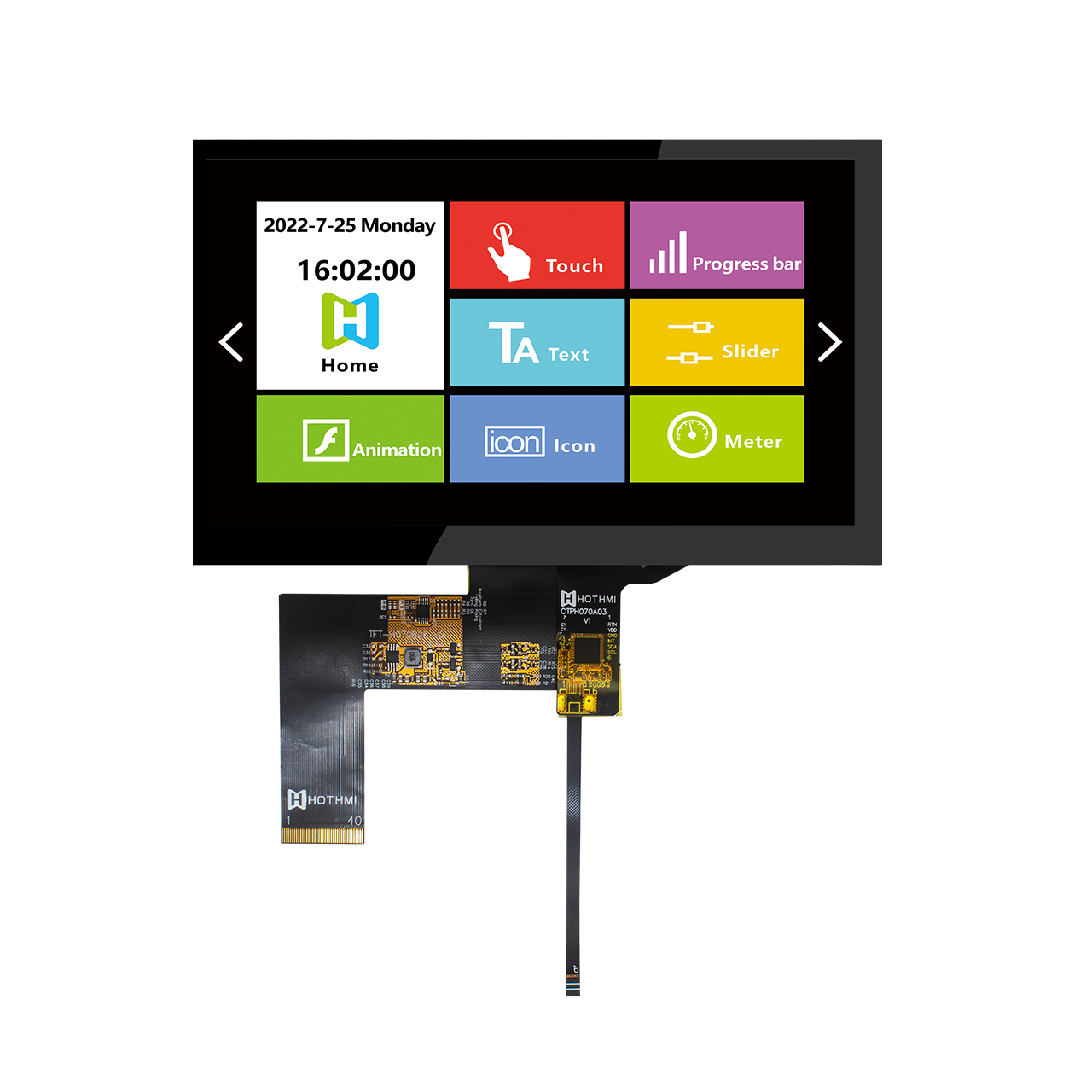

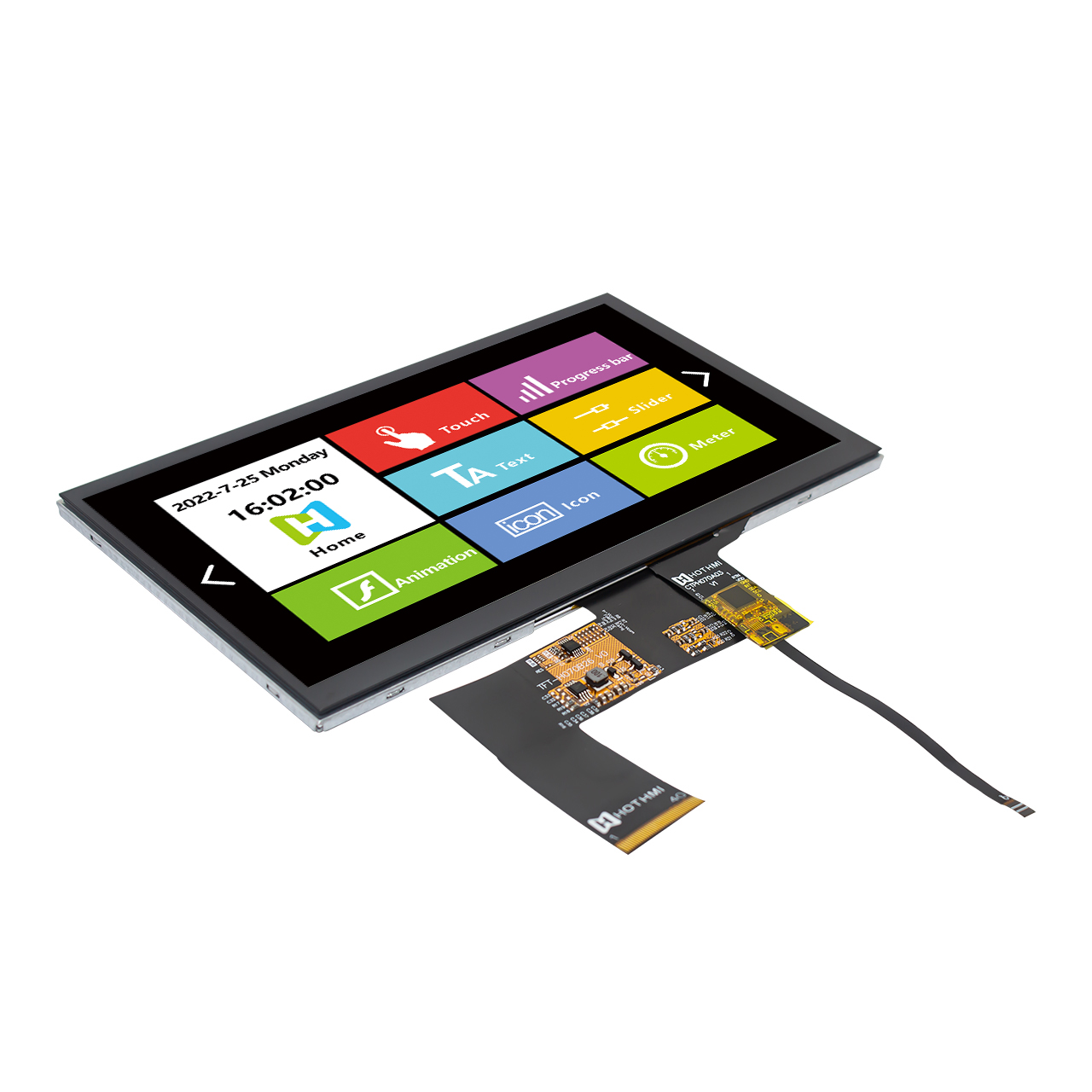

7 Inch TFT LCD Display High Brightness
7 Inch TFT LCD has a high-definition resolution of 1024 (3RGB) x 600 pixels, which delicately presents every detail of the picture. Supporting 24-bit true color (RGB 24 Bit), the color level is rich and full, and with the NTSC 50% color gamut performance, it can truly restore natural colors. Whether it is displaying complex industrial data charts, clear navigation maps, or vivid multimedia content, it can bring satisfactory visual enjoyment. Its “Normally Black” panel design presents deep black when not powered on, effectively improving the contrast performance and ensuring sharp and transparent images.
Multi-touch, responsive. The touch panel integrates the industry’s mainstream GT911 capacitive touch chip (CTP), bringing an accurate, fast and smooth touch experience. Whether it is a tap, a slide or a complex gesture operation, it can be sensitively captured and responded to instantly, greatly improving the efficiency and pleasure of human-computer interaction. With its moderate size of 7.0 inches, it provides sufficient viewing area while maintaining the portability of the device. It is an ideal choice for applications such as embedded systems, portable terminals, industrial HMI, vehicle displays, and smart home control panels.
Compared with the same series of products, this model is characterized by ultra-high brightness. Its backlight system has been carefully adjusted to achieve a typical brightness of up to 1000 cd/m², ensuring that the content is still clearly visible in strong light environments. At the same time, the product design fully considers the stability of long-term use, and has a built-in intelligent anti-image retention mechanism to effectively avoid the impact that may be caused by long-term display of fixed patterns, ensuring that the screen is durable and new.

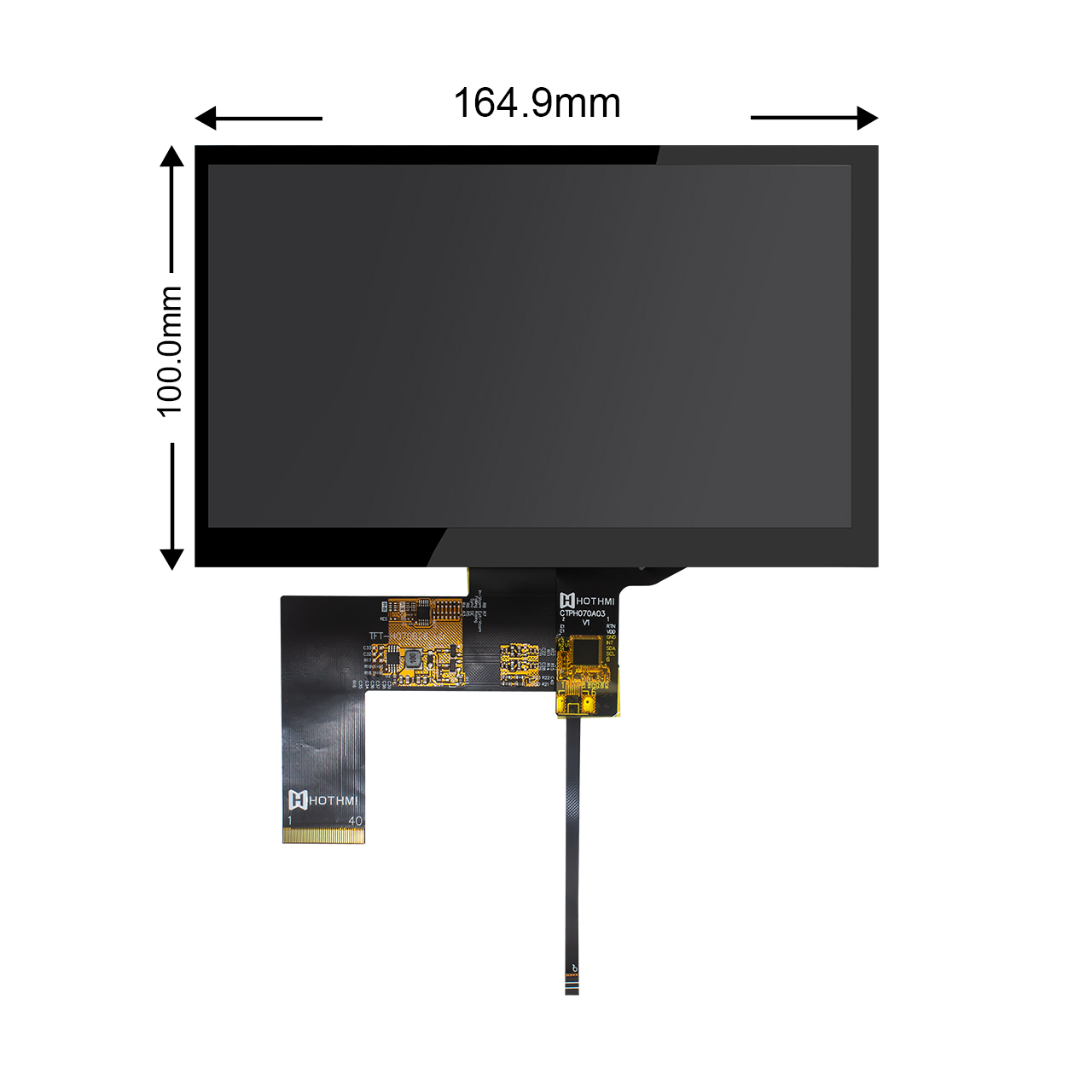

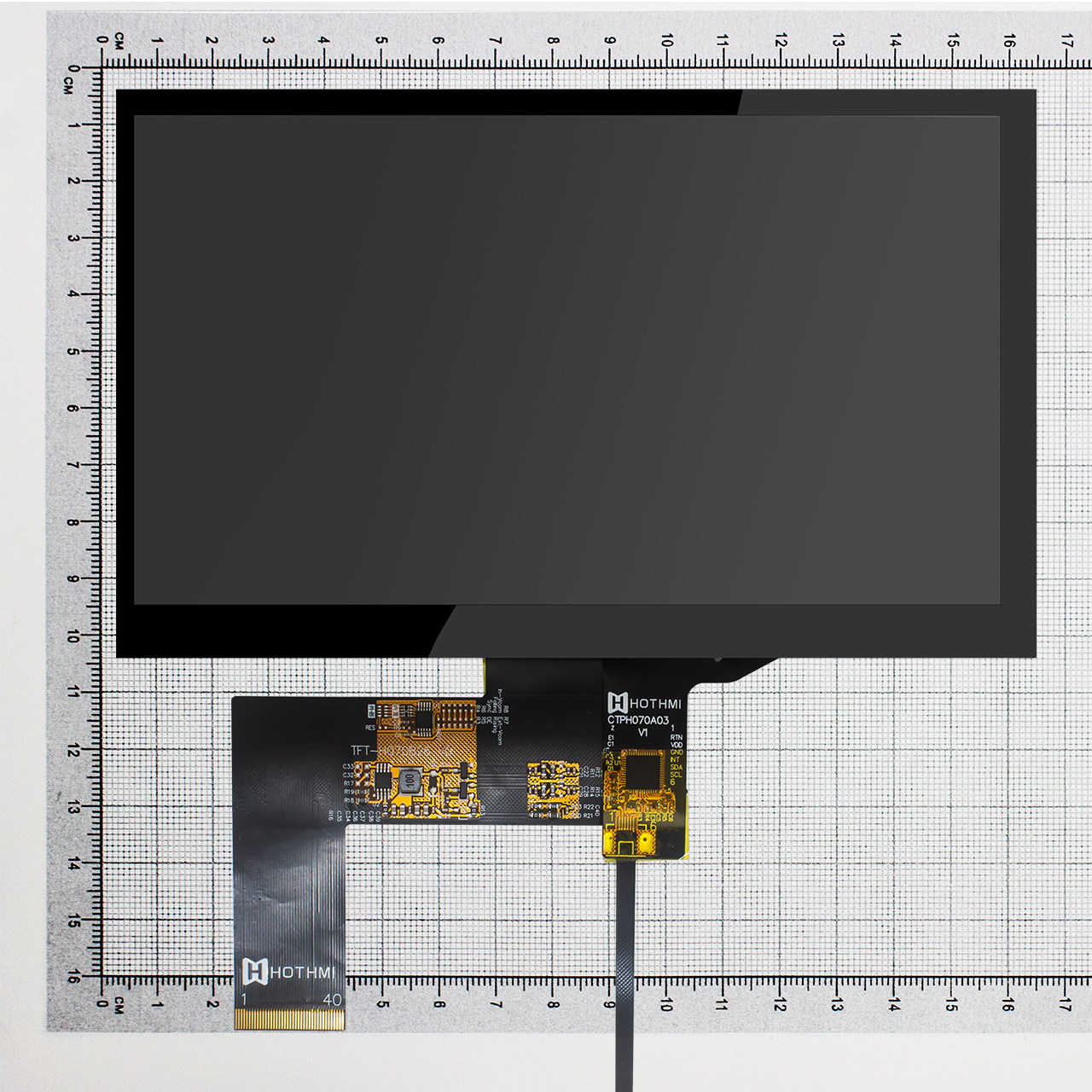

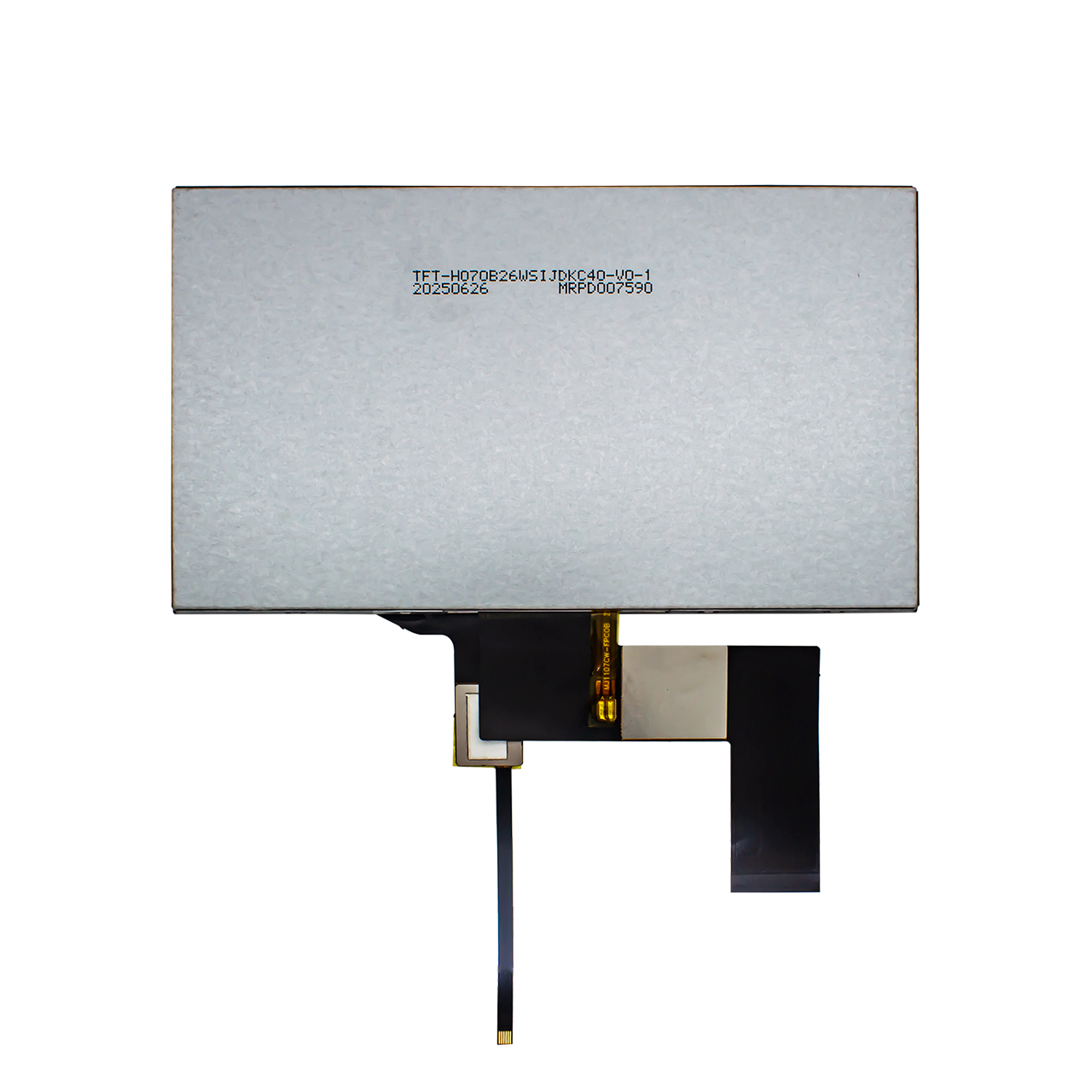

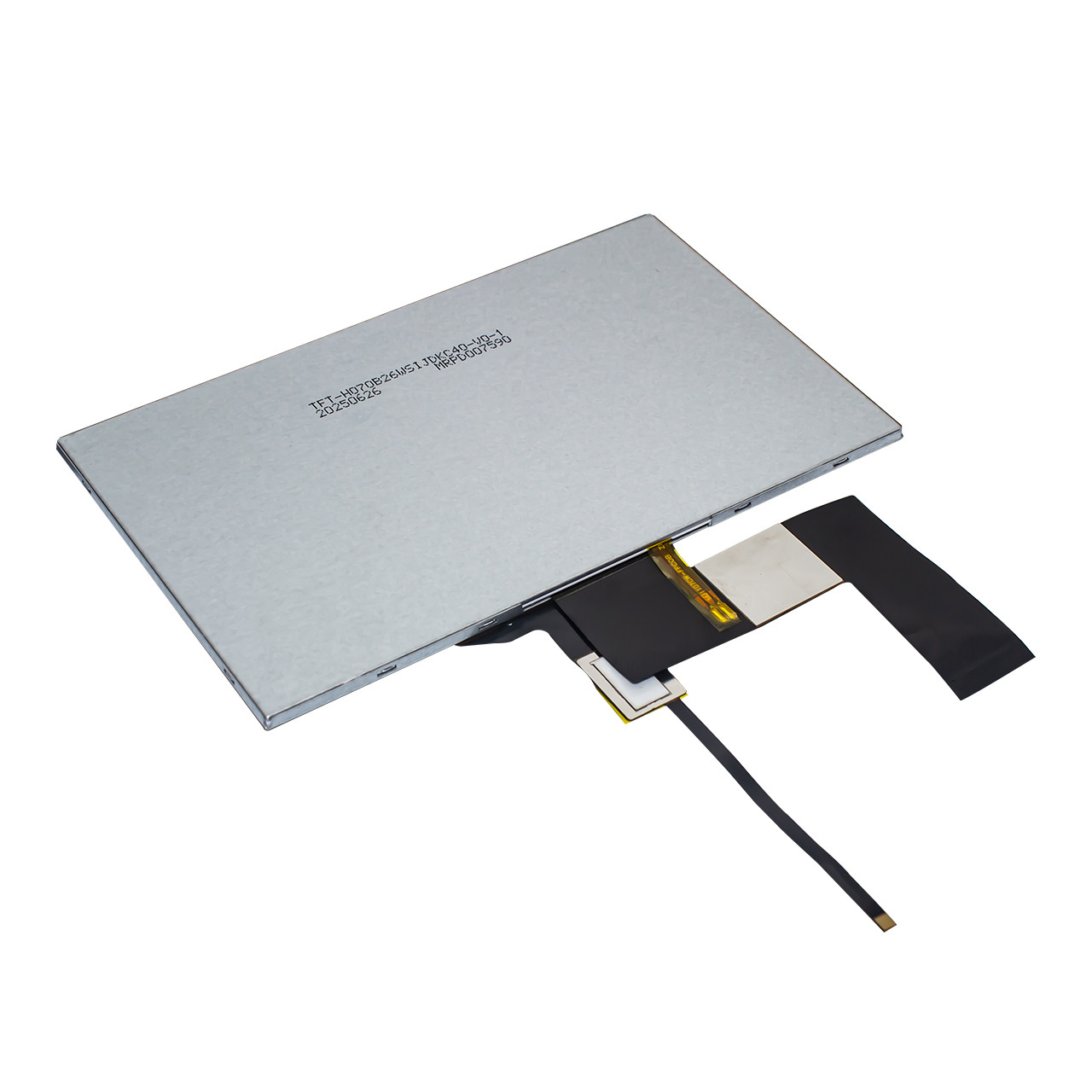

TFT-H070B26WSIJDKC40 adopts a compact modular design, solid structure, clear interface definition, and built-in FPC makes it easy for users to install and connect. The slim profile and optimized frame design help create a more modern and space-efficient product appearance.
In the same series of other products, we provide a TFT display module with a 7.0-inch metal frame: TFTH070A2WSIFT8N50, a 7.0-inch rounded corner touch TFT module: TFT-H070A20WSIFT7C50-V02, a 7.0-inch LVDS interface TFT display: TFT-H070A22WSIJD8N40, and a 7.0-inch 800×480 display: TFT-H070A3SVTFT3N40. The 7.0-inch bar display TFT-H070A21ZBINV6N40 may be your choice.
All Hot Display products comply with ROHS standards.

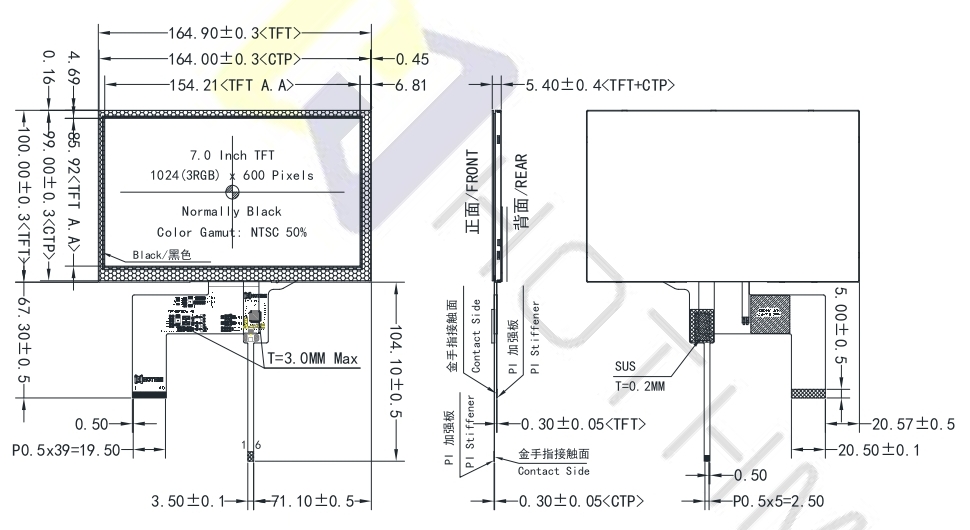

The 7 Inch TFT LCD display Specification
What are advantages of 7 Inch TFT LCD with high brightness ?
This 7 Inch TFT LCD display boasts a brightness of up to 1000 (cd/m²). This high brightness ensures that the screen content remains clearly visible and vibrant even in direct sunlight or bright indoor environments, which is crucial for automotive, industrial, and outdoor digital signage applications.
What kind of viewing experience can this 7 inch TFT LCD display provide to users?

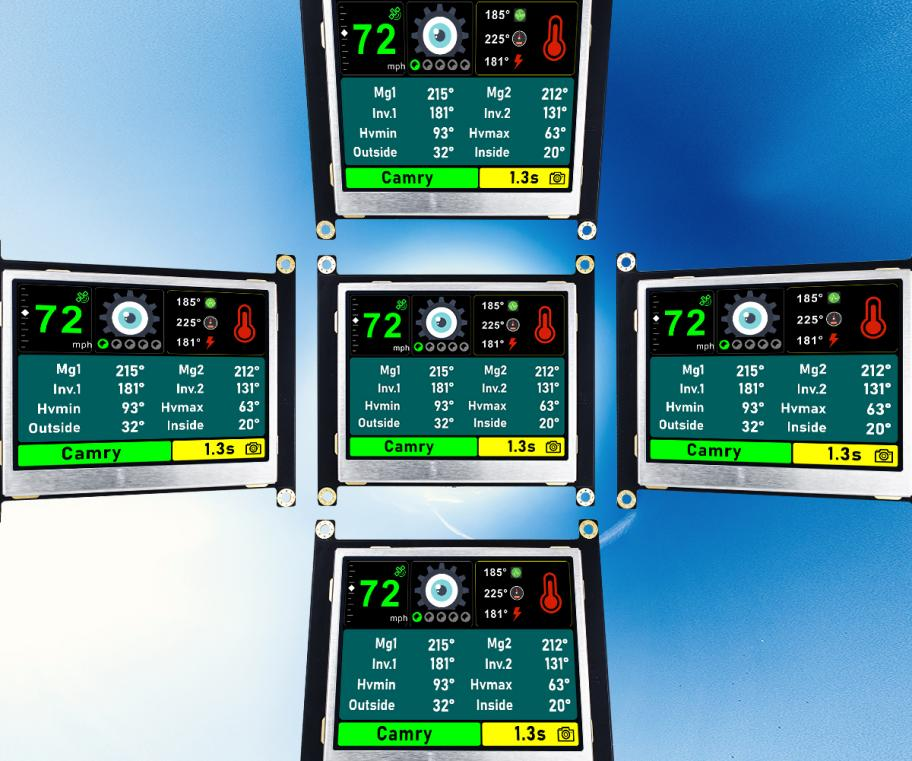

One of the key advantages of this 7 Inch TFT LCD is its adoption of IPS technology, which supports an ultra-wide 178° viewing angle. This guarantees stable and vibrant colour and contrast performance from any viewing position, effectively eliminating colour shift and fading. As such, it is especially ideal for applications that require multi-angle viewing or shared observation by multiple users.
Why does this display use an RGB interface?
This 7-inch TFT LCD display is equipped with an RGB interface, offering outstanding reliability and easy integration. The RGB (LVDS) design effectively reduces electromagnetic interference and ensures stable high-speed data transmission. With a built-in adapter module in the cable assembly, it can be directly connected to the main control board via a standard FPC cable, simplifying installation. The stable and clear image output makes it ideal for long-life industrial and commercial applications.
What need to be considered when purchasing a 7 inch TFT LCD display with high-brightness, sunlight readable ?
When selecting a 7 inch TFT LCD display with high-brightness , in addition to brightness parameters, the following should also be considered:
| Item | Key Factors | HOTHMI |
| Contrast Ratio | The ability to distinguish between bright and dark areas under strong light (low-end products 300-500, high-end products can reach 1000-2000) | The standard contrast ratio is 1000. |
| Operating Temperature Range: | A key indicator for outdoor/industrial applications | Standard range: -20°C to +70°C; partial range: -30°C to 80°C |
| Viewing Angle: | Ensures readability from different viewing angles | IPS TFT |
| Power Consumption Control: | Energy saving | Balancing the best cost-performance ratio |
| Backlight Lifespan: | Determines the sustainability of the TFT LCD | Typical lifespan: 30,000 hours |
| Anti-Glare and Anti-Reflective Coating | Further improves outdoor visibility by reducing reflections | Customizable |
Conclusion: As we can see from the table summary, the 7 inch TFT LCD display boasts advantages such as a brightness exceeding 1000 cd/m2, a contrast ratio of 1000, an IPS all-around viewing angle, a wide operating temperature range of -30°C to 80°C, and a backlight lifespan of 30,000 hours, making it the optimal display solution for outdoor equipment, automotive, aerospace, and other fields.
What customized services can we provide for your 7 inch TFT LCD display?
| Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure. |
| Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
| Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals. |
| Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection). |
