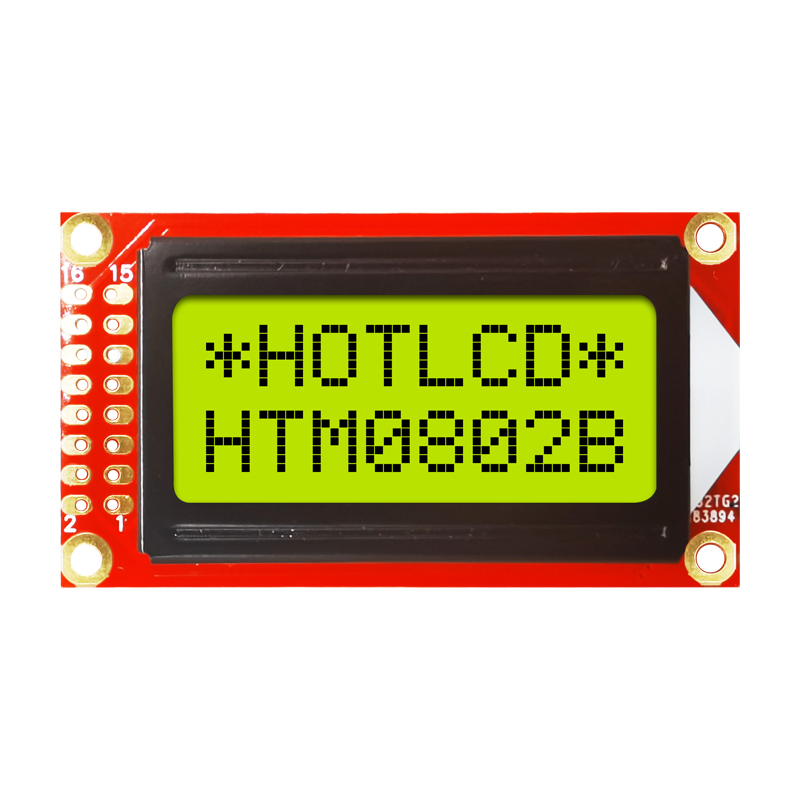

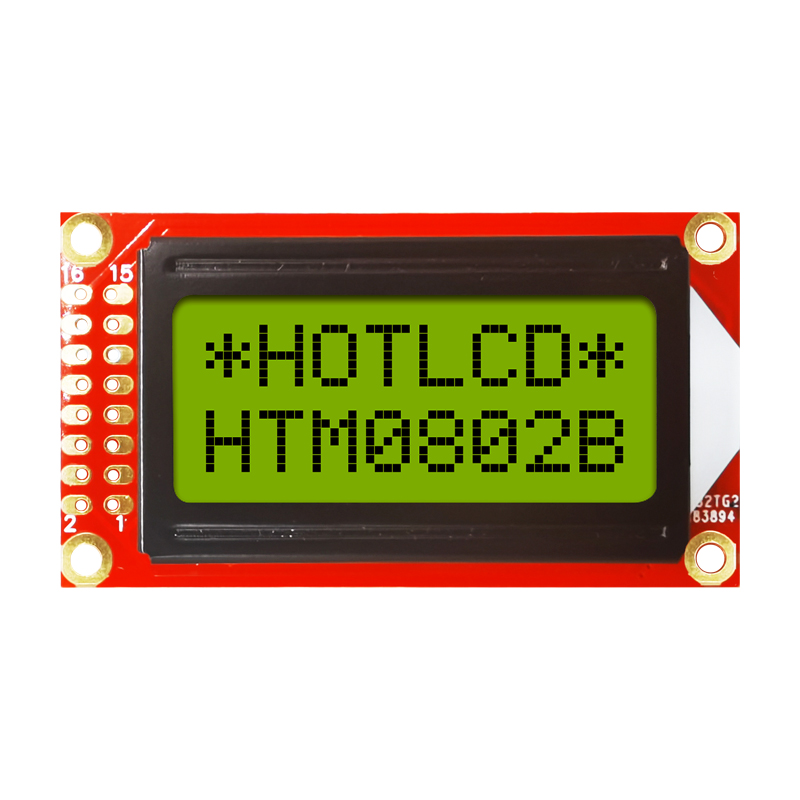

Character LCD Modules |8×2 STN mono+ Yellow/Green Display with Yellow/Green Side Backlight Arduino

Character LCD Modules is an 8×2 character LCD liquid crystal display module, the voltage is preset to 5V, when using 3V, the negative voltage can only be powered by 3V. LCD module 8×2 HTM-0802B-01Y-A5P is pre-set for the 6800 interface supported by the integrated st7066u IC; Arduino display module backlight is available in several combinations, no backlight or chartreuse/blue/white/amber/red /RGB backlight. There are several libraries available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, etc.

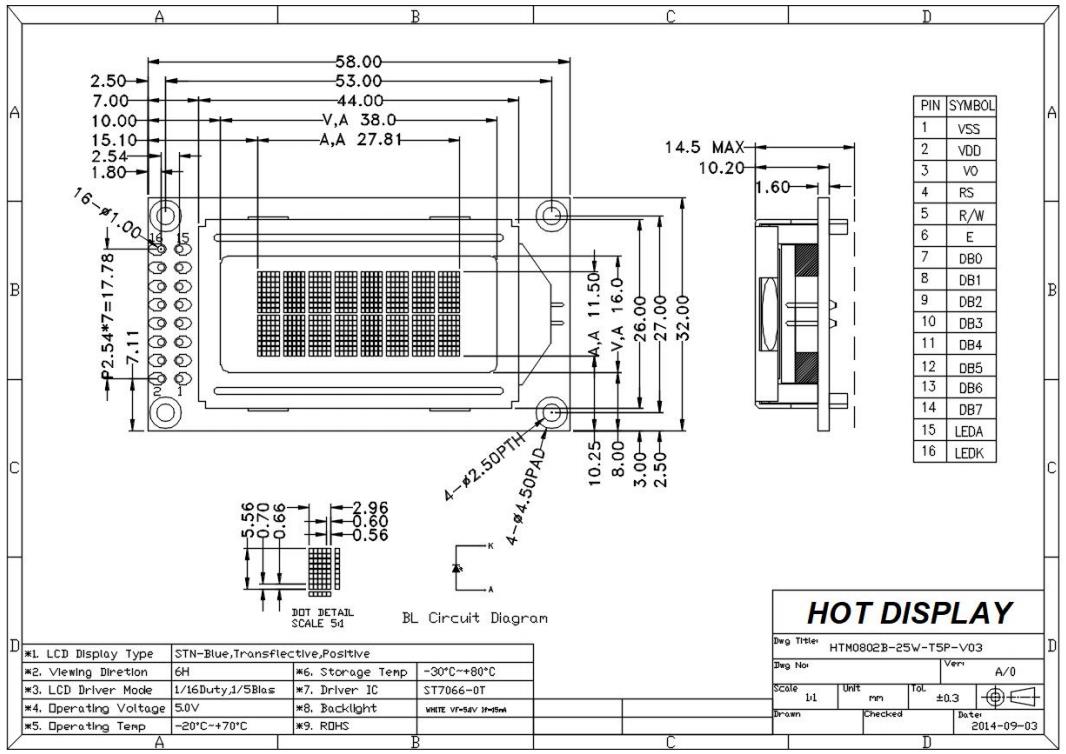

Specification of the 8×2 Character LCD Modules
