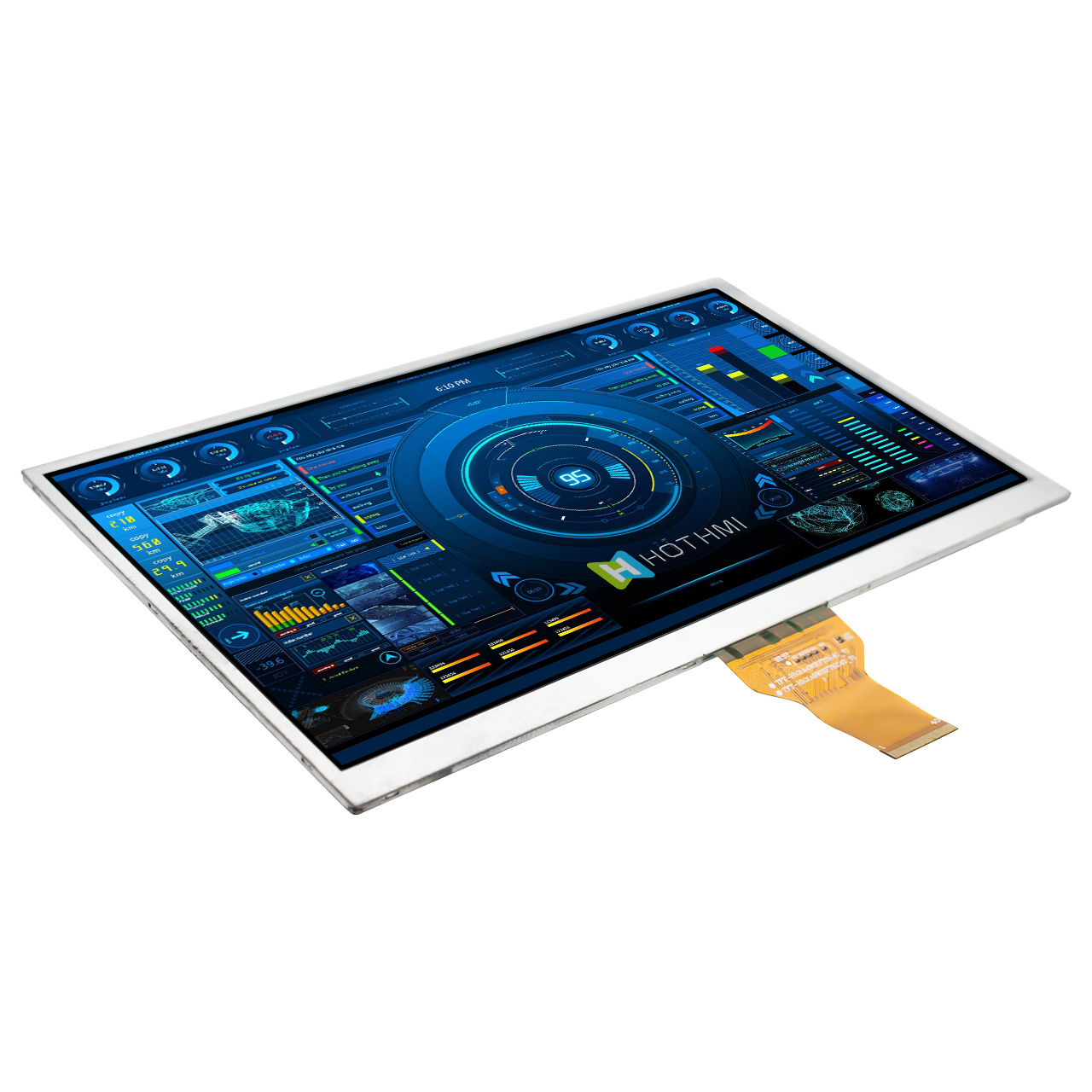

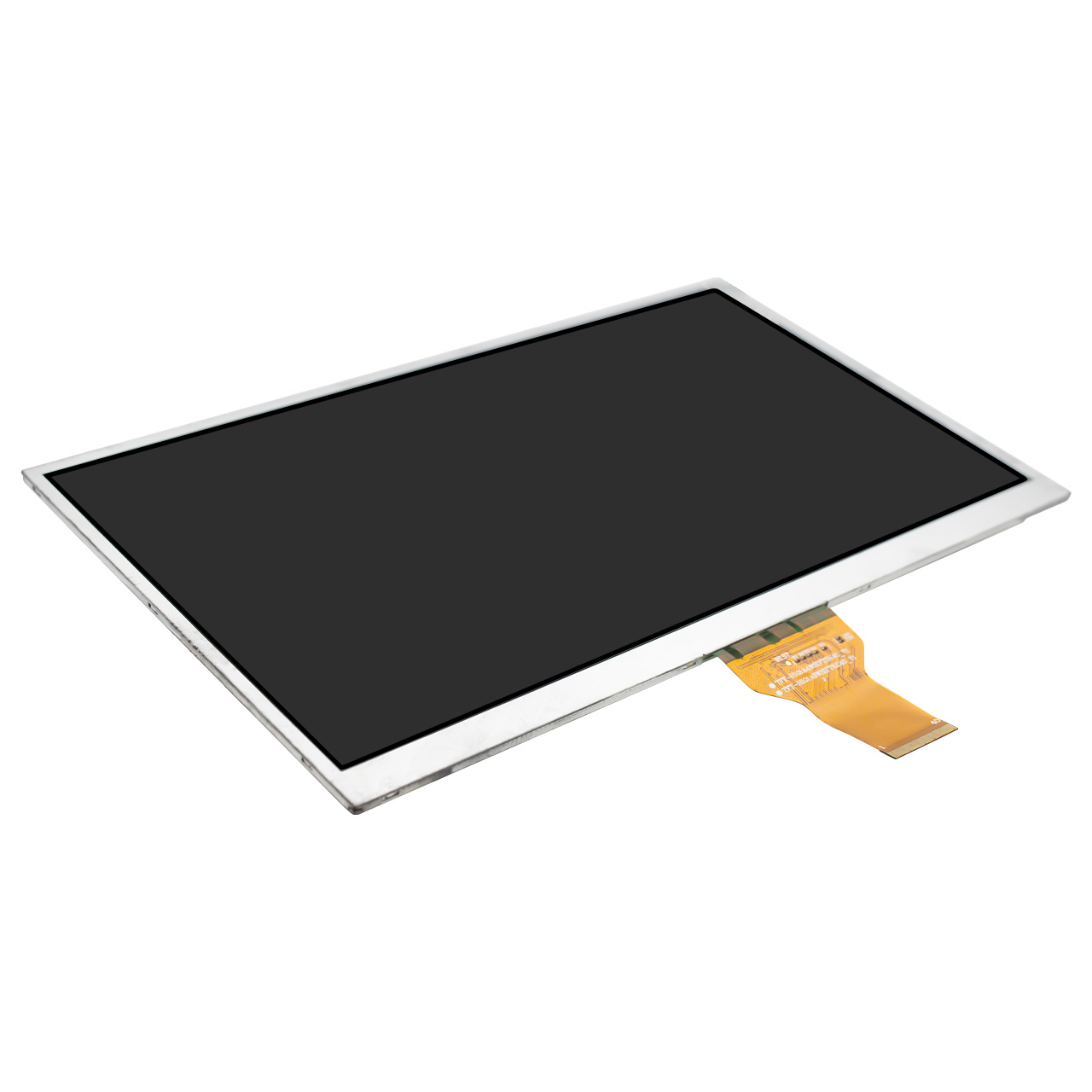

TFT-H101A4WSIFT3N40|10.1 inch TFT LCD display 1024×600 LVDS TFT LCD Panel

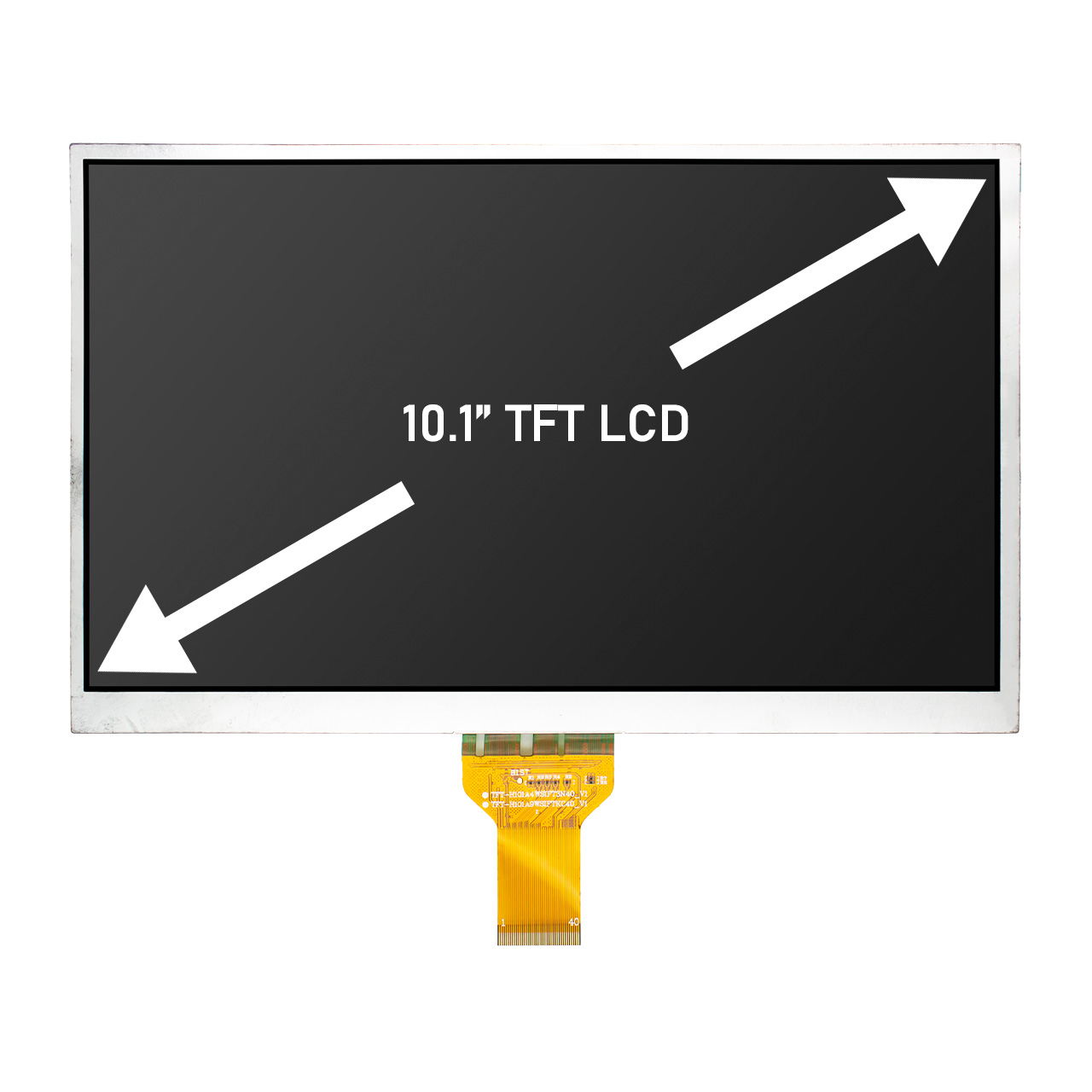

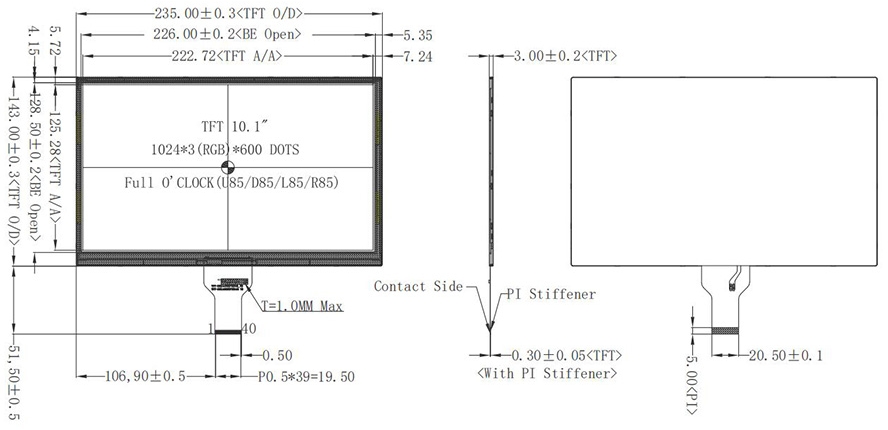

This 10.1-inch (effective display area 222.72 x 125.28 mm) industrial display accurately presents delicate images and sharp text with a clear resolution of 1024 x 600, providing a solid visual foundation for the interactive interface of medium and large equipment. Its core advantages lie in its excellent display performance and environmental adaptability.

The screen adopts a full-viewing angle design (up and down, left and right viewing angles are up to 85°), ensuring that the colors are still true and full when viewed from multiple angles, eliminating the phenomenon of offset. The typical contrast ratio of 800:1 brings deep black levels and bright and vivid color performance, and visual information is clear at a glance. The white LED backlight system provides a typical brightness of 300 cd/m² and supports a wide voltage input of 9.6V/280mA, which extends the service life while achieving low power operation.

Stable and reliable signal transmission is guaranteed by the LVDS (4-channel) interface, which is compatible with 6-bit/8-bit data input mode and seamlessly connects to mainstream controllers. The internal EK79001 + EK73215 driver IC combination, combined with a 3.3V digital power supply, ensures efficient and stable signal transmission to meet the stringent requirements of industrial applications.

Excellent durability is the key to its industrial application. The device can operate stably in a wide temperature environment of -20℃ to 70℃, and withstand extreme storage temperatures of -30℃ to 80℃. Through rigorous reliability tests such as high temperature and humidity, hot and cold shock, vibration, and ±8kV electrostatic protection (ESD), it has fully demonstrated its long-term operation capability in complex industrial environments.

What is LVDS TFT LCD Display Module and Why Does It Matter for Your Products?

LVDS (Low-Voltage Differential Signaling) is a high-performance interface standard designed for high-speed, low-power, and low-noise data transmission. In our 7-inch TFT LCD display, using an LVDS interface means you’ll get more stable and interference-resistant signal transmission compared to traditional parallel RGB interfaces. It effectively reduces electromagnetic interference (EMI), ensuring clear, stable, and flicker-free images even in complex electromagnetic environments such as industrial, medical, or automotive applications. This is the core reason why professional applications choose LVDS TFT LCD Display Module.

By incorporating an LVDS TFT LCD Display Module into your device, your product will benefit from:

Superior interference immunity: Differential signaling technology effectively resists environmental noise, ensuring pristine image quality.

High-speed data transmission: Meets the demands of smooth video and image display at high resolutions (such as 1024×600).

Long-term technological advantage: It is a modern standard interface for connecting mainstream processors and FPGAs, ensuring the advanced nature and sustainability of your product design.

What are the Ideal Applications for This LVDS TFT LCD Display Module?

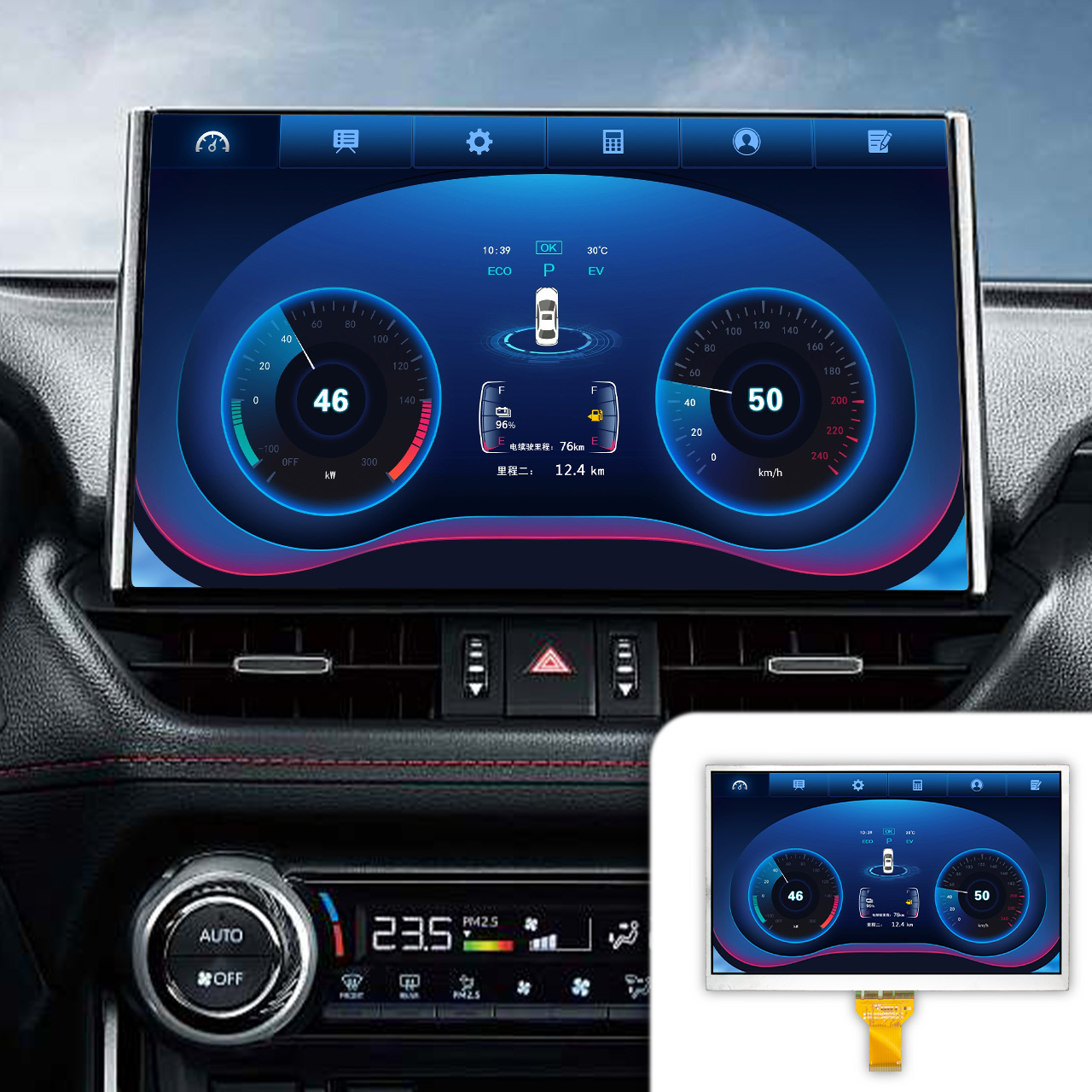

This LVDS TFT LCD Display is an ideal choice for demanding environments and high-performance applications. Its stable LVDS interface makes it excel in industrial human-machine interfaces (HMI), medical display equipment, in-car central control and instrument panels, security monitoring displays, and high-end consumer electronics. It boasts industrial-grade durability: designed for 24/7 continuous operation and harsh environments. It offers cross-industry applicability: one module meets diverse professional needs, from industrial control to smart homes. Whether in vehicles subject to frequent vibrations, factory workshops with complex electromagnetic environments, or vending machines requiring long-term stable operation,this LVDS TFT LCD Display provides durable and reliable visual output.

What is the optimal resolution for an LVDS TFT LCD module?

The LVDS interface itself does not “fixedly” support a specific resolution; it is a high-performance physical layer transmission protocol, like a wide highway. Its theoretically supported resolution range is very broad, capable of handling resolutions from low-resolution 480×272 to high-definition resolutions far exceeding 4K. In this 10.1-inch LVDS TFT LCD Display Module, our TFT LCD screen has a resolution of 1024 x 600 (WSVGA): this is the most mainstream and recommended option, achieving an excellent balance of clarity and cost for a 10.1-inch size. Therefore, this LVDS TFT LCD Display Module is suitable for most industrial HMI and embedded applications. The LVDS interface is also commonly used with the economical standard resolution of 800 x 480 (WVGA), as well as the high-end high-definition resolution of 1280 x 800 (WXGA).

What customization services can HOTHMI provide for this 10.1-inch LVDS TFT LCD Display Module?

• Customized Cables/FPCs:Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.
• Touchscreen:Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.
• Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

Why Choose Our LVDS TFT LCD Display Module Over Others?

Our LVDS TFT LCD Display Module is more than just a standard display component. We focus on providing industrial-grade product quality and consistency, with each screen undergoing rigorous aging tests and calibration. More importantly, we offer in-depth technical collaboration and customization services – whether it’s adjusting driver parameters, customizing the form factor, or optimizing touch performance, our engineering team will work closely with you to ensure this LVDS TFT LCD Display Module perfectly meets your final product requirements and becomes a powerful component of your product’s competitiveness.
