Description
3.5 lcd display IPS LCD High Resolution Screen

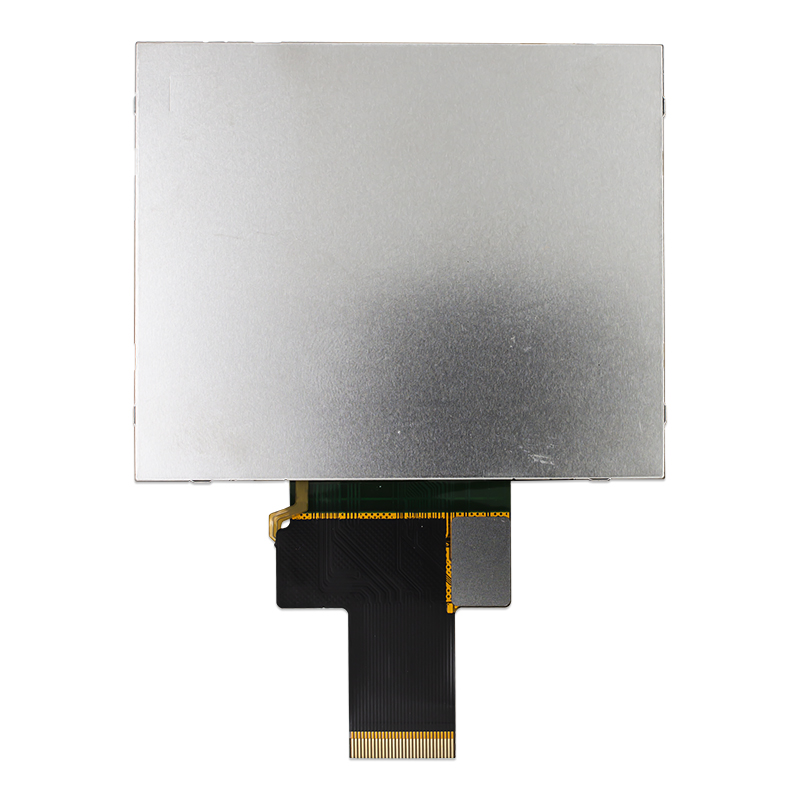

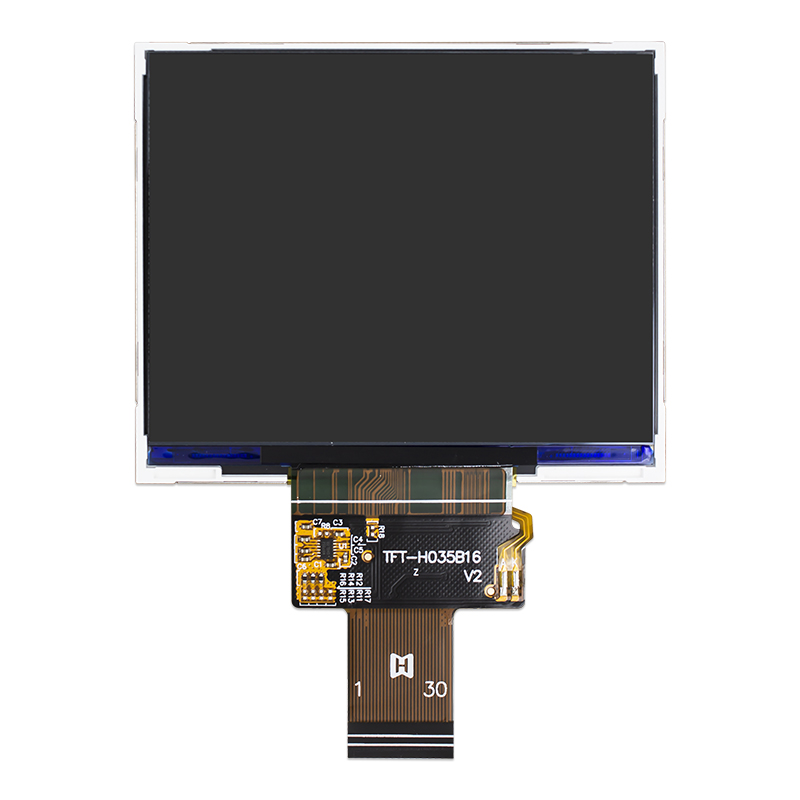

This 3.5 Inch 640×480 TFT module boasts several excellent technical features. With a 3.5 lcd display size and a resolution of 640×480 pixels, it delivers clear image quality. For connectivity, it utilizes a MIPI 4-Lane interface and an ST7703 driver IC, ensuring high-speed data transmission and stable display performance. In terms of viewing angles, the module supports full-view display with 85° viewing angles horizontally, vertically, and vertically, providing excellent visual effects from all directions.
The product offers multiple configuration options, including a non-touch version, a version with a glass panel, and a version with capacitive touch, meeting diverse application needs. This 3.5 lcd display has a wide operating temperature range, with the TFT section capable of normal operation from -30℃ to +80℃. The backlight brightness reaches a maximum of 400 cd/m², and the typical LED lifespan is 30,000 hours. For the version with capacitive touch, the driver IC is GT911, supporting I²C interface communication.
This 3.5 lcd display features a high resolution of 640×480 pixels and a MIPI interface, offering the added benefits of high data transfer rates, lower EMI, and reduced wiring complexity. It boasts a brightness level of 450cd/m². Thanks to its built-in IPS technology, the LCD delivers stunning clarity, excellent color reproduction, improved image consistency, and high contrast across all viewing angles.
Applications of the 3.5 lcd display
This 3.5 lcd display module is widely used in various industrial and consumer electronics fields. In industrial control, it is commonly used for human-machine interface displays in industrial control terminals and portable instruments. Medical equipment is also a significant application area, where it can be used as a display panel for medical monitors and diagnostic equipment. In the smart home sector, it is used in the human-machine interface of smart control panels and home automation systems. In automotive applications, this 3.5 lcd display can be used for information display in in-vehicle display systems and in-vehicle entertainment devices. Furthermore, this module is an ideal choice for developers in embedded system development and human-machine interface design.
How to choose the right 3.5 Inch 640×480 TFT series module
The TFT-H035B16 series offers three different configurations suitable for various applications. Users can choose based on factors such as the need for touch functionality and glass panel protection.

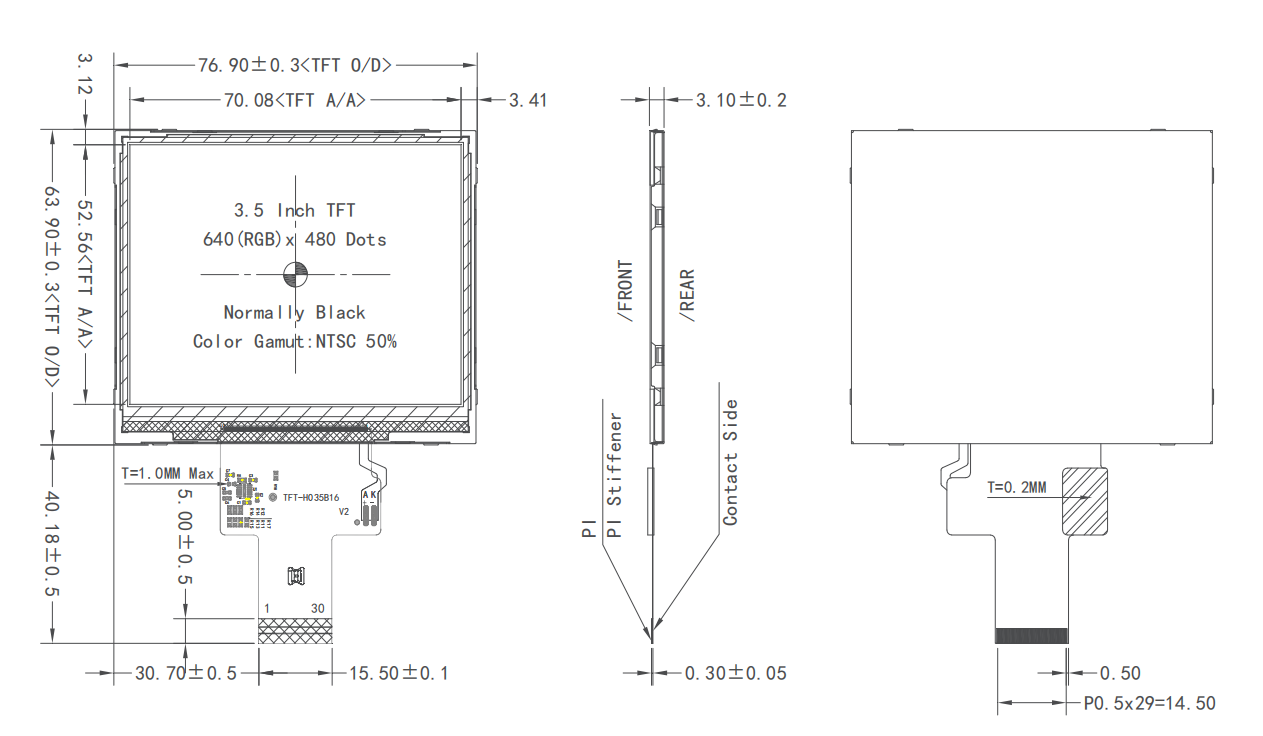

The standard model, TFT-H035B16VGIST4N30, is a TFT module without a touchscreen, suitable for embedded systems or projects requiring customized touch solutions.

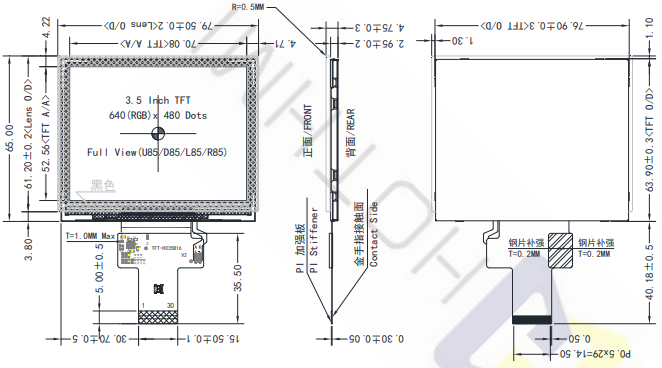

The TFT-H035B16VGIST4G30 adds a custom cover lenses to the TFT base, providing extra physical protection and making it suitable for outdoor or highly abrasion-resistant environments.

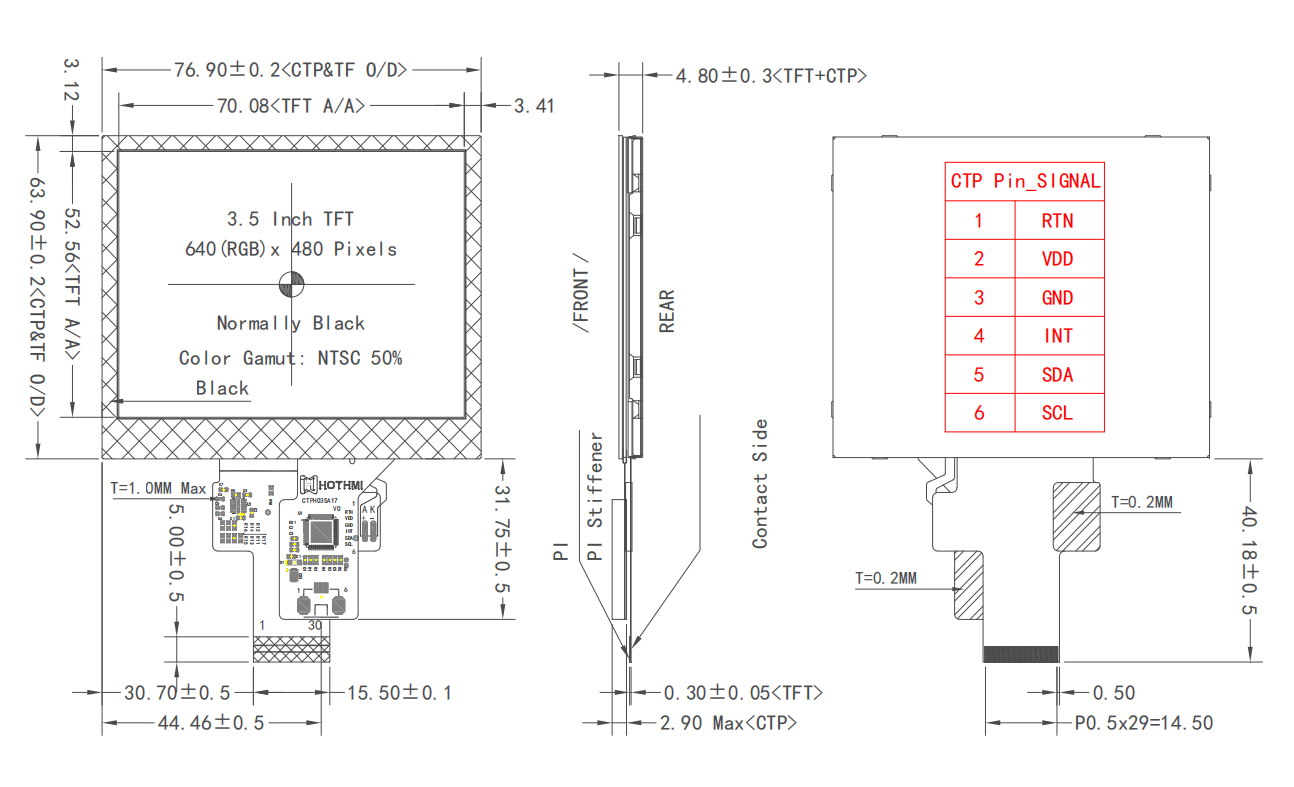

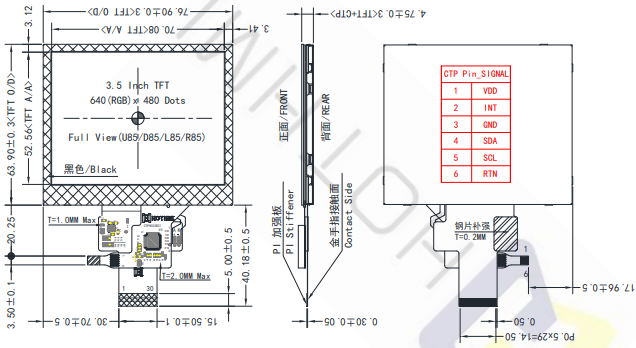

The TFT-H035B16VGIST3C30 is equipped with a capacitive touchscreen that supports multi-touch, making it ideal for human-machine interface applications.
All models use a MIPI 4-Lane interface with a resolution of 640×480, and the ST7703 driver IC, supporting full-view display.
Can this 3.5 lcd display touch panel be customized?
Answer:Yes. HOTHMI provides customized services for touch panels.
| Cover Material | Optional tempered glass (up to 7H hardness) or acrylic for touch panels. |
| Cover Shape | Supports special-shaped cutting, hole opening, edging (2.5D, 3D), and customizable transmittance. |
| Cover color | Custom silk screen printing in various colors, commonly black or white. |
| Cover Thickness | Available in multiple specifications (mm): 0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0/8.0/10.0.etc |
| Light Transmittance | High light transmission efficiency, directly enhancing the touch panel’s visual performance. |
| Opening the hole | Can open through holes with a diameter of ≤10mm |
| Logo Printing | Supports silk screen logo printing in multiple colors. |
| Cover surface Treatment | AG (anti-glare) to eliminate screen mirroring; AR (anti-reflection) to reduce light reflection and improve outdoor visibility; AF (anti-fingerprint) to enhance glass gloss, reduce sliding resistance, and prevent water droplets/fingerprints. |
| Customized touch function chip | Offers customization of sensor materials, thickness, FPCs, interfaces, etc., translating touch actions into machine-recognizable signals. |
| Customized Brand Panels | Available brand options (Gorilla, Panda) with 7H/8H/9H hardness. |
