Fully functional test board(ESP32-P4-DEMO-A01-V0)
This main control board integrates multiple high-performance interfaces and functional modules, making
2.4 Inch TFT Display Module with EzUI(HTM-H024A16-UART-A02)
- Model: HTM-H024A16-UART-A02
- Resolution: 240x320
- Dimensions (mm): 44.00x88.00x4.50
- Backlight/brightness: 1500cd/m2
- Interface mode:
2.8 Inch Smart TFT Display Module(HTM-H028A16-USART-ST)
- Model: HTM-H028A16-USART-ST V2.0
- Display pixels: 320x240
- Dimensions (mm): 88.0x53.3x11.7
- Brightness:
3 inch Industrial TFT(HTM-H030A8-UART)
- Model: HTM-H030A8-UART-A1_V0-0
- Display content: 800x480
- Overall dimensions (Mm): 40x110x3.85
- Backlight type
5.0 inch MIPI TFT LCD Module(HTM-H050A1-UART-A5)
- Model: HTM-H050A1-UART-A5
- Display content: 800X480
- Dimensions (mm): 143.0x80x8.1
- Backlight type or

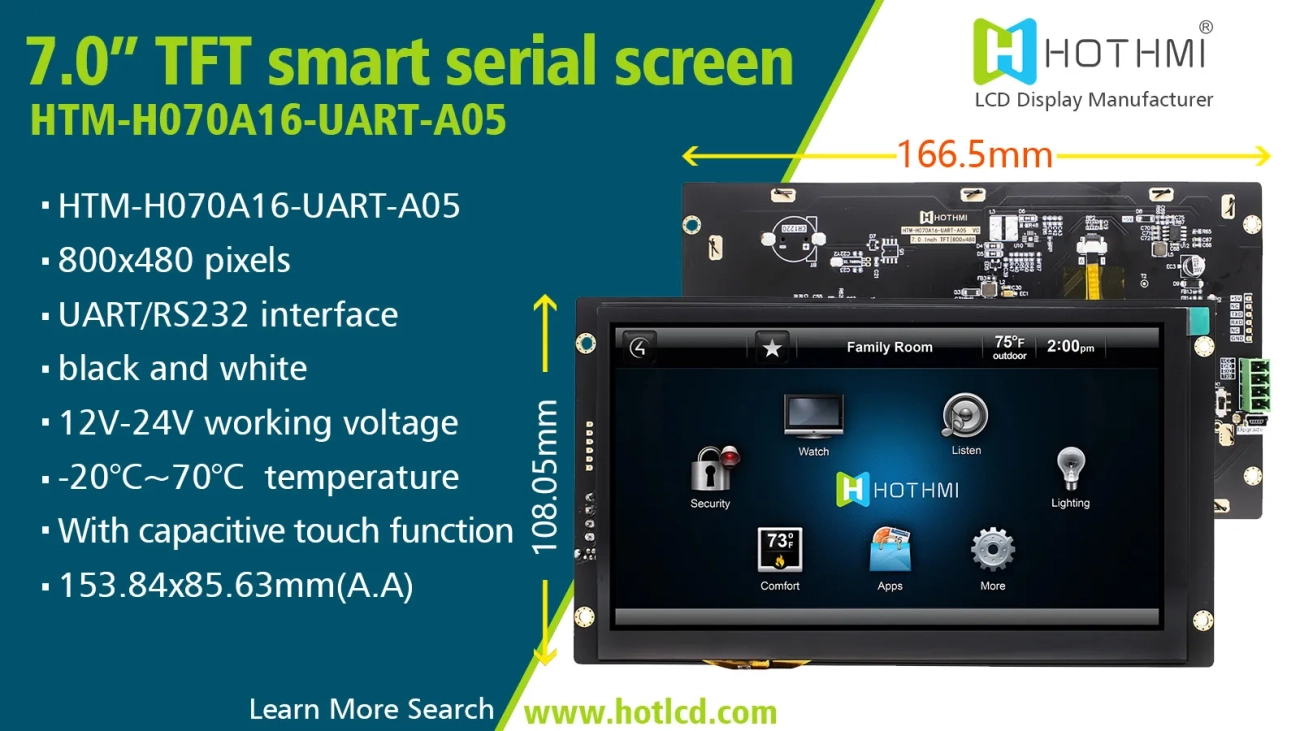

7 inch Sunlight-Readable UART Touchscreen Display(HTM-H070A16-UART-A05)
- Model: HTM-H070A16-UART-A05
- Display content: 800x480
- Overall dimensions (mm): 166.50x108.05
- Backlight type

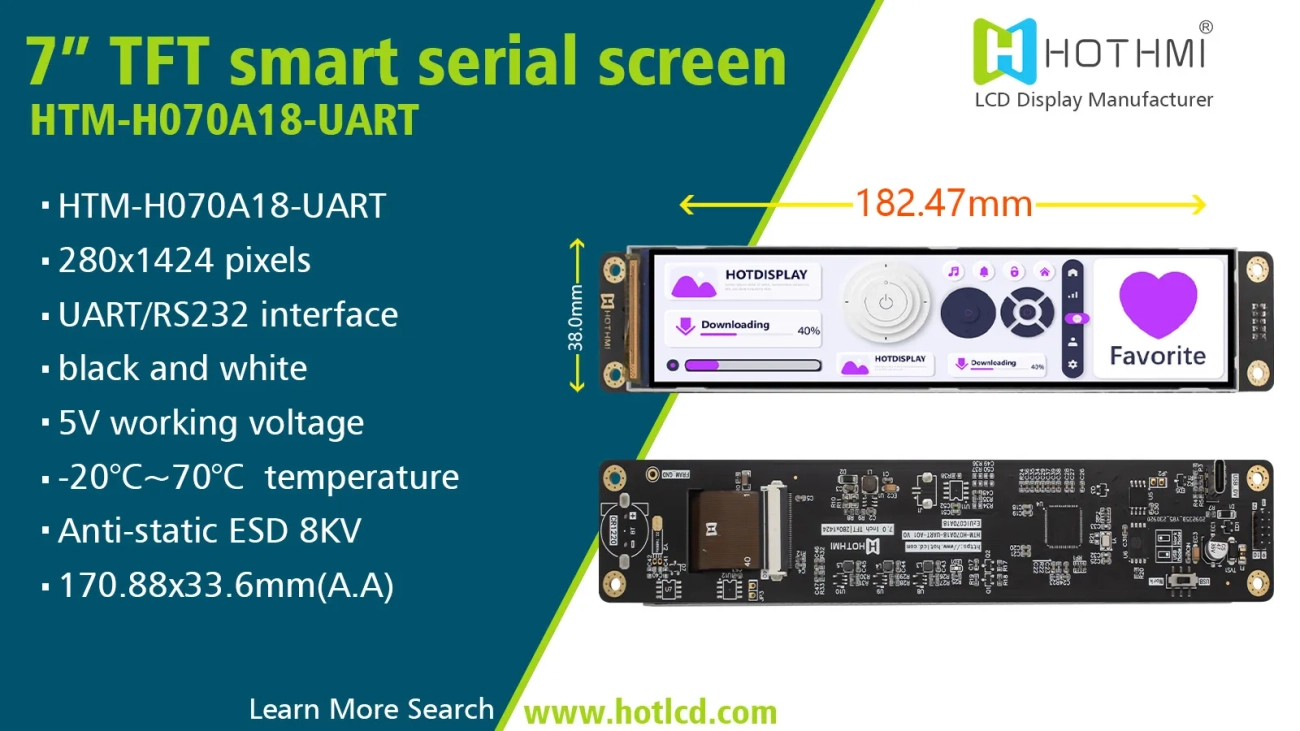

7 inch Industrial grade Smart Display(HTM-H070A18-UART)
- Model: HTM-H070A18-UART
- Display content: 280x1424
- Overall dimensions (mm): 206x38.2x5.45
- Backlight type:

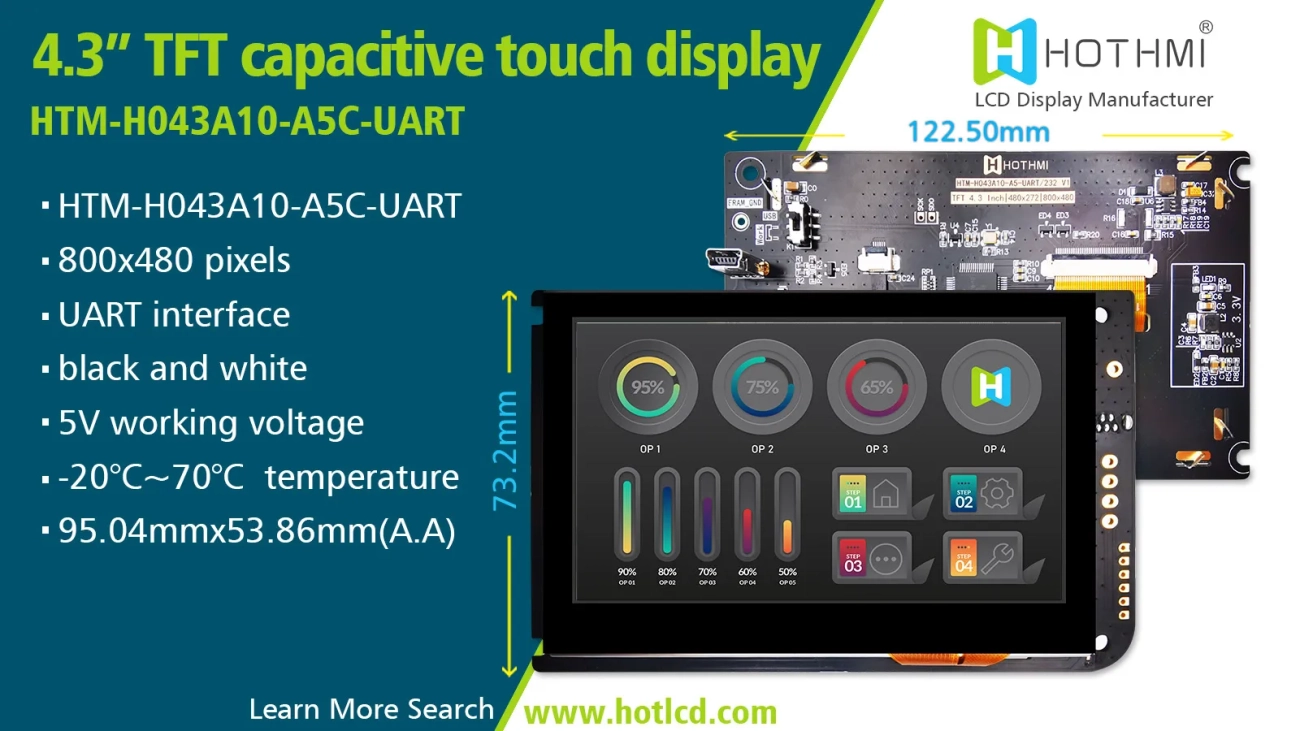

4.3 inch Industrial Capacitive Touch Display(HTM-H043A10-A5C-UART)
- Model: HTM-H043A10-A5C-UART
- Display pixels: 800x480
- Dimensions (mm): 122.5x73.2x7.9
- Backlight/brightness: 500cd/m2
- Interface
5.0 Inch TFT LCD Display（COF-H050A13-UART-A01）
- Model: COF-H050A13-UART-A01
- Display content: 800x480
- Dimensions（mm）: 120.7(W)x75.8(H)x3.00(D)
- Backlight/brightness: 1000cd/m2
- Pin: smart
