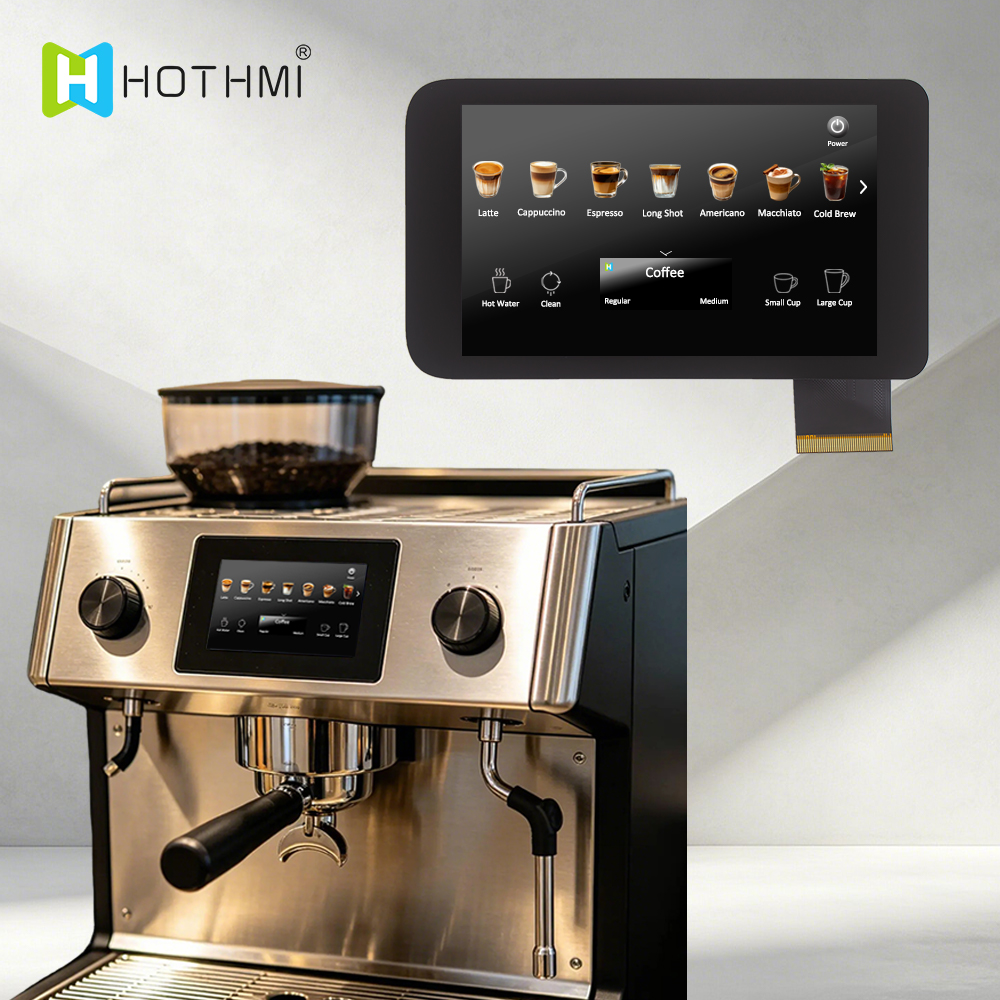

In the era of rapid iteration of smart hardware, display quality and interactive experience have become the core factors determining product competitiveness. The TFT-H043B32WVIST3C45—a 4.3-inch capacitive touch TFT LCD display meticulously crafted by HOTHMI—features high-definition display, industrial-grade reliability, and an integrated sleek design. It perfectly fits precision application scenarios such as instrumentation and portable devices that demand both exceptional appearance and performance, providing an ideal display solution that combines visual texture and smooth touch control for various smart terminals.

Optimal Screen Size with High-Definition Display, Delivering an Ultimate Visual Experience

This 4.3-inch TFT LCD module features a 480×800 high-resolution design, achieving an ideal balance of pixel density on a moderate screen size, delivering delicate, grain-free images. Whether displaying complex instrument data, detailed UI interfaces, or high-definition images, it presents clear and sharp visual effects.

The module is equipped with full-view IPS technology, offering excellent color reproduction with an NTSC color gamut coverage of 60%, faithfully rendering rich color layers. Additionally, the pure black panel design provides an extremely high static contrast ratio—deep, pure blacks and bright, transparent whites with distinct contrast, maintaining good visibility even in complex lighting conditions. With a screen brightness of 350±100 cd/m², users can easily read content.

Dual-Chip Golden Combination, Delivering Smooth and Fluid Touch Experience

The TFT-H043B32WVIST3C45 adopts the golden combination of the ST7701S LCD driver chip and the GT911 capacitive touch chip, achieving an ideal balance between display performance and touch experience.

The ST7701S driver chip features powerful image processing capabilities, supporting ultra-high frame refresh rates to ensure seamless, smear-free screen transitions, making it especially suitable for displaying dynamic data and video content. The GT911 capacitive touch chip offers high-sensitivity, high-precision multi-touch capability with fast response and accurate positioning, enabling precise recognition even when operating with thin gloves. The dual chips work in synergy, delivering a fluid and intuitive human-machine interaction experience.

Advanced Surface Treatment and Customized Structural Design, Balancing Durability and Aesthetics

To enhance product practicality and visual quality, the display has been comprehensively optimized in surface treatment and structural design. The cover glass undergoes dual anti-glare (AG) and anti-fingerprint (AF) coating treatments, effectively reducing ambient light reflections, preventing visual interference from mirror effects, while resisting oil and sweat residue from daily use, keeping the screen clean and reducing maintenance frequency.

The product features a customized cover glass with rounded corners, presenting a smooth and elegant appearance that seamlessly integrates with various device enclosures. The custom touch cover glass achieves a flush fit with the device, creating a seamless, unified appearance that highlights a modern, high-end feel while avoiding the gaps and misalignment issues common with traditional displays. The smooth, continuous surface not only enhances visual integration but also improves user grip and operating feel. Protective and touch performance are combined into one, eliminating the need for additional protective glass, simplifying terminal assembly processes, and reducing R&D and production costs. Meanwhile, the touch module and display panel are deeply matched, operating stably with strong anti-interference capability.

Industrial-Grade Wide-Temperature Operation, Ready for Harsh Environments

As a display product designed for industrial and portable applications, the TFT-H043B32WVIST3C45 offers excellent environmental adaptability. Its operating temperature range is -20℃ to +70℃, with a storage temperature range of -30℃ to +80℃, enabling stable operation under extreme climatic conditions such as severe cold and heat, meeting the demands of harsh application scenarios including industrial sites, automotive electronics, and outdoor equipment.

Additionally, the product features 8KV electrostatic discharge (ESD) protection, effectively preventing circuit damage from static electricity, significantly improving device reliability and service life. The overall thickness is controlled at 4.20±0.3mm, and the slim, compact design allows easy integration into portable devices with limited space.

Wide Range of Applications, Empowering Diverse Smart Terminals

With its integrated high-appearance design, IPS ultra-clear wide-view display, sensitive and precise capacitive touch, industrial-grade stable performance, and highly adaptable interface, this 4.3-inch RGB LCD module has been widely adopted across various smart hardware fields:

• Smart Home Central Control Panels：Wall-mounted whole-home smart control centers, smart thermostats, video doorbell indoor units, etc.
• Industrial Human-Machine Interface (HMI) Instruments：CNC machine operation terminals, high-end medical diagnostic equipment, automated production line monitors
• New Energy Terminal Equipment：DC/AC charging stations for new energy vehicles, portable outdoor energy storage devices
• High-End Handheld Smart Terminals：Infrared thermal imagers, industrial PDAs, logistics barcode scanners, network test analyzers

Standardized RGB Interface, High Compatibility and Easy Development

To reduce customer development and adaptation difficulty, the TFT-H043B32WVIST3C45 adopts a highly versatile standard RGB interface, providing stable signal transmission and high efficiency, quickly matching mainstream driver chips and development boards, and compatible with the vast majority of industrial control motherboards, microcontrollers, and embedded development platforms. The simple wiring method and mature adaptation solution help shorten product development cycles, lower the barrier to screen adaptation for embedded devices and smart terminals, and are particularly suitable for project development needs of small and medium-sized enterprises and R&D teams.

Detailed Technical Specifications

• Optical Performance：NTSC 60% | High Contrast Pure Black IPS Panel
• Touch Technology：GT911 Capacitive | Agile Response | AG+AF Coating
• Environmental Protection：Industrial Wide Temperature (-20~70℃) | 8kV ESD | Rugged Structure
• Seamless Integration：Custom Rounded Cover Glass | Flush Fit | Modern Appearance

Product Summary

In summary, the TFT-H043B32WVIST3C45 is not only a display module with excellent parameters but also a complete human-machine interaction solution. From high-sensitivity touch response to industrial-grade wide-temperature reliability, from AG+AF anti-reflection and anti-fingerprint coating to the standard RGB interface, every detail provides solid protection for instrumentation, smart homes, industrial HMI, new energy terminals, and high-end handheld devices. The product fully meets the usage requirements of high-end precision electronic equipment, achieving a good balance between aesthetics, practicality, and cost-effectiveness. It is both an ideal choice for terminal products pursuing integrated appearance design and a one-stop display and touch solution that combines high performance with high stability, empowering various precision electronic devices with enhanced capabilities.
