Description
6.86 inch Serial UART Smart Display sunlight readable tft
The HTM-H068A04-UART-A01C is more than just a TFT LCD screen; it is a complete embedded display solution. This module integrates TFT driver, logic control, and resource storage. Users only need simple serial commands to perform complex graphic drawing and display control, embodying the essence of a true smart display.
Physical & Display Specifications
This module uses a 6.86-inch TFT panel with a unique bar-type design and a resolution of 480×1280. This elongated aspect ratio is ideal for displaying progress, status lists, or serving as an auxiliary display for devices, showcasing the versatility of this module.

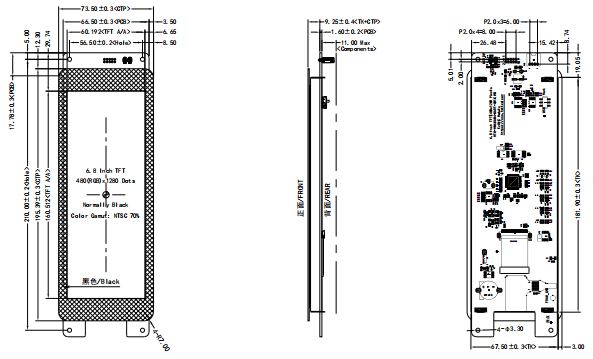

Viewable Area: The effective display area is 60.192mm × 160.512mm, with a compact overall module size for easy integration.
Wide Viewing Angle: The screen supports IPS full-viewing angle technology, meaning colors and contrast remain undistorted from any angle, ensuring visibility regardless of the device’s installation orientation. This is a key feature of a high-quality smart display.
High Brightness Design: The screen boasts a typical brightness of up to 800 cd/m², ensuring content remains clearly visible even in strong light environments (such as outdoors or near windows), making this module readable in direct sunlight.
Intelligent Interface & Control
Differentiating itself from traditional MCU parallel port screens, the biggest highlight of this module is its UART serial communication method, a hallmark of an intelligent smart display.
Minimalist Hardware Connection: The main controller (e.g., 51 microcontroller, STM32, Arduino, or Raspberry Pi) only needs to occupy two pins, TXD and RXD, to communicate with the screen, greatly saving the I/O resources of the main control chip. Integrating this smart display is incredibly straightforward.
Multi-Protocol Compatibility: According to the design schematics, the module supports various level standards such as TTL, RS232, and RS485. Users can flexibly choose based on on-site anti-interference requirements, further enhancing the adaptability of this module.
Supply Voltage: The typical operating voltage is +5V, compatible with the power systems of most industrial control boards, simplifying the power design for this module.
Product Application Areas
- Industrial Automation & HMI: On factory automation lines, this screen can be used as an HMI terminal for PLCs, displaying equipment operation status, fault alarm information, and production data in real time. The support for the RS485 interface allows this smart display to perform stable, long-distance communication in complex industrial environments.
- Commercial Display & Smart Retail: The 6.86-inch long-strip format perfectly fits the display areas of smart shelves, charging station advertising screens, and vending machines. This module can not only show product images and prices but also enable interactive ordering through optional touch functionality (capacitive/resistive).
- Medical Equipment: In patient monitors and portable diagnostic devices, the high brightness and full viewing angles of this smart display ensure medical staff can accurately read patient data under varying lighting conditions.
- Smart Home & In-Vehicle Applications: As a smart home central control panel, air conditioner controller, or a secondary screen for car rear-seat entertainment systems, the bar-type design of this smart display integrates perfectly into narrow decorative trim, enhancing the technological feel of the product.
Technical Q&A about 6.86 inch UART Display
Q1: Why choose a UART serial smart display over a traditional parallel port screen?
A: While traditional parallel port screens offer fast screen refresh rates, they consume a significant number of GPIO pins on the main control chip (typically 16 or more) and require the main controller to handle display data in real-time, placing high demands on the controller’s processing power and increasing code complexity.
In contrast, the HTM-H068A04-UART-A01C, as an intelligent smart display, integrates a dedicated driver IC and Flash memory internally. The main controller only needs to send specific frame instructions via the TXD pin; the screen’s coprocessor automatically retrieves the corresponding resources from Flash and completes the drawing. This architecture is what makes a module so efficient.
Advantages of using this module:
- Saves Pins: Only requires 2 wires (TXD/RXD).
- Simplifies Development: No need to study complex underlying LCD driver timing; focus on high-level application logic. This is the primary benefit of adopting a module.
- High Stability: Display refresh tasks are separated from the main controller’s tasks, preventing interference. This reliability is a key reason to choose a smart display.
Q2: Does this smart display support touch functionality? If so, what type?
A: Yes, it supports it. The typical configuration for this model is a capacitive touch screen, supporting multi-touch with a smooth feel and high light transmittance. It also supports cover glass lamination and optical bonding to adapt to more demanding industrial environments. This interactive capability makes it an advanced smart display.
It also supports the bare screen version TFT-H068A04ZAINV8N40 and the bare screen capacitive touch version TFT-H068A04ZAINV6C40.
Q3: What are the wide-temperature performance characteristics of this smart display? Can it cope with harsh outdoor environments?
A: The product’s design fully considers industrial-grade application requirements, ensuring this smart display is robust.
- Operating Temperature: -20℃ to 70℃. This covers the usage scenarios for the vast majority of industrial controls, outdoor charging stations, and indoor/outdoor use in cold regions during winter. The reliability of this module is suitable for diverse climates.
- Storage Temperature: -30℃ to 80℃. Combined with a brightness of up to 800 cd/m² and IPS hard screen technology, this smart display module performs excellently against thermal shock and intense light interference, proving its durability as a premium module.
