122×32 Graphic LCD display Module

Features of the 122×32 Graphic LCD display

The 122×32 graphic LCD display module is an ideal choice for instrumentation and embedded control panels, standing out with its high integration and superior performance. Featuring a compact design and a clear 122×32 dot matrix graphic display area, it displays dark gray patterns and fonts on a white background, making it perfect for displaying detailed data, graphs, or custom icons.

Its main advantage lies in its built-in Chinese and English character sets and the ST7920 driver chip, significantly reducing microcontroller programming effort and accelerating development speed. This module boasts a wide 6H viewing angle and uniform white LED backlight, ensuring excellent readability under various lighting conditions. This 24-pin interface module operates reliably in a temperature range of -20°C to 70°C and uses a 5.0V power supply, providing dependable performance even in demanding environments. Choose the 122×32 graphic LCD display module for a cost-effective and feature-rich display solution that simplifies design and enhances user experience.

Specification of the 122×32 Graphic LCD display

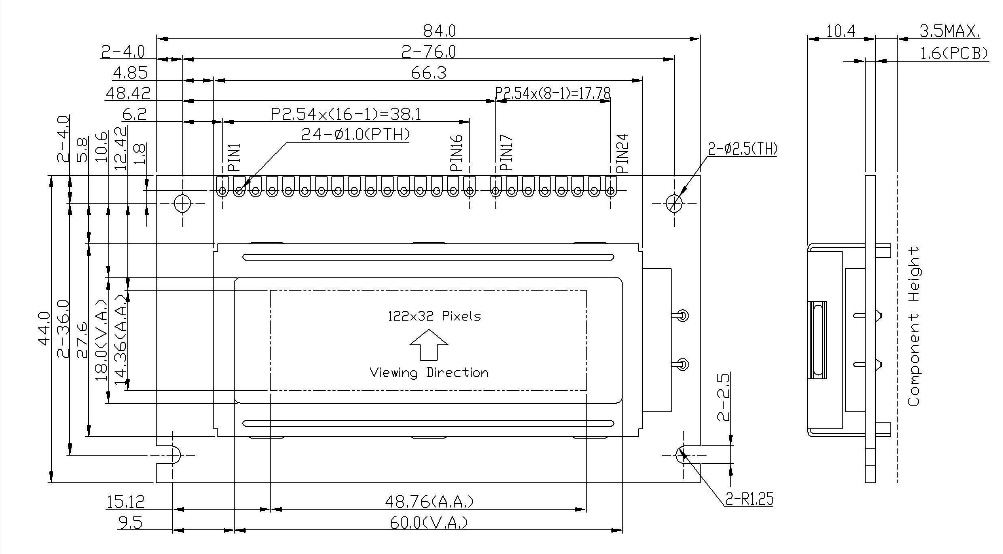

From the specifications of this 122×32 Graphic LCD display, we can see that it features a compact display area with an integrated driver board.  We have also included mounting holes on the driver board to facilitate easy installation of the display module into your device. To enhance the module’s mechanical performance, a robust metal frame provides protection, making this 122×32 Graphic LCD display resistant to impacts and ensuring excellent stability and reliability.

What application scenarios are best suited for this 122×32 Graphic LCD Display Module?

The 122×32 Graphic LCD Display Module is a highly integrated, industrial-grade display solution designed for complex information display needs. Its core advantage lies in its 122 columns x 32 rows graphic dot matrix resolution, combined with a built-in ST7920 driver chip and GB2312 standard Chinese and English character library, making it perfectly suited for scenarios where traditional character displays are insufficient. When your device requires more than simple characters, enabling the display of graphics, Chinese characters, borders, progress bars, and other rich visual elements, the 122×32 Graphic LCD Display Module is the most cost-effective direct replacement and upgrade solution.

Main application areas:

• Industrial instrumentation:Real-time display of waveforms, data curves, process flow charts, and multi-parameter simultaneous monitoring (such as temperature, pressure, flow rate), making it ideal for oscilloscopes, analyzers, and controllers.
• Medical and health equipment:Clearly displays physiological signal waveforms such as electrocardiograms, measurement data lists, system menus, and multilingual operation prompts.
• Smart home and control panels:Used in thermostats, security panels, and smart gateways, displaying icon-based interfaces, status animations, and detailed setting options.
• Automotive and transportation electronics:Suitable for auxiliary information screens on truck dashboards, charging station interfaces, and in-vehicle diagnostic equipment, capable of displaying mixed graphic and text information.
• POS machines and retail terminals: Displays transaction details, simple advertising graphics, or QR codes.

How does the 122×32 Graphic LCD Display Module overcome obstacles for your project?

Developing embedded display interfaces often faces challenges such as long development cycles, high resource consumption, and stringent reliability requirements. The 122×32 Graphic LCD Display Module, through hardware and design optimization, precisely addresses the following core problems:

Problem 1: Low development efficiency. Traditional graphic LCDs require developers to handle font storage, font extraction, and low-level drivers themselves, which is time-consuming and laborious.

Our solution: The module has a built-in complete Chinese and English font library. Developers can directly call the font library through commands, eliminating the need for external font chips or consuming a large amount of MCU Flash memory. The ST7920 driver chip provides a rich set of built-in graphic display commands, greatly simplifying programming.

Problem 2: Monotonous display content and poor user experience. Character displays can only show fixed characters, failing to meet the needs of modern devices for graphical and visual interfaces.

Our solution: The 122×32 resolution provides sufficient canvas space, allowing you to freely draw logos, icons, custom symbols, and curves, making the interface more intuitive and professional.

Problem 3: High environmental adaptability requirements. Industrial and automotive applications have stringent requirements for temperature range and stability.

Our solution: This 122×32 Graphic LCD Display module features a wide temperature design (-20℃ ~ +70℃) and has undergone rigorous aging tests to ensure stable display even in harsh environments. The clear 6H viewing angle and high contrast design adapt to different viewing angles.

How are high-quality 122×32 graphic LCD display modules manufactured?

The production of every high-quality 122×32 Graphic LCD Display Module follows a rigorous ISO-compliant manufacturing flow. It begins with precise SMT component placement and advanced COB (Chip-On-Board) encapsulation, where the core ST7920 driver IC is bonded and protected, ensuring a compact and reliable foundation. Next, the custom 122×32 dot-matrix LCD glass is accurately aligned and bonded to the PCB. A uniform white LED backlight system is then integrated and tested for consistency.

Each 122×32 Graphic LCD Display Module undergoes comprehensive automated testing—including pixel functionality, contrast, interface communication, and power checks—followed by high-temperature aging to screen early-life failures. Finally, every module is visually inspected, measured, and packaged with complete technical documentation before shipment, guaranteeing performance and durability in every unit.

What Can We Offer for the 122×32 Graphic LCD Display Module?

What Can We Offer for the 122×32 Graphic LCD Display Module?

Upgrade your product with a purpose-built 122×32 graphic LCD display that matches your exact electrical, mechanical, and visual specification
