Description

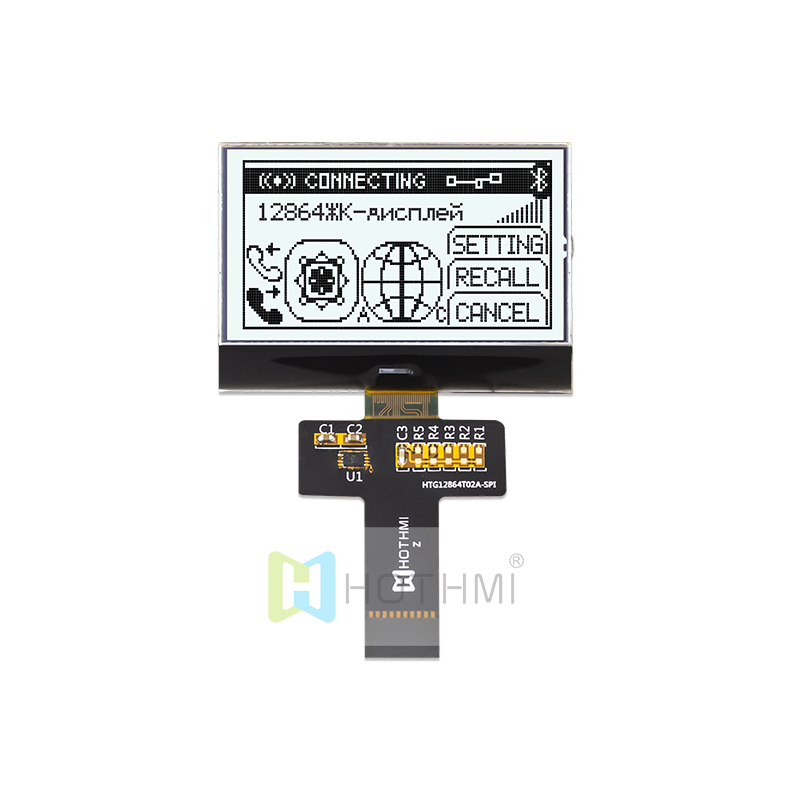

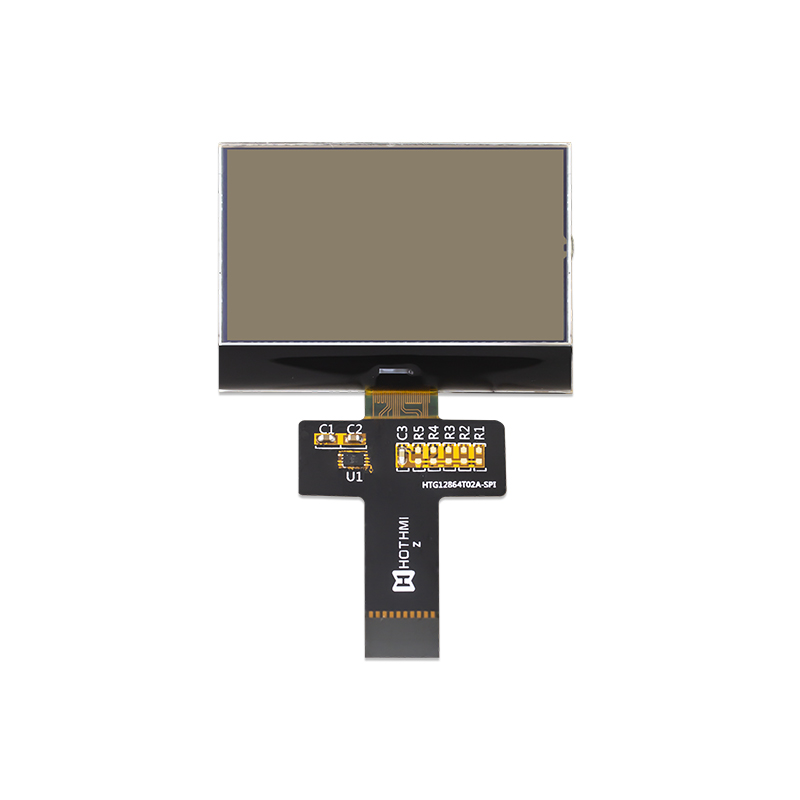

In the world of industrial control and embedded systems, the 128×64 COG Display remains a cornerstone of human-machine interaction. The HTG12864T02A is a specialized monochrome dot-matrix module that integrates a high-speed driver IC with a dedicated hardware font chip, designed for developers who prioritize low power consumption and rapid software development.
Detailed 128×64 COG Display Overview and Key Features

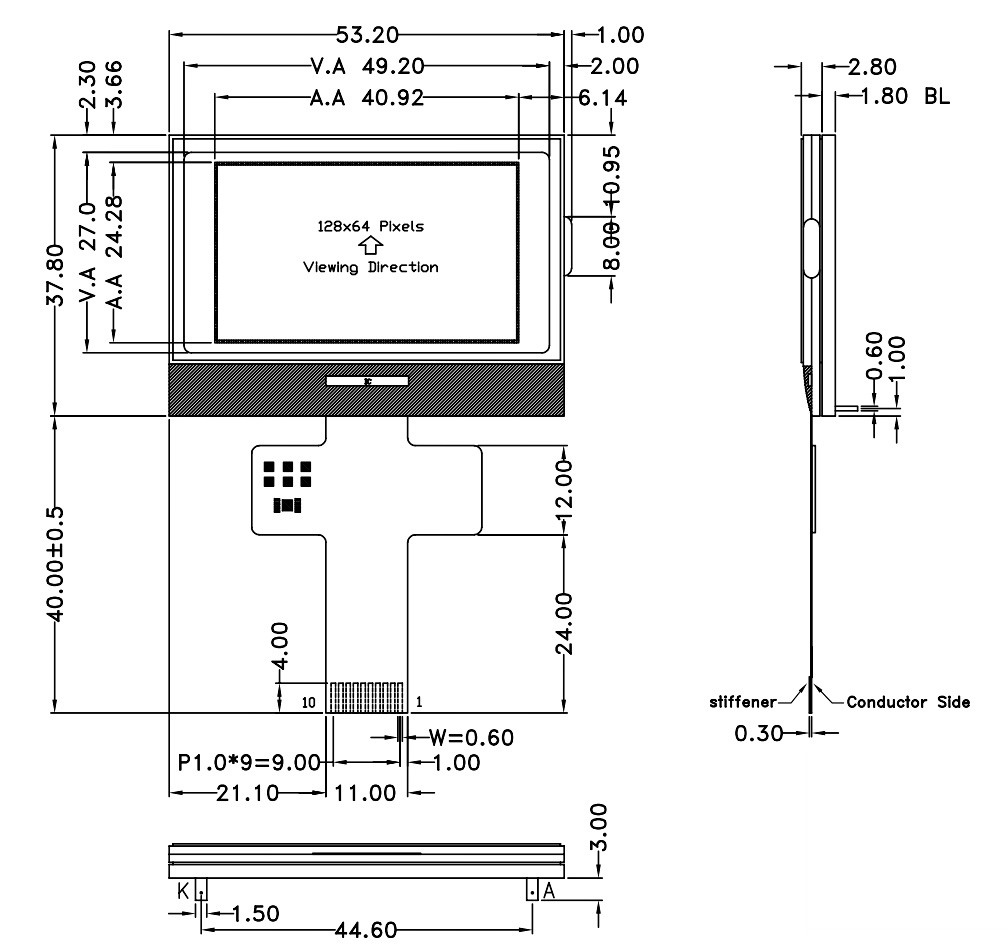

This 128×64 COG Display utilizes Chip-On-Glass (COG) technology, which bonds the driver IC directly to the glass substrate. This construction significantly reduces the physical thickness of the module, making it an ideal choice for ultra-thin handheld devices and compact terminal equipment.
- Integrated Hardware Font Library: Unlike standard 128×64 screens that require the host MCU to store massive font data, this module features a built-in GT22L16A1Y font chip. By calling character data directly via the SPI interface, engineers can save significant Flash memory on the microcontroller and simplify the coding process for multilingual interfaces.

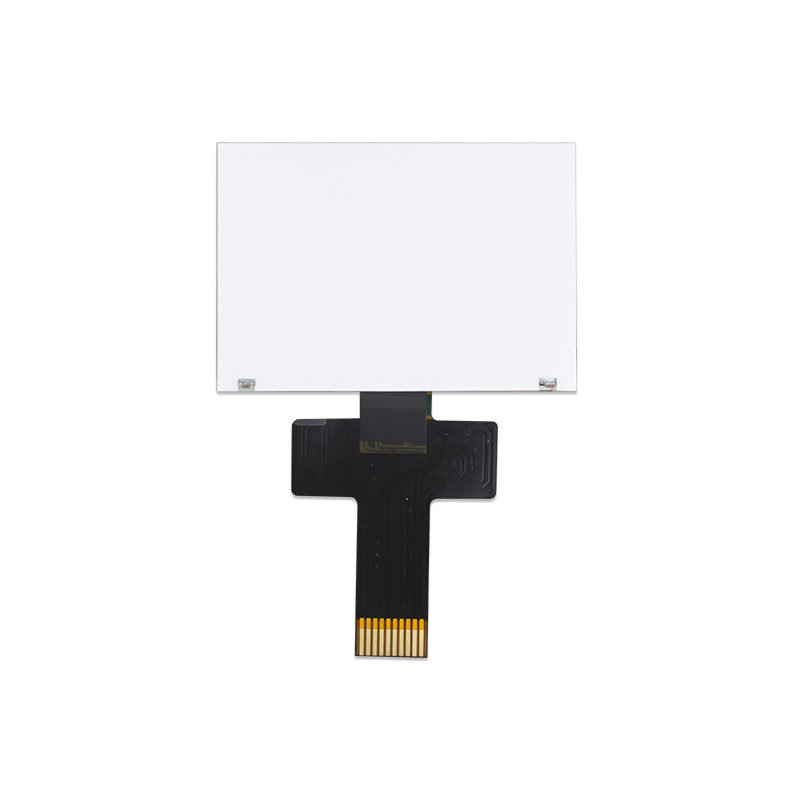

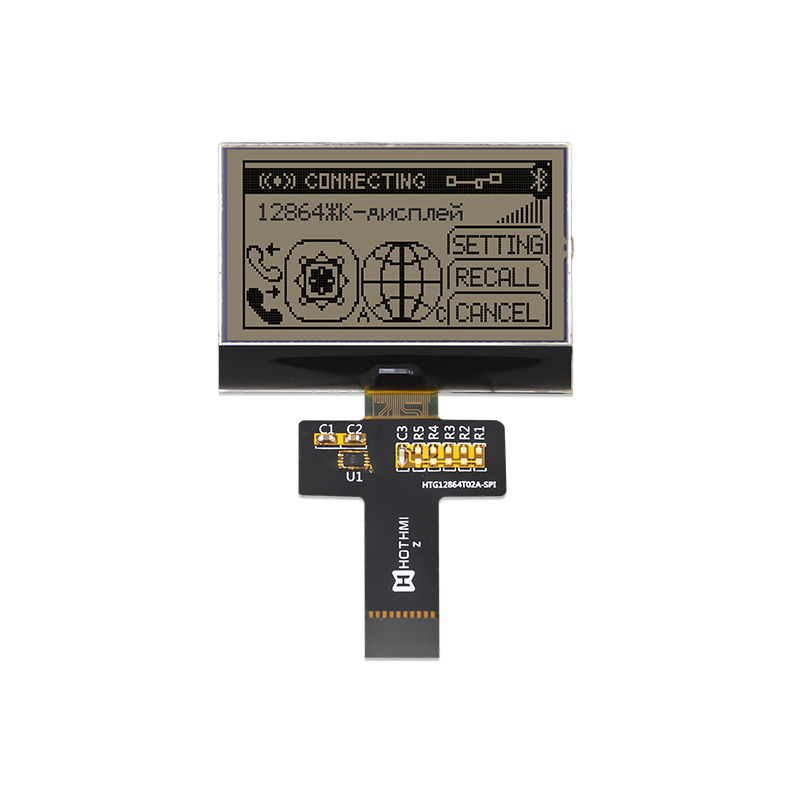

- Superior Visual Performance: Utilizing FSTN (Film-compensated Super-twisted Nematic) technology, the display offers higher contrast and wider viewing angles compared to traditional STN screens. As a transflective positive display, it ensures excellent readability under direct sunlight by reflecting ambient light, while the white LED backlight provides clear visibility in dark environments.
- Streamlined 10-Pin SPI Interface: The module is engineered for easy integration, requiring only a few I/O ports for communication. The serial SPI protocol manages both the LCD driver and the font library through independent chip select signals, reducing PCB routing complexity.
128×64 COG Display Product Application Areas
The durability and high-visibility characteristics of this 128×64 COG Display make it suitable for various professional sectors:
- Industrial Instrumentation: Used in pressure gauges, flow meters, and temperature controllers where real-time curves and status updates are critical.
- Smart Home Terminals: Ideal for gateway control panels and security alarm systems that require a clear, text-heavy interface.
- Medical Equipment: Perfect for portable pulse oximeters and heart rate monitors where low power consumption extends battery life.
- Energy and Power Systems: Suitable for smart meters and EV charging terminals that operate in diverse lighting conditions.
Technical Q&A about 128×64 COG Display
Q: How does the hardware font chip interact with the LCD driver IC?
A: The module integrates the ST7567 driver and the font chip on the same FPC. The MCU communicates via a shared SPI bus. To display a character, the MCU reads the specific dot-matrix data from the font chip and writes it into the LCD driver’s RAM. This process eliminates the need for internal font storage in the MCU.
Q: Why is this 128×64 COG Display more visible outdoors than standard LCDs?
A: The combination of FSTN film compensation and transflective technology allows the screen to work in two modes. It uses the backlight in low light, but in bright sunlight, it reflects external light to enhance contrast. The brighter the environment, the clearer the “black-on-white” text appears.
Q: What are the advantages of the COG structure in industrial environments?

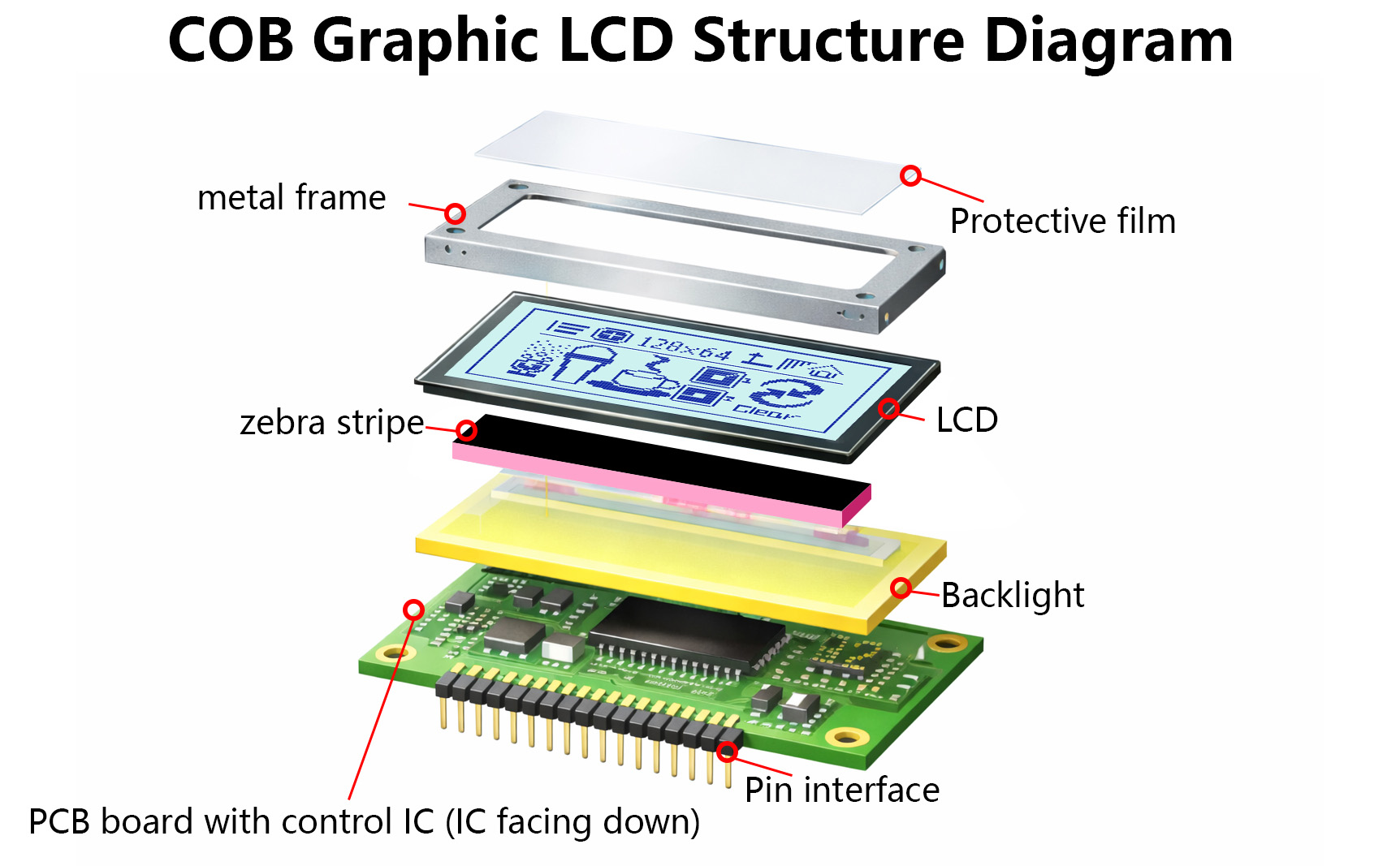

A: COG (Chip on Glass) is more robust than traditional COB (Chip on Board) designs. Since the IC is bonded directly to the glass with anisotropic conductive film, there are fewer mechanical failure points, providing superior resistance to vibration and mechanical shock.
Q: Can the backlight and logic power be controlled separately?
A: Yes. While the logic typically runs at 3.3V, the backlight is a separate circuit. This allows for precise brightness control through PWM (Pulse Width Modulation) on the backlight power line, which is essential for optimizing power efficiency in battery-operated devices.
