In the mainstream industrial display sector, the 7-inch 800×480 landscape screen has long been dominated by RGB-interface TN-panel solutions. However, this combination has progressively revealed inherent drawbacks in real-world applications—high interface wiring density, excessive system integration redundancy, electromagnetic interference control difficulties, narrow viewing angles, suboptimal color reproduction, and insufficient extreme-environment adaptability. These limitations make it increasingly challenging to meet the growing demands of industrial control equipment, automotive systems, outdoor smart terminals, and medical devices for lightweight design, operational stability, and platform flexibility.

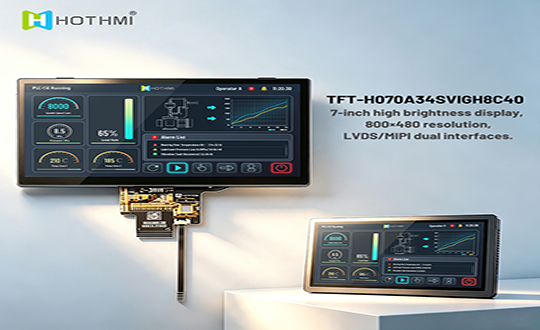

To address this industry-wide bottleneck, HOTHMI proudly introduces the TFT-H070A34SVIGH8C40 7-inch MIPI IPS touch display module. As one of the few products in the domestic market featuring a native MIPI interface combined with IPS wide-viewing-angle technology in the 7-inch 800×480 industrial landscape form factor, this MIPI Display solution completely overhauls the constraints of conventional RGB+TN architectures in interface integration efficiency, image quality, and platform compatibility. Leveraging a localized supply chain, it integrates 800 cd/㎡ high-brightness backlight, -30℃~+85℃ wide-temperature operation, and optically bonded touch technology—delivering embedded display developers a forward-looking, highly reliable, and cost-effective upgrade pathway that empowers end-product differentiation.

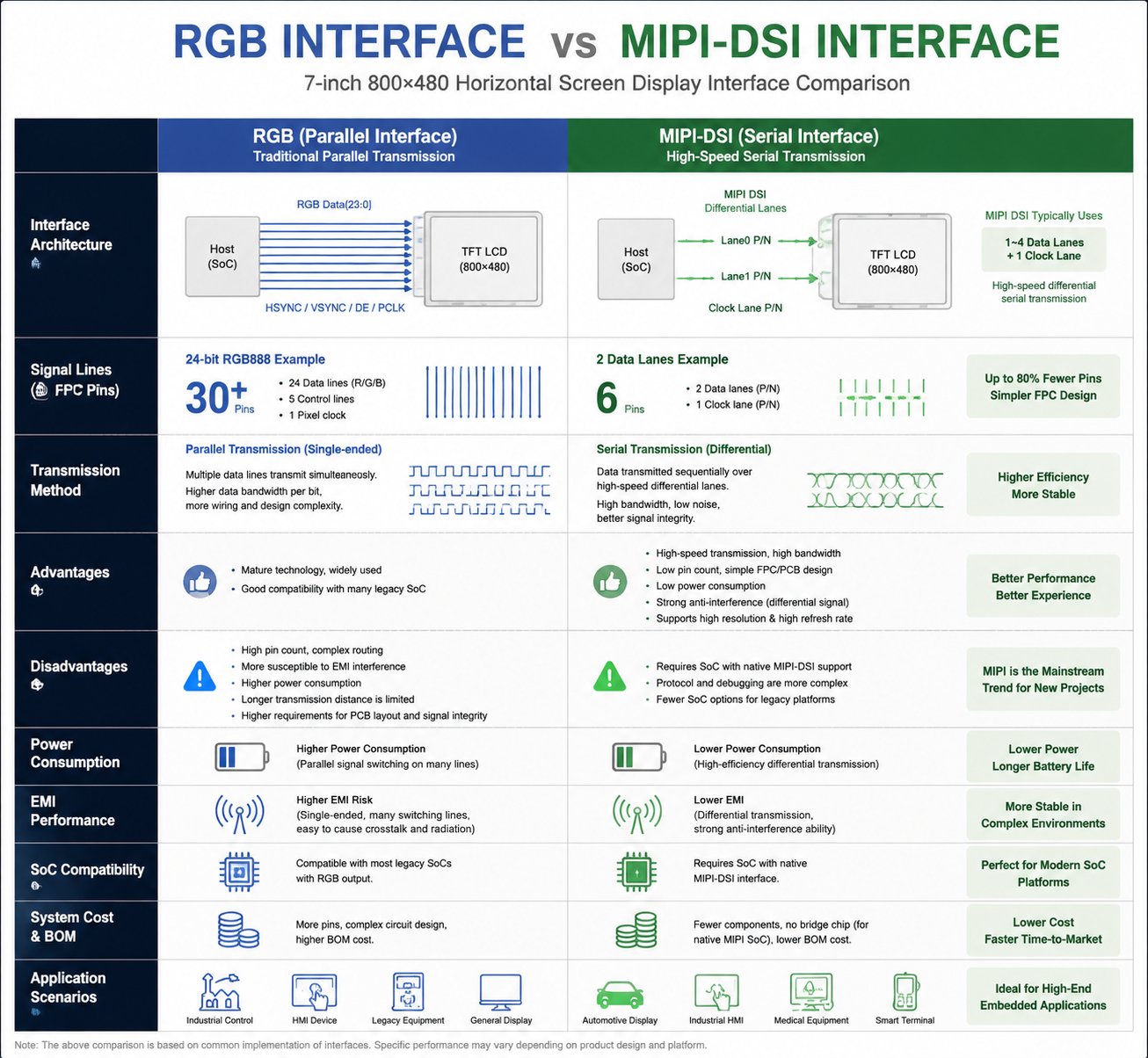

Native MIPI Interface – Filling a Critical Market Gap

Within the domestic 7-inch 800×480 landscape display market, RGB interfaces have held a monopoly, making native MIPI-interface products extremely scarce—a core bottleneck for many high-end embedded project selections. While the RGB solution is technologically mature, its inherent limitations have become increasingly pronounced as smart devices and industrial systems demand higher integration: excessive pin counts, complex trace routing, high system redundancy, and susceptibility to EMI interference over longer transmission distances. These factors impose stringent requirements on PCB layout and signal integrity design, raising both hardware development barriers and overall BOM costs. Moreover, next-generation SoC platforms increasingly favor integrated MIPI-DSI interfaces to better accommodate low-power, high-speed, lightweight system architectures—a trend that makes adopting a native MIPI Display solution a strategic imperative for future-proof embedded designs.

This product precisely targets this technical gap by incorporating a native MIPI-DSI high-speed serial interface, establishing a distinct competitive advantage within the 7-inch mainstream-resolution landscape segment and delivering a comprehensive upgrade over traditional RGB interfaces. The MIPI serial transmission architecture dramatically reduces data pin counts, greatly simplifies FPC routing design, lowers overall system complexity, and effectively suppresses EMI interference risks—fundamentally improving upon the inherent shortcomings of parallel interfaces in wiring density, system integration, and electromagnetic compatibility. This MIPI Display architecture represents a paradigm shift for 7-inch industrial screens.

In terms of performance, the MIPI interface enables high-bandwidth, low-power, and highly reliable data transmission. For SoC platforms with native MIPI-DSI support, direct connection eliminates the need for additional bridge chips, significantly streamlining BOM composition and compressing both development cycles and time-to-market. Ample bandwidth headroom ensures stable 800×480 resolution output, effectively eliminating latency and stuttering—ideal for real-time data visualization applications such as automotive instrument clusters, industrial HMI panels, medical monitors, and outdoor smart terminals. Furthermore, the module also offers LVDS as an alternative mainstream industrial interface option, accommodating compatibility with industrial host controllers, ARM development boards, and legacy equipment—one hardware design covering two mainstream connection standards, while keeping the MIPI Display as the primary recommended pathway.

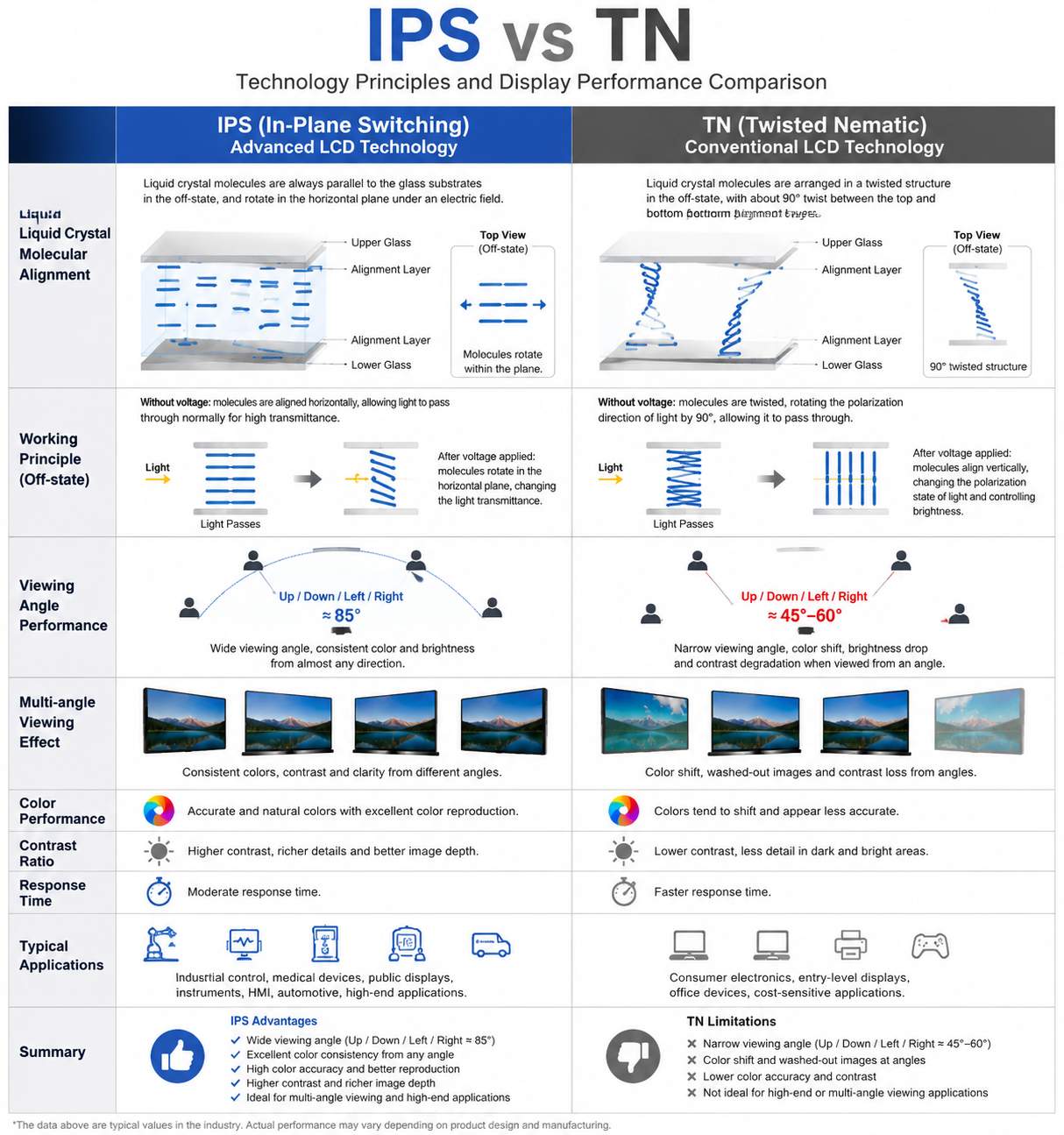

IPS Full-Viewing-Angle Technology – Delivering a Quantum Leap in Image Quality

Currently, most 7-inch industrial displays at the same size and resolution still rely on conventional TN panels, whose technical shortcomings are glaringly obvious. TN panels utilize twisted-nematic liquid crystal alignment, delivering acceptable image quality only at direct viewing angles. When viewed from oblique angles, they suffer from severe color shift, whitening, and sharp contrast degradation, with extremely narrow effective viewing ranges. Additionally, color accuracy and image layering fall short of supporting high-end applications involving multi-viewer collaboration, public information display, or precision data visualization.

This product completely abandons the TN approach and fully adopts premium IPS (In-Plane Switching) technology to achieve a remarkable advancement in display quality. IPS panels maintain liquid crystal molecules in a parallel orientation to the substrate at all times, with in-plane electric fields driving molecular rotation for more uniform and precise optical control. This enables 85° wide viewing angles in all directions, with color, contrast, and clarity remaining highly consistent across multiple viewing angles—fundamentally alleviating the color drift and whitening issues commonly associated with TN screens. When combined with the native MIPI interface, this MIPI Display delivers an unrivaled visual experience for industrial and automotive applications.

Paired with the high-performance GH7006 driver IC and optimized IPS panel design, the module achieves a 1000:1 high contrast ratio and accurate color reproduction, delivering rich image layering and crisp detail for clear presentation of industrial parameters, medical imaging, and in-vehicle navigation information. Whether in multi-user HMI setups on factory floors, outdoor public information kiosks, or automotive multi-perspective interaction scenarios, display authenticity and readability are consistently maintained—significantly enhancing terminal equipment user experience and operational safety. This MIPI Display solution ensures that visual fidelity is never compromised, regardless of viewing angle.

Comprehensive Industrial-Grade Hardened Specifications

Backed by a mature localized supply chain, this 7-inch MIPI Display module ensures stable availability of core display components, effectively reducing dependence on imported sources. This guarantees supply continuity, predictable lead times, and cost advantages, while also supporting customized development services to fully accommodate domestic embedded equipment localization initiatives—making it an ideal component choice for industrial equipment and smart hardware upgrades.

On the environmental adaptability front, the product employs an ultra-wide-temperature industrial-grade design, with an operating temperature range of -30℃~+85℃ and storage temperature extending from -40℃~+90℃. It confidently withstands harsh conditions including severe cold, extreme heat, and rapid temperature fluctuations, making it suitable for complex environments such as factory floors, outdoor installations, and vehicle-mounted vibration scenarios. Long-term operational display stability is excellent, effectively suppressing the impact of thermal drift and environmental variation on image quality—a critical attribute for any industrial-grade MIPI Display.

For outdoor high-ambient-light scenarios, the module is equipped with an 800 cd/㎡ high-brightness backlight, combined with IPS optical advantages and professional optical bonding technology to effectively reduce glare and reflections. This delivers exceptional sunlight-readable performance—even under direct sunlight, on-screen text, graphics, and data remain clearly identifiable. It is perfectly suited for outdoor surveillance, in-vehicle displays, smart terminals, and other high-brightness applications, making this MIPI Display a versatile choice for both indoor and outdoor deployments.

Additionally, the product features robust industrial protection capabilities, including 8KV ESD protection, built-in reset circuitry, and a low-power architecture. Its strong anti-interference performance effectively extends equipment service life. The mechanical design is exceptionally slim—the non-touch version measures just 3.45mm in thickness, while the GT911 capacitive touch integrated version reaches only 4.96mm, enabling flexible adaptation to lightweight, space-constrained terminal device designs without sacrificing the performance of the MIPI Display core.

Responsive Touch – Elevating the Interactive Experience

For the touch solution, the module integrates the GT911 professional touch controller chip with optically bonded capacitive touch technology, supporting 5-point simultaneous data acquisition. The surface features a 6H hardness scratch-resistant coating, and combined with system-level software algorithms, it enables smooth gesture interactions including swipe, pinch-to-zoom, and rotation. Built-in auto-calibration and environmental compensation mechanisms, together with touch algorithm optimization and structural reinforcement, effectively enhance adaptability to temperature/humidity variations and complex industrial environments—significantly reducing false triggers, response lag, and stuttering issues. The seamless integration of touch functionality with the MIPI Display creates an intuitive and responsive user interface.

The innovative optical bonding process completely eliminates the air gap between the cover glass and LCD panel. This not only blocks dust and moisture ingress—enhancing overall enclosure protection and durability—but also reduces touch signal transmission loss, improves touch response speed and signal-to-noise ratio, delivering a precise, light, and responsive touch feel that combines aesthetic appeal with industrial-grade long-term stability. Every MIPI Display from HOTHMI is engineered to deliver consistent performance under the most demanding conditions.

Broad Application Across Multiple Industry Smart Terminals

Leveraging the combined advantages of the MIPI high-speed interface, IPS full-view high-definition display, high-brightness sunlight readability, ultra-wide-temperature industrial tolerance, and stable touch interaction, this 7-inch industrial MIPI Display module is widely adaptable to various embedded smart terminal applications. It effectively replaces legacy RGB+TN displays, supporting equipment localization upgrades and performance iteration needs.

• Industrial Control HMI – Ideal for human-machine interface panels, automation equipment control consoles, PLC terminals, smart machine tools, and equipment cabinets. Wide-temperature adaptability, strong anti-interference capability, and MIPI high-speed transmission ensure long-term stable operation in complex factory-floor electromagnetic environments and large temperature differential conditions, while full-viewing-angle display meets multi-user, multi-angle observation requirements. The MIPI Display ensures critical operational data is always visible and accurate.
• Automotive Smart Terminals – Suitable for in-vehicle infotainment, digital instrument clusters, construction machinery displays, and new-energy vehicle auxiliary screens. The low-power MIPI interface aligns perfectly with automotive main controller platforms, the slim form factor facilitates system integration, wide-temperature tolerance handles cabin heat-soak and winter cold, and 800 cd/㎡ brightness ensures daytime driving information visibility. This MIPI Display solution is engineered to meet the rigorous reliability standards of the automotive industry.
• Outdoor Smart Equipment – Widely used in outdoor information kiosks, access control video intercoms, security monitoring displays, outdoor smart signage, and photovoltaic energy storage terminals. The IPS high-brightness display combined with optical bonding delivers excellent sunlight readability, while dust/moisture protection, interference immunity, and wide-temperature resistance meet the standards for all-weather outdoor continuous operation—making this MIPI Display the preferred choice for outdoor deployments.
• Medical & Precision Instruments – Suitable for portable patient monitors, diagnostic equipment, laboratory smart terminals, and other precision scenarios. Accurate color rendition, stable imagery, drift-free touch responsiveness, low-power architecture, and high-SNR touch solution align with the stringent requirements of medical devices for high precision, high reliability, and high safety in human-machine interaction. The clinical-grade MIPI Display delivers the visual clarity that healthcare professionals demand.
• Smart Home & Commercial Terminals – Applicable to whole-home smart control panels, building video intercoms, smart access control systems, and compact commercial displays. The slim profile accommodates narrow-bezel refined designs, multi-touch interaction is smooth and responsive, and image quality is crisp and detailed—combining product aesthetics with long-term daily operational reliability. This MIPI Display brings industrial-grade performance into the smart living and commercial spaces.

Product Summary

Surveying the current 7-inch 800×480 industrial landscape display market, the homogenized RGB+TN solutions can no longer sustain the ever-increasing performance demands of high-end equipment. The TFT-H070A34SVIGH8C40, with its MIPI-DSI high-speed interface, IPS full-viewing-angle display, localized supply chain integration, and high-brightness wide-temperature design, delivers a more advanced, reliable, and future-ready alternative for the industrial display industry—precisely filling the market void with a superior MIPI Display solution.

From automotive smart terminals and industrial HMI panels to medical monitoring devices, outdoor smart equipment, and smart home products, this MIPI Display module effectively resolves engineers’ practical challenges in cumbersome hardware design, unstable transmission, and platform adaptation difficulties. Simultaneously, its outstanding image quality and industrial-grade durability inject stronger product competitiveness into end devices. Furthermore, HOTHMI offers flexible customization services covering display dimensions, interface types, touch solutions, and cover glass configurations, providing complete integrated display module solutions tailored to client equipment structures—empowering diverse embedded projects to achieve efficient upgrades and differentiated innovation with the industry’s most advanced MIPI Display technology.
