Description
Product Detailed Introduction

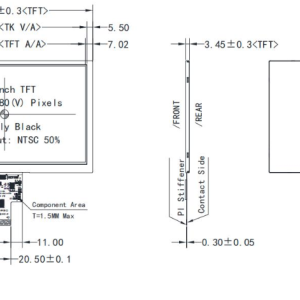

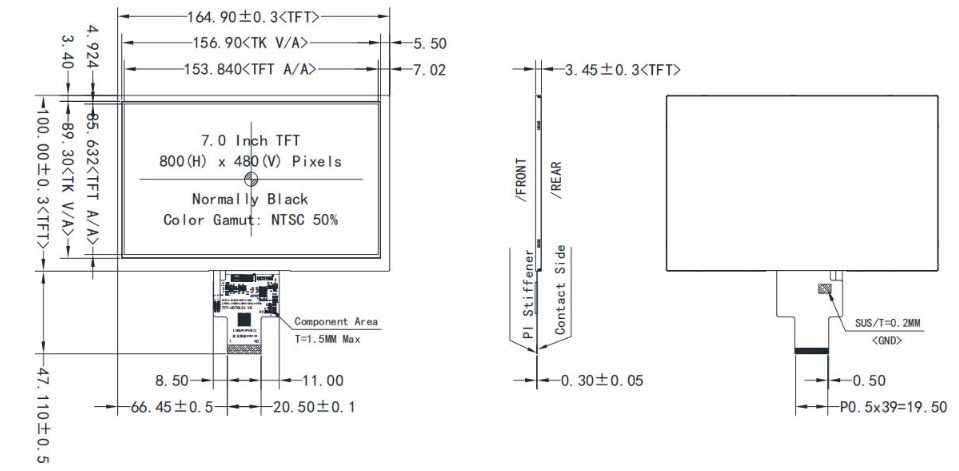

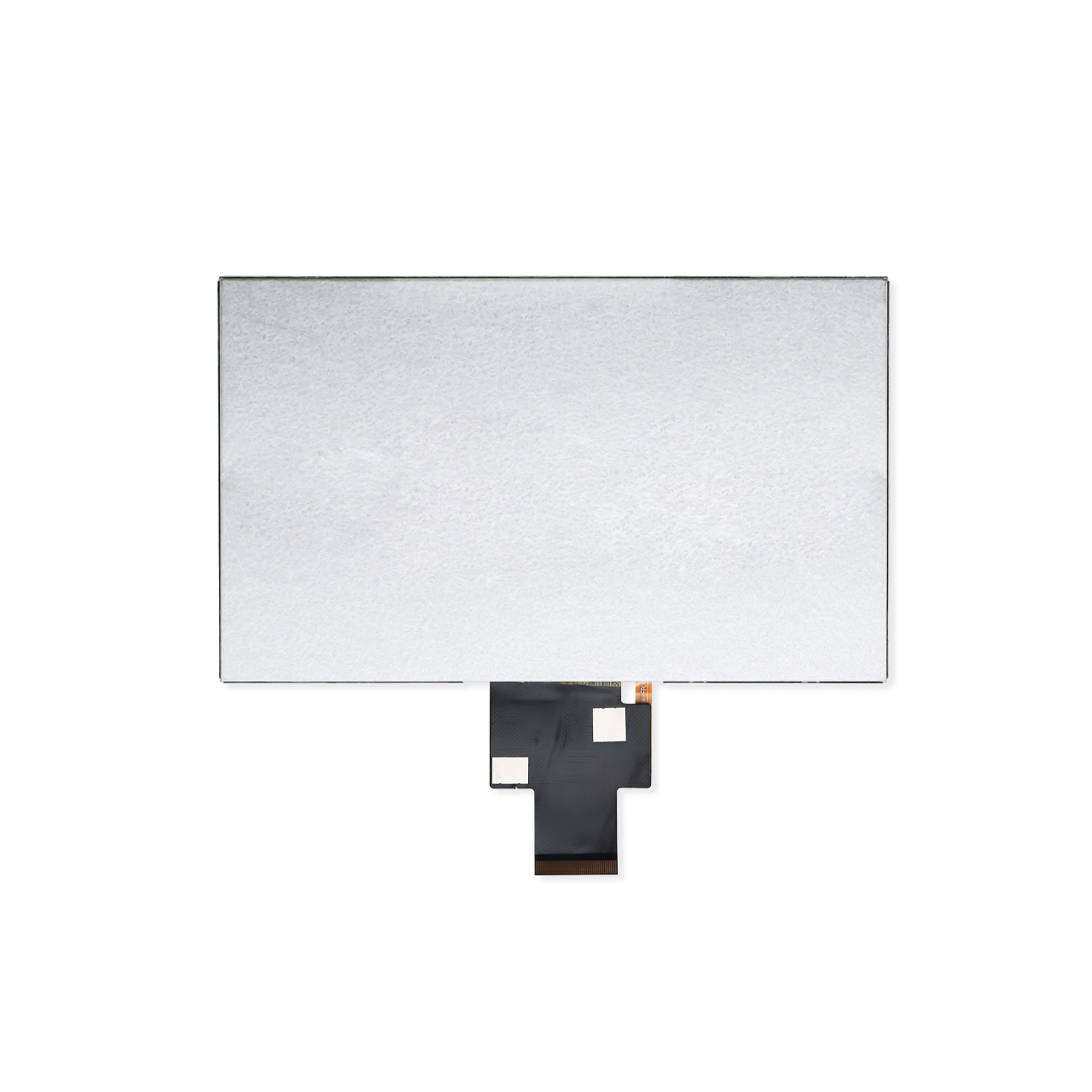

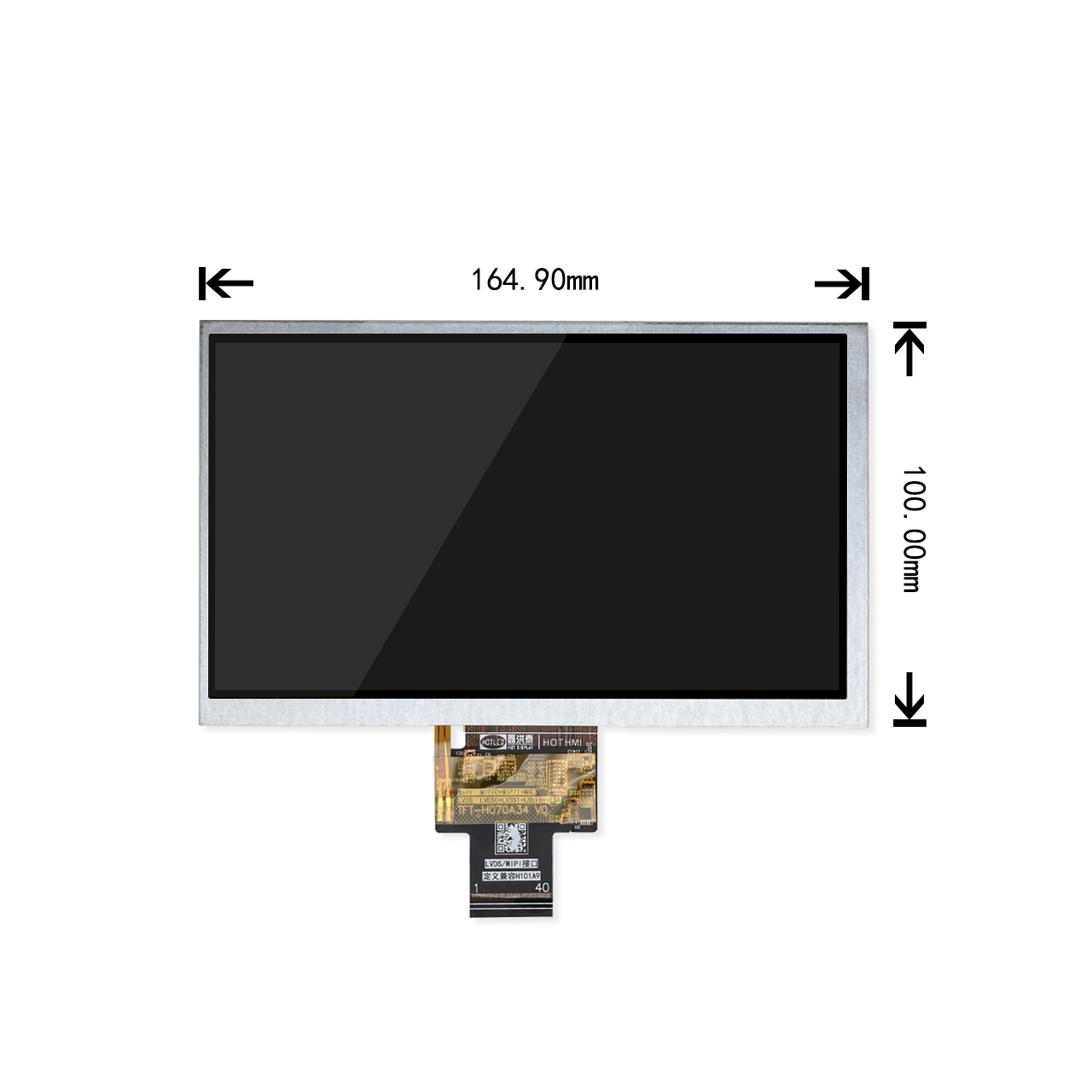

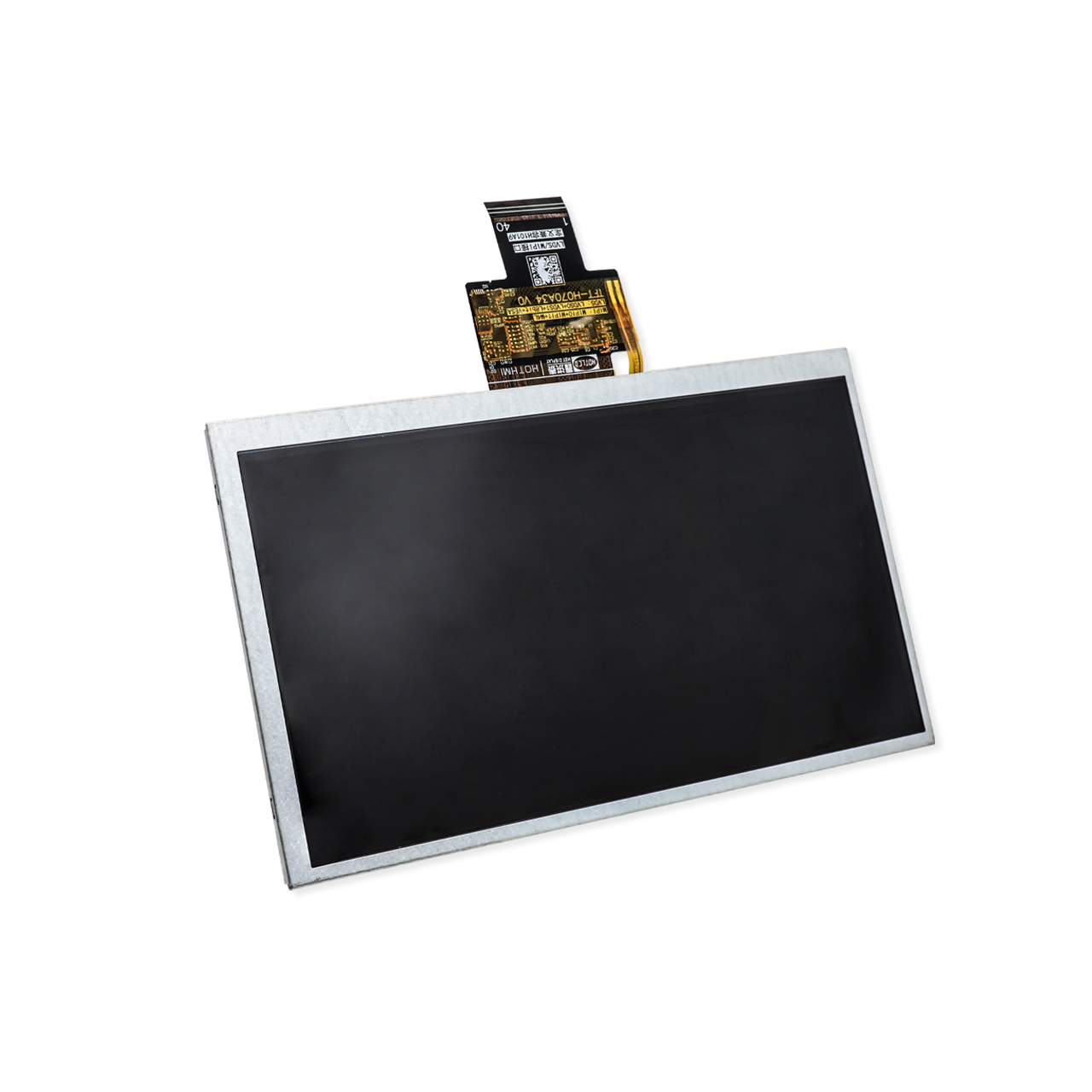

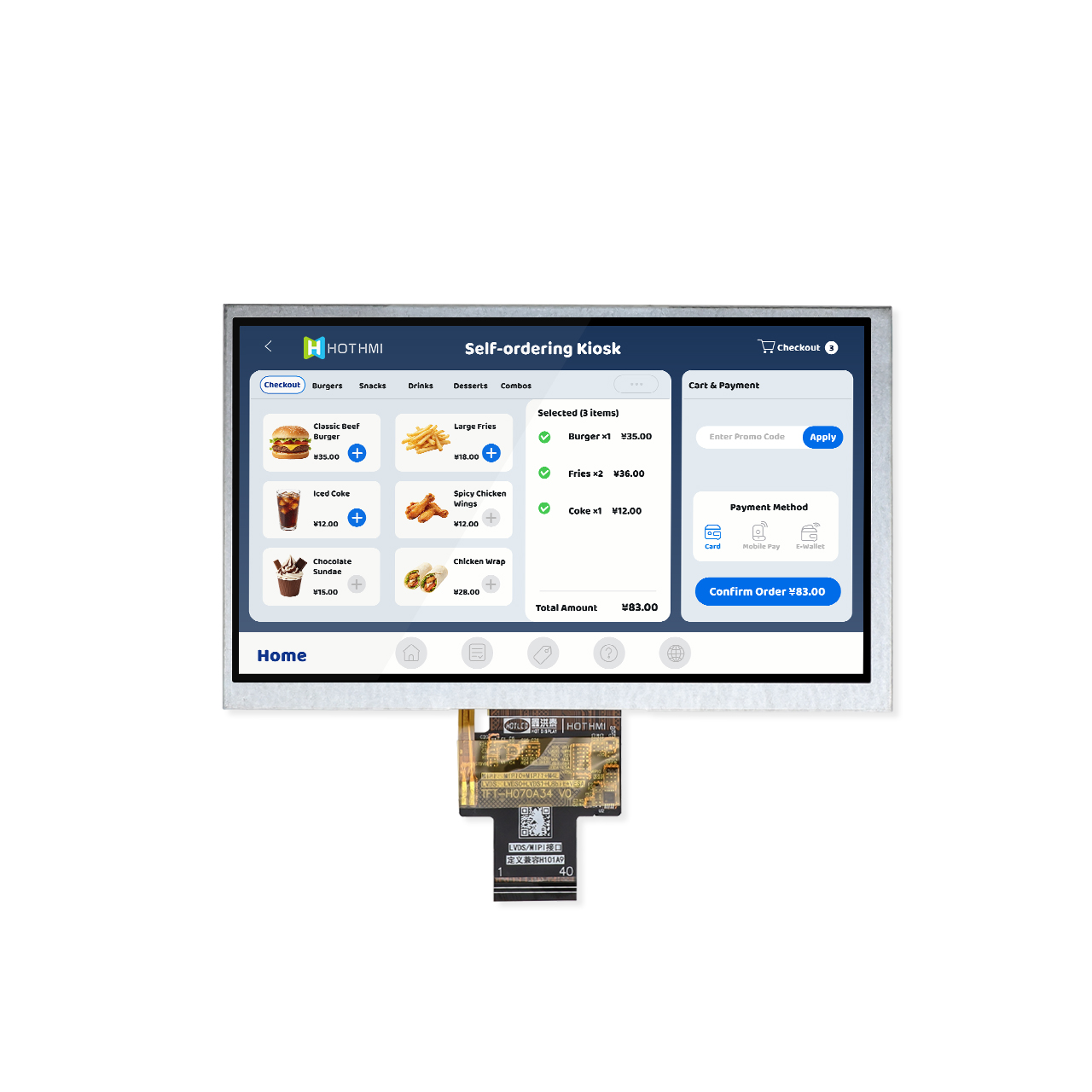

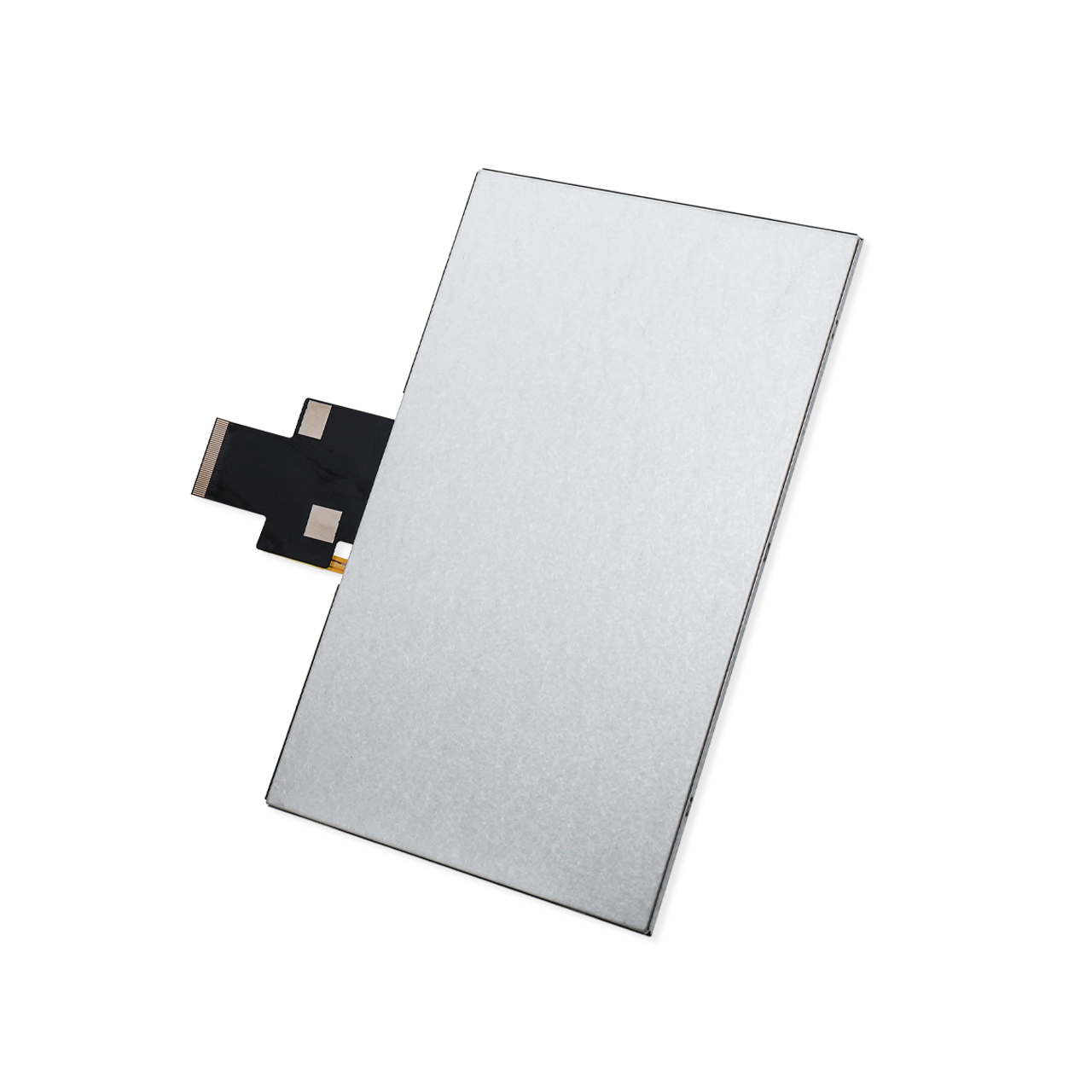

The HOTHMI TFT-H070A34 series is an industrial-grade 7.0-inch MIPI TFT LCD display module featuring a standard resolution of 800×480 pixels and offering exceptional flexibility and compatibility in hardware configuration. This module supports dual-interface modes, MIPI-DSI and LVDS, and is built around the high-performance domestic GH7006 driver IC, delivering a full-color visual experience with up to 50% NTSC color gamut and a constant black wide-viewing-angle design. Typical viewing angles reach U85°/D85°/R85°/L85° in all four axial directions, with a contrast ratio as high as 1000:1.
To accommodate touch-control requirements, the product line offers two structural variants: a non-touch version (standard thickness 3.45mm) and a capacitive touch panelversion featuring the GT911 chip (standard thickness 4.96mm, supporting I2C interface and 5-point touch). In terms of reliability design, this series supports a wide operating temperature range of -30℃ to +85℃ and an extreme storage range of -40℃ to +90℃, with robust shock/vibration resistance and strong ESD protection, making it highly suitable for customization and integration into various display terminals such as industrial instrumentation and precision equipment.
Core Highlight Advantages of MIPI TFT LCD
- Dual-Interface Design with High-Speed MIPI-DSI and Compatible LVDS：The underlying circuit design of this module breaks the traditional limitation of a single display interface. Through FPC configuration, users can directly enable high-bandwidth, low-EMI MIPI TFT LCD mode to achieve high-frame-rate 24-bit image transmission.
- Industrial-Grade Ultra-Wide Operating Temperature from -30℃ to +85℃：Ordinary commercial displays often suffer from liquid crystal molecule freezing (extremely slow response) or blackening/failure below 0℃ or above 50℃. This MIPI TFT LCD employs wide-temperature liquid crystal materials, achieving an operating temperature range of -30℃ to +85℃ and a storage temperature tolerance of -40℃ to +90℃, perfectly suited for harsh on-site conditions such as freezing environments or enclosed cabinets.
- Full IPS-Level All-Angle Viewing：Traditional commercial displays often suffer from severe “viewing-angle traps” – once the line of sight deviates from the vertical axis, significant brightness drop, color inversion, or whitewashing occurs. This MIPI TFT LCD achieves ultra-wide 85-degree typical viewing angles in all four axial directions, delivering a full IPS-level all-angle visual experience. With a high contrast ratio of 1000:1, whether the equipment operator is standing, squatting for inspection, or viewing from irregular lateral angles, the screen maintains high clarity and readability with stable color saturation and sharp text outlines – a decisive safety factor in medical emergency monitoring and high-risk industrial power distribution operations.
- Sunlight-Readable Dual Backlight Options：The TFT-H070A34SVIGH8N40 (non-touch) delivers a panel brightness of 850±100 cd/m², ensuring clear visibility even in direct sunlight; the TFT-H070A34SVIGH8C40 (touch-enabled) offers a panel brightness of 800±100 cd/m² and is mainly intended for indoor environments with complex lighting conditions.
Pin Description

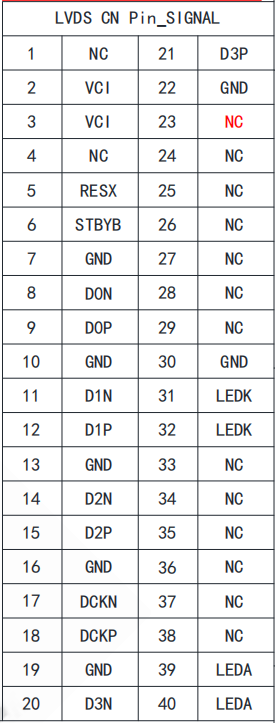

The main interface of the TFT-H070A34 module adopts a 40-Pin plug-in/solder-type FPC gold finger connector.
Non-touch version:
Touch version:
Typical Product Application Scenarios
Thanks to the ultra-low power consumption and high anti-interference physical characteristics of this high-speed MIPI TFT LCD, this 7-inch display is widely integrated into the following vertical industries:
- Industrial Intelligent Human-Machine Interaction: automation factory control panels, precision CNC machine tool terminals, power distribution cabinet centralized monitoring displays. Its -30℃ to +85℃ wide-temperature characteristics and high-ESD architecture seamlessly adapt to high-EMI workshop environments.
- Medical Emergency and Monitoring Equipment: the high contrast ratio (1000:1) enables more accurate data curve presentation on various multiparameter monitors, portable ultrasonic detectors, and analytical instruments.
- Smart Transportation and Commercial Outdoor Terminals: benefiting from the high-brightness backlight, this module is well-suited for EV charging station panels, in-vehicle infotainment systems, and gas station multimedia terminals.
- High-End IoT Smart Home Applications: smart central control gateways, villa building video intercom systems, and environmental monitoring integrated control panels.
Technical FAQ of MIPI TFT LCD
Q1: As an “ultra-wide-temperature” industrial-grade display, what is the maximum storage temperature this module can withstand when the site environment reaches extreme storage conditions?
A: This MIPI TFT LCD module features deep industrial-grade reinforcement in material selection and FPC packaging processes, achieving an extreme storage temperature range of -40℃ to +90℃. Even in unpowered high-cold field storage or enclosed vehicle cabins exposed to intense sunlight, the liquid crystal molecules and semiconductor components inside the module will not suffer irreversible physical degradation.
Q2: After environmental reliability testing, how is the display quality of this 7.0-inch MIPI TFT LCD module evaluated as passing?
A: According toHOTHMI’s factory test standards, after undergoing 120 hours of high/low temperature storage or high-vacuumdamp-heat operational testing, all display and electrical evaluations must be performed after the panel temperature has fully recovered to room temperature for 2 hours. The passing criteria are: the product must guarantee full functionality without any critical defects (such as no display, open/short circuits, black-screen abnormalities, etc.).
