Description

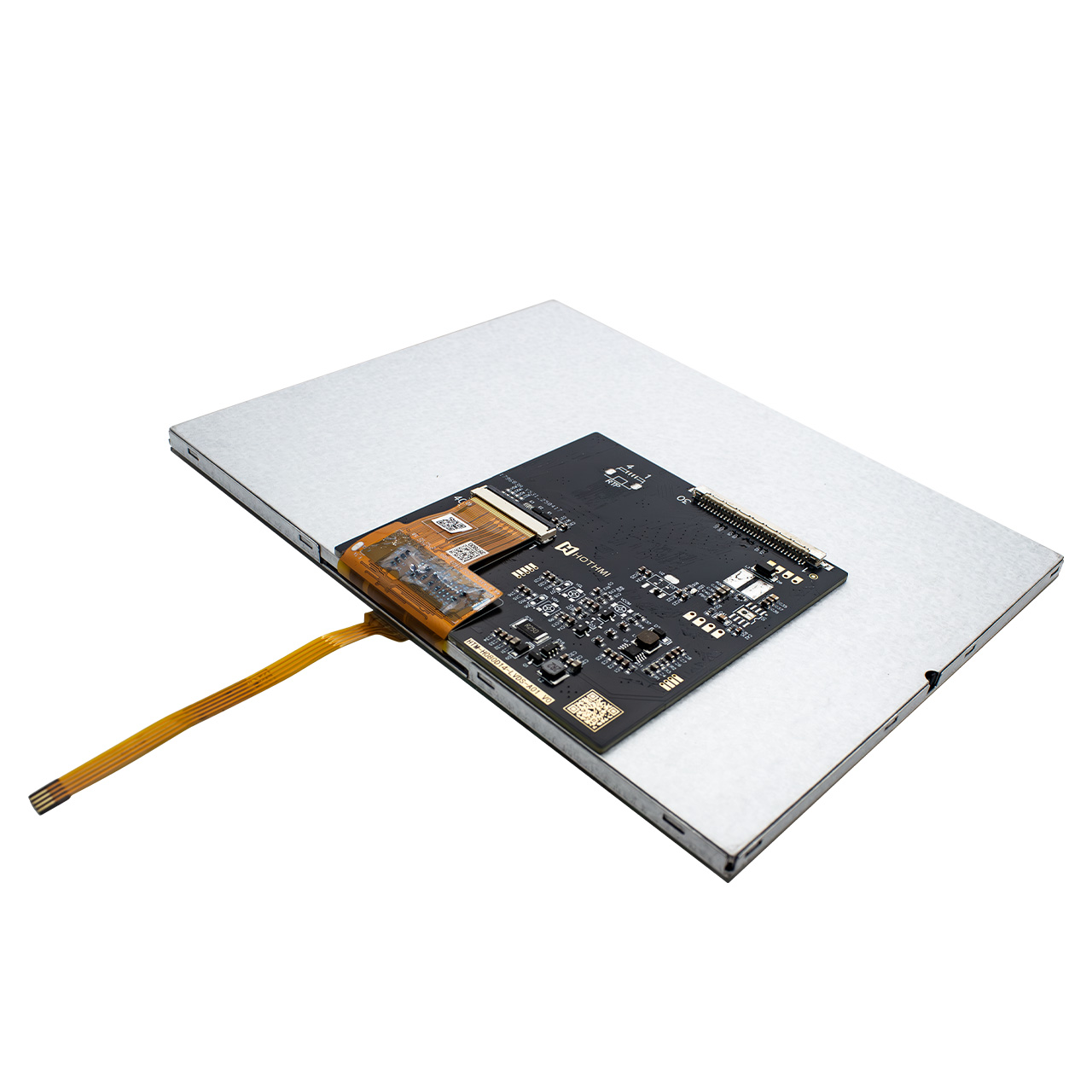

Product Introduction of LVDS LCD Display

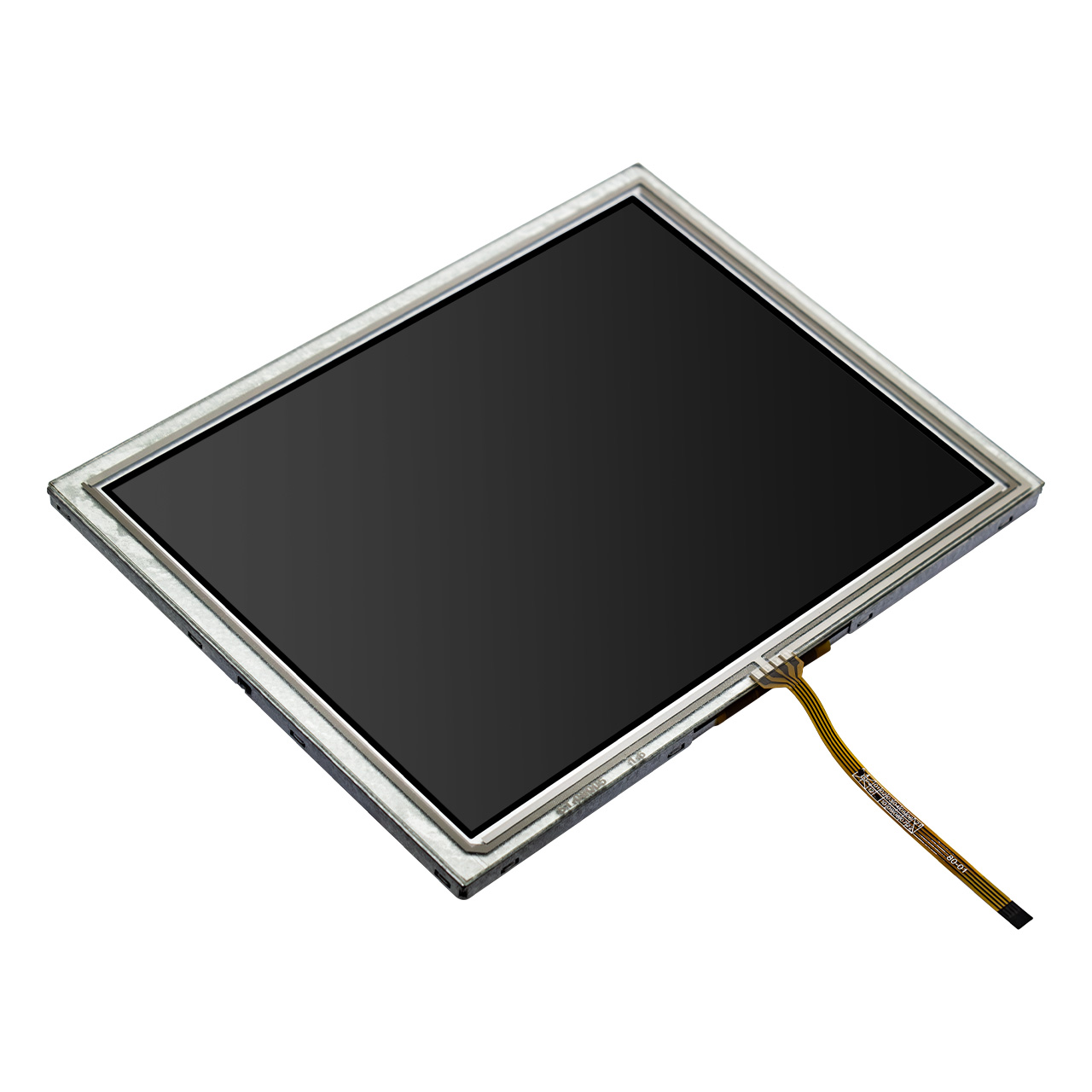

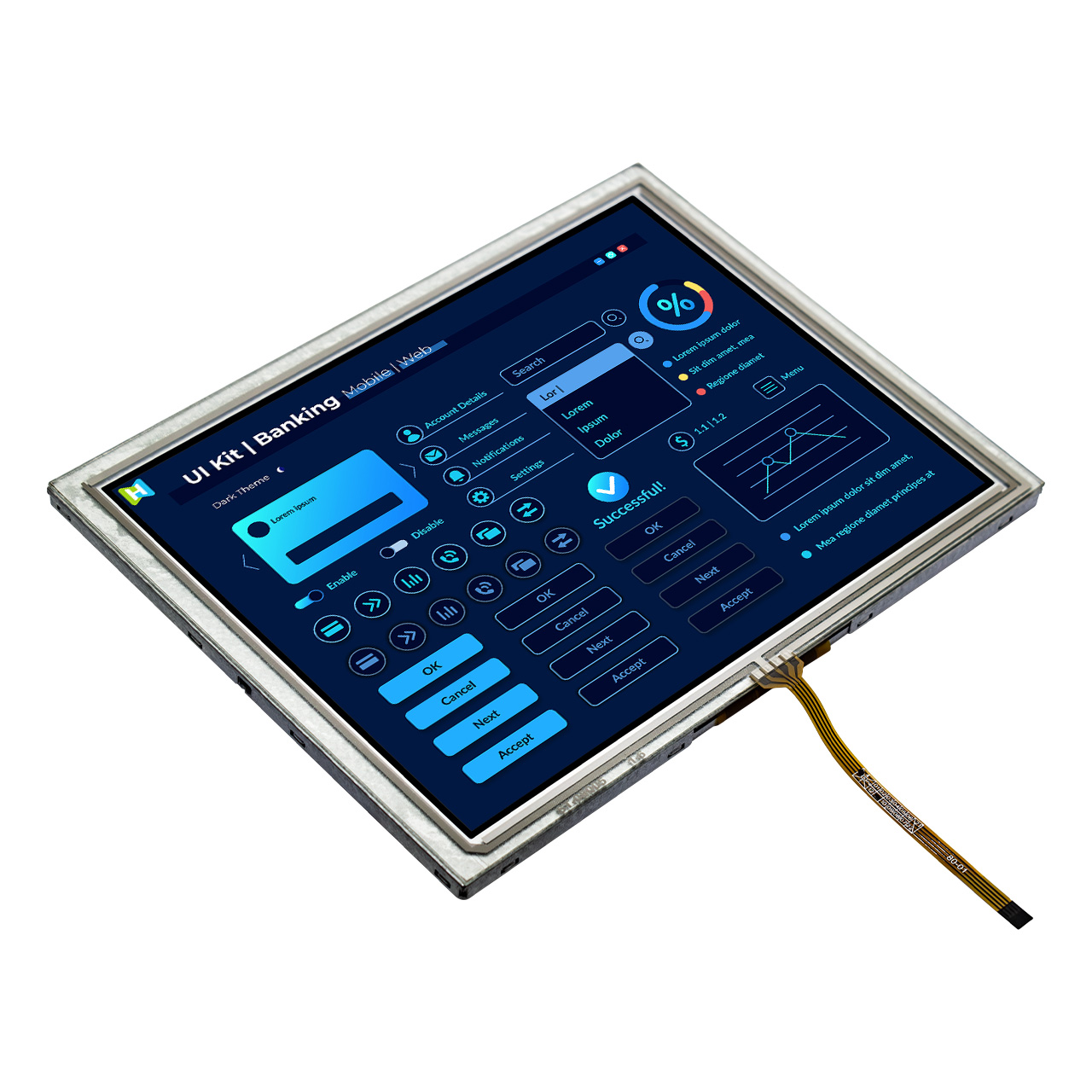

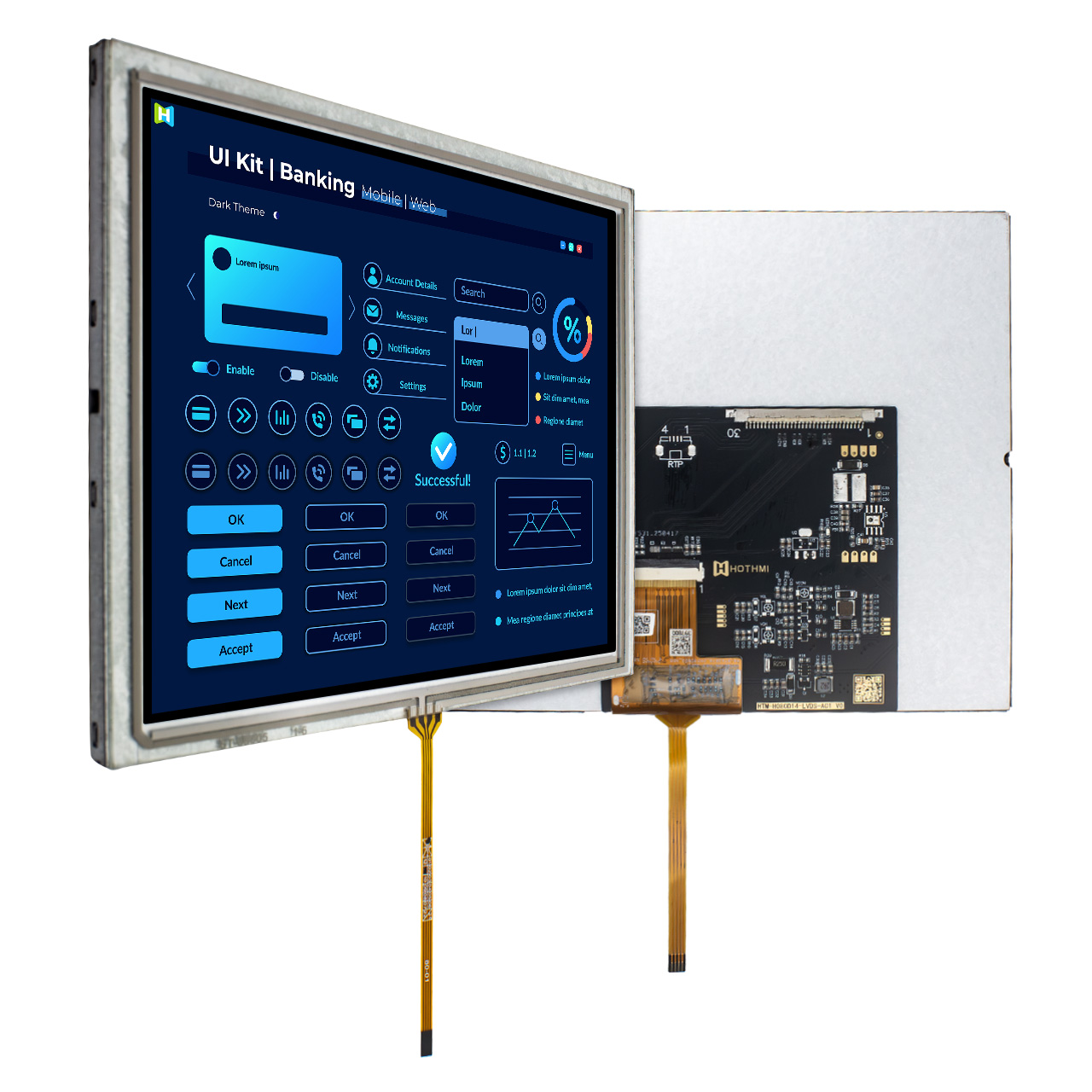

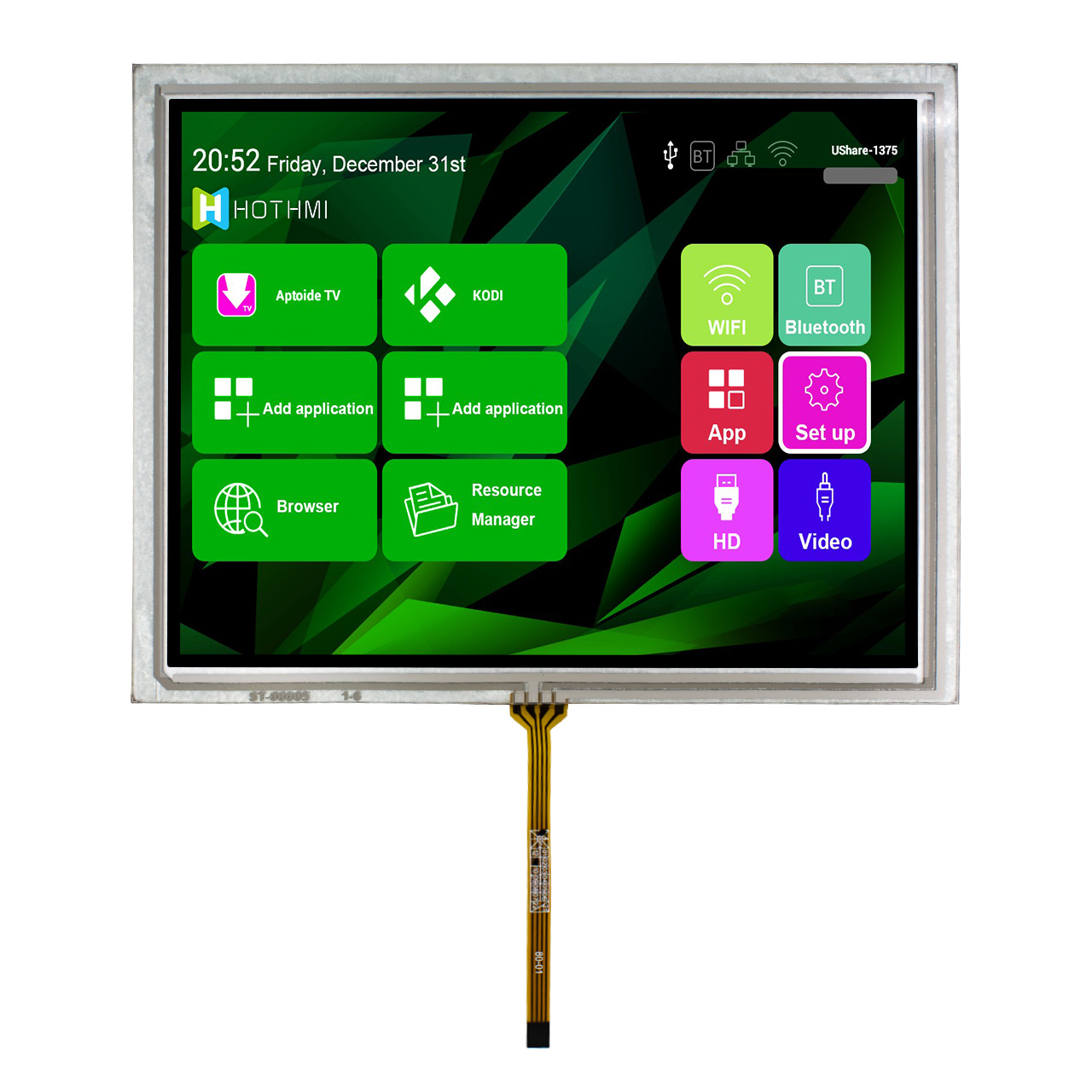

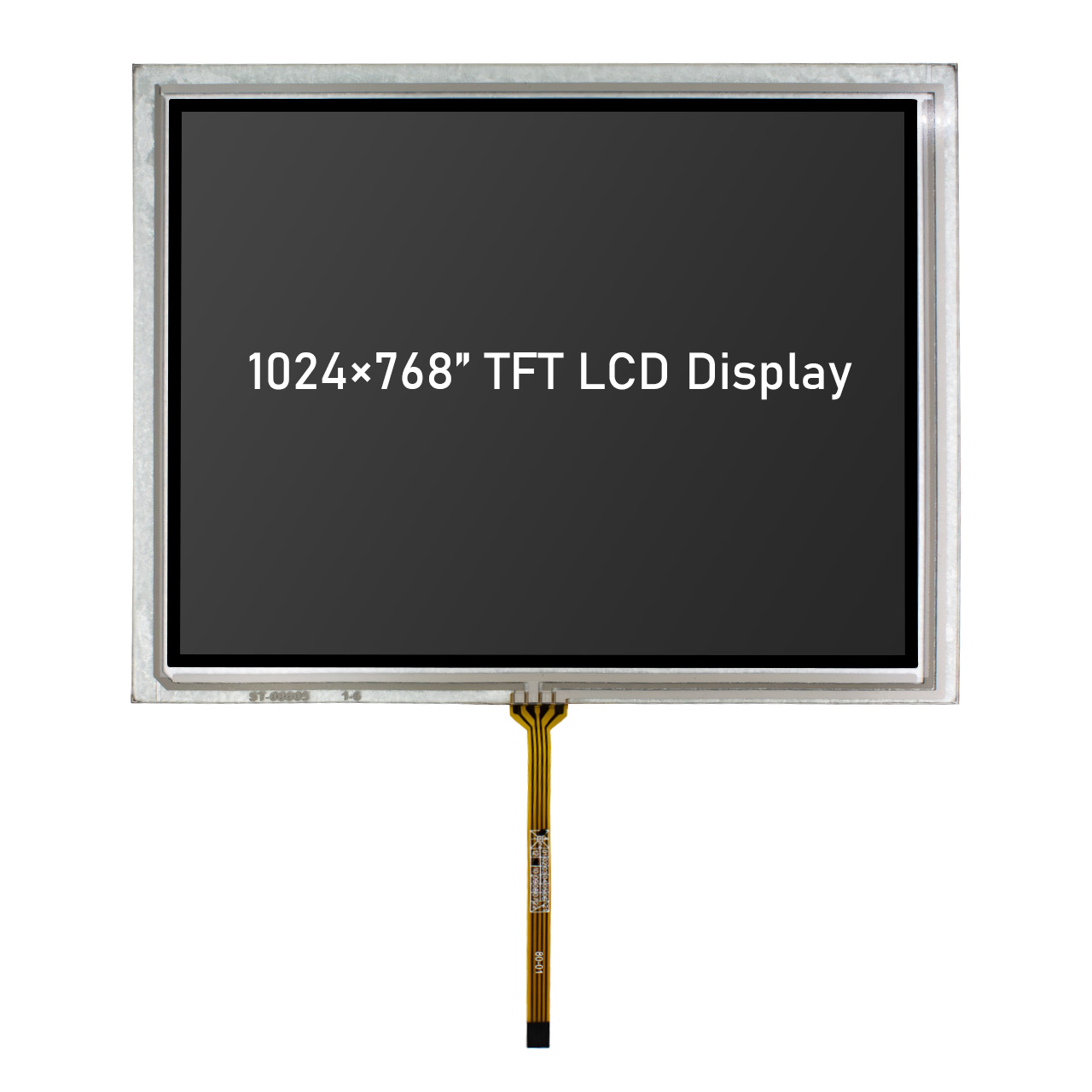

The HTM-H080D14-LVDS-A01R, launched by HOTHMI, is a high-performance 8.0-inch LVDS LCD display featuring a 1024(RGB)x768 pixel high-definition resolution. It adopts a normally black panel technology with an NTSC 60% color gamut, delivering high-contrast and vibrant visual effects.

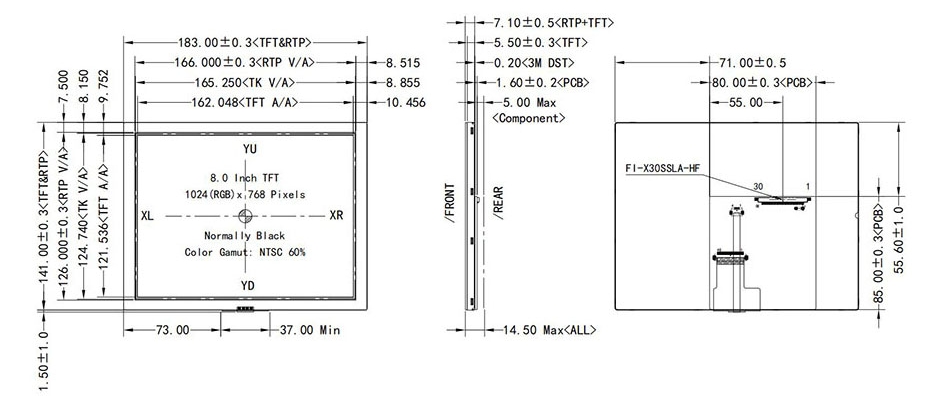

This module supports a 1-Port LVDS interface, with pin definitions covering bidirectional full-view U/D and L/R control, BLPWM backlight adjustment, and integrated RTP touch signal channels. Its external dimensions are precisely defined, with the overall area of the TFT and resistive touch panel measuring 183.00 × 141.00mm. In terms of electrical and optical characteristics, the operating voltage is a stable 3.3V±0.3V with an built-in efficient driving circuit. The screen brightness reaches up to 1000 cd/m², ensuring clear visibility even in high ambient light conditions. Furthermore, this module offers strong environmental adaptability, with an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.
Technical Highlights of the LVDS LCD Display
The HTM-H080D14-LVDS-A01R is a standard 4:3 aspect ratio 8.0-inch LVDS LCD display module with a native resolution of 1024 (RGB) x 768 pixels. This high pixel density design ensures that when displaying complex graphical user interfaces, dense text parameters, or real-time waveform graphs (such as medical ECG or industrial oscilloscopes), the image remains clear and sharp.
Full-Viewing Angle Coverage
In industrial and automotive applications, operators often need to view the screen from different angles. This LVDS LCD display features omnidirectional viewing characteristics, meaning that when viewed from any axis at an angle of up to 80 degrees, the screen maintains excellent contrast and color consistency, without any color inversion or grayscale reversal distortion. This ensures high data readability even in complex tilted mounting or wall-mounted environments.
Ultra-High Brightness for Direct Sunlight Viewing
For outdoor or semi-outdoor applications with strong light exposure, this product is equipped with a high-efficiency, long-life LED edge-lit backlight array, achieving a typical module brightness of 1000 cd/m². It effectively resists strong sunlight scattering, making the displayed content clear and visible, making it ideal for public service terminals and charging stations.
Excellent Wide Temperature Tolerance
With an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, this LVDS LCD display withstands freezing northern winters and high summer temperatures inside sealed enclosures.

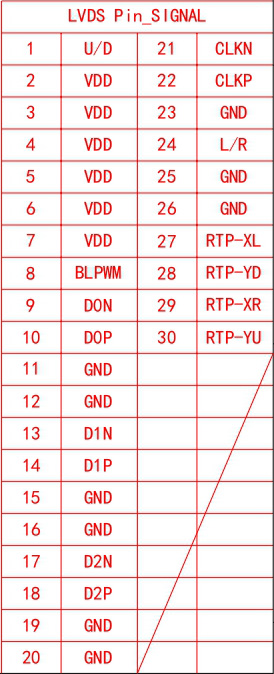

30-Pin Pin Definition
Core Industrial Application Areas of the LVDS LCD Display
Thanks to its high resolution, ultra-high brightness, and strong temperature adaptability, this 8.0-inch LVDS LCD display is widely used in various high-quality enterprise-grade applications:
- Industrial Human-Machine Interaction: In automated factory control cabinets and precision CNC machine tool operator terminals, the full-viewing angle technology reduces blind spots for operators.
- Intelligent Medical Monitoring Instruments: Suitable for multi-parameter monitors, anesthesia workstations, and mobile ultrasound carts. The high contrast helps doctors read physiological curves more accurately.
- Automotive and Off-Highway Vehicles: Ideal for agricultural machinery, construction equipment, and heavy truck dashboards, working stably despite intense sunlight exposure.
- Outdoor Public Terminals and Charging Stations: With the integrated 4-wire resistive touchscreen, users can operate smoothly even when wearing thick protective gloves in winter or when the screen surface has raindrops.
Technical Q&A of the LVDS LCD Display
Q1: How do I connect and debug touch signals for this 8.0-inch LVDS LCD display? Do I need to purchase an external touch IC separately?

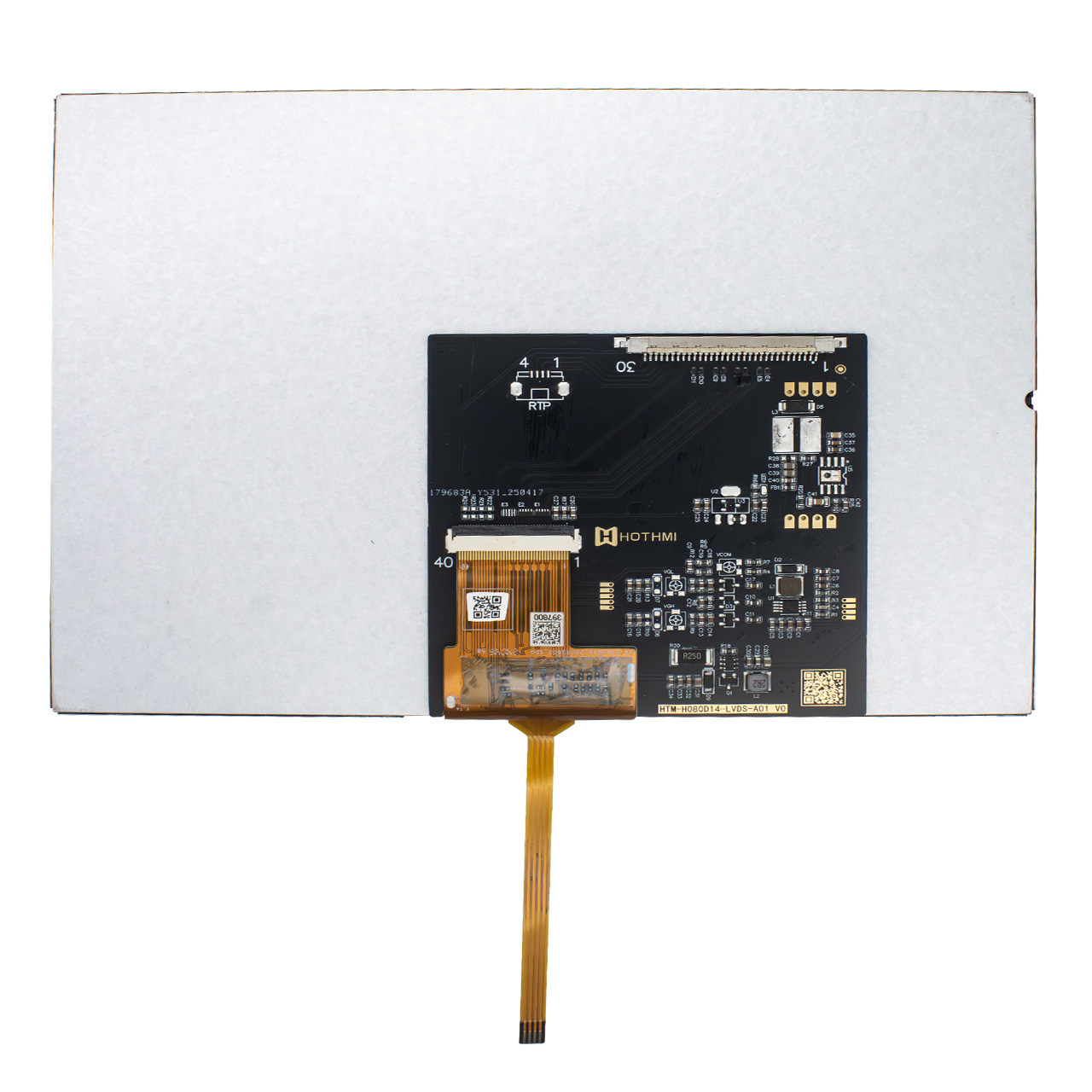

A1: This module already integrates a highly anti-interference 4-wire resistive touch panel (RTP). The analog touch electrode leads are directly built-in and routed to pins 27 to 30 of the main connector (RTP-XL, RTP-YD, RTP-XR, RTP-YU). You do not need to wire separately on the display flex cable. You can either connect these four pins directly to the ADC touch peripheral input pins of your main SoC for analog-to-digital conversion, or use a low-cost independent 4-wire resistive touch controller IC on your main board, which converts the analog touch signals to standard SPI or I2C digital buses for the operating system.
Q2: What is the hardware wiring difference between 1-Port LVDS 6-bit format and 8-bit format? Can my main controller with 8-bit output drive this screen?
A2: In terms of hardware wiring structure, the 6-bit LVDS interface requires only 3 differential data pairs (D0, D1, D2) and 1 differential clock pair, totaling 8 signal lines – exactly the structure defined in the 30-pin connector of this product. An 8-bit LVDS interface requires 4 differential data pairs. If your main controller chip has only 8-bit LVDS output, it is generally fully compatible to drive this screen. You simply need to either disable the extra fourth differential channel (D3-/D3+) in software on the main controller side or leave it unconnected in hardware, and ensure that the LVDS mapping format is configured as standard 6-bit VESA format for transmission.
