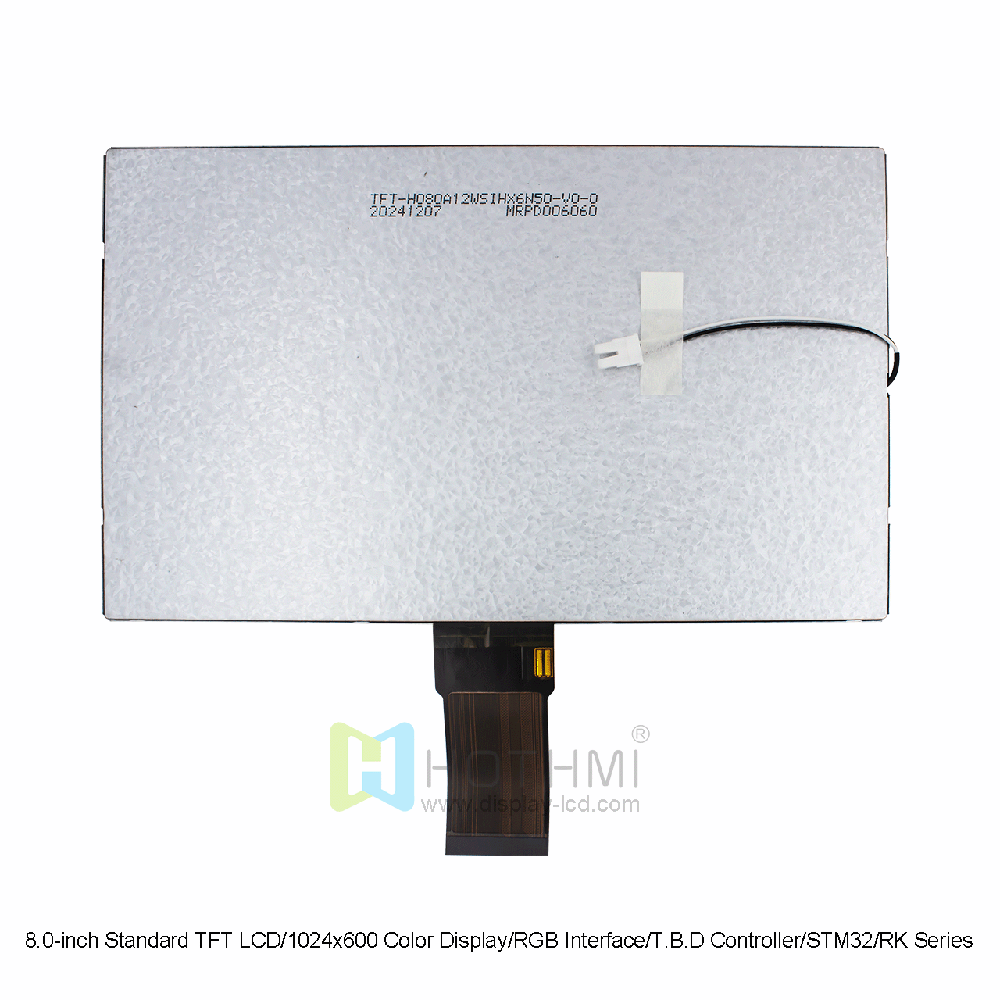

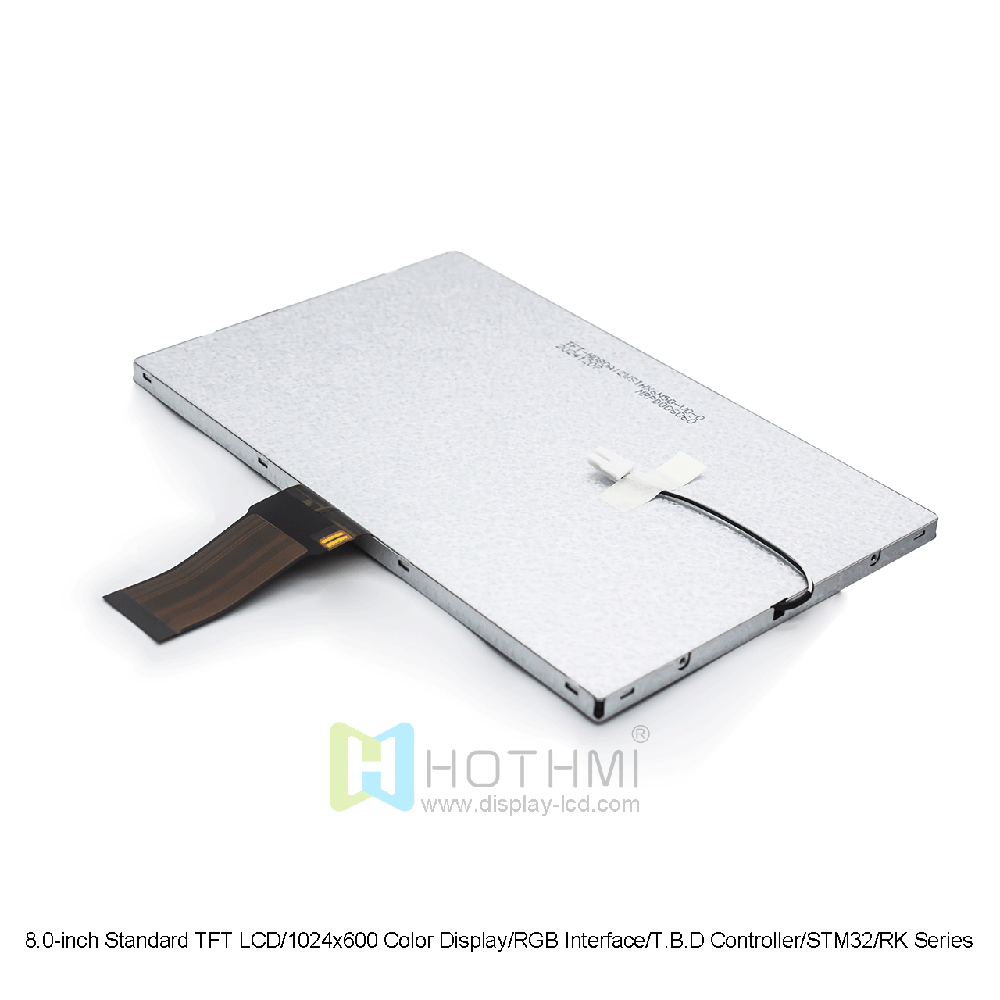

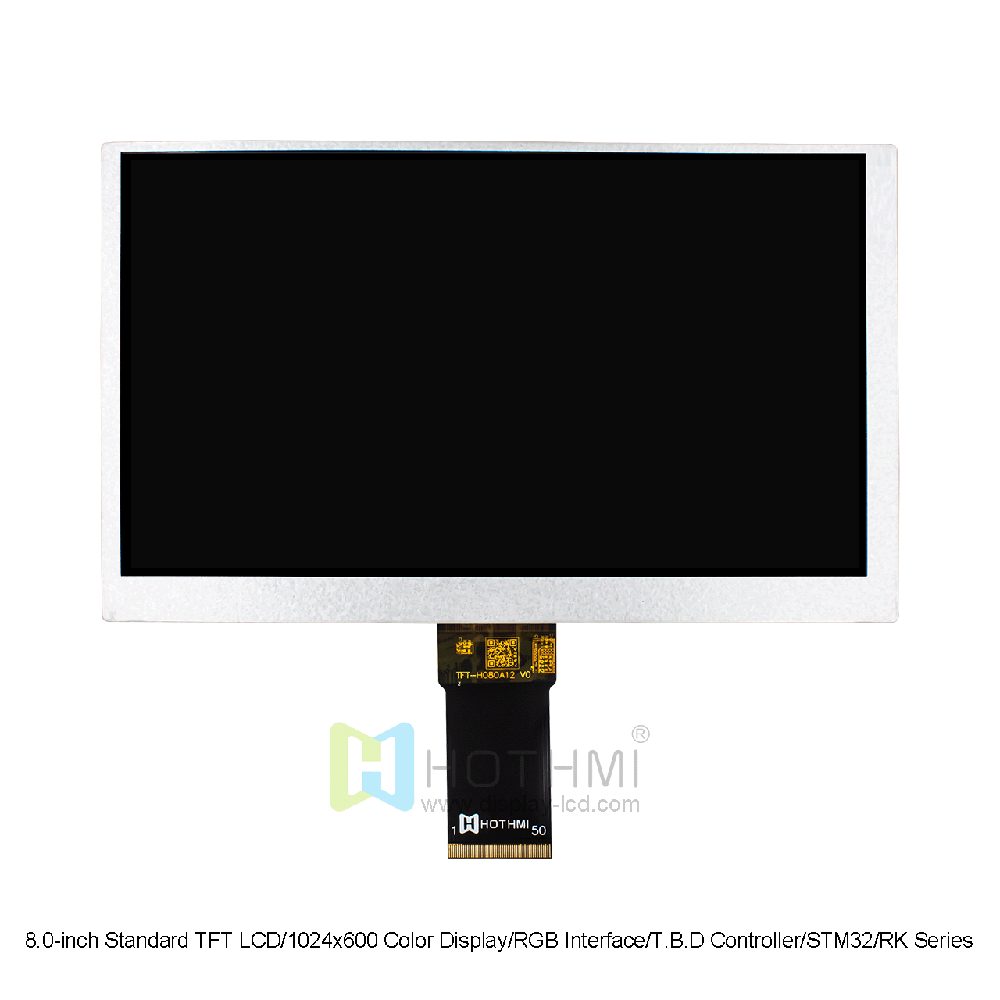

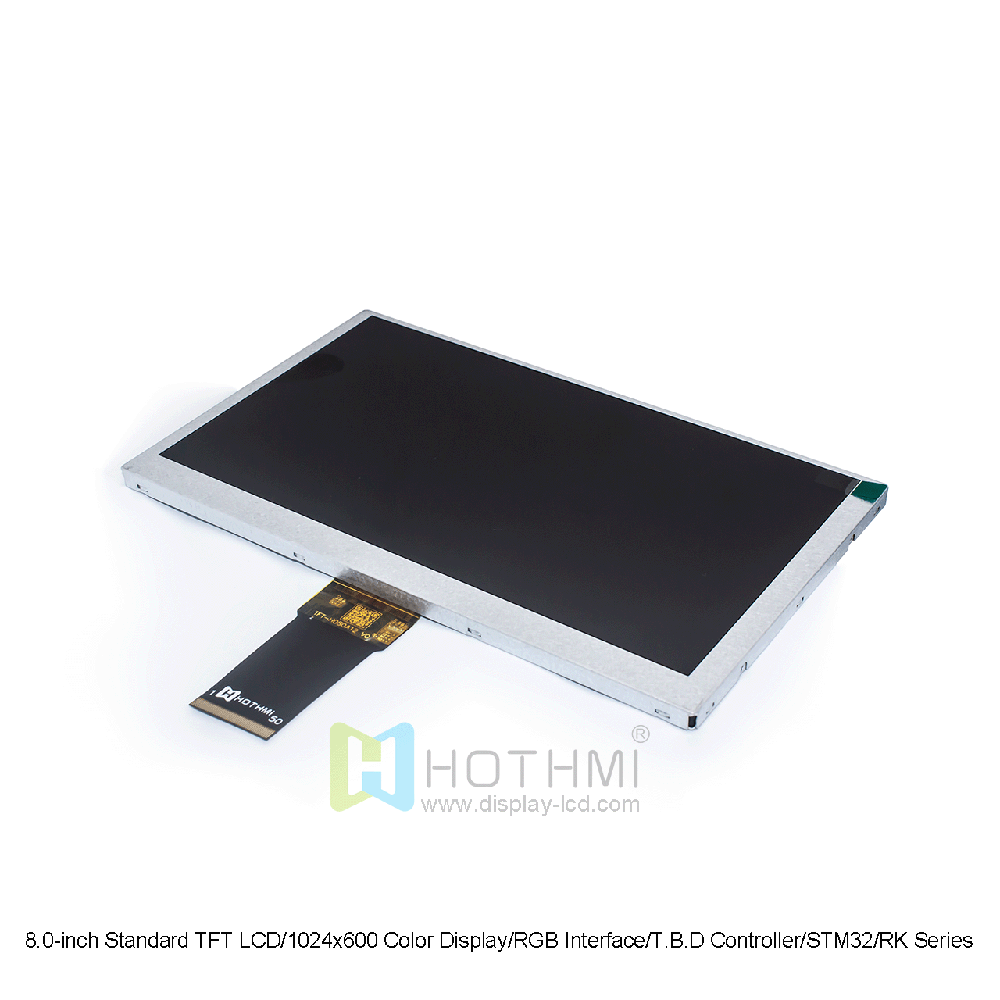

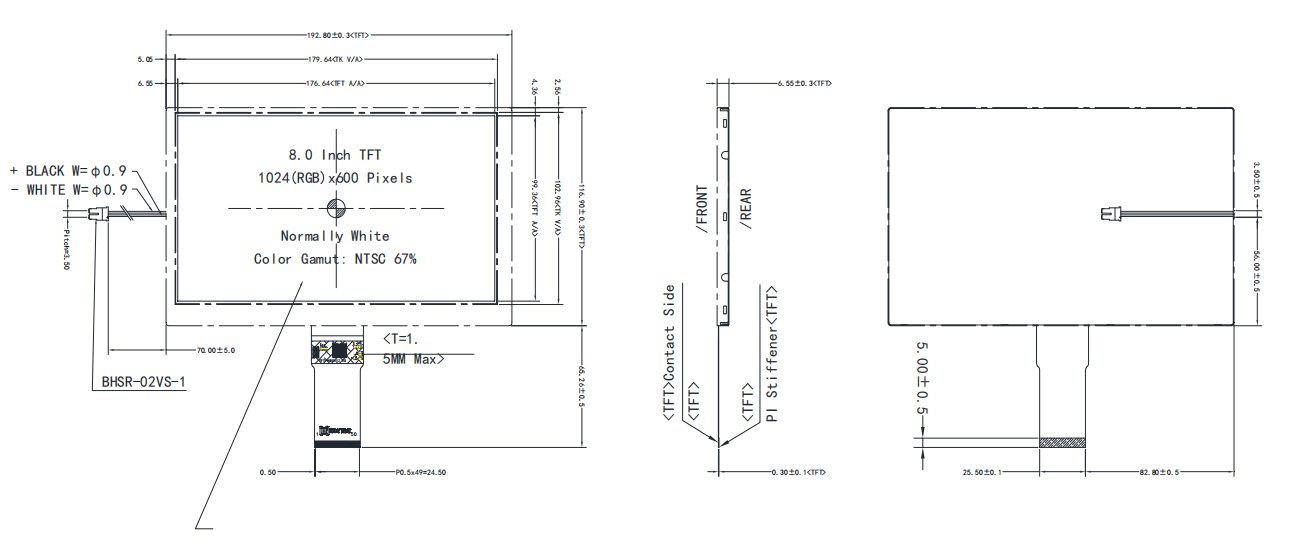

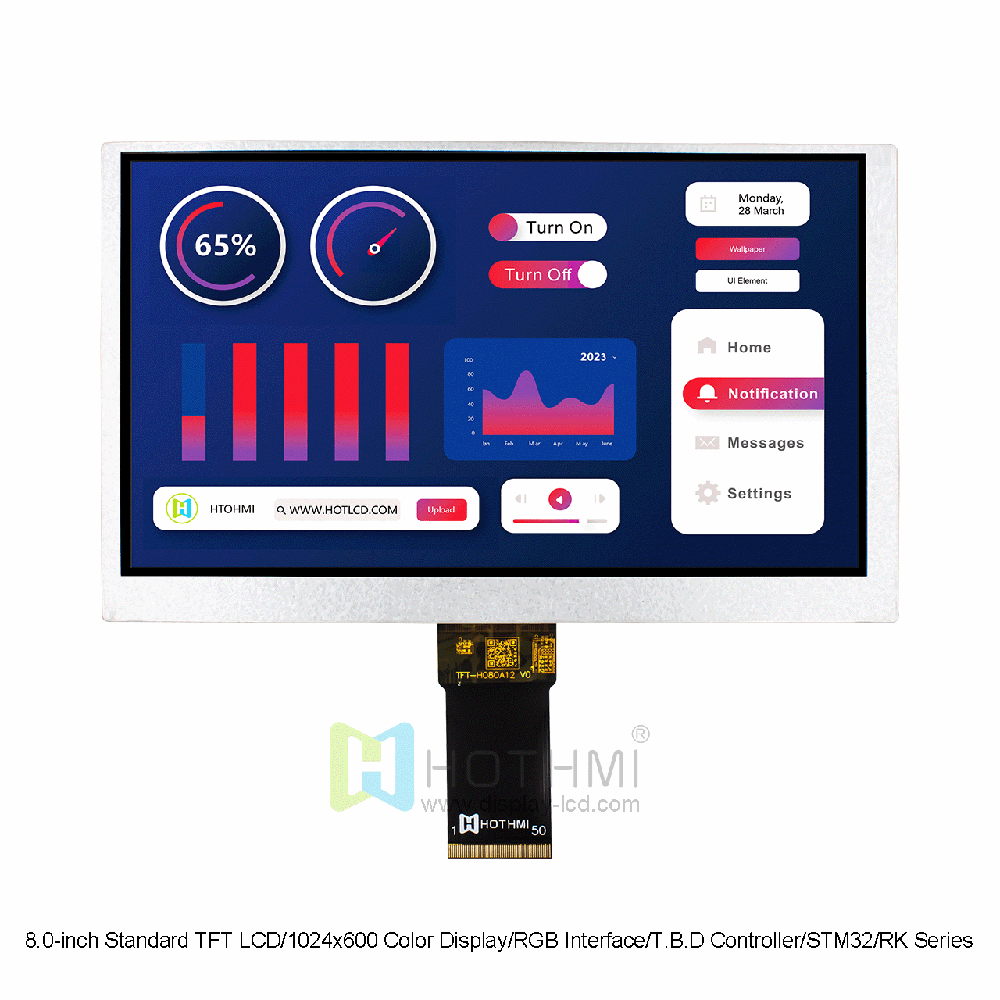

HOTHMI introduces the TFT-H080A12WSIHX6N50, a high-performance 8.0-inch TFT Display module featuring a sharp 1024(RGB) x 600 pixel resolution and a Parallel 24-bit RGB interface for excellent color reproduction and fine detail control. The TFT Display module has an outer dimension of 192.80 x 116.90 x 6.55 mm and an active display area of 176.64 x 99.36 mm, with wide viewing angles of U70/D75/R75/L75. Its polarizer includes UV protection (transmittance ≤ 1.0% at 380nm), ensuring reliable visual performance in harsh environments.
In terms of core specifications and expandability, this model uses a normally white panel technology, delivering a rich color gamut of 67% NTSC, a high contrast ratio of 700:1, and a fast response time of 30ms. For electrical and environmental performance, the digital power supply operates at a typical 3.3V, with both operating and storage temperatures rated from -30℃ to +80℃, meeting industrial-grade wide-temperature standards. It also offers excellent shock resistance and anti-static interference capability. The high-quality LED backlight achieves a brightness of 600 cd/m² (without touch panel) and has a long lifespan of 20,000 to 30,000 hours, making it a reliable display solution for demanding applications such as industrial controls, medical devices, and smart terminals.
Versatile Touch Screen Configurations
To meet diverse human-machine interface requirements across industries, HOTHMI provides three modular architectures for this TFT Display series:
- Without touch screen: A standard high-transmittance industrial panel, ideal for pure display applications.
- With capacitive touch screen: Equipped with a high-sensitivity capacitive panel with a surface hardness of up to 6H and transmittance ≥ 80%, supporting modern multi-touch and gesture operations.
- With resistive touch screen: Offers anti-static and anti-interference properties, allowing operation with insulated gloves or a stylus in tough environments.
Core Product Highlights
As an industrial-grade TFT Display, the TFT-H080A12WSIHX6N50 demonstrates significant technical advantages in electrical stability and optical performance:
- Industrial-grade wide operating temperature: The TFT Display operates from -30℃ to +80℃, with the same storage temperature range. Compared to ordinary commercial-grade displays, it can run stably for extended periods in cold outdoor areas or high-temperature enclosed industrial cabinets.
- High brightness: In the non-touch state, this TFT Display achieves a typical brightness of 600 cd/m². Even with a capacitive touch panel added, the overall brightness remains at an excellent 500 cd/m², and the anti-glare polarizer (UV transmittance at 380nm ≤ 1.0%) ensures clear readability in both indoor and outdoor environments.
- Wide viewing angles with minimal distortion: With viewing angles of U70/D75/R75/L75, operators can view the screen from different sides or tilted angles without experiencing severe color shift or black-white inversion.

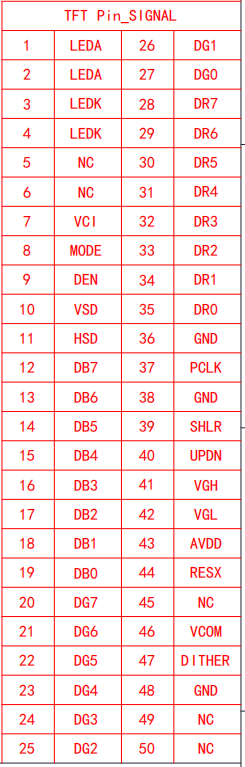

50-Pin Pin Description
The TFT-H080A12WSIHX6N50 TFT Display adopts a standard 50-pin FPC interface.
Typical Applications
With its high pixel density, wide-temperature characteristics, and flexible interface options, this 8.0-inch TFT Display module is widely used in various industrial and smart scenarios:
- Industrial human-machine interfaces: Embedded in CNC machines, central control cabinets of automated production lines, and robotic arm terminals, it provides bright real-time graphic monitoring, and the 6H hardness capacitive screen effectively resists oil stains and minor scratches in factory settings.
- Medical monitoring and diagnostic equipment: Applied in multi-parameter patient monitors, ultrasound imagers, blood analyzers, etc. Its 1024×600 resolution and high contrast ratio (700:1) clearly reproduce physiological waveforms and fine diagnostic images.
- Automotive and IoT terminals: Used in charging station displays, smart warehouse handheld terminals, and heavy construction machinery dashboards. The module’s excellent low-temperature responsiveness makes it ideal for cold outdoor environments.
- Smart home central control panels: As a wall-mounted interactive hub for high-end villas or office buildings, the UV-resistant polarizer and long backlight life ensure prolonged anti-aging performance even when installed near windows with strong direct sunlight.
Technical FAQ
Q1: What are the specific functions of the SHLR and UPDN pins on the 50-pin interface, and how should they be connected in hardware?
A1: These two pins are direction control pins specifically designed for hardware-based display flipping.
SHLR (Source Right/Left) controls the horizontal scanning direction: When connected to VCI, the image scans normally from left to right (S1 → S800); when connected to GND, the image scans from right to left, achieving horizontal mirror flipping.
UPDN (Up/Down) controls the vertical scanning direction: When connected to VCI, scanning goes from bottom to top; when connected to GND, scanning goes from top to bottom, achieving vertical flipping.
By using 10KΩ resistors on the mainboard to change the logic levels of these two pins, developers can meet physical installation requirements such as reverse mounting, upside-down placement, or special rear-view mirror applications without modifying the underlying driver software.
Q2: What display effects can be expected when operating this TFT Display at extremely low temperatures (e.g., -30℃)?
A2: At temperatures approaching or reaching the limit of -30℃, the viscosity of the liquid crystal material increases, which significantly slows the electro-optical response time. This may result in noticeable motion blur or slower refresh rates. This is a normal physical behavior of liquid crystals and does not indicate a malfunction or damage to the module. Once the device operates or the ambient temperature returns to the normal recommended range (e.g., +25℃ room temperature), all response speed and optical parameters will automatically recover to the typical values specified in the datasheet.
