Technical Profile of the HTG12832L 12832 LCD Display

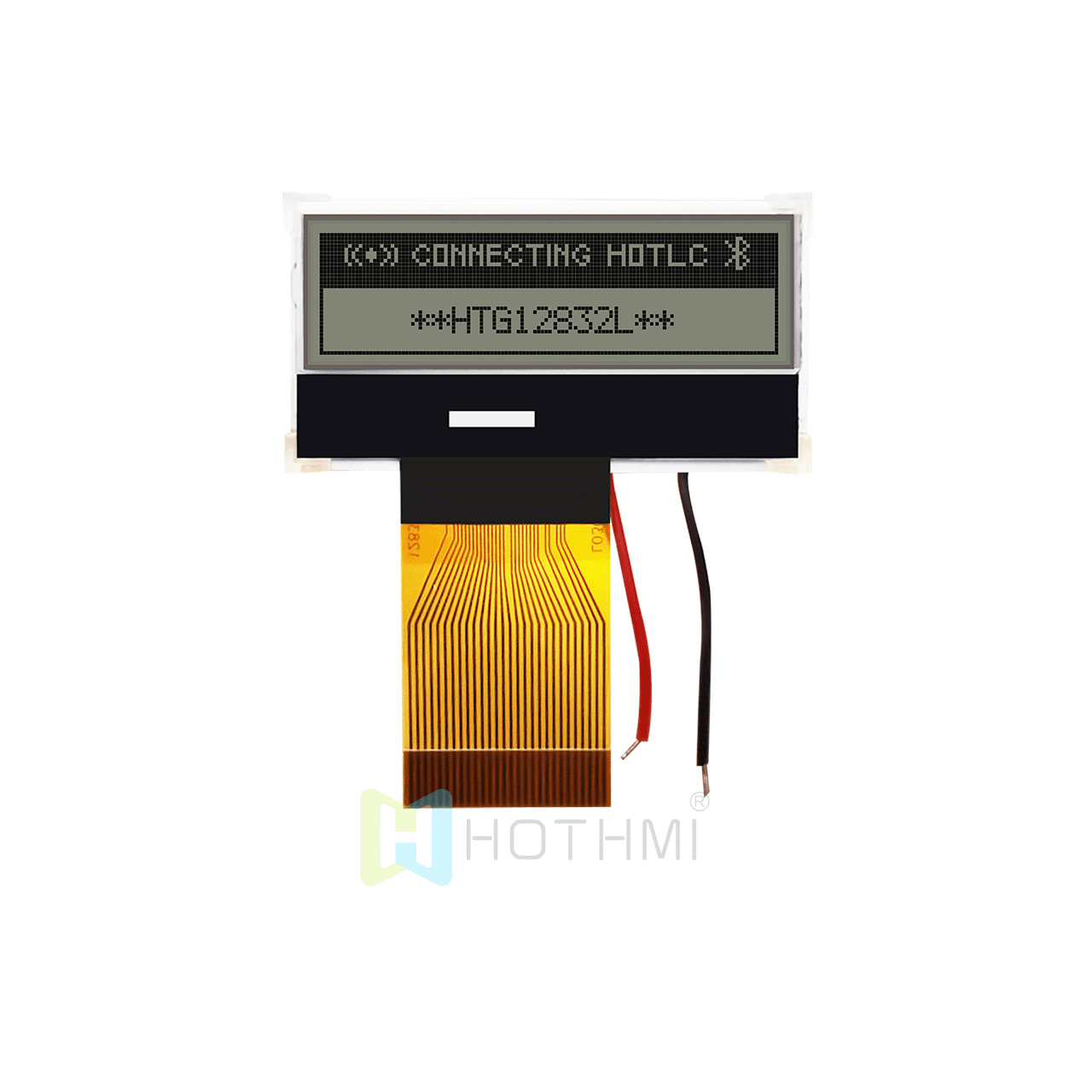

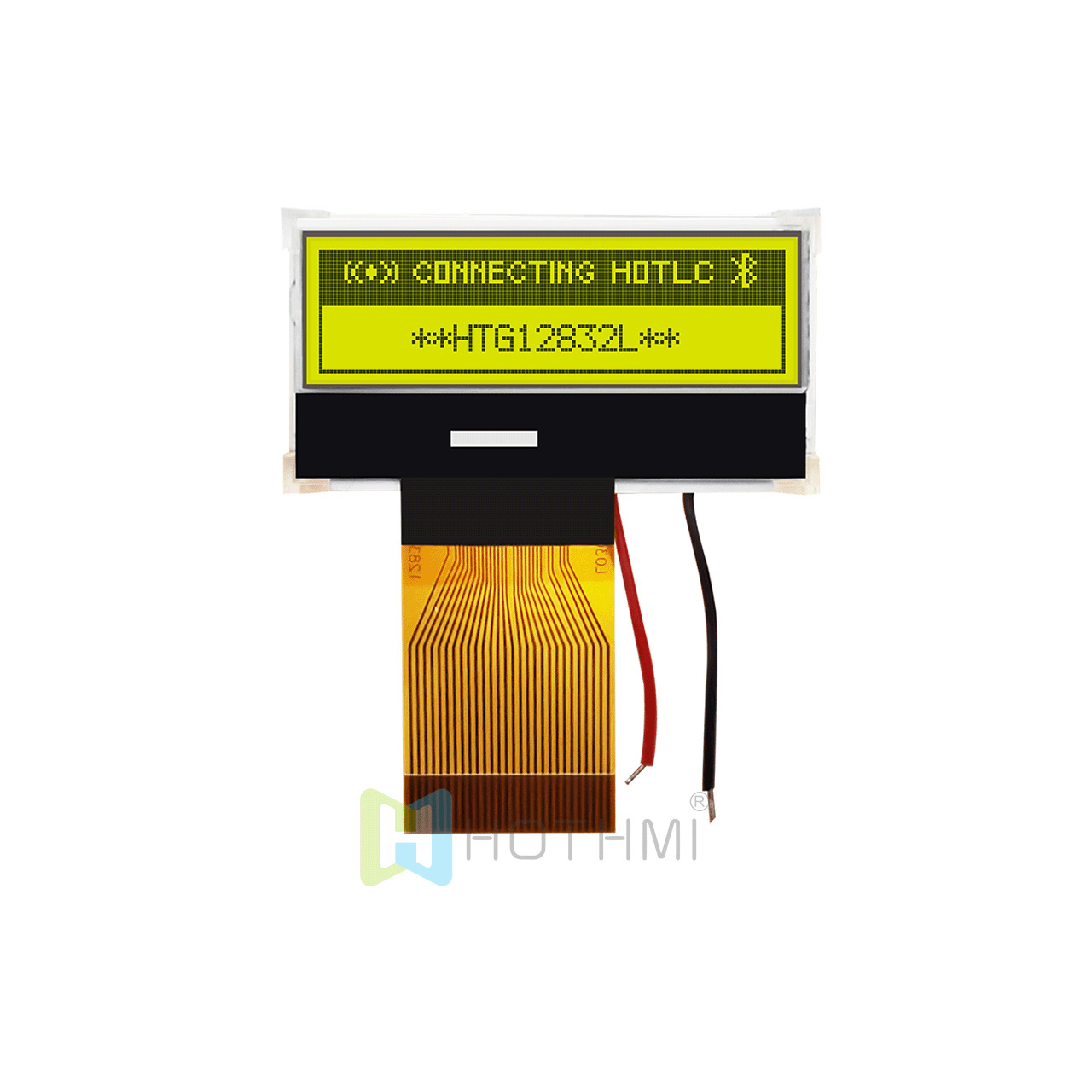

The HTG12832L is a 128×32 dot matrix graphic LCD module that embodies the efficiency of modern Monochrome Display engineering. By utilizing COG technology, the driver IC is mounted directly onto the glass substrate, resulting in a compact, lightweight, and durable display solution.
In the rapidly evolving landscape of visual interface technology, the 12832 LCD Display remains a cornerstone for industrial, medical, and telecommunications sectors. Despite the proliferation of high-resolution color screens, the inherent reliability, superior contrast, and ultra-low power consumption of monochrome solutions make them indispensable for mission-critical applications.
Key Technical Specifications:
- Resolution: 128 x 32 Dots, providing optimal space for multi-line text and basic graphical icons.

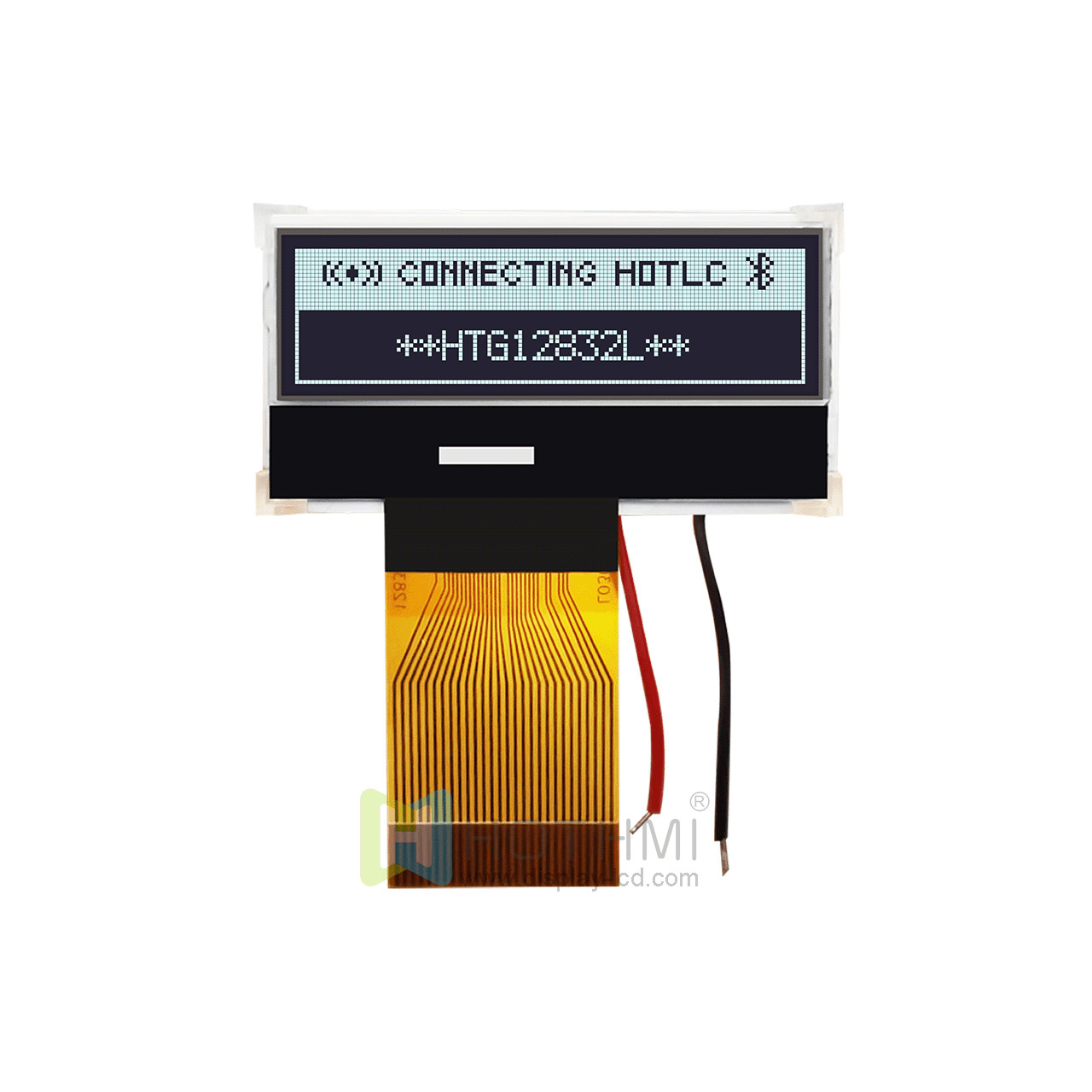

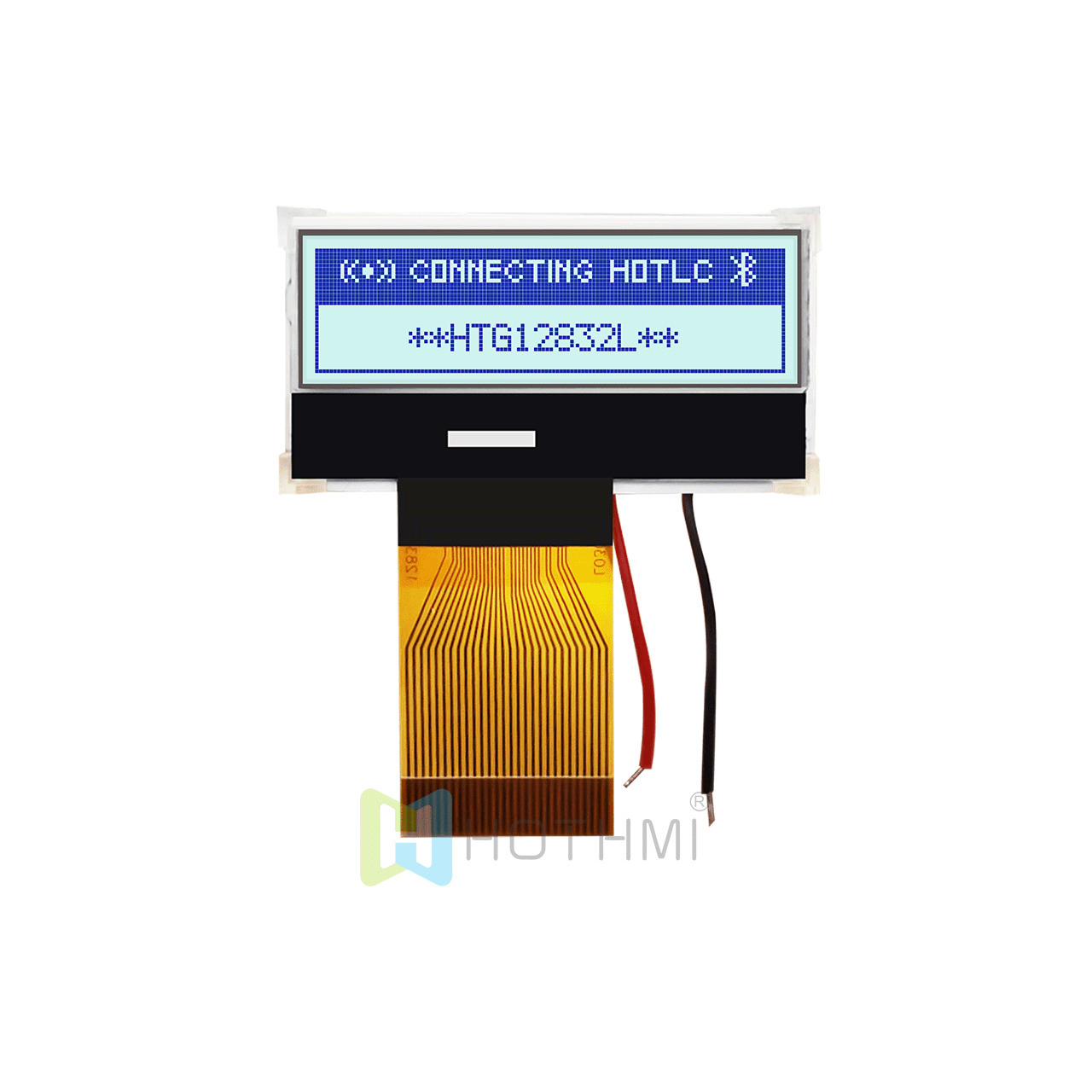

- Display Mode: STN, Negative, Transmissive (typically Blue or Black mode with White backlight).

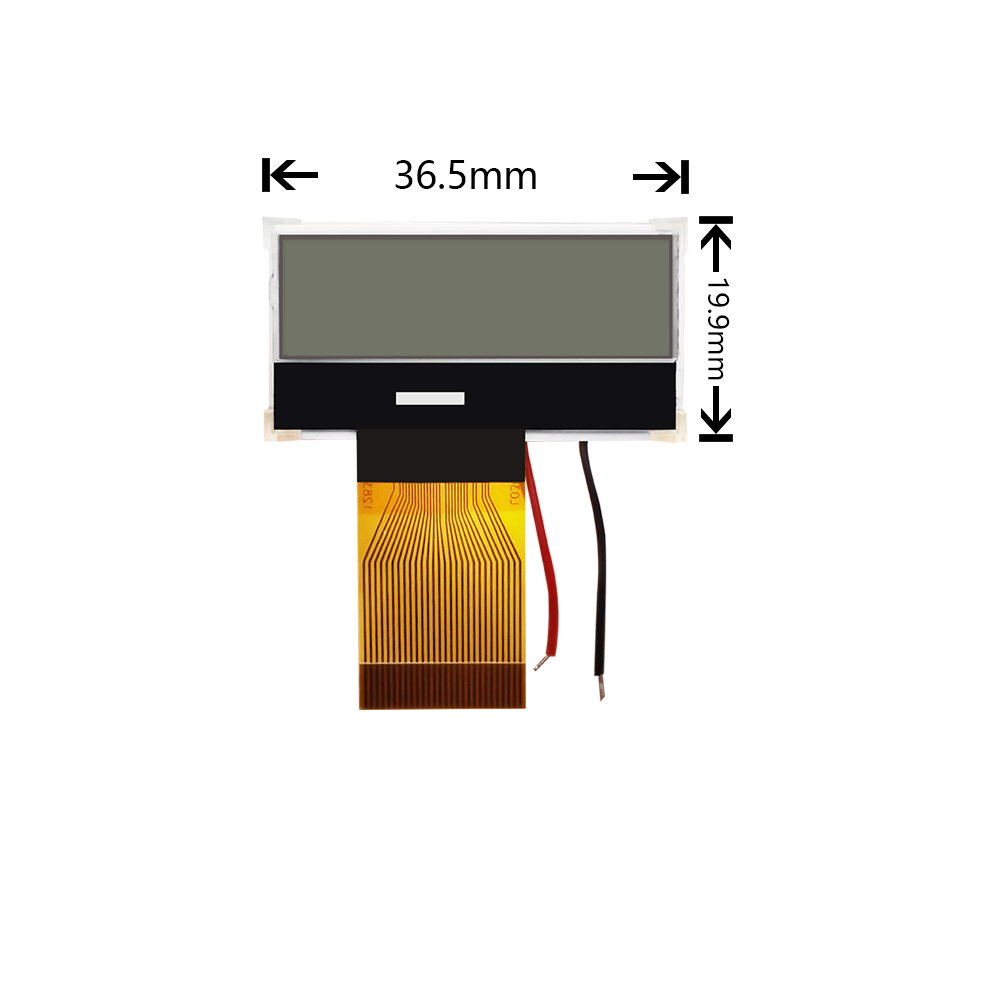

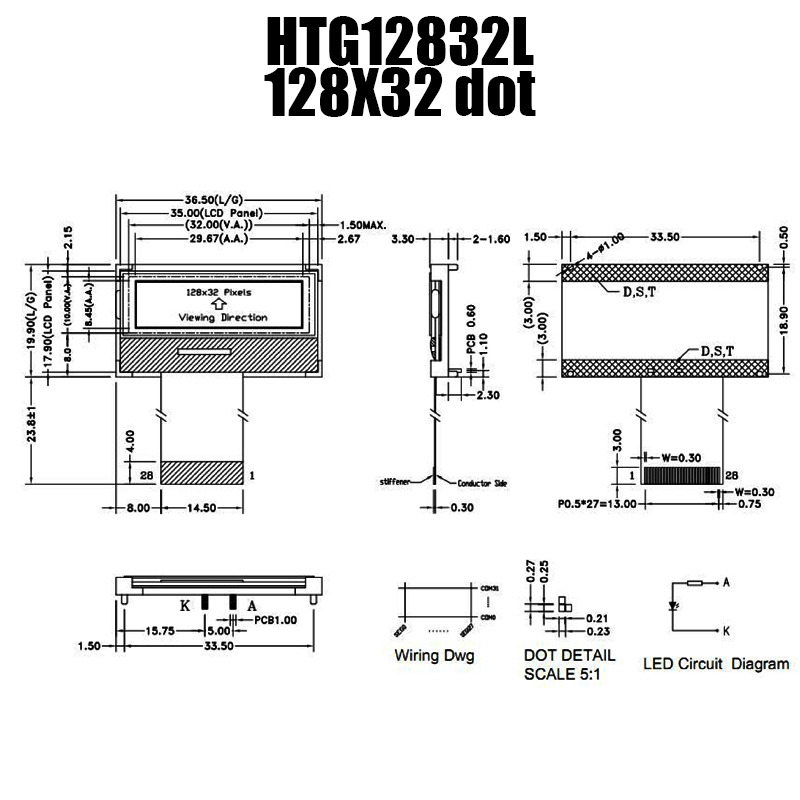

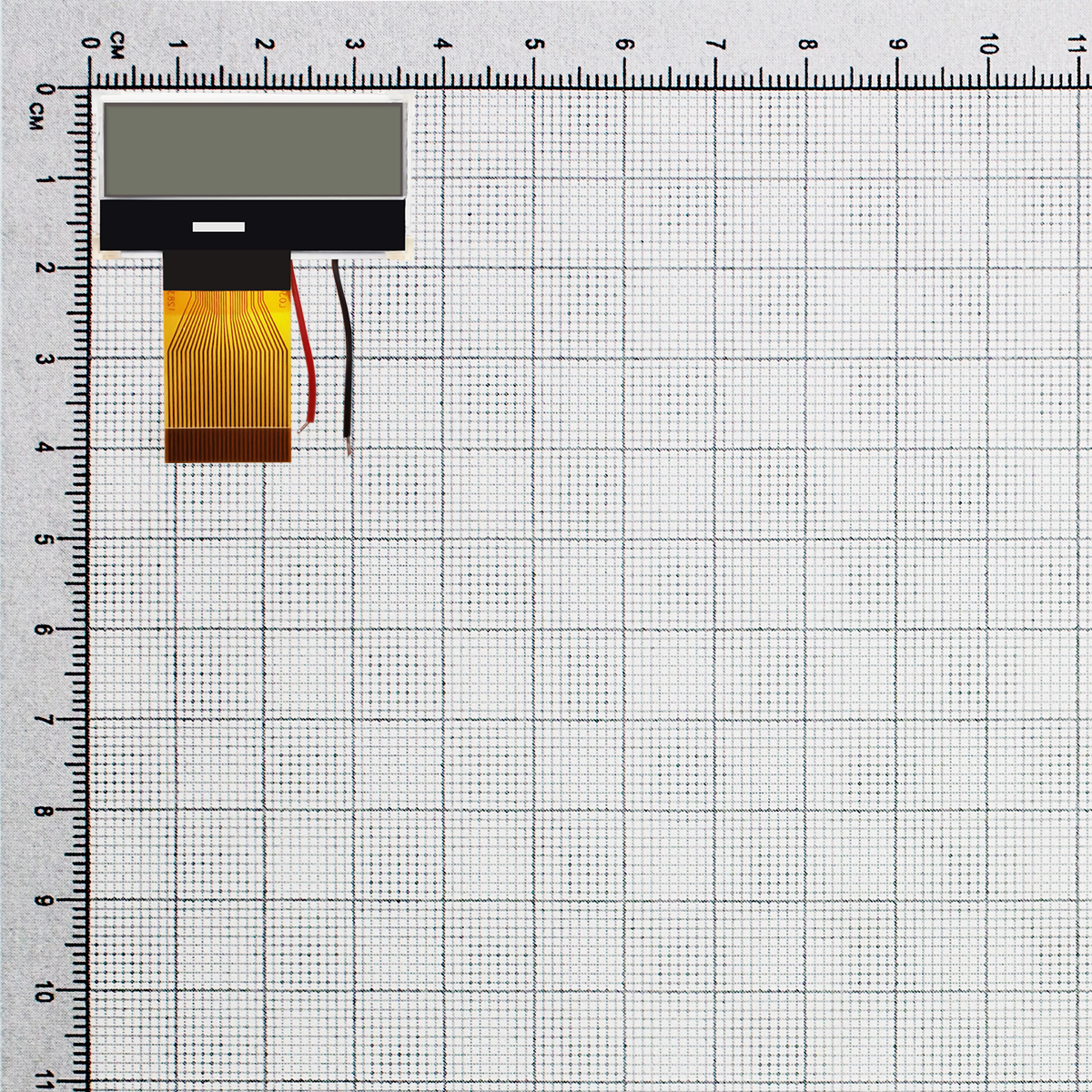

- Dimensions: 36.5 x 19.9 x 4.9 mm, ideal for space-constrained handheld devices.
- Driving Method: 1/33 Duty, 1/6 Bias, optimized for the ST7567 controller.
- Power Efficiency: Operating current ranges from 100uA to 220uA, with a sleep mode consumption as low as 0.1uA.
Why Choose a 12832 LCD Display for Industrial Designs?
When optimizing a product for Search Engine Optimization (SEO) and engineering excellence, the term Monochrome Display signifies more than just a single-color screen; it represents a strategic choice for longevity and performance.
- Low Power Consumption (Ultra-Low Power): Unlike TFT or OLED screens that require significant energy to maintain pixel states, a 12832 LCD Display consumes minimal power, making it the perfect match for battery-operated IoT sensors and smart meters.
- High Readability and Contrast: The negative STN mode used in the HTG12832L offers sharp contrast. When paired with a high-quality LED backlight, the information remains legible in low-light industrial environments.
- Minimal System Resource Usage: Driving a 128×32 Monochrome Display requires very little RAM and Flash memory from the MCU. This allows engineers to use cost-effective 8-bit or 16-bit microcontrollers without sacrificing interface responsiveness.
Primary Application Scenarios
The versatility of the 12832 LCD Display allows it to excel in various professional fields:
- Industrial Automation and Sensing: Used in DIN-rail meters, flow controllers, and pressure sensors where 24/7 reliability is mandatory.
- Medical Diagnostic Equipment: Its clear, non-distracting visual output is ideal for pulse oximeters, glucose meters, and portable EKG monitors.
- Smart Energy and Metering: The compact COG form factor fits perfectly into smart water and gas meters that must operate for over a decade on a single battery.
- Consumer Electronics and Audio: High-end microphones, audio interfaces, and smart home thermostats utilize these displays for a sleek, professional aesthetic.
Expert Selection Guide for 12832 LCD Display Integration
Selecting the right 12832 LCD Display involves more than just matching pixel counts. Engineers must consider the following technical nuances:
- Interface Compatibility: The HTG12832L supports 8-bit Parallel (8080/6800 mode) and 4-line Serial SPI. For designs where MCU pins are limited, the SPI interface is recommended. For high-speed data refresh, the parallel interface is superior.
- Viewing Angle Optimization: This 12832 LCD Display features a 6:00 viewing angle. This means the display is most clear when viewed from slightly below the horizontal axis, which is standard for most desktop or chest-height equipment.
- Voltage Matching: While the module operates at 3.3V, many legacy systems still use 5V. Ensure a proper level shifter is implemented to protect the ST7567 driver IC from overvoltage damage.
Frequently Asked Questions about 12832 LCD Display
Q1: How do I ensure compatibility when replacing an older Monochrome Display?
A: Compatibility depends on three factors: physical dimensions (check the FPC pin pitch, which is 0.5mm for this model), the driver IC command set (ST7567 is widely compatible with ST7565 and UC1701), and the initialization sequence. Most Monochrome Display modules are interchangeable if the pinout and driver IC logic match.
Q2: Why is the display contrast too dim or inconsistent?
A: This is usually related to the software-defined bias settings or the electronic volume (contrast) register. Ensure the “Set LCD Bias” command is set to 1/9 and that the internal voltage converter/regulator/follower circuits are all enabled in your initialization code.
Q3: Can a 12832 LCD Display operate in extreme temperatures?
A: The HTG12832L is rated for -20°C to +70°C. For applications in sub-zero outdoor environments, a “Wide Temperature” version with an integrated heater or specialized liquid crystal fluid may be required.
