Description

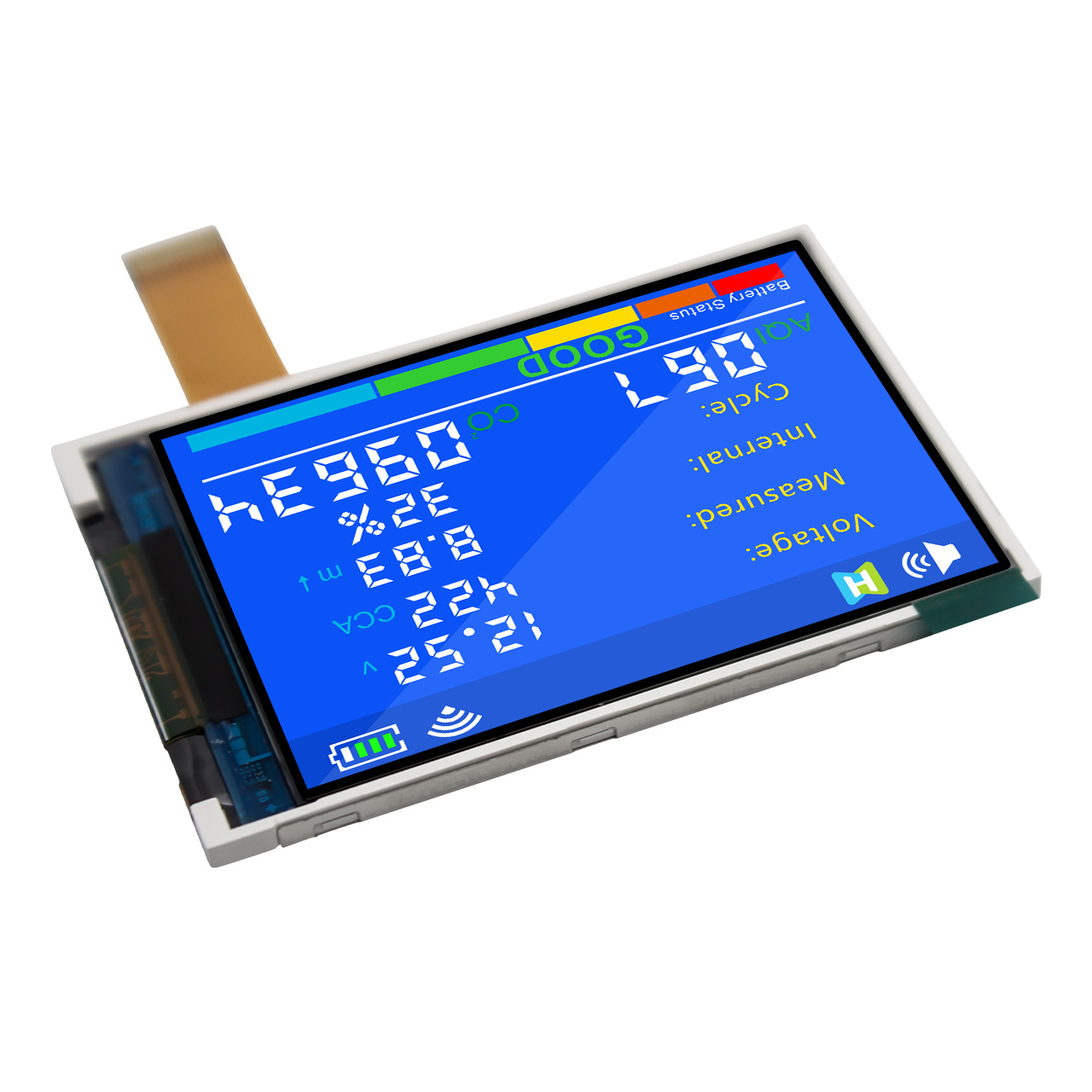

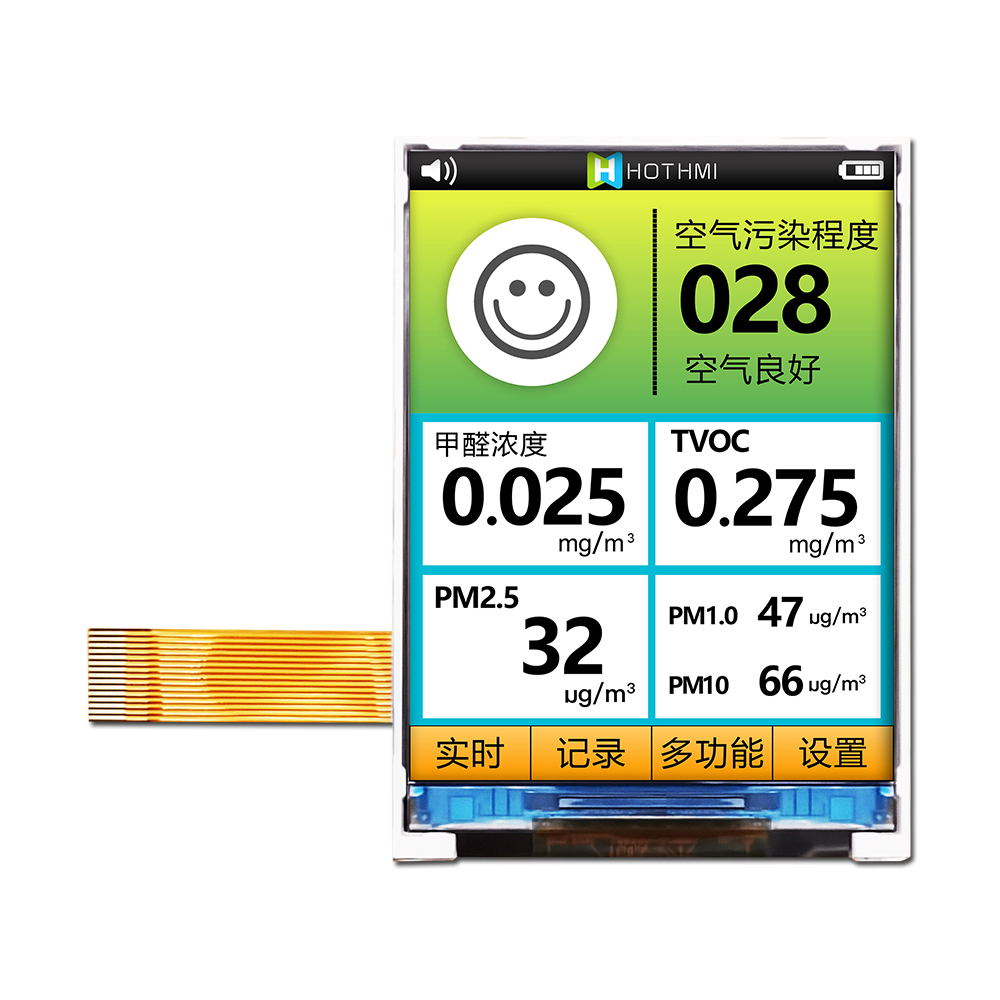

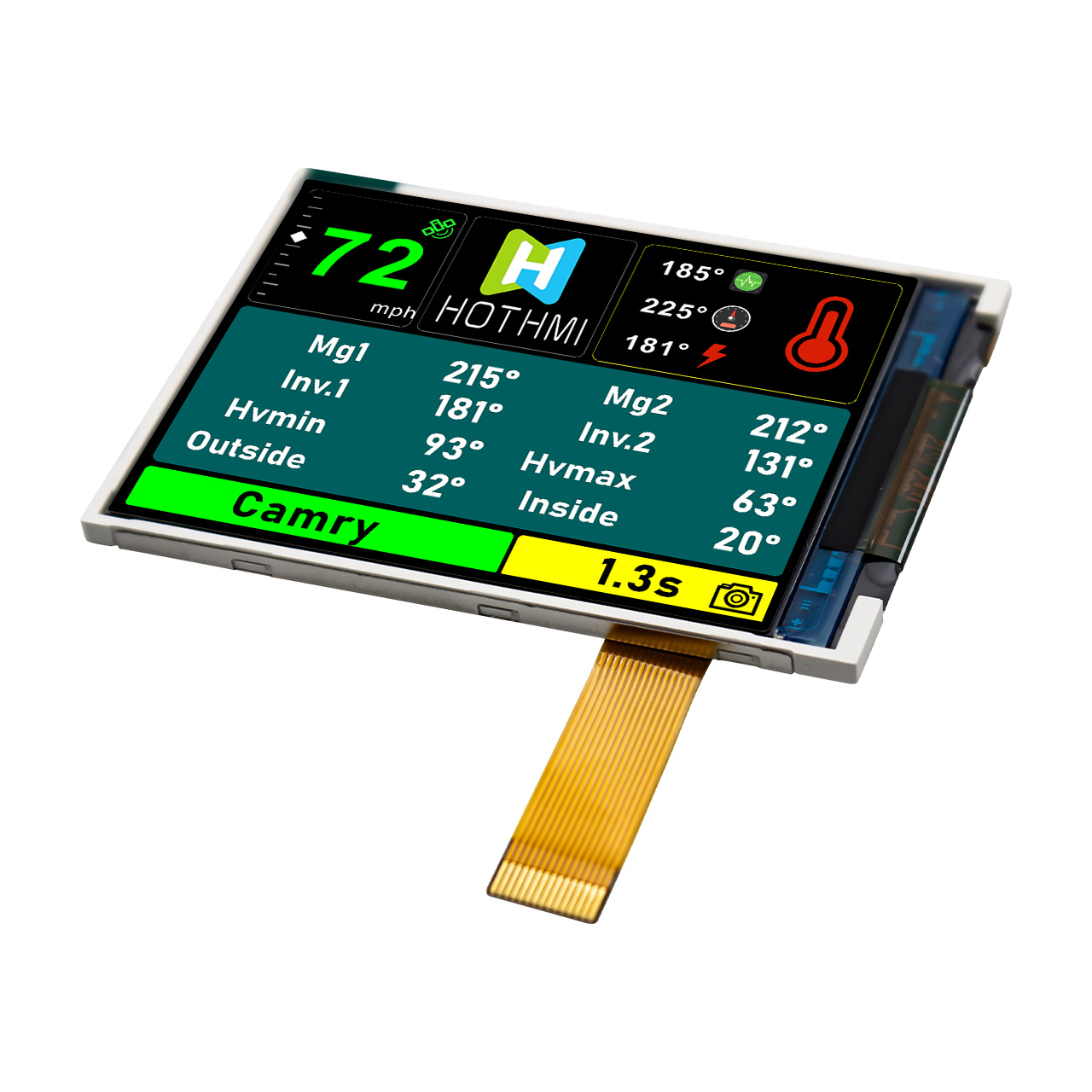

2.4 inch High Brightness LCD Panel JD9852 Controller MIPI DSI Interface

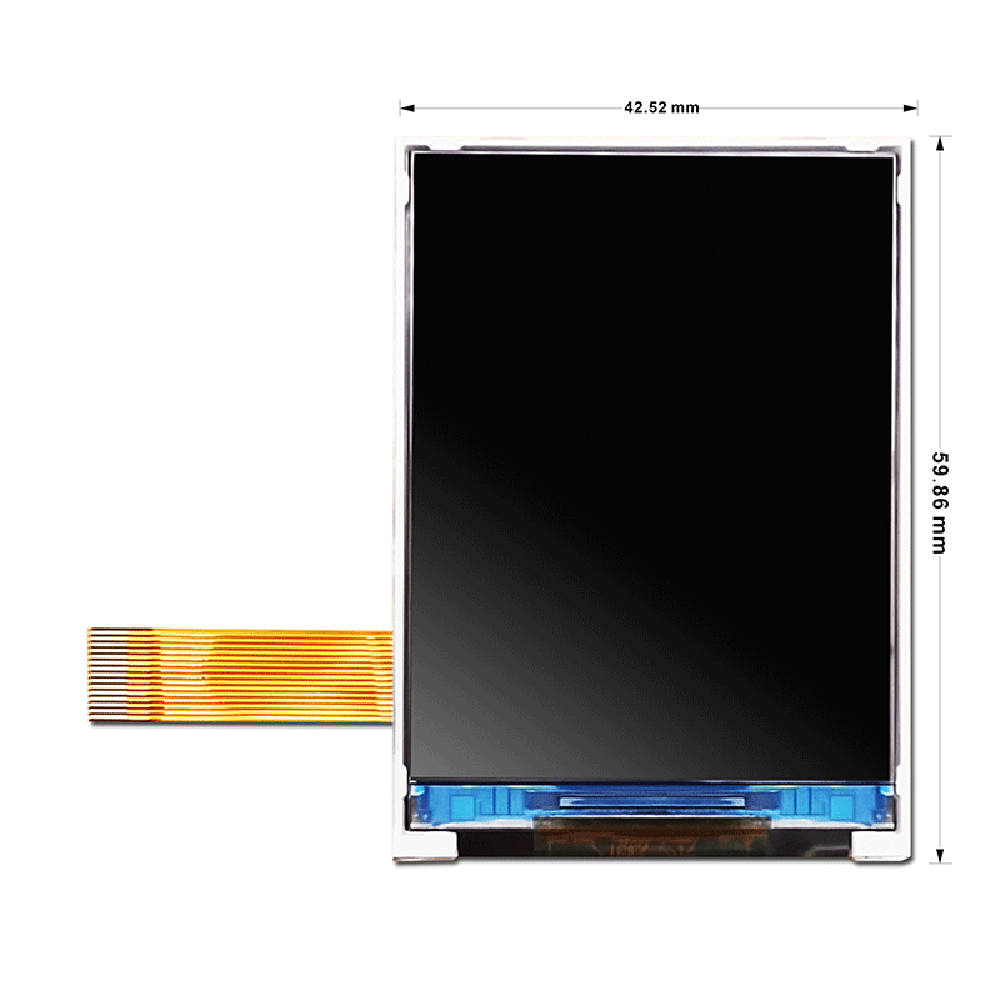

This is a 2.4 inch High Brightness LCD Panel with a resolution of 240(H)×3(RGB)×320(V). Its active display area is 36.72mm(H)×48.96mm(V), and the overall outline dimension is 42.52mm(H) × 59.86mm(V) × 2.20mm(D). It supports full viewing direction (Full O’ Clock) and adopts a MIPI-1L (Video mode) interface. The module uses the JD9852 driver IC with driving conditions of VCI=2.8V and IOVCC=1.8V. It is equipped with a white LED backlight and does not come with a touch panel, thus requiring no touch panel driver IC. The operating temperature and storage temperature ranges for the LCD are both -30℃~80℃.

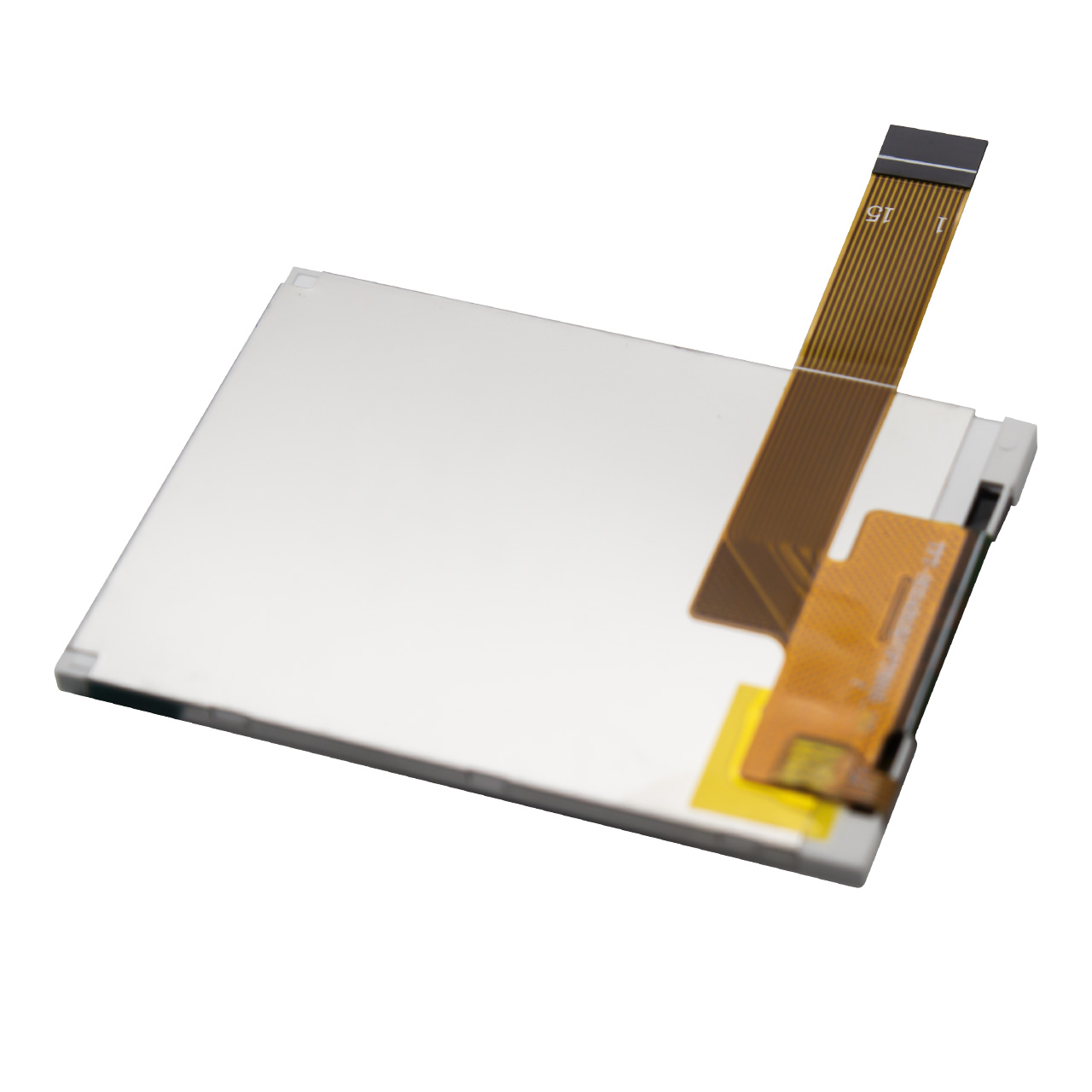

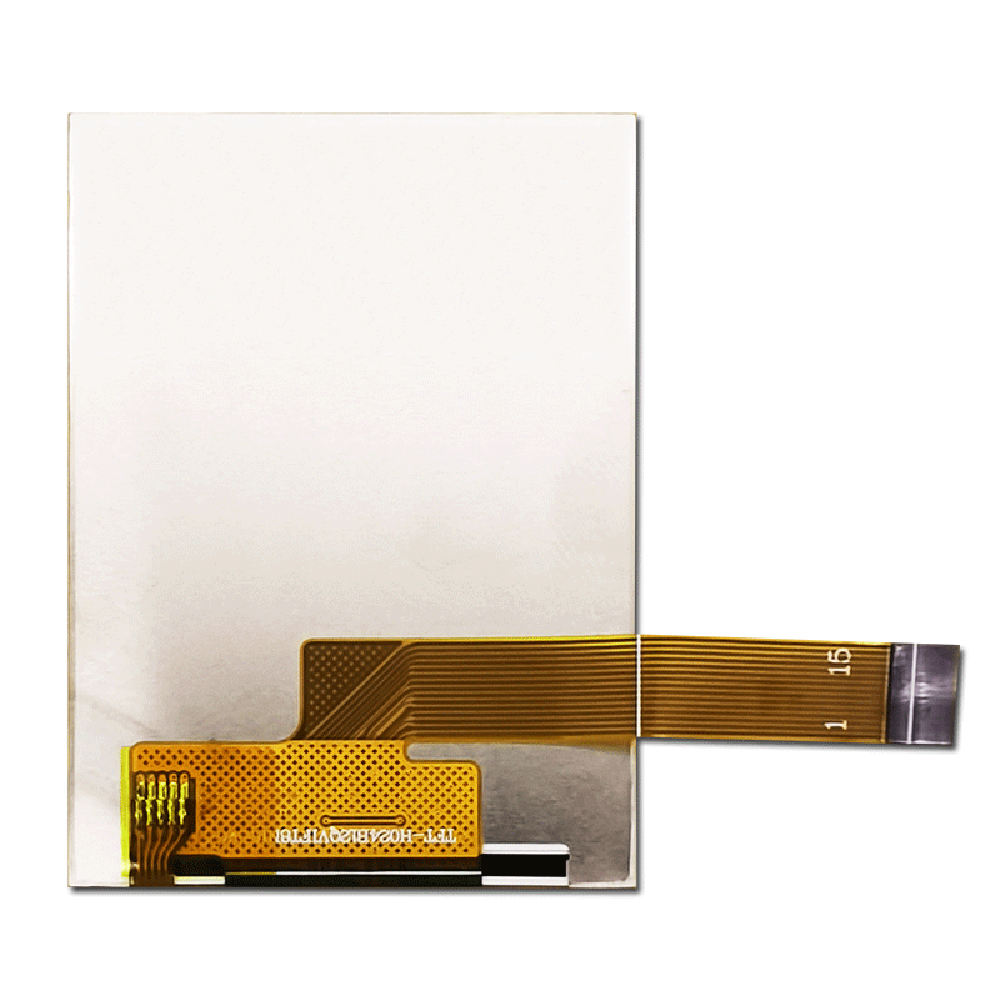

This LCD features Unlike other displays in the same series, this model features an FFC (Flexible Flat Cable) connection. This design’s FPC is located to the side of the display, making it suitable for specialized configurations. Users can also request a customized FPC based on their product design, ensuring a smooth electrical connection. Our displays are RoHS-compliant and adhere to strict environmental and safety standards.
In the same series, we also offer the resistive touch TFT-H024B18QVIST8R40, the ultra-bright capacitive touch TFT-H024A1QVISTKC40, and the 2.4-inch smart display HTM-H024A16-UART-A02.

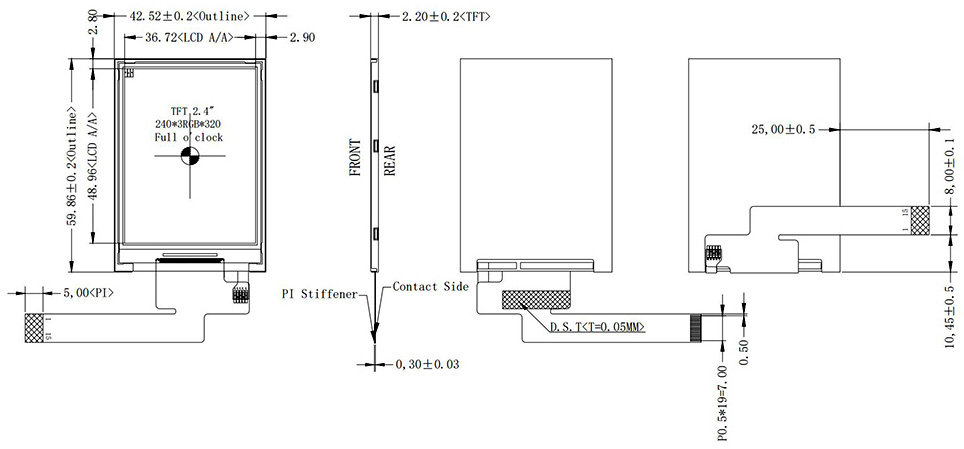

Outline Dimensions
Pin Definition of 2.4 inch High Brightness LCD Panel
| Pin | Symbol | Description |
| 1 | TE | No Connect |
| 2 | GND | Ground |
| 3 | D0N | MIPI-DSI Data differential signal input pins. |
| 4 | D0P | MIPI-DSI Data differential signal input pins. |
| 5 | GND | Ground |
| 6 | DCKN | MIPI-DSI CLOCK differential signal input pins. |
| 7 | DCKP | MIPI-DSI CLOCK differential signal input pins |
| 8 | GND | Ground |
| 9 | RESX | Global reset pin. Active low to enter reset state. |
| 10 | GND | Ground |
| 11 | IOVCC | Logic Power(1.75 ~ 3.3 V,1.8V Type） |
| 12 | VCI | Analog Power(2.6 ~ 3.3 V,2.8V Type） |
| 13 | GND | Ground |
| 14 | LED_A | LED Anode |
| 15 | LED_K | LED Cathode |
|
END |
||

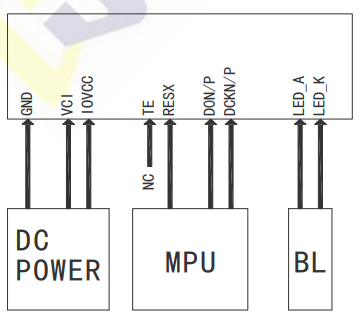

2.4 inch High Brightness LCD Panel Wiring instructions
Optical and Electrical Characteristics & Reliability Summary
This 2.4 inch High Brightness LCD Panel is equipped with the JD9852 driver IC and features a MIPI-1L video interface with a resolution of 240×320. It delivers clear, sharp visuals and accurate color reproduction for various display applications.
The module supports a wide operating and storage temperature range of -30°C to 80°C. It has passed high-temperature, high-humidity, vibration, shock, and strict ESD electrostatic tests, ensuring outstanding reliability and durability for industrial control, automotive displays, smart terminals, and other demanding environments.
With full 80° wide viewing angles, a typical contrast ratio of 1500:1, 70% color gamut, and fast response time, this display ensures excellent visibility from all directions. The white LED backlight reaches 800 cd/m²brightness, providing great readability even in strong light. Precise color calibration guarantees consistent and natural color performance.
The electrical design is stable and standardized, with an analog power supply of 2.8V and logic power of 1.8V. The backlight operates at 3.2V / 100mA for low power consumption. Complete MIPI-DSI timing configuration and standard initialization code simplify driver integration and speed up product development.
For safe and long-lasting use: handle the glass panel carefully to avoid pressure, impact or dropping; do not plug or unplug while powered on; avoid long term fixed images to prevent image sticking. ESD protection is required during assembly and use, including proper grounding and controlled working humidity.

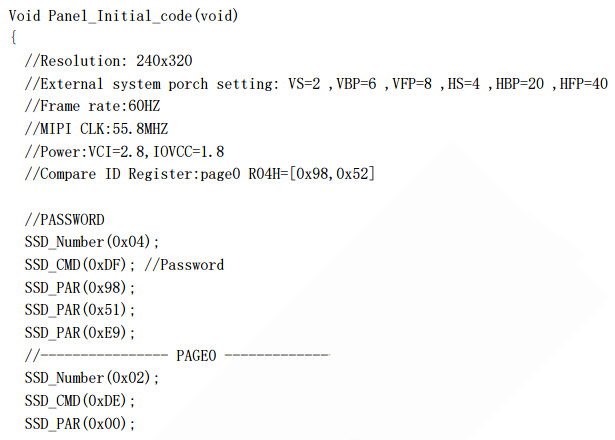

Initialization code for 2.4 inch High Brightness LCD Panel
This is a sample of the initialization code. Please contact us for more detailed information.
