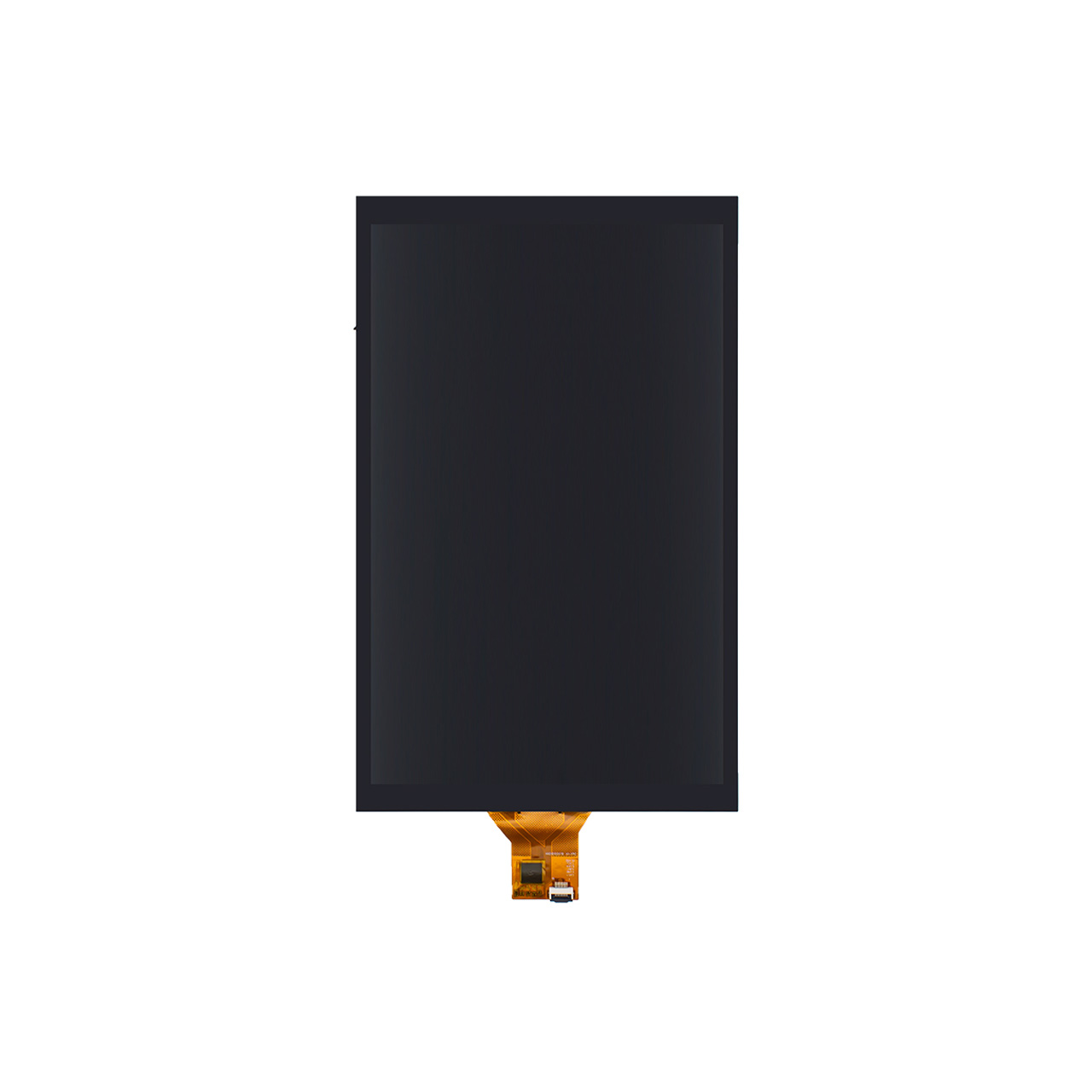

10.1 inch High Brightness TFT LCD Display LVDS

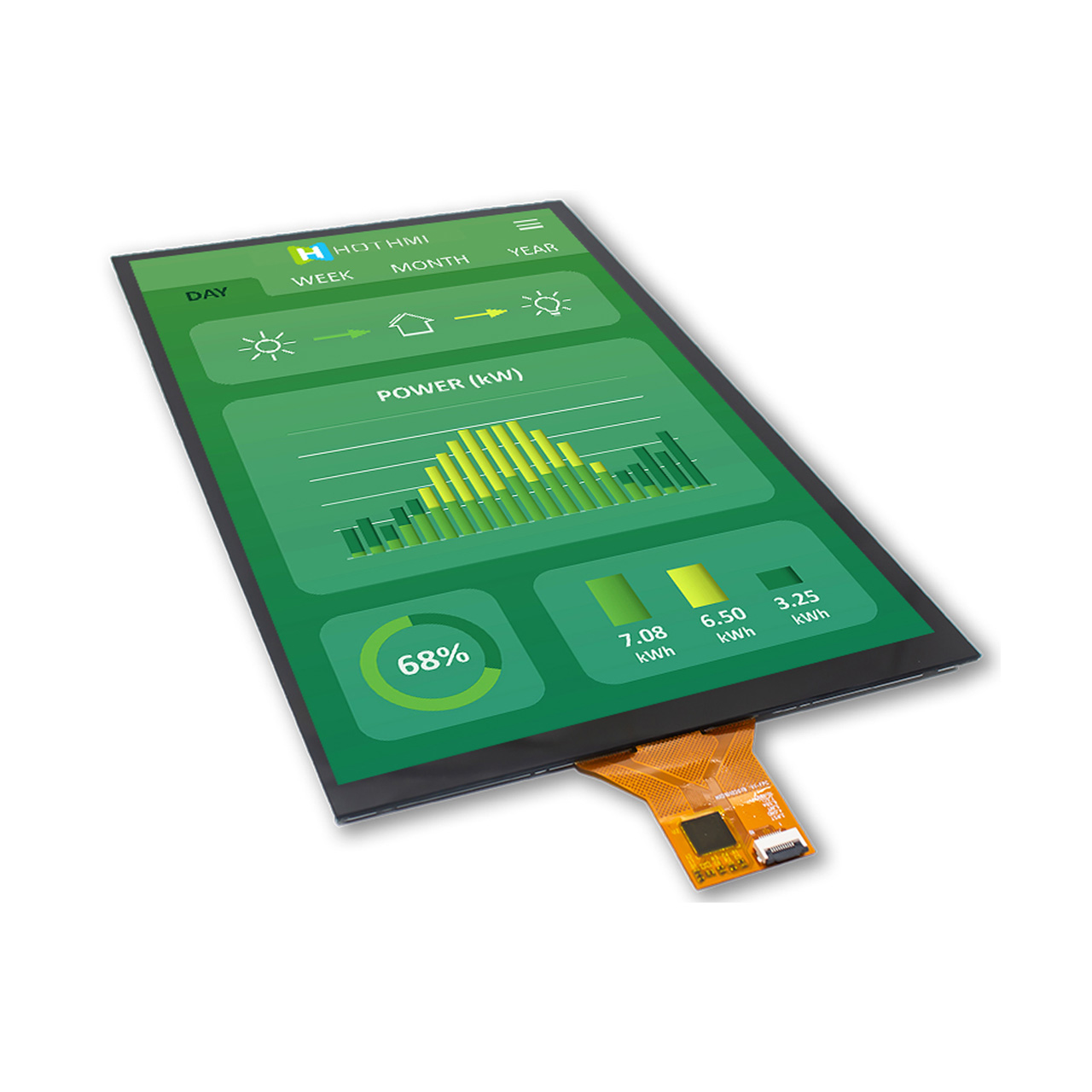

I. Product Overview of High Brightness TFT LCD Display

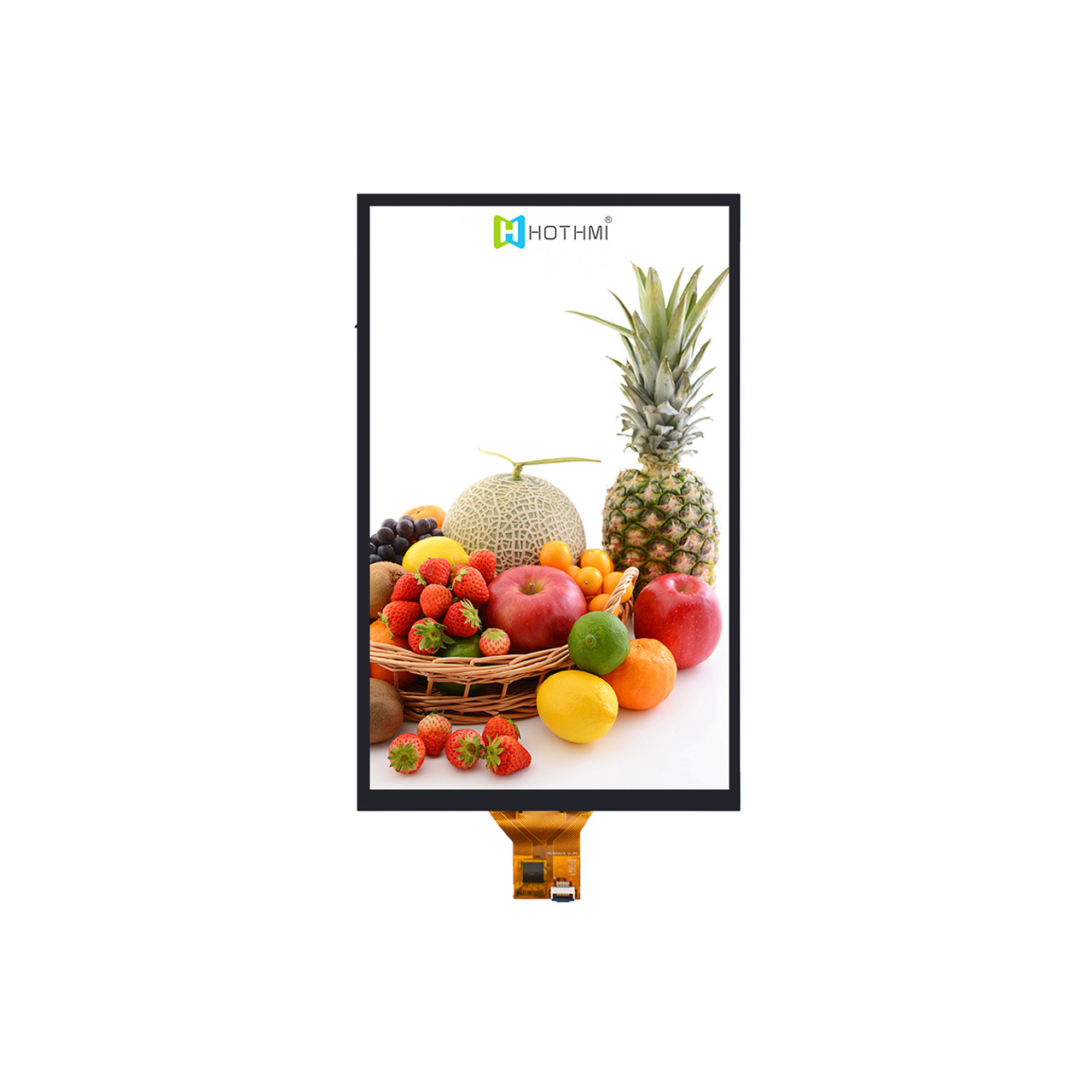

The 10.1-inch industrial-grade High Brightness TFT LCD Display (model: TFT-H101A19HDINV5N40) from HOTHMI is engineered for demanding industrial display applications. This module adopts advanced normally black display technology, delivering a high-definition resolution of 800(RGB) x 1280 pixels for finely detailed images, and supports 56% NTSC color saturation to ensure accurate color reproduction. With a screen brightness of 500±100 cd/m² and full viewing angles of U80/D80/R80/L80, it provides clear and bright visual performance under various indoor lighting conditions and from multiple viewing angles.

In terms of core hardware and electrical design, the product integrates the NV3051F driver chip, utilizes a standard 8-bit VESA-format LVDS interface for high-speed, low-power data transmission, and employs a 40-pin rear-lock FPC insertion structure for secure and reliable signal connection. The High Brightness TFT LCD Display module operates at a standard voltage of 3.3±0.3V, with backlight driving conditions of Vf = 18.0±1.0V and If = 180 mA, balancing excellent energy efficiency.

Additionally, the module demonstrates strong environmental adaptability, with a wide operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, ensuring stable operation in harsh industrial environments. Its slim and compact form factor features a LCD glass thickness of just 2.67±0.2mm and a maximum overall thickness of 6.22mm Max, making it ideal for space-constrained, highly integrated terminals such as smart hardware, automotive dashboards, medical equipment, and industrial control panels.

II. Core Product Highlights

• High Brightness and Ambient Light Readability
  As a product positioned as a High Brightness TFT LCD Display, this module achieves a brightness of 500±100 cd/m², coupled with a constant-current drive design that delivers uniform, stable, and flicker-free backlighting. In industrial workshops, semi-outdoor installations, or high-brightness office environments, the screen content remains clearly legible, effectively avoiding the dimming and color fading issues common in conventional low-brightness screens.
• IPS Full Viewing Angle and Vivid Color Performance
  The High Brightness TFT LCD Display module offers ultra-wide viewing angles of U80/D80/R80/L80. No matter from which angle operators view the screen, the image suffers no color distortion or inversion. Meanwhile, the 56% NTSC color gamut ensures that UI interfaces, icons, and alarm indicators appear richer and more detailed.
• Energy-Efficient NV3051F Driver and Stable LVDS Interface
  The built-in NV3051F driver IC provides excellent graphics processing and GOA/GIP gate-driving capabilities. Combined with the standard 8-bit LVDS interface, it transmits large volumes of high-definition video data using minimal physical signal lines. This not only significantly reduces electromagnetic interference but also ensures signal integrity over longer distances in industrial environments.

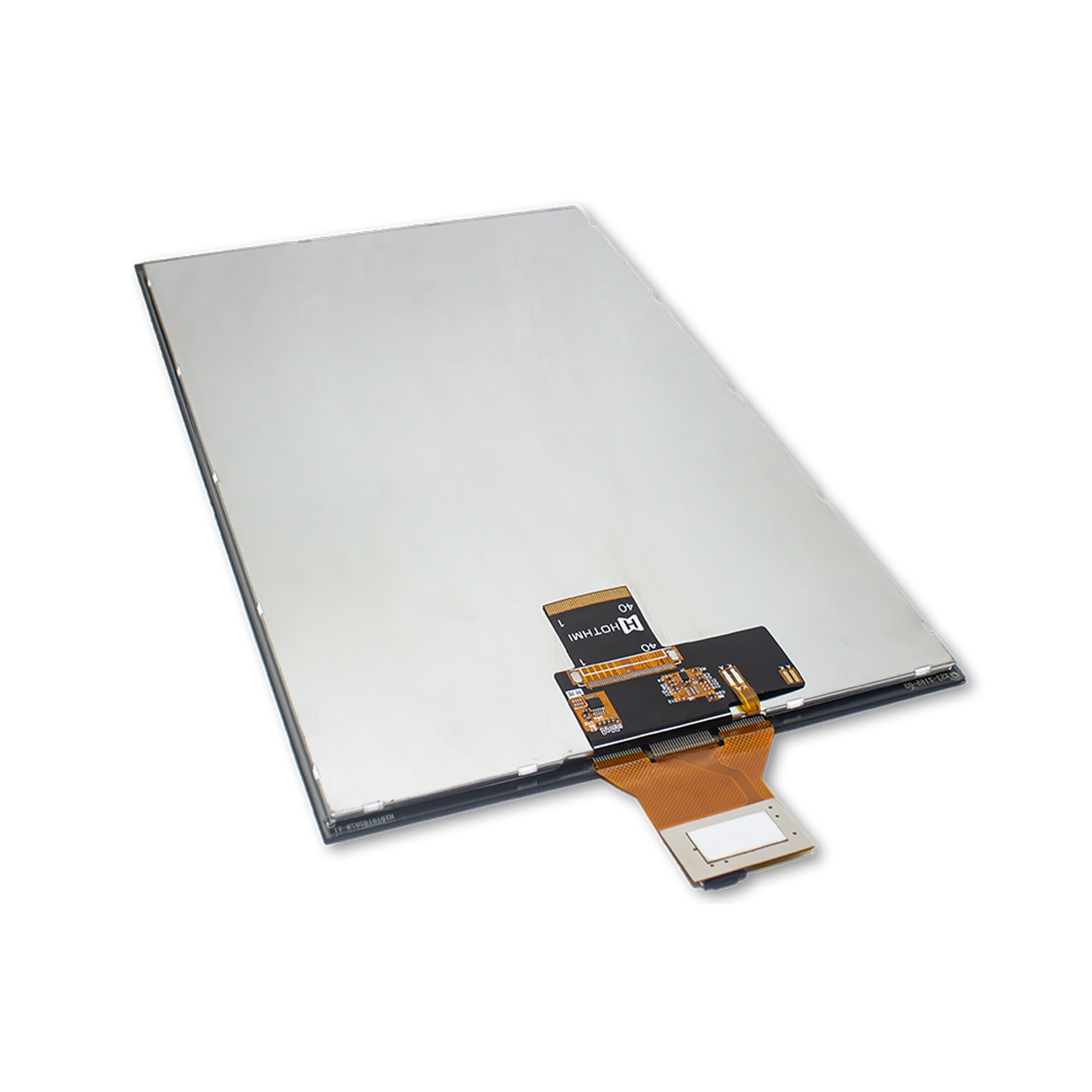

• Ultra-Slim and Robust Mechanical Design

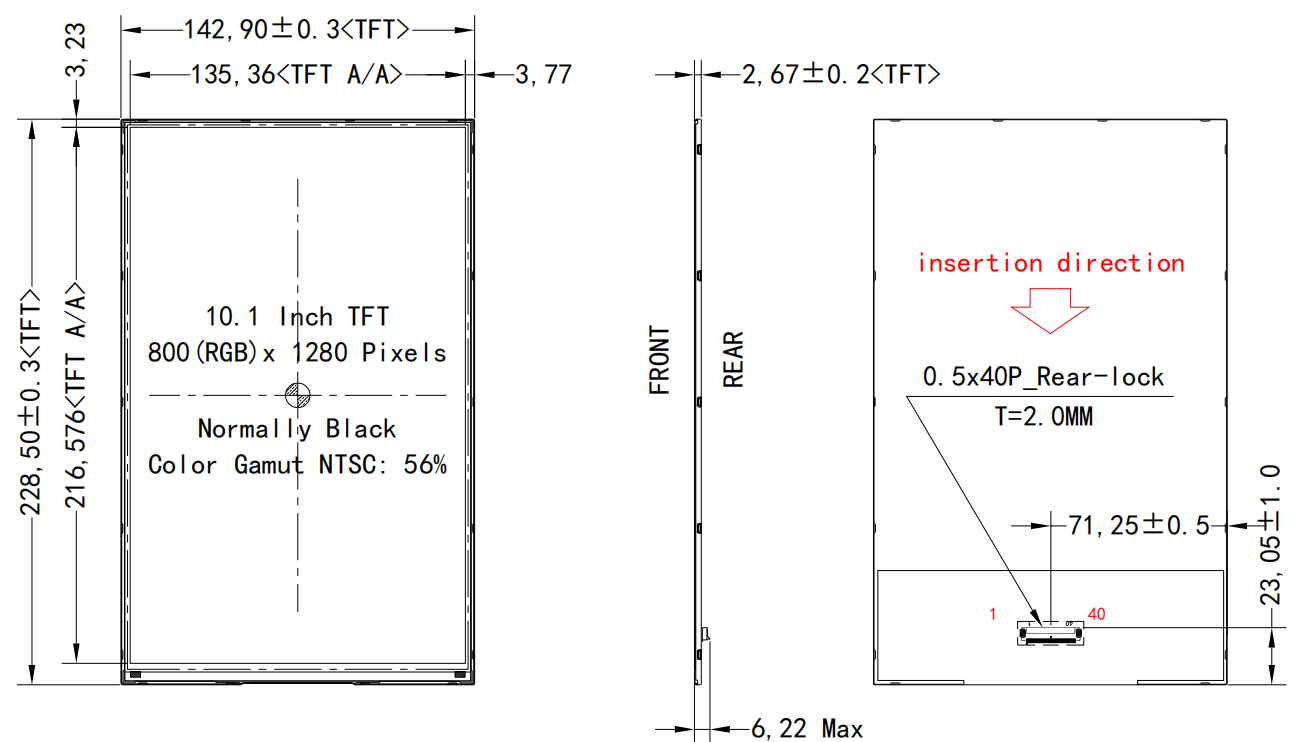

  Despite featuring a large 10.1-inch display area (active area: 135.36 × 216.576 mm), the module benefits from an ultra-narrow bezel and ultra-thin glass technology, with a liquid crystal layer thickness of only 2.67±0.2 mm and a maximum total thickness (including backlight assembly) strictly controlled at 6.22 mm Max. This leaves ample internal space for heat dissipation and routing in highly integrated, lightweight handheld and embedded devices.
• Rugged Wide-Temperature Industrial Durability
  Engineered for 24/7 unattended operation in harsh industrial environments, this High Brightness TFT LCD Display module operates stably across a wide temperature range of -20°C to +70°C and can be safely stored between -30°C and +80°C. Whether in cold northern industrial sites or in enclosed southern high-temperature electrical cabinets, it withstands extreme temperature fluctuations and delivers consistent, reliable performance.

III. Pin Configuration

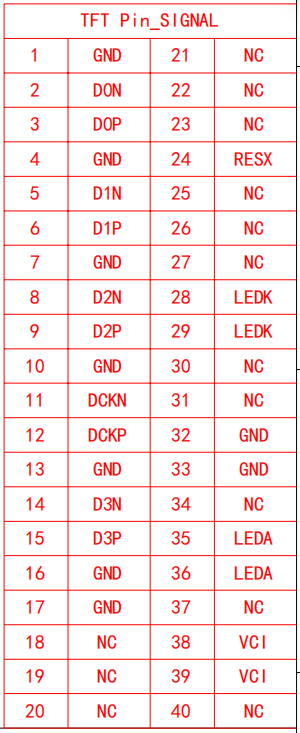

This 10.1-inch High Brightness TFT LCD Display features a 40-pin (0.5mm pitch), rear-lock FPC interface.

IV. Industry Applications

Leveraging its industrial-grade reliability and outstanding display quality, this 10.1-inch High Brightness TFT LCD Display is widely used in the following vertical industries:

• Industrial Control HMIs: Central electrical cabinets in factories, CNC machine tools, and industrial automation line control terminals.
• Smart IoT Terminals: Smart home central control panels, smart agriculture monitoring terminals, and environmental monitoring displays.
• Medical Instrument Displays: Hospital multiparameter patient monitors, portable diagnostic devices, and main operation screens for analytical instruments.
• Commercial Vehicle and Transportation Displays: Dashboard displays for construction vehicles and agricultural machinery control screens.
• Self-Service Kiosks: Smart lockers, retail POS systems in mild outdoor or high-brightness environments, and interactive query machines.

V. Technical FAQ of High Brightness TFT LCD Display

Q1: How should the power supply and backlight drive circuit be designed for this screen?

A1:Digital logic power supply: Pins 38 and 39 (VCI) require a standard regulated power supply of 3.3±0.3V.

Backlight drive power supply: Pins 35 and 36 (LEDA) and pins 28 and 29 (LEDK) connect to the internal constant-current backlight network. The backlight driver must use a constant-current source, with a design standard of a constant output current If = 180 mA and a driving voltage range of Vf = 18.0±1.0V. Do not apply a direct voltage source, as this may damage the backlight LEDs or cause uneven brightness.

Q2: Why does this 10.1-inch High Brightness TFT LCD Display use an LVDS interface instead of a conventional RGB interface?

A2: For a high-resolution industrial screen like 800×1280, a traditional parallel RGB interface would require up to 30-40 data lines, resulting in an extremely wide FPC and significant susceptibility to crosstalk and image jitter.
In contrast, the 8-bit LVDS (Low-Voltage Differential Signaling) interface transmits data via differential pairs, requiring only 4 data lanes and 1 clock lane to achieve high-speed transmission. It offers superior noise immunity, low power consumption, and minimal electromagnetic radiation, making it the most robust interface solution for industrial mid- to large-size screens.
