Description
I. Product Detailed Introduction

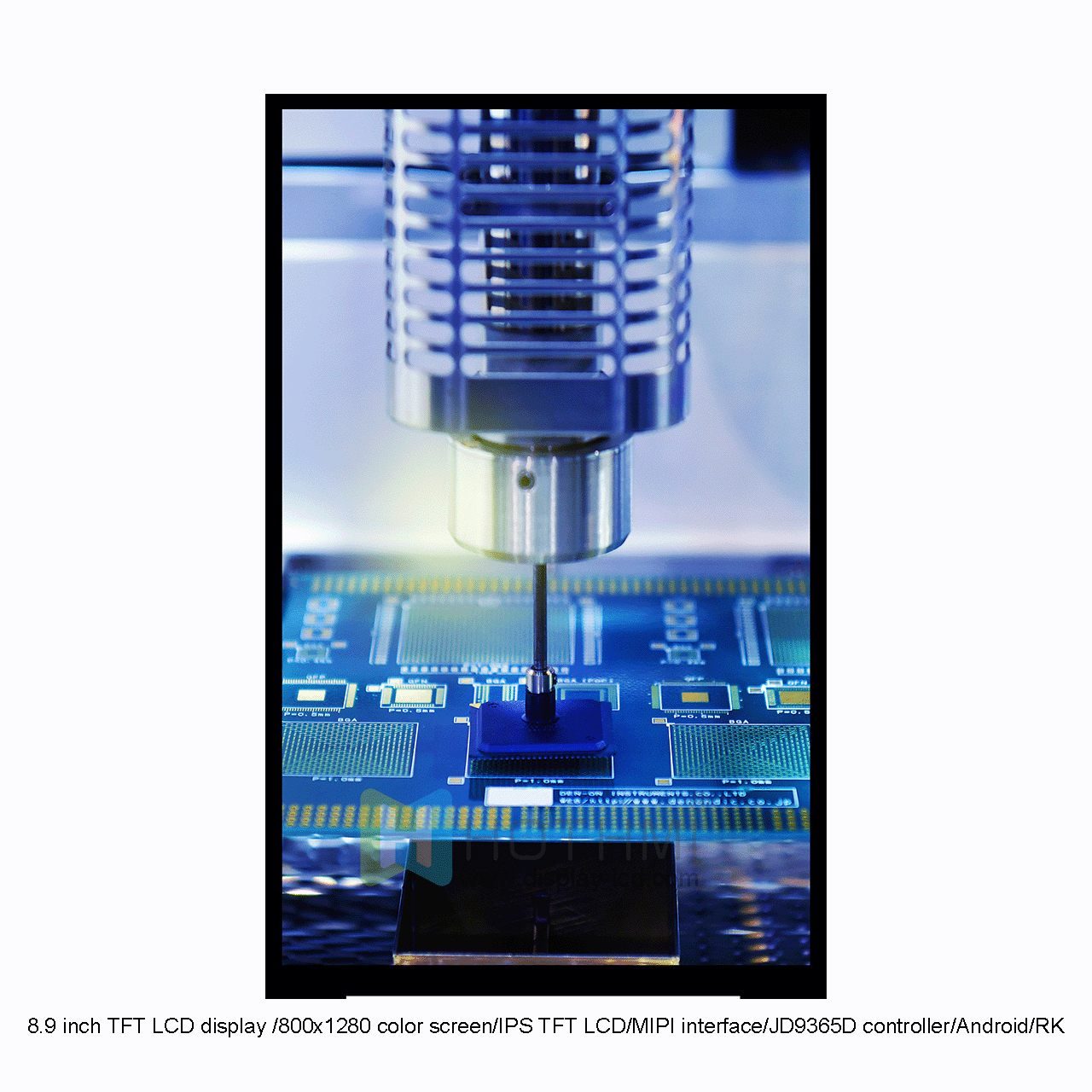

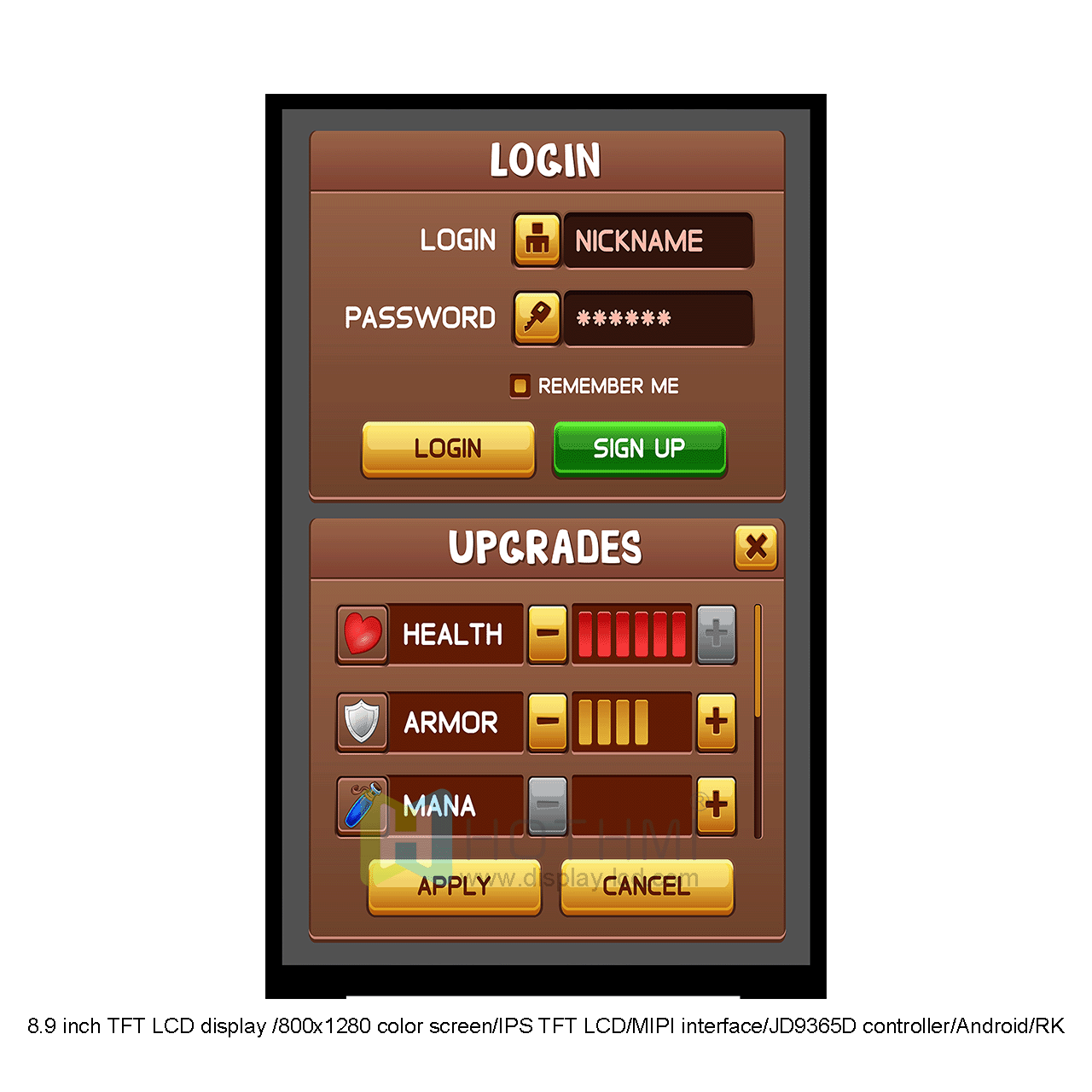

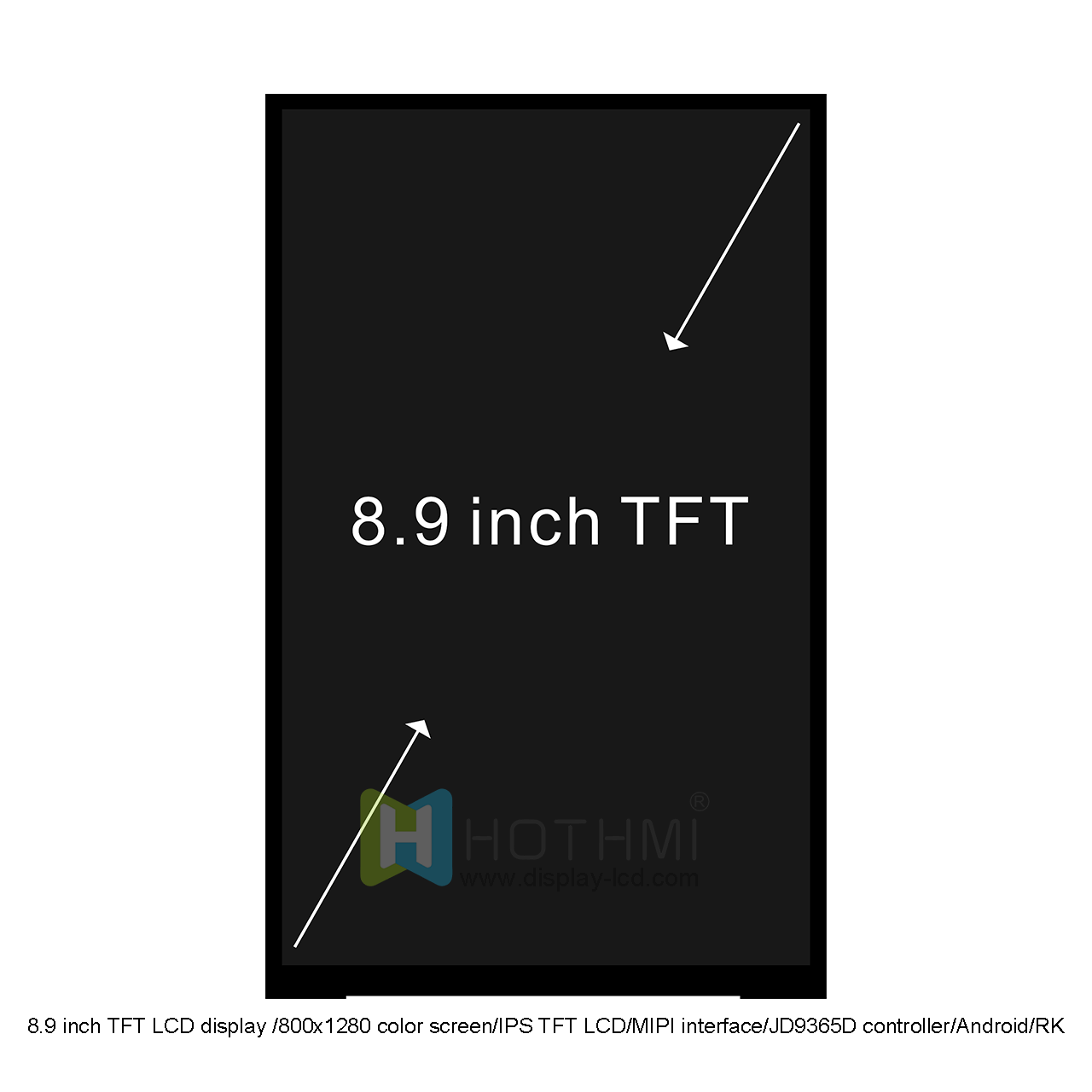

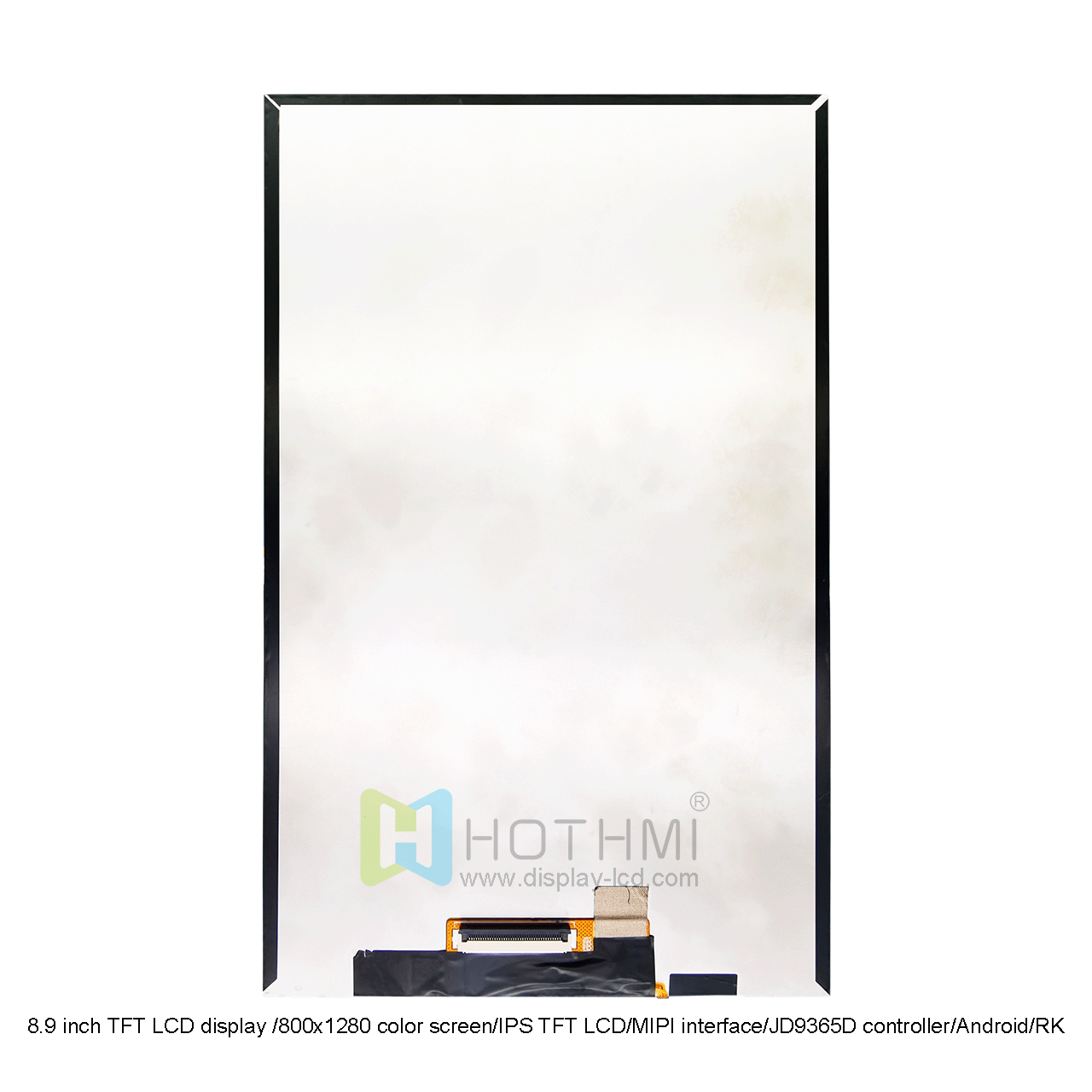

The model TFT-H089A1WXIFT5N40 is an 8.9-inch industrial-grade high-image-quality TFT liquid crystal display module. Its core highlight lies in the integration of advanced IPS Screen technology, delivering a true full-viewing-angle visual experience. It features a high-performance JD9365D driver IC, combined with 800×1280 high-definition resolution and a high-bandwidth MIPI 4-Lane interface, perfectly reproducing 16.7M true-color details. In terms of display performance, it is equipped with a backlight system composed of 30 high-brightness white LEDs, providing a typical luminance of up to 500 cd/m², ensuring clear and readable images even in brightly lit indoor environments.

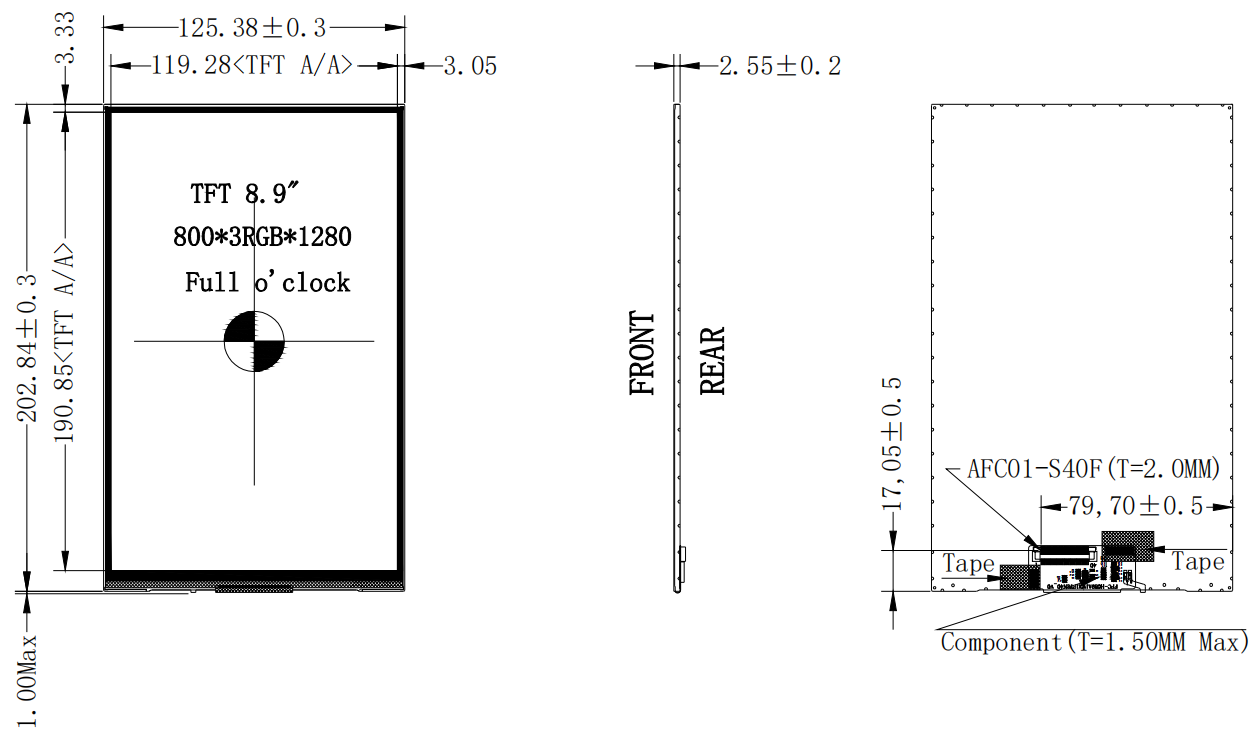

The backlight operates at a typical voltage range of 13.5V to 17.0V with a constant current of 120mA, balancing high brightness with excellent energy efficiency. The overall module dimensions are approximately 125.38mm × 202.84mm, with a thickness of only about 2.55mm, making its slim industrial design highly convenient for structural integration and assembly. To meet stringent industrial application requirements, this IPS Screen module features a wide operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, making it suitable for a wide array of applications including automotive displays, high-end medical equipment, industrial automation, smart home devices, and various handheld portable terminals.
II. Core Product Highlights of IPS Screen
Full-Viewing-Angle IPS Screen Technology – No More Blind Spots
Conventional TN panels are prone to color inversion and grayscale reversal when viewed from off-angles. This module employs IPS Screen technology to achieve a free viewing angle of over 80° in all directions (up, down, left, and right). Regardless of the operator’s position relative to the device, they can capture distortion-free, high-contrast, and color-accurate images, making this module ideal for industrial control consoles that require collaborative multi-angle observation.
500 cd/m² High-Brightness Backlight for Strong Environmental Adaptability
The IPS Screen module incorporates a matrix backlight unit featuring 30 high-performance white LEDs, paired with a long-life light-guide structure to deliver an industrial-grade brightness of 500 cd/m². The backlight operates at a typical voltage of 13.5V to 17.0V and a rated driving current of 120mA. This high brightness ensures that screen content remains sharp and clear even in bright hospital operating rooms, high-illumination factory workshops, or semi-outdoor smart terminals.
High-Bandwidth MIPI 4-Lane Interface for Rapid Response
Equipped with a 4-lane MIPI differential signal interface, this module offers significant advantages over traditional RGB interfaces when transmitting 800×1280@60Hz high-frame-rate images, including superior electromagnetic interference immunity, fewer pins, and ultra-low power consumption. It seamlessly pairs with Android, Linux, and various embedded core boards powered by mainstream processors such as Allwinner, Rockchip (RK), and NXP.
Industrial-Grade Reliability Protection: Wide Temperature Range & High ESD Tolerance
The hardware circuitry is designed from the ground up with anti-interference logic, supporting electrostatic discharge protection up to 8KV. This significantly reduces the risk of electrostatic breakdown caused by human touch or dry industrial environments. Furthermore, its wide operating temperature range of -20°C to +70°C ensures stable long-term operation in the freezing winters of northern regions as well as the high-temperature environments inside enclosed chassis in southern areas.

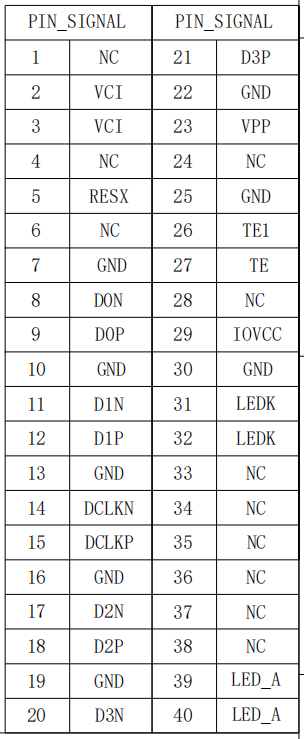

III. 40-PIN Pin Definitions
This product utilizes a 40-PIN flexible printed circuit interface.
IV. Industry Product Application Areas
Leveraging its 8.9-inch optimal size and high-brightness, the IPS Screen is widely adopted in the following vertical display and high-reliability applications:
- Smart Home & Smart Communities: Premium smart central control panels for villas, video intercom indoor units, and complex embedded graphical control panels for smart appliances such as refrigerators and microwave ovens.
- Industrial Automation & Robotics: HMI touch terminals for automated production lines, portable teach pendants for AGVs and industrial robots, and status monitoring screens for CNC machines.
- Medical Instrumentation: Touchscreens for portable ultrasound devices, multi-parameter patient monitors, and analytical instruments. The high-fidelity color reproduction enabled by IPS Screen technology assists medical professionals in more accurately reading charts and data.
- Automotive & Intelligent Transportation: Human-machine interface screens for EV charging stations, commercial vehicle vertical center displays, and multimedia information and control systems for elevators.
- Office Automation & IoT: High-end access control and attendance terminals, large-format control panels for multifunction printers, and rugged handheld tablets for warehouse logistics.
V. Technical FAQ of IPS Screen
Q1: What is the power supply architecture for the JD9365D driver IC? Can VCI and IOVCC be connected to the same power rail?
A1: It is not recommended to connect them directly to the same power source. Internally, the JD9365D uses VCI as the analog circuit supply (standard voltage 2.8V), responsible for driving liquid crystal molecular rotation and internal charge pump boosting; whereas IOVCC serves as the digital interface supply (standard voltage 1.8V), primarily handling MIPI differential signals and I/O logic level transmission.
Reasoning: Most modern host controllers (e.g., Raspberry Pi, Rockchip series) operate their I/O pins at 1.8V logic levels. If IOVCC is directly tied to 2.8V or 3.3V, it may result in overvoltage damage to the host controller’s I/O pins or cause MIPI signal level mismatches that prevent the screen from initializing. It is critical to strictly adhere to an independent dual-power supply design with VCI = 2.8V and IOVCC = 1.8V.
Q2: Does this 8.9-inch IPS screen support touch functionality? How can touch be added if needed?
A2: The standard version of this model (TFT-H089A1WXIFT5N40) is a pure display panel without touch functionality. HOTHMI offers customization services to incorporate touch features upon request. When collaborating with you on a custom touch display design, we will provide data-driven recommendations and dedicated support throughout the process.Please feel free to contact us should you have any requirements.
