18.5″ Industrial Panel Monitor with Capacitive Touch

Detailed Product Introduction: 18.5 Inch Industrial Panel Monitor

In the era of Industry 4.0 and smart manufacturing, the Industrial Panel Monitor has become the cornerstone of human-machine interaction. The TFT-H185E01FHIYZ8C30 is a high-performance 18.5-inch Full HD (FHD) display module engineered specifically for demanding environments. Featuring 1920 x 1080 resolution and integrated Projected Capacitive Touch (CTP) technology, this module provides a seamless touch experience via a robust USB interface.

Utilizing Normally Black mode technology, the Industrial Panel Monitor ensures exceptional contrast and true-to-life color accuracy across an ultra-wide viewing angle of 89 degrees in all directions (U/D/L/R). This makes it an ideal solution for critical monitoring tasks where visual precision is non-negotiable.

Core Highlights: Why This Industrial Panel Monitor Stands Out

1. High Brightness and Color Accuracy

Visual clarity is paramount in industrial settings. This Industrial Panel Monitor boasts a typical brightness of 850 cd/m2, ensuring excellent legibility even in high-ambient light or semi-outdoor conditions. With a 72 percent NTSC color gamut, it reproduces complex data and images with professional-grade fidelity.

2. Wide Temperature Resilience

Industrial facilities often face extreme thermal fluctuations. This display is designed to operate reliably between -20 degrees Celsius and +60 degrees Celsius, with storage capabilities reaching from -30 degrees Celsius to +70 degrees Celsius. This ensures consistent performance in both cold storage automation and high-heat processing plants.

3. Versatile Connectivity: LVDS and USB

To simplify the integration process for engineers, the Industrial Panel Monitor utilizes a 48-bit LVDS interface for high-speed image data transmission. The touch functionality is handled separately through a plug-and-play USB connection, significantly reducing development time for custom HMI systems.

4. Built-in Image Retention Protection

Addressing the common industrial challenge of static UI burnout, this module features optimized circuitry. The technical documentation recommends specific refresh cycles and the use of screen savers to prevent image retention, effectively extending the lifespan of the panel in 24/7 operating environments.

Typical Applications

• Smart Factory HMI: The primary control interface for CNC machinery and automated production lines.
• Medical Imaging Systems: High-definition 1080P output makes it perfect for ultrasound displays and surgical monitors.
• Self-Service Kiosks: The 18.5-inch form factor is the industry standard for government service terminals, ATMs, and smart lockers.
• Transportation Control Centers: Wide viewing angles allow multiple operators to view critical data simultaneously without color shift.
• Outdoor Digital Signage: High-nit output ensures the screen remains readable under direct sunlight.

Technical Q&A for System Integrators

Q1: Why does this Industrial Panel Monitor require specific refresh intervals for Normally Black panels?

A: Normally Black panels provide superior contrast but can be susceptible to image retention if a static image is displayed for too long. To maintain optimal performance, it is recommended to refresh the screen content or use a moving screen saver every 2 minutes. This is a proactive measure to ensure long-term liquid crystal stability in industrial HMI applications.

Q2: How does the CTP perform in environments with high electromagnetic interference (EMI)?

A: The module is equipped with the ILI2510 touch driver chip, renowned for its high signal-to-noise ratio. It is designed to filter out industrial noise from motors or inverters and can accurately detect touch through its 1.1mm cover glass, ensuring reliable operation in electrically noisy environments.

Q3: What are the mechanical mounting options for this display?

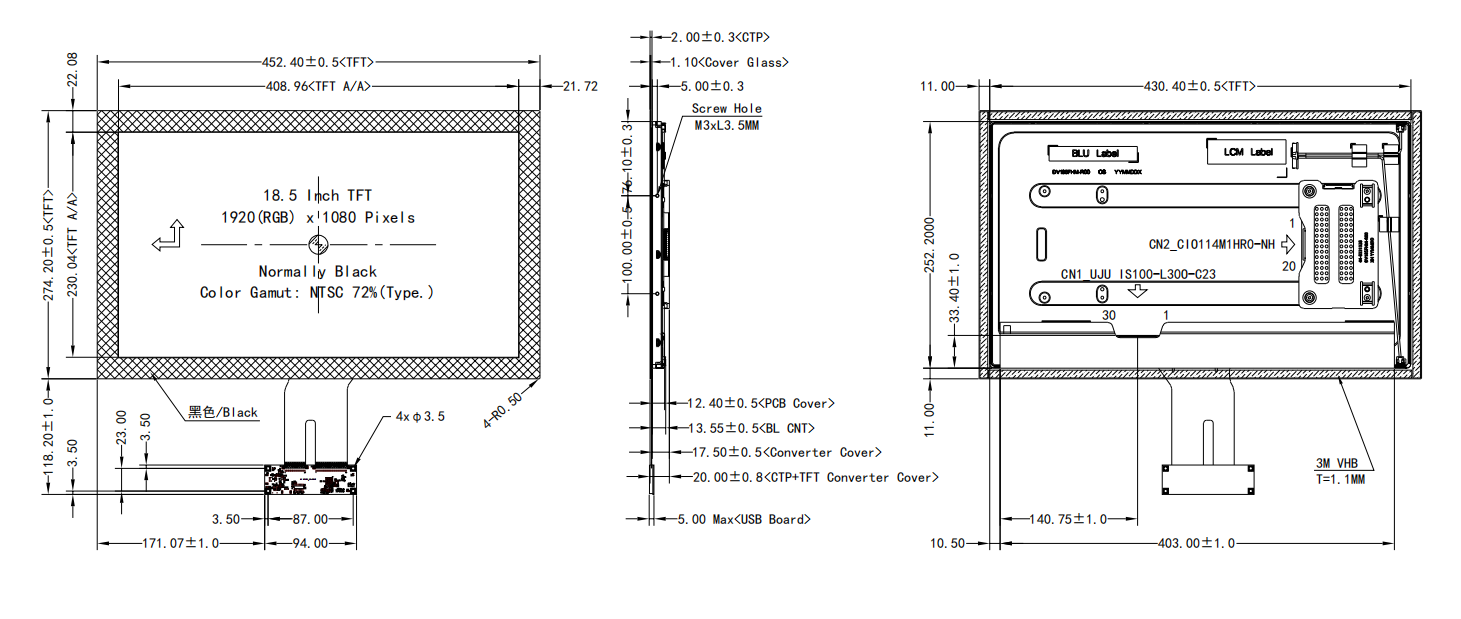

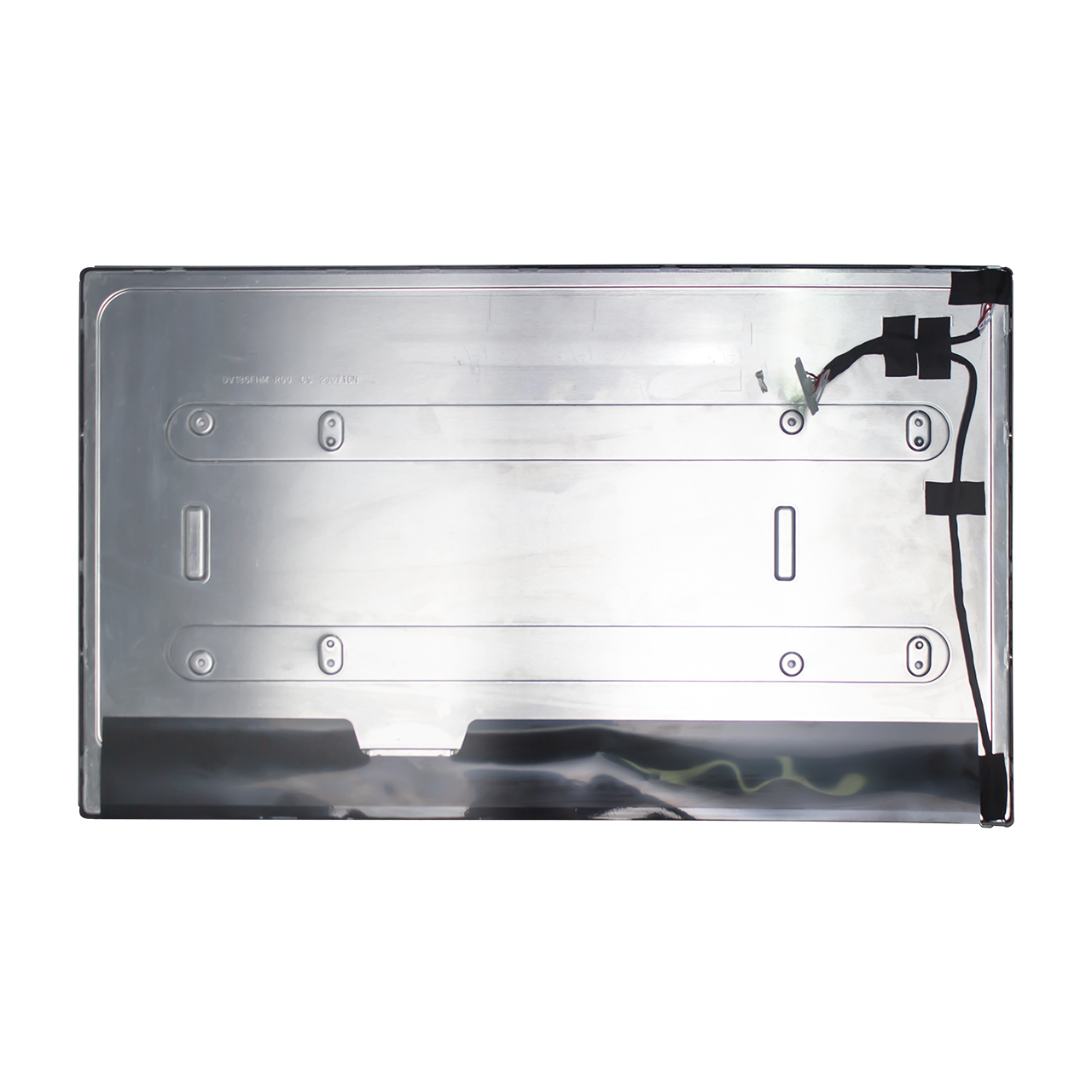

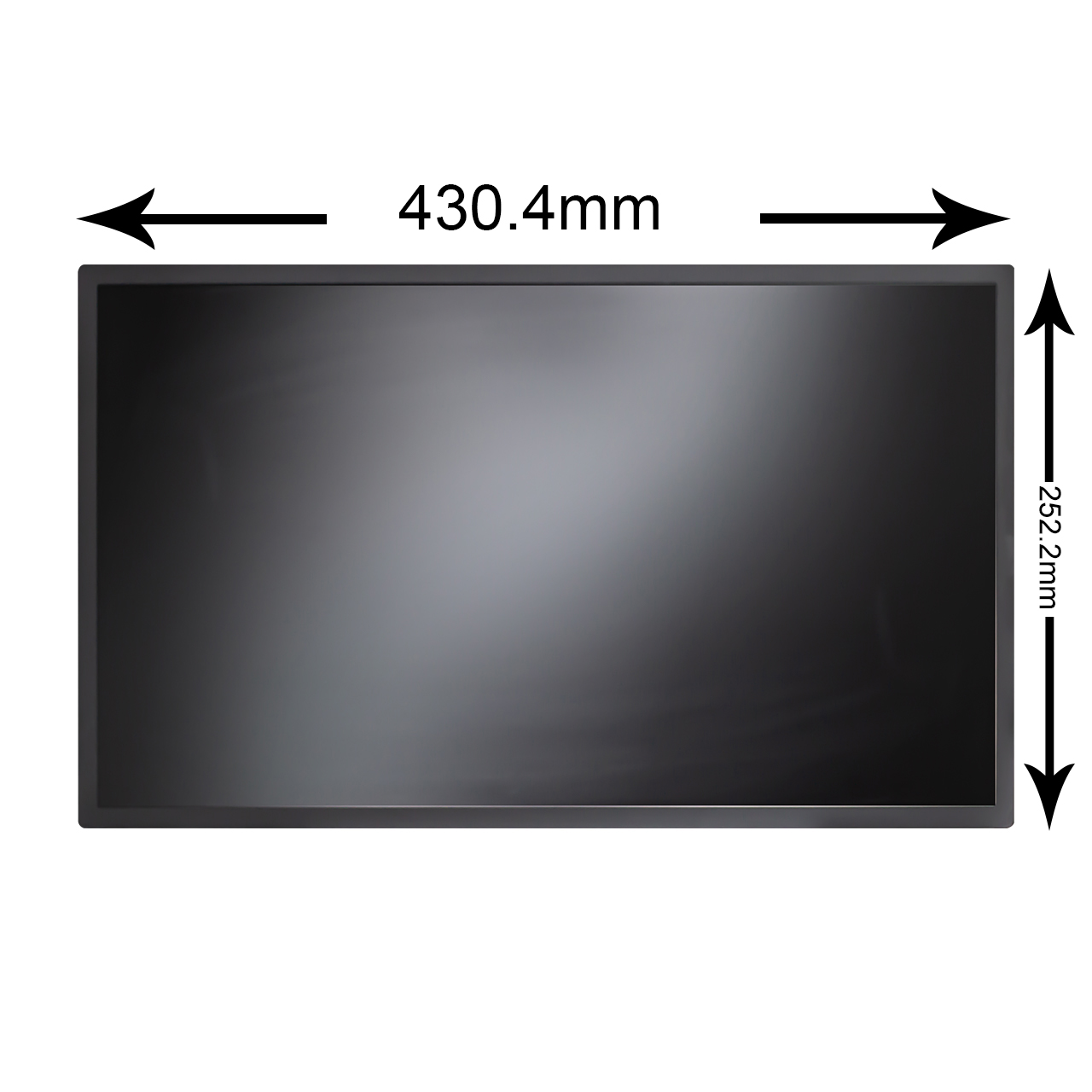

A: The design includes four 3.5mm diameter screw holes and M3xL3.5mm bracket mounting points on the rear. With a slim profile of only 20.00mm, it allows for flush-mount or VESA-style integration into compact enclosures without sacrificing durability.

Q4: What are the cabling requirements for signal integrity?

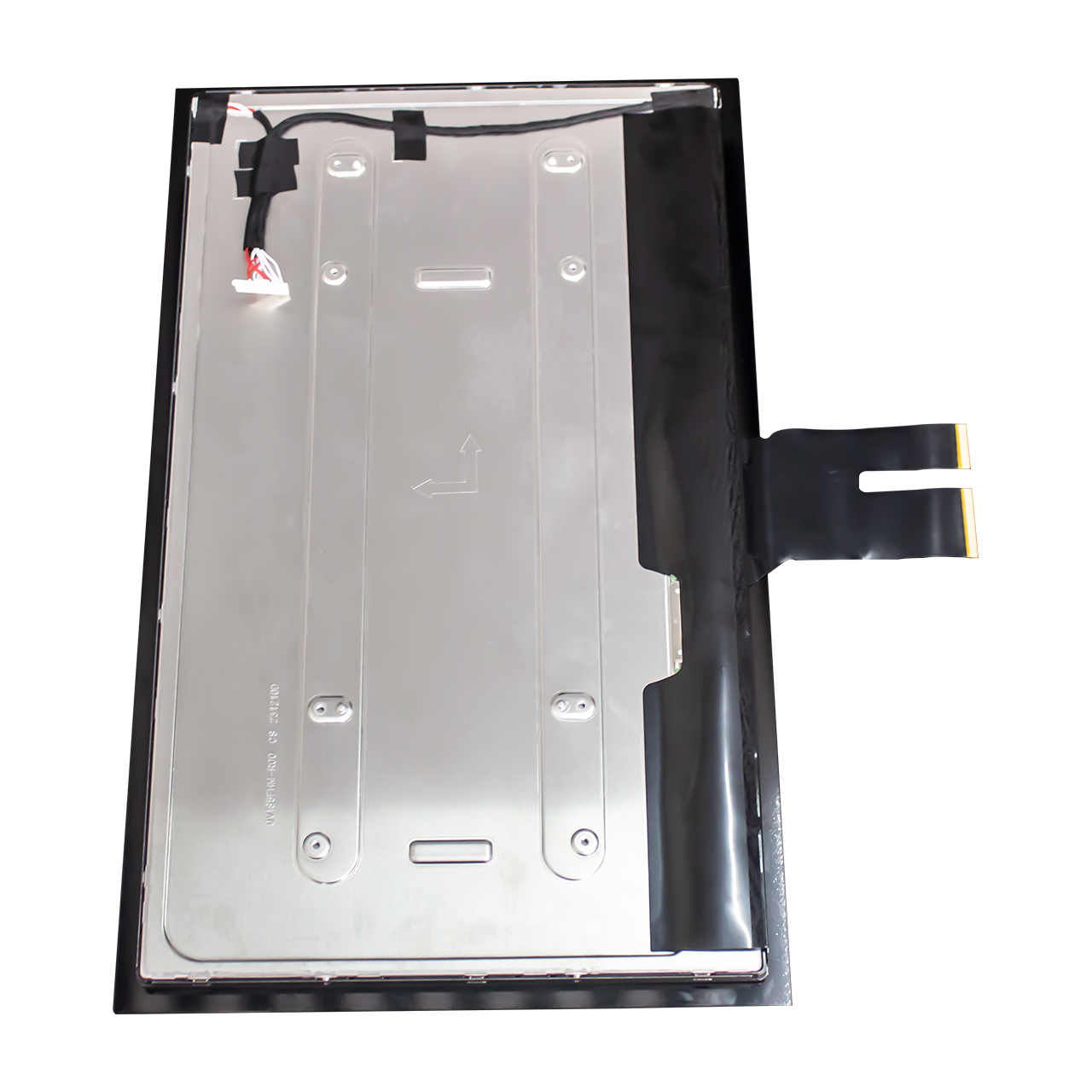

A: The module utilizes two main connectors: CN1 (30 Pin) for LVDS and logic power, and CN2 (14 Pin) for backlight power. For the best performance, the CN1 input cable should be kept under 500mm, and the CN2 backlight cable should be less than 300mm to prevent signal degradation and maintain EMI compliance.
